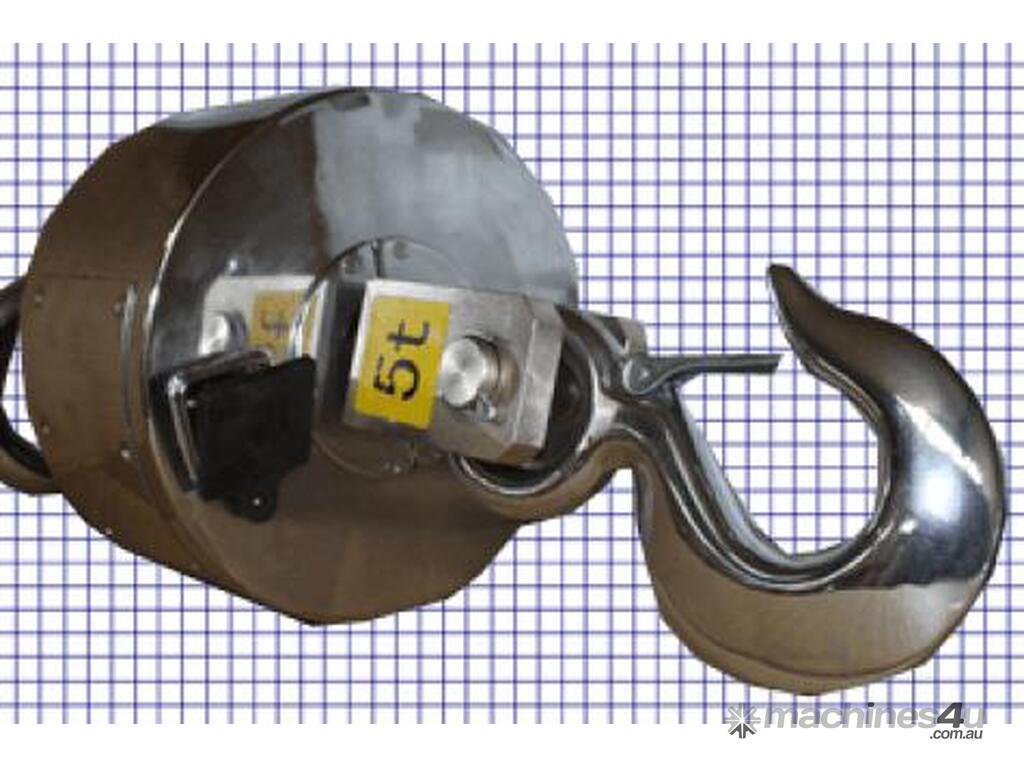

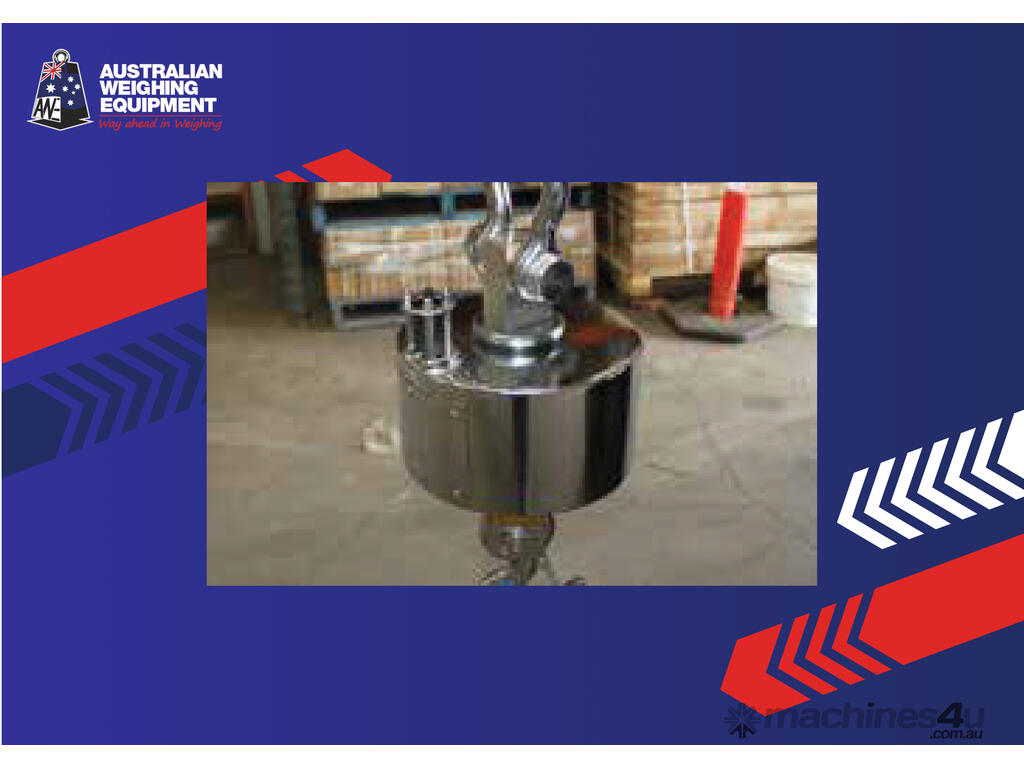

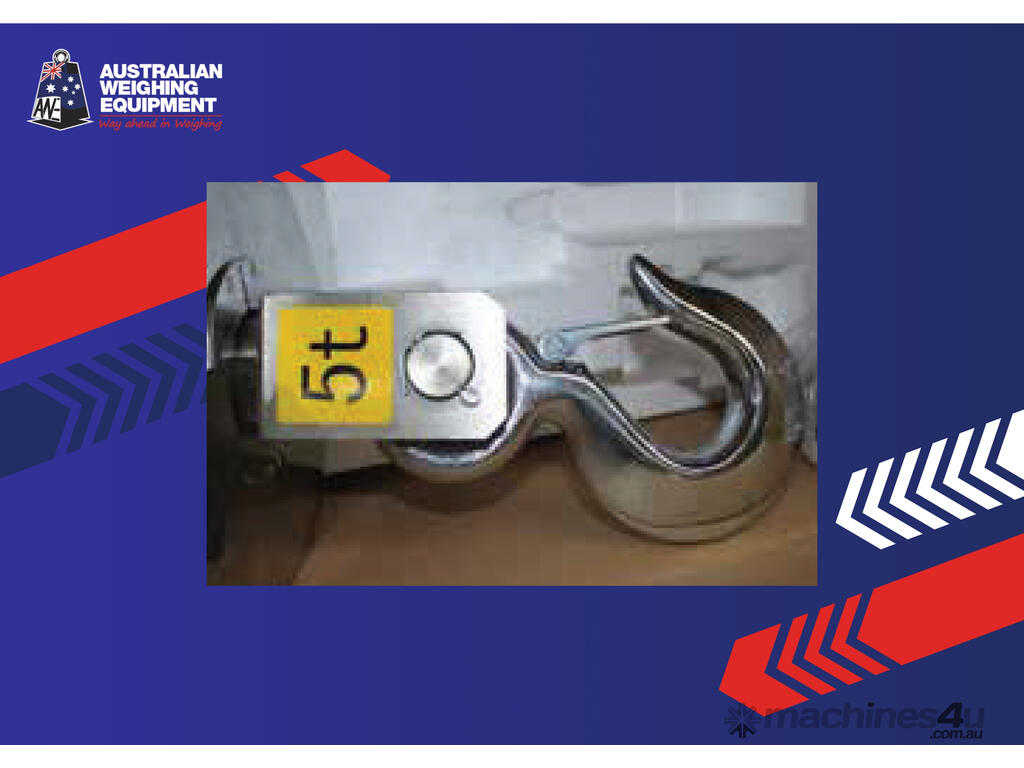

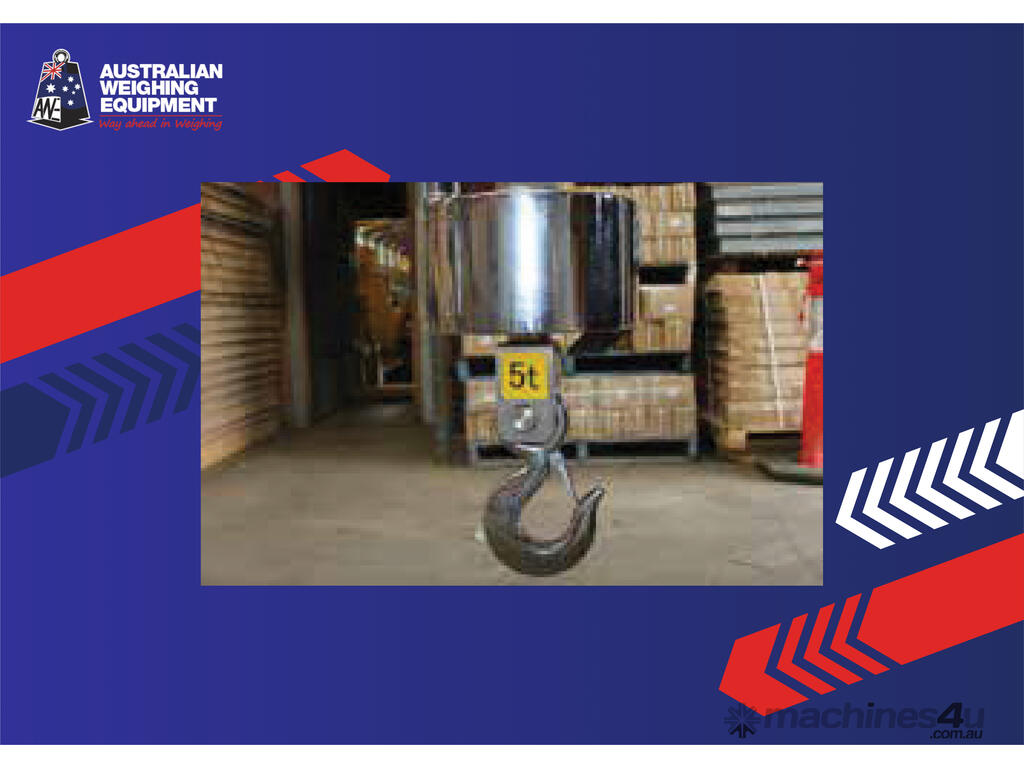

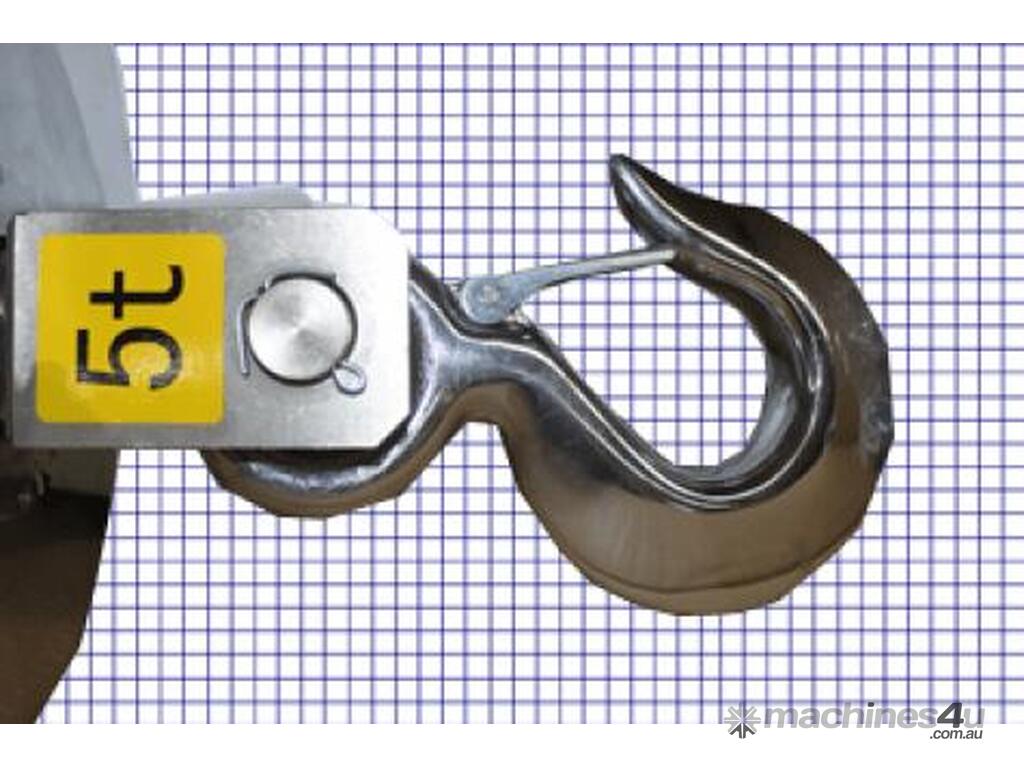

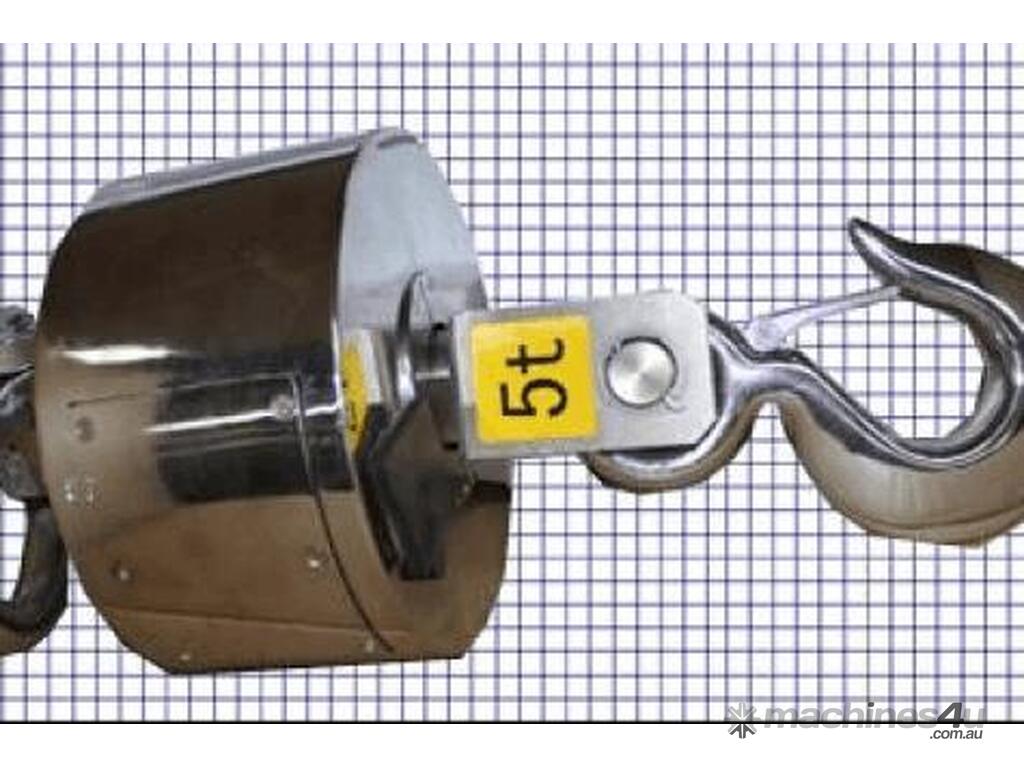

Crane Scale: Hang Glider Series 2 - Up to 15 Tonne

Hang Glider Series 2 Key Features:

Capacities from 5t to 15t
Application: 1. Change weighing unit 2. Reading lock 3. Change division
SGS 500% safety approval
Battery provides up to 60 hours of continuous use
RS-232
Wireless communication distance 50~100m(depending on the enviroment)

Display 22mm large LCD display(TR-I),15mm digits high LCD display (TR-II)
Capacities 3t-30t
Keyboard 6keys Mechanical switch(TR-I), 60 keys mechanical switch (TR-II)
Housing Steel housing coating with Sn and ABS indicator
Max. Divisions 3,000d
ADC Sigma Delta
ADC update ?1/10 second
Operating Temperature 0?C~+40?C
Power Crane scale: rechargeable battery 6V/4Ah;
Indicator (TR-I): NI-MH Battery
(1.2V/2000mAhx6) 700 ± 5
Indicator (TR-II): 100VAC to 250VAC
(switching power) ? 5000M ?
Excitation Voltage 10V(DC/AC)
Compensated Temperature Range -10°C to +50°C
-10°C to +50°C
Operating Temperature Range -20°C to +60°C
Safe Overload 120%FS
Cable ?5.4mx12m
Cable Colour Code Input: Red (+) Black (-)Output:
Green (+) White (-)
