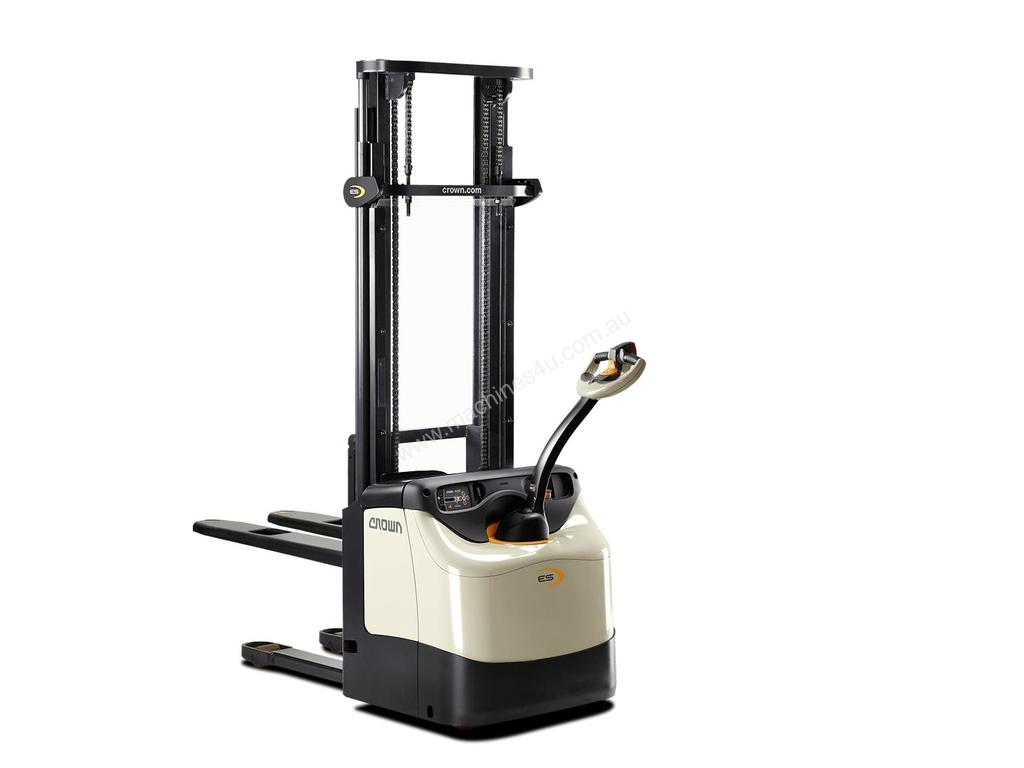

Crown ES Series-Initial Stacker Forklift

The ESi Series pedestrian stacker with the initial lift option provides higher ground clearance for use on inclines or uneven surfaces.

Load Capacity
1200 - 1600 kg

Max Lift Height
5400 mm

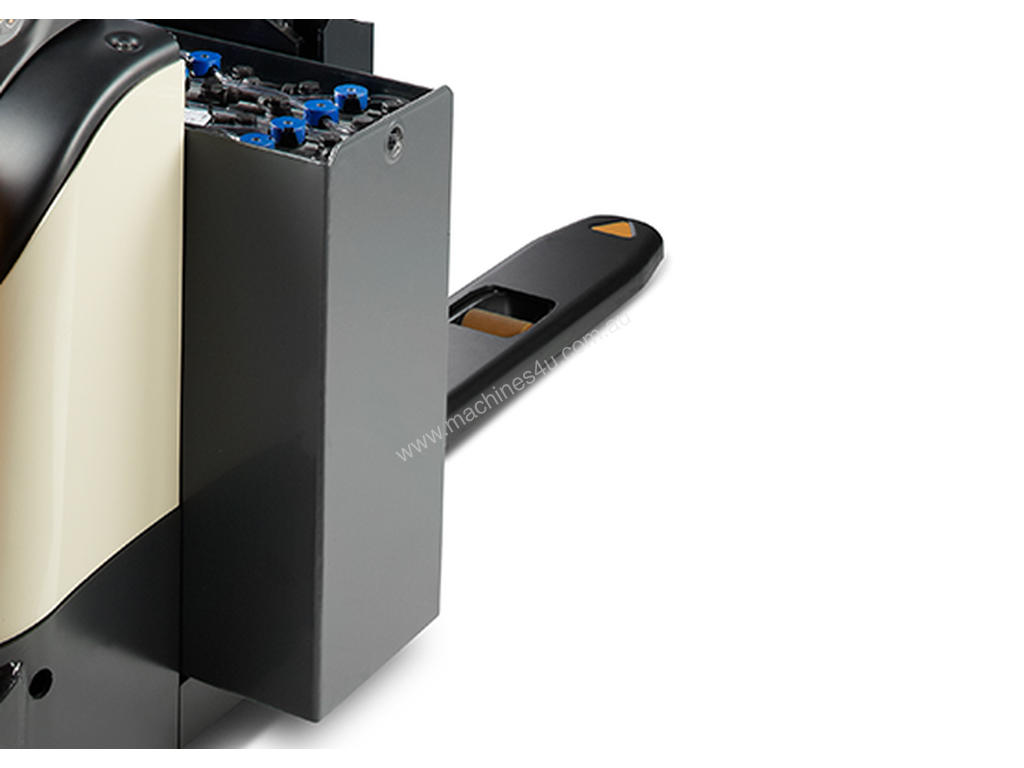

Power (Electric)
24 V / 250 - 375 Ah

Head Length
874 - 929 mm

Width Overall
800 mm

Fork Length
1200 mm

Precision and Strength in Small Spaces
The Crown ES Series stacker delivers powerful performance, responsive control, excellent manoeuvrability and visibility so operators can work safely and productively in small spaces.

Robust and Powerful
With the ES Series, strength is apparent on the inside and out. Its components and structures are engineered for maximum power and endurance.

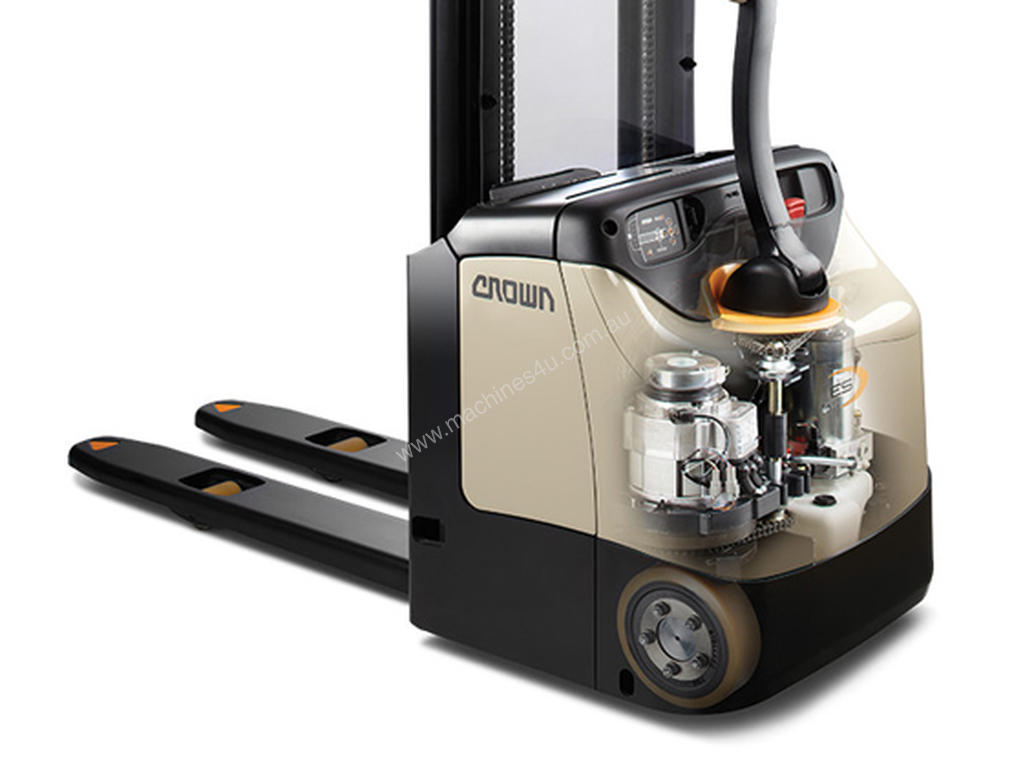

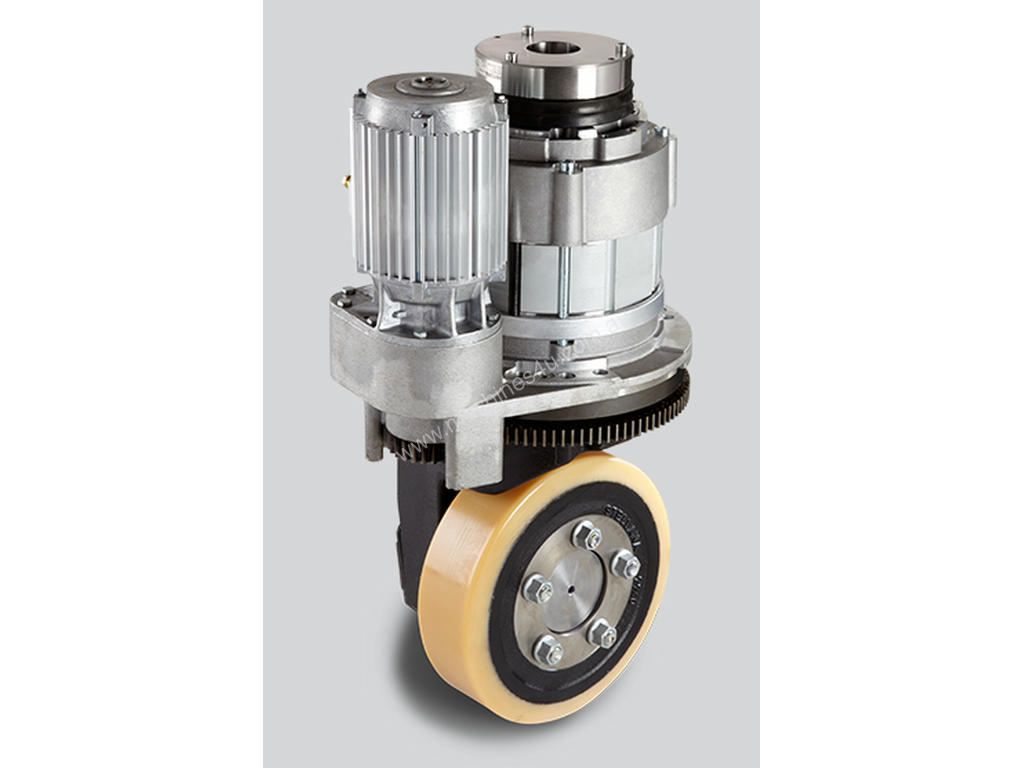

The drive unit features a Crown-built AC traction motor and heavy-duty cast iron gearbox to handle the heaviest loads. A formed steel tiller arm with die-cast aluminum control handle ensures long life in the toughest environments.

The rugged power unit features a thick steel skirt and removable steel covers. The mast features nested I-beam construction and thick steel cross bars.

Superior Handling and Performance
Responsive traction control and the narrow chassis simplify manoeuvring in confined spaces, even with heavy loads. Precise proportional lift and lower functions optimise load handling at heights up to 5400 mm.

The brake-override function allows operation in the creep speed mode with the handle position nearly vertical for precise maneuvering.

The innovative X10 handle includes a rabbit/turtle switch for two levels of programmable travel performance so operators can quickly select the setting that matches their experience level or specific task.


A Clearly Visible Advantage
The compact ES Series’ superior all-around visibility gives operators greater confidence when working in confined spaces. This significantly improves throughput and promotes safe operation during manoeuvring.

A contoured, low profile power unit, wide-open mast window and fork carriage gives operators a clear view of the fork tips and outriggers. Fork tip indicators provide a quick visual reference to assist operators with fork positioning.

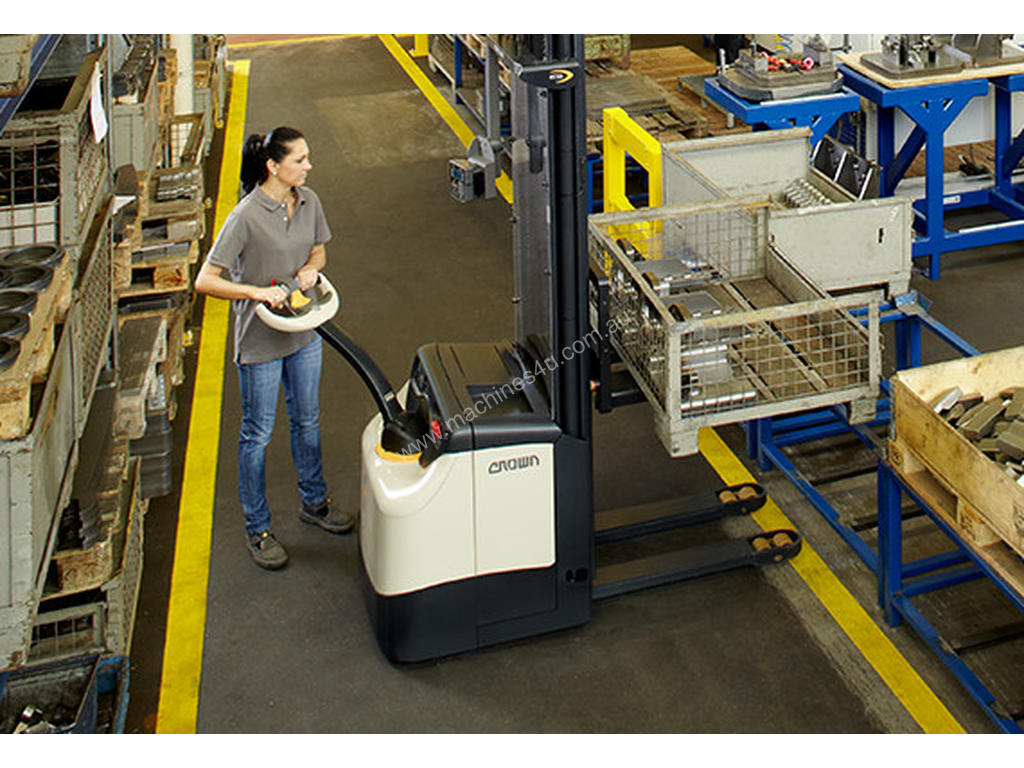

A centre-mounted tiller handle positions the operator at a safe working distance from the power unit and provides maximum visibility to either side of the stacker.


Exceptional Reliability and Lasting Value
Engineered for durability and power, ES Series stackers prove their value with exceptionally long life.

A virtually maintenance free 3-phase AC traction control motor provides strong acceleration and control at any speed.

The e-GEN braking system uses the AC motor to stop the truck, eliminating adjustments and wear points on mechanical brake systems for virtually maintenance-free operation.
