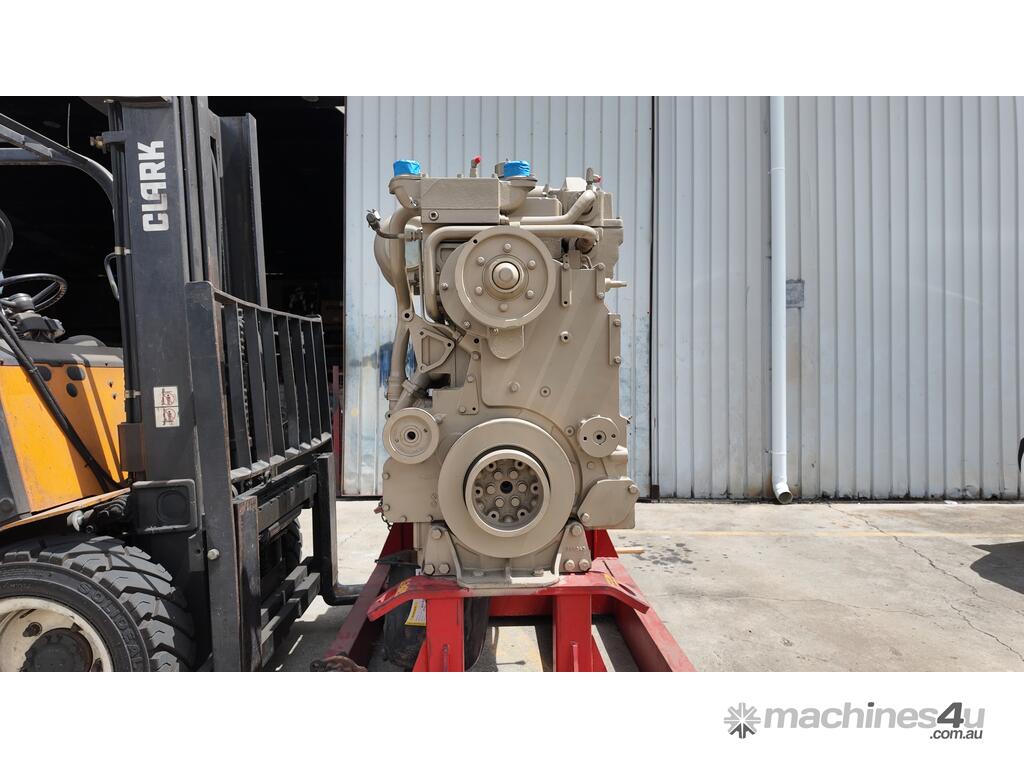

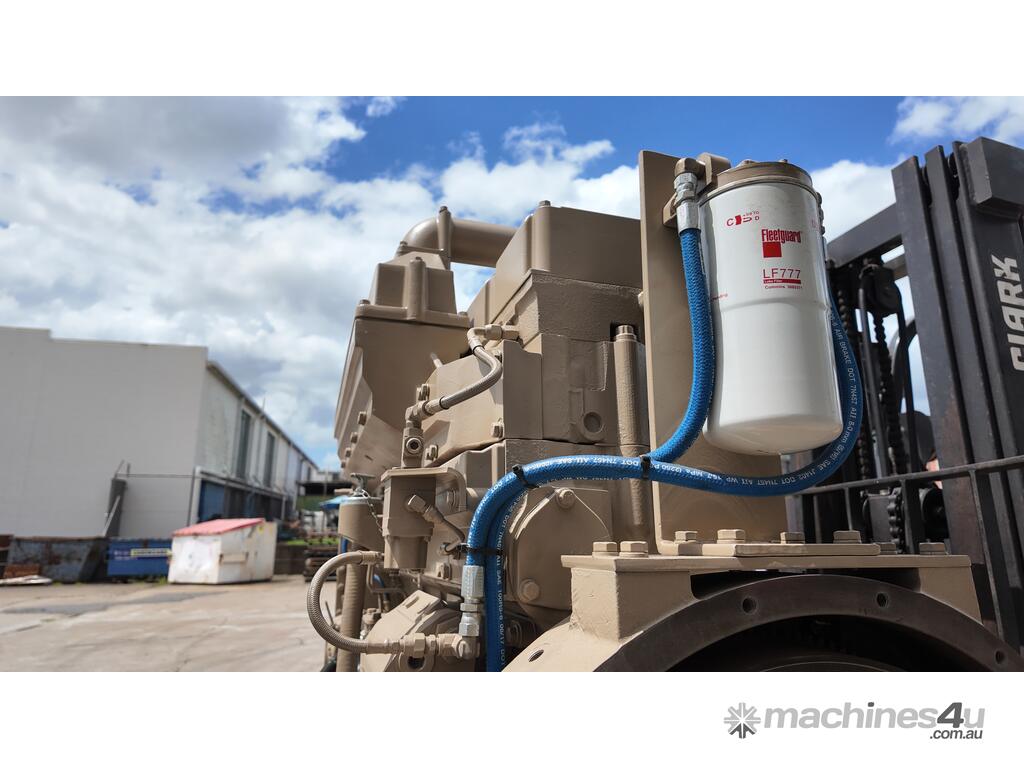

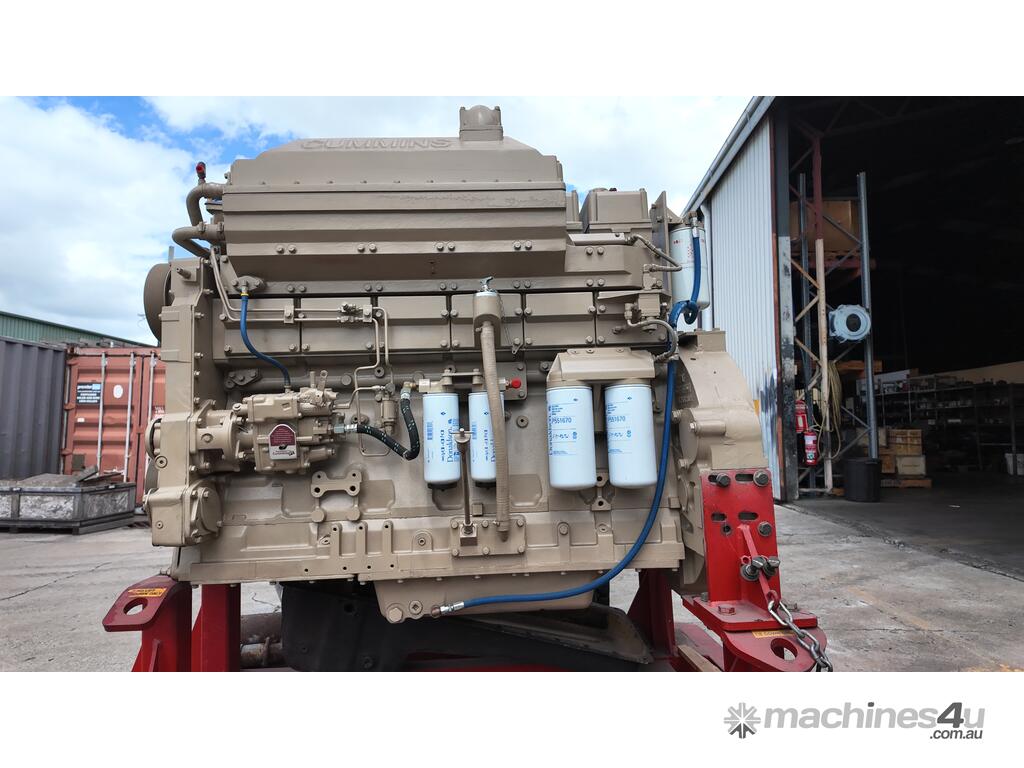

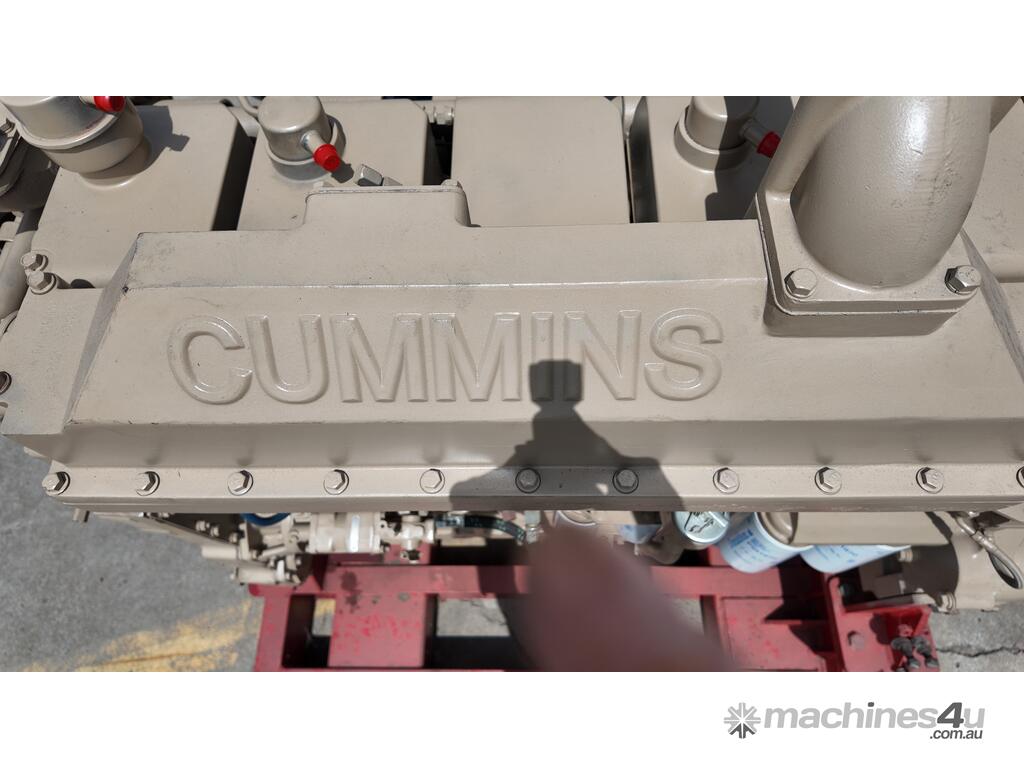

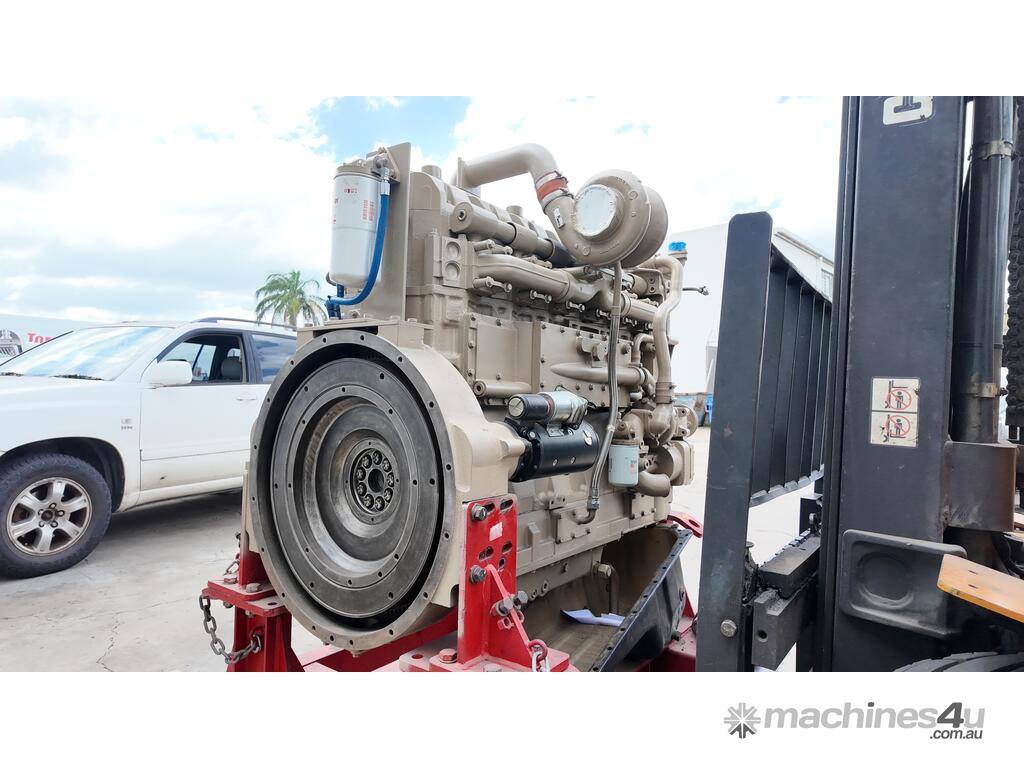

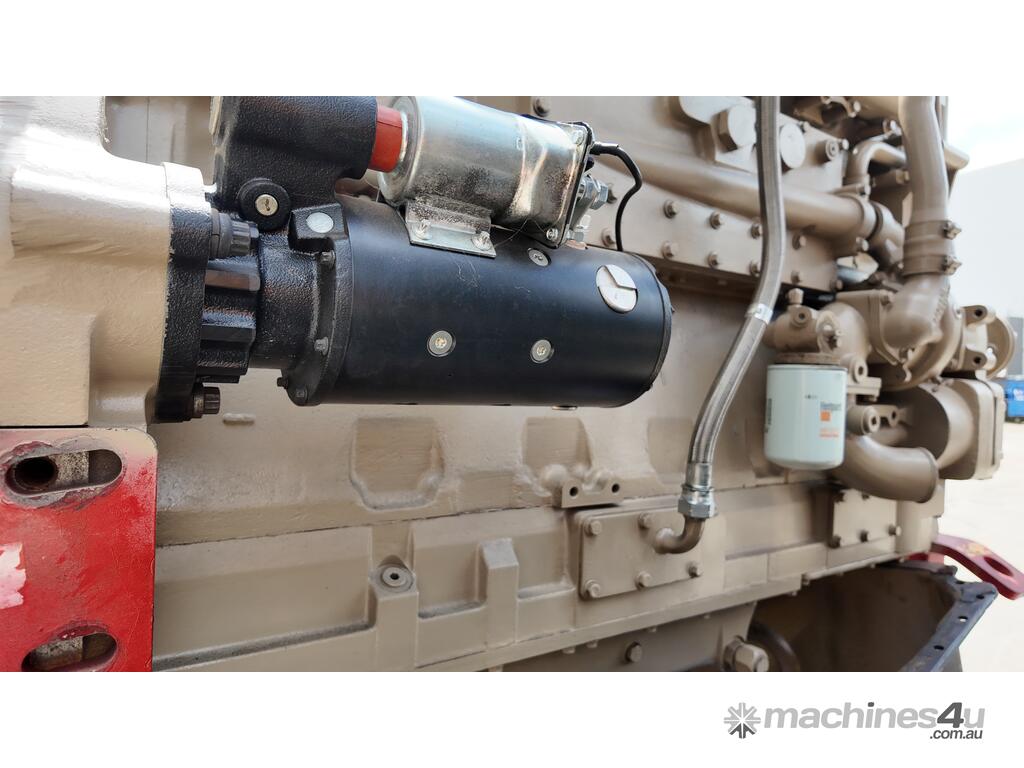

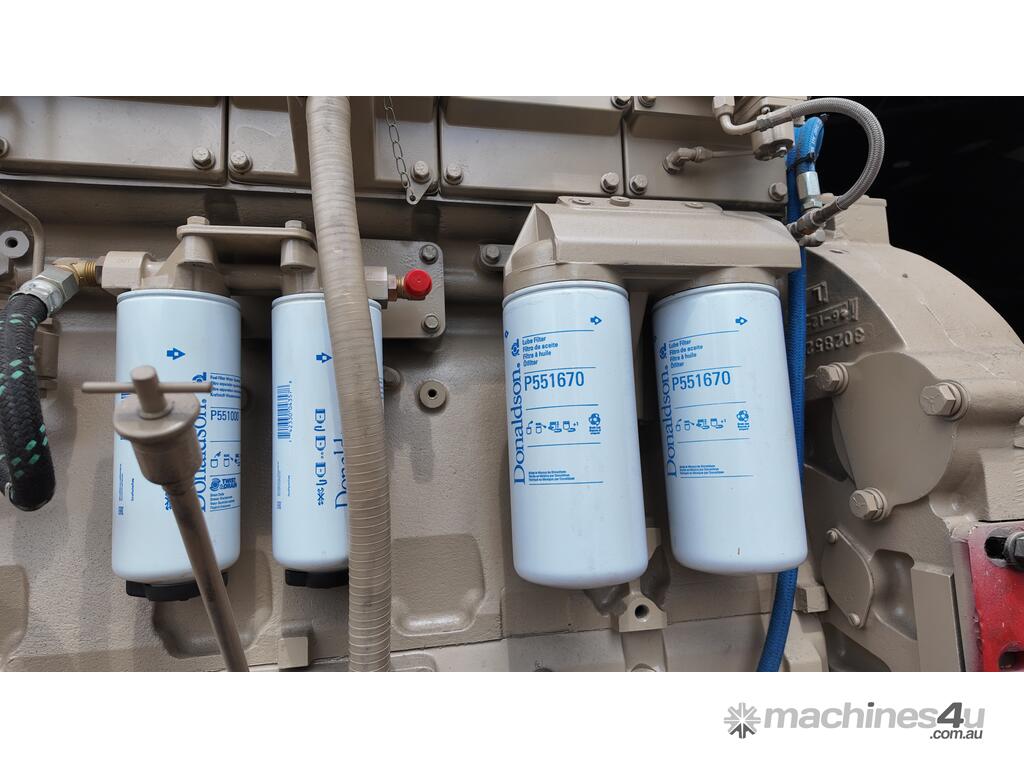

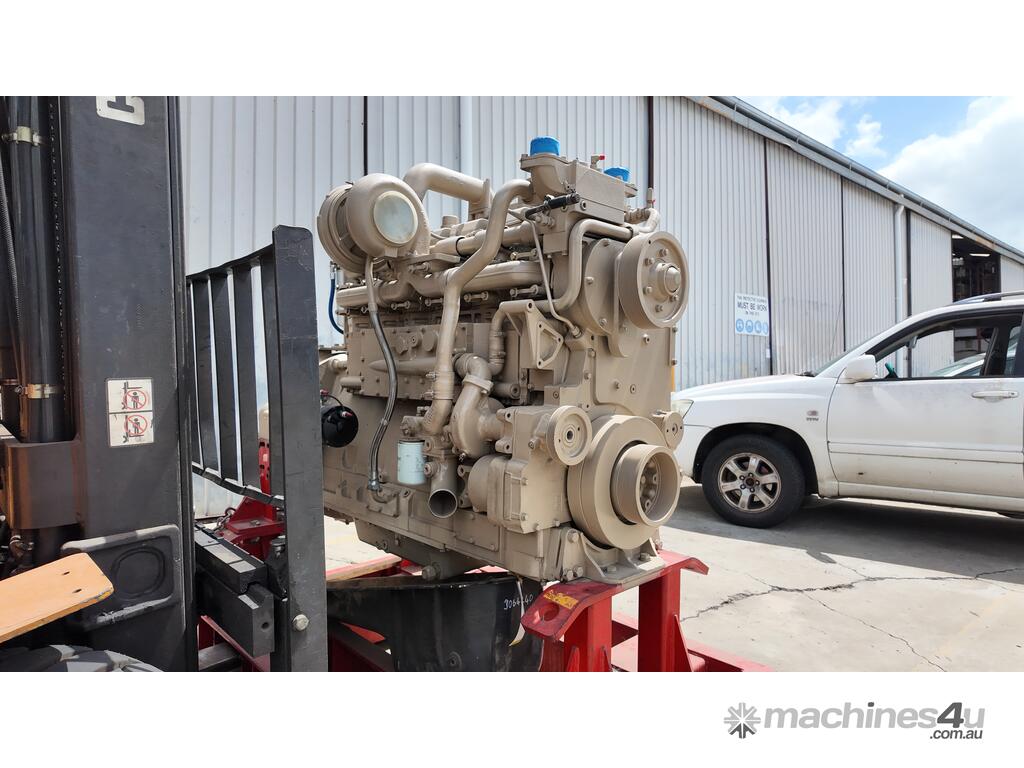

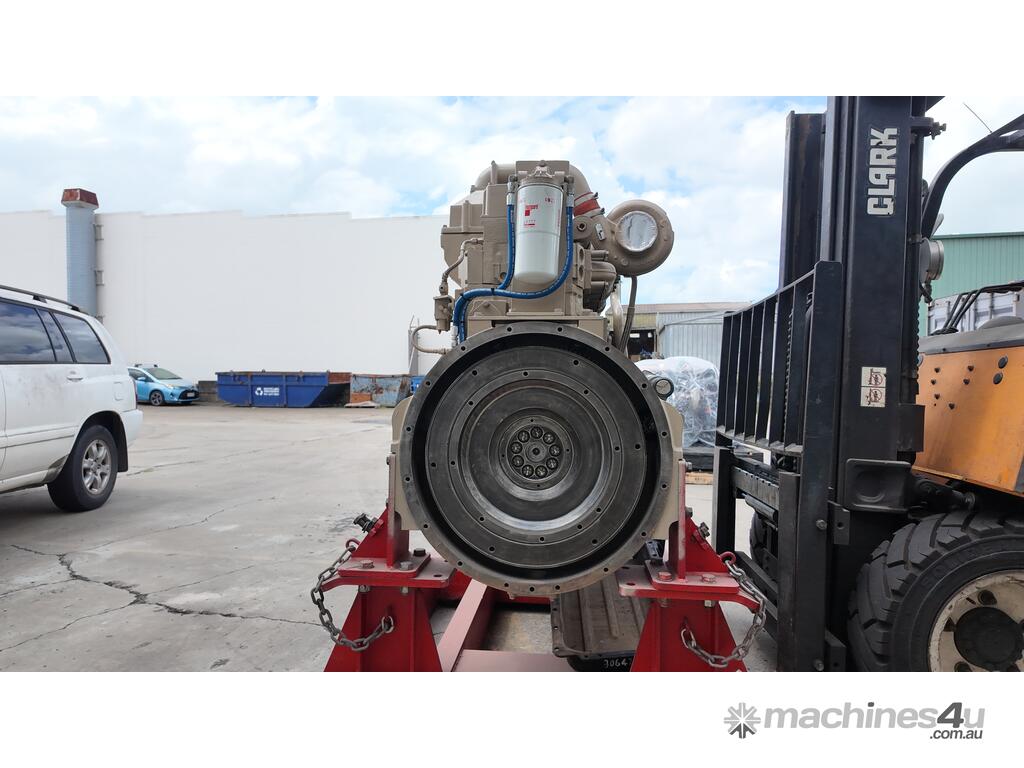

Cummins K Series Fully Reconditioned Engine

Cummins K Series KTA19-C600 | 600 HP 2100 RPM

Fully reconditioned, painted, dyno tested, and ready to return to service, this Cummins KTA19-C600 is built for demanding mining, construction, and heavy industrial applications. Delivering proven K Series reliability, it provides the pulling power and durability required for continuous heavy-duty operation in trucks, loaders, and fixed plant equipment.

Engine Overview

The Cummins KTA19-C600 is a K Series inline six-cylinder, four-stroke, turbocharged and intercooled diesel engine with a 19-litre displacement. Designed specifically for construction and mining environments, it produces 448 kW (600 HP) at 2100 RPM with peak torque of approximately 2237 Nm at 1500 RPM, ensuring strong performance under sustained load.

Key Technical Features

Inline six-cylinder configuration with a 159 mm × 159 mm bore and stroke and a 13.9:1 compression ratio, delivering excellent low-speed torque and efficient combustion.

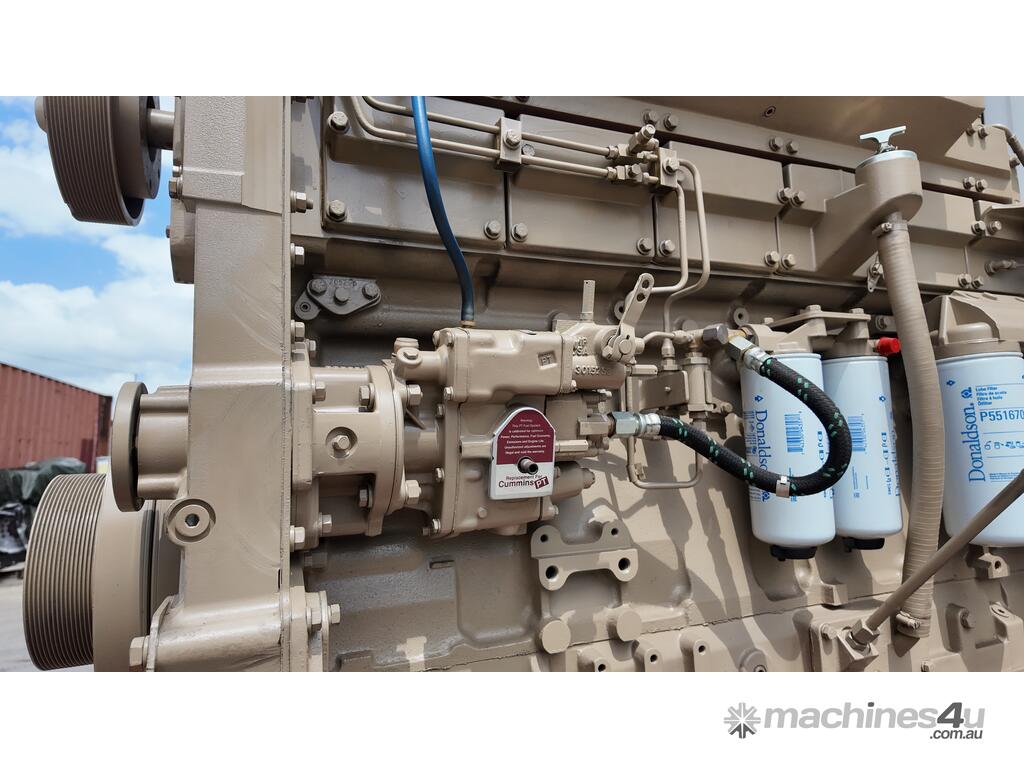

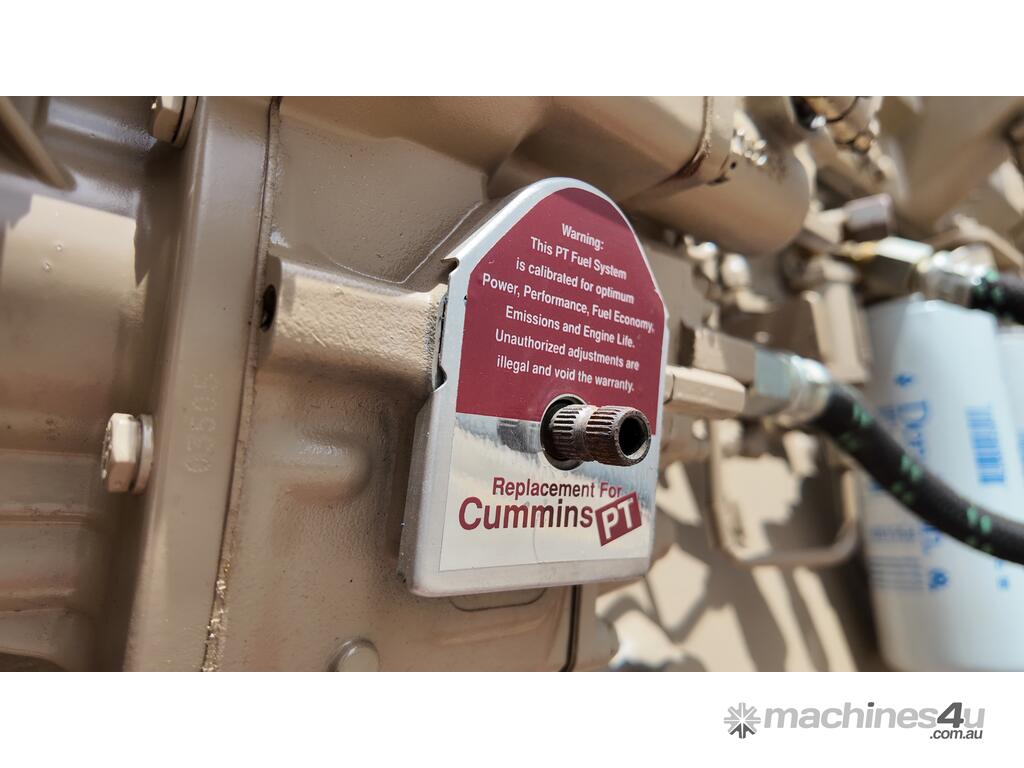

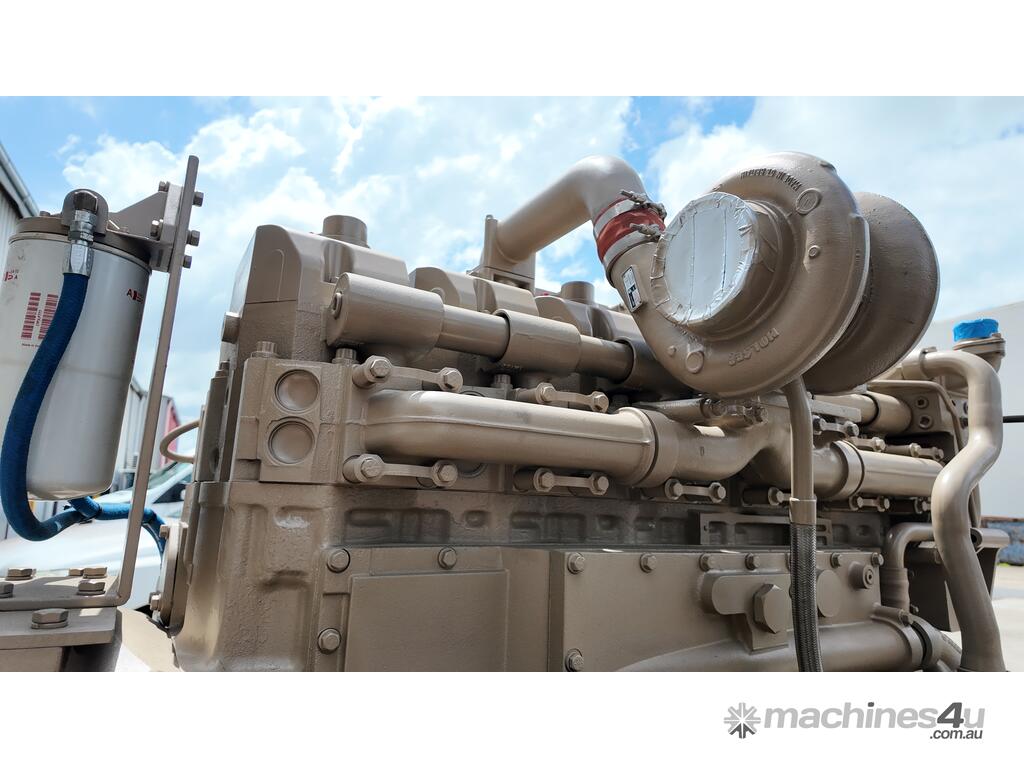

Turbocharged and intercooled air system combined with a direct-injection mechanical fuel pump for responsive power delivery and dependable fuel efficiency.

Water-cooled industrial engine built to Euro/Tier II standards, with fuel consumption of approximately 210 g/kW·h and reliable cold-start capability down to around ?12 °C without starting aids.

Applications

With more than four decades of service history, Cummins K Series engines are a proven standard across mining and heavy construction operations worldwide. The KTA19-C600 rating is commonly used in off-highway haul trucks, loaders, excavators, shovels, and drilling equipment where uptime, durability, and low cost per tonne are critical to operations.
