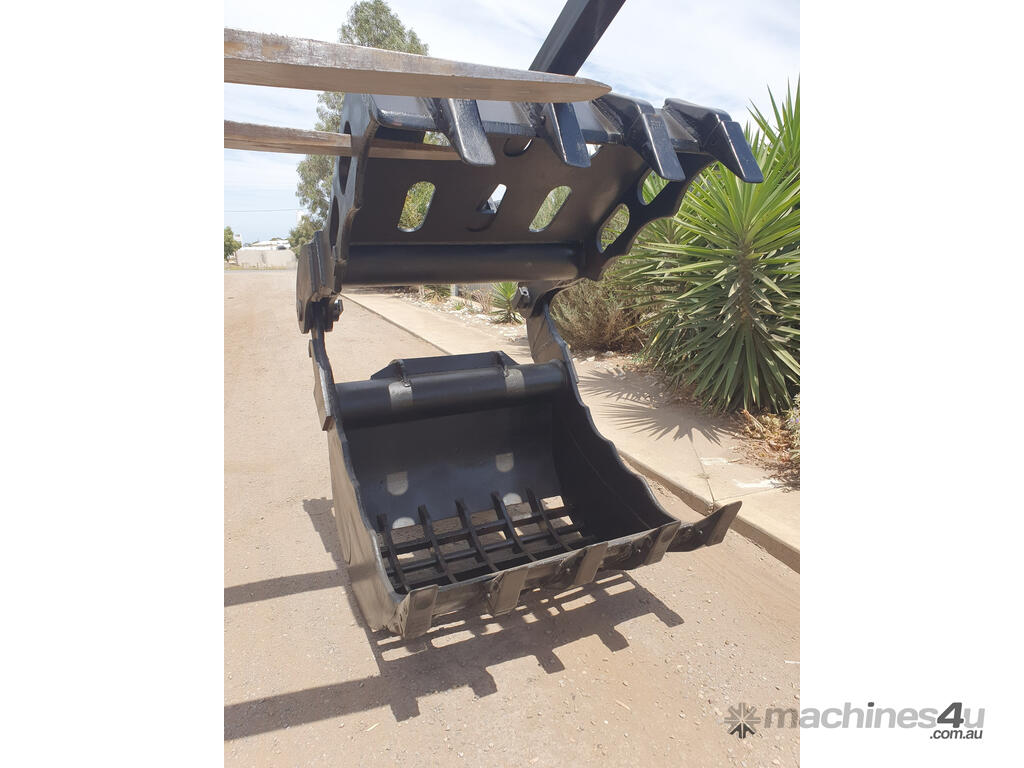

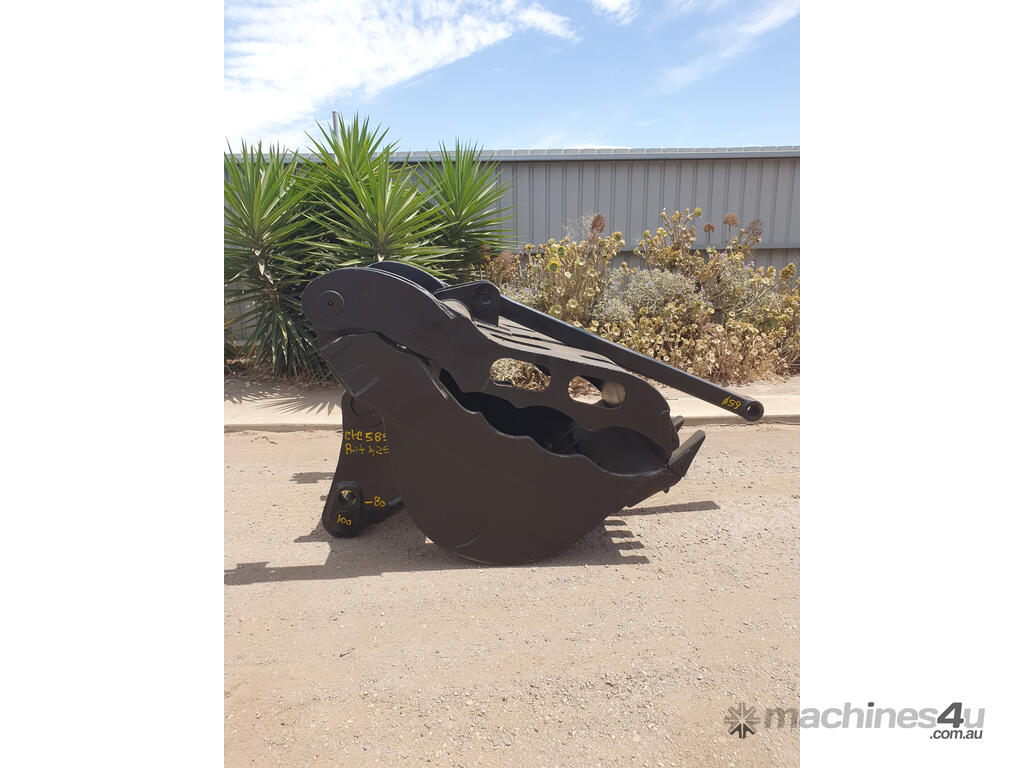

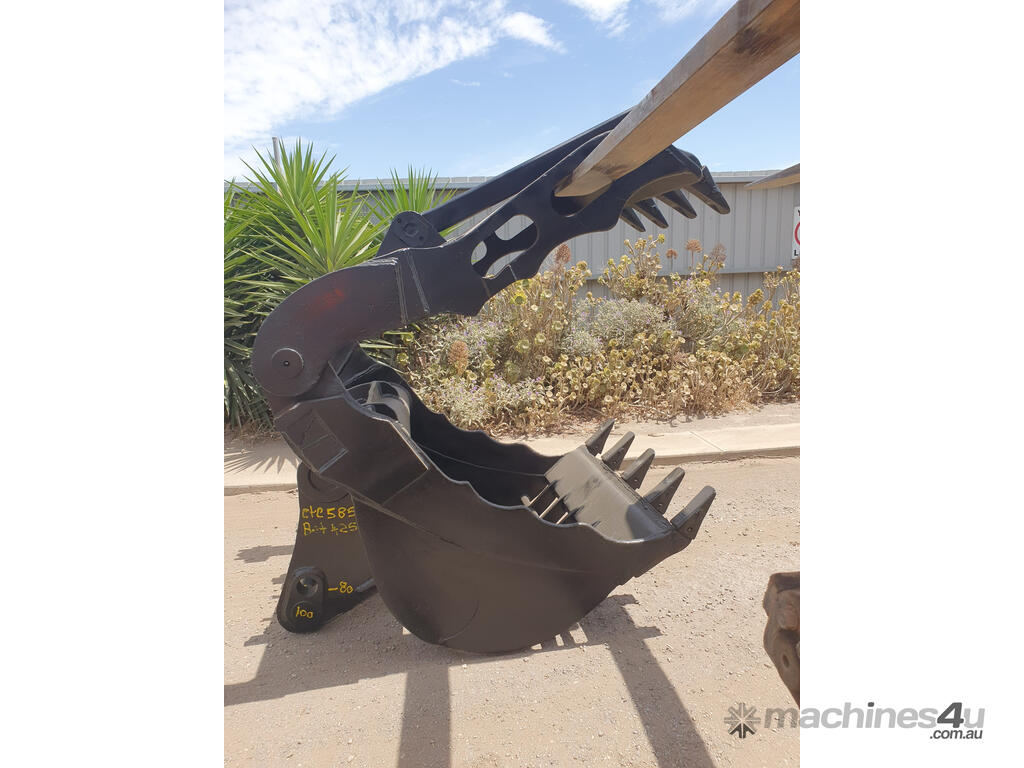

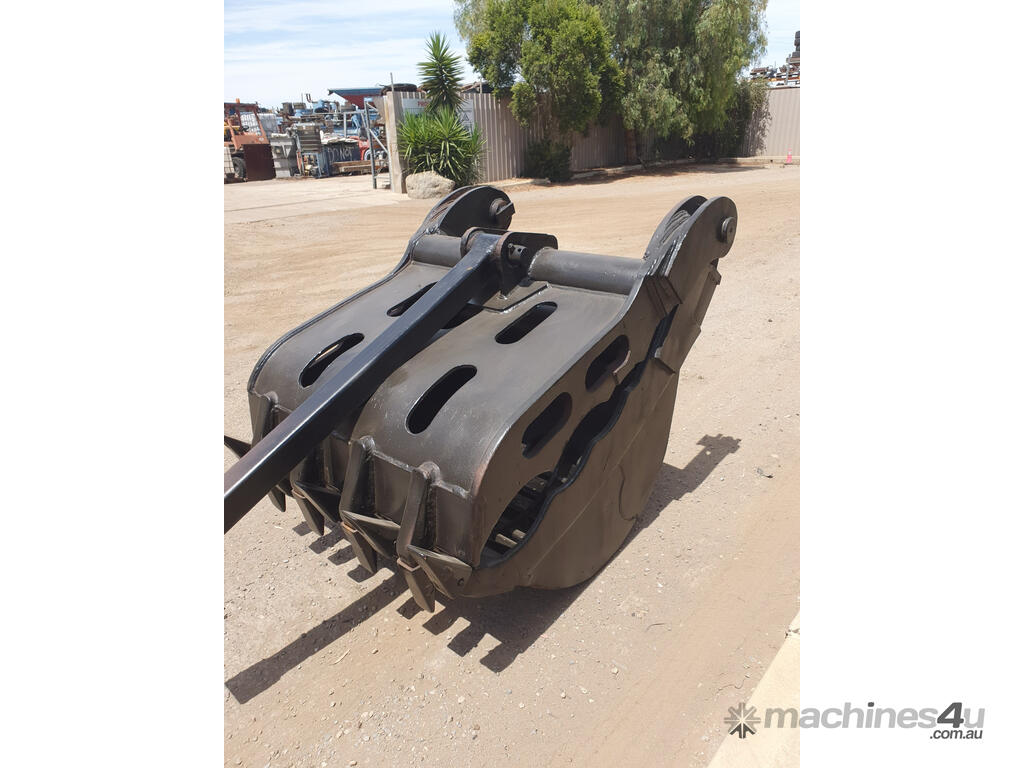

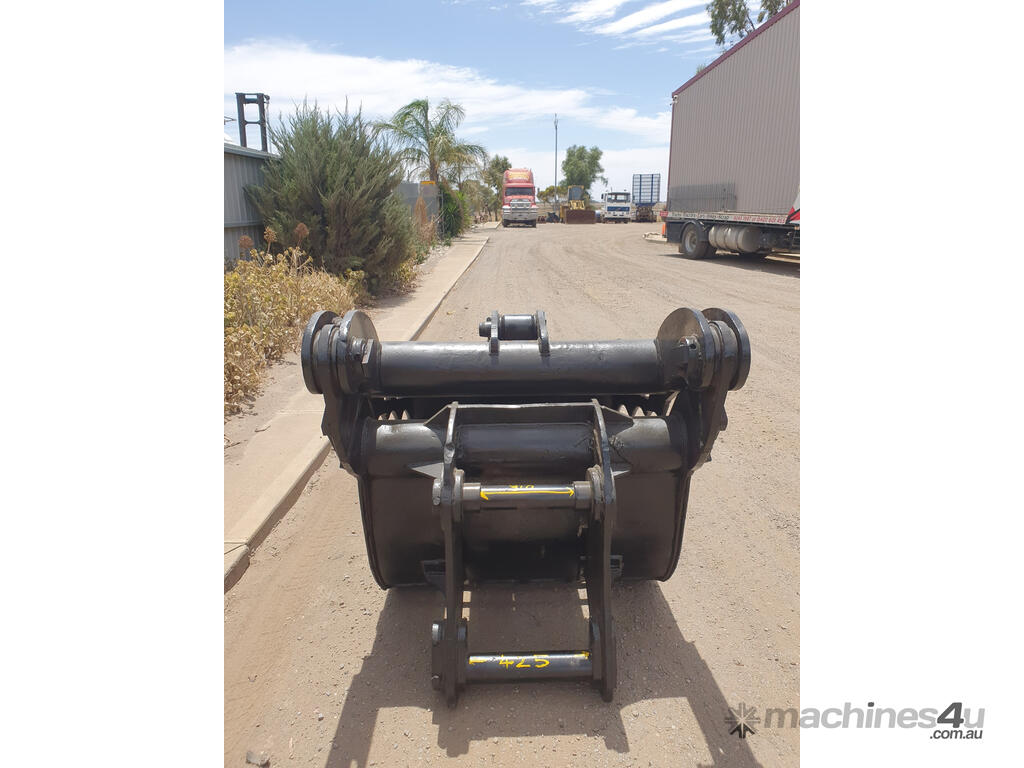

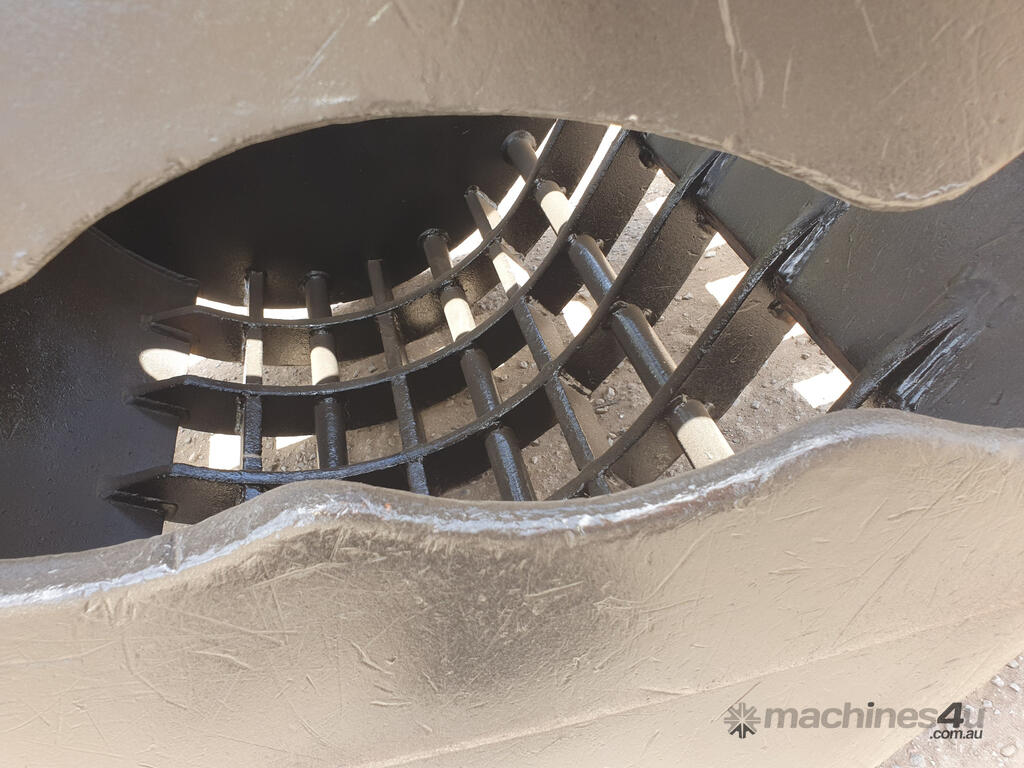

Custom Screen Bucket – Set Up for Cat 35 Ton Excavator | Multi-Fit Design
Industry: Attachments
Versatile custom screen bucket, currently configured for a Caterpillar 35-ton excavator. With multiple pin sizes and bush options, this unit can be adapted to suit most machines in the 22.5–35 ton range. Ideal for demolition work, sorting, and material separation on site.
Specifications:

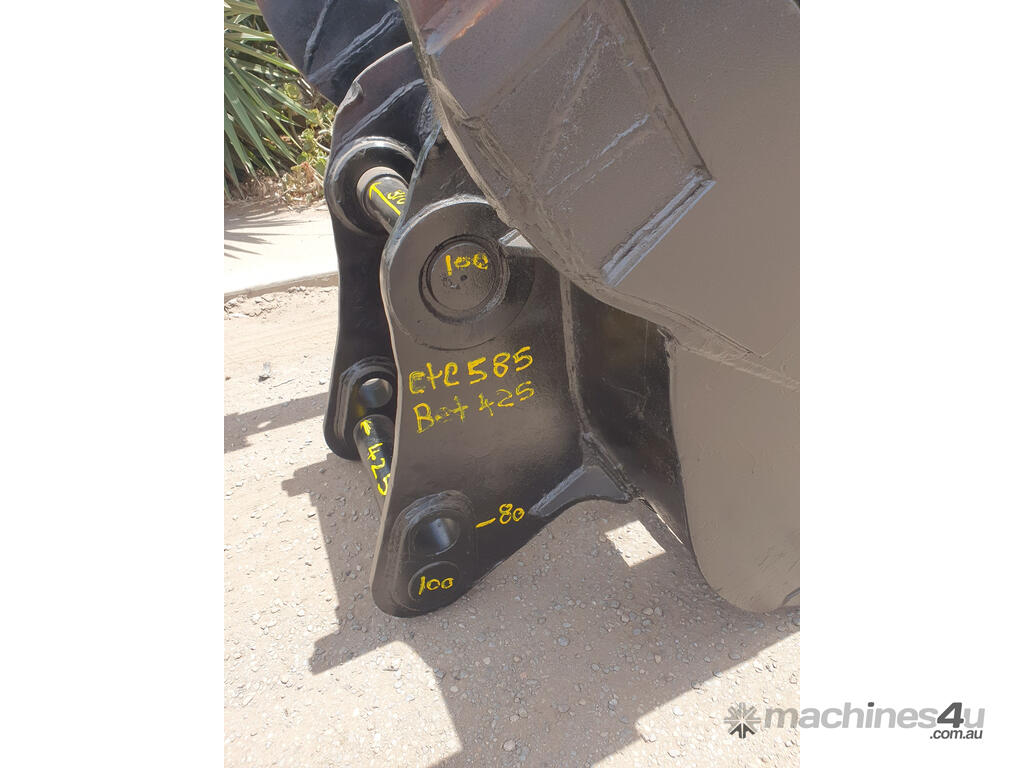

Upper Pin:
Diameter: 100mm
PCD: 585mm
Between Ears: 425mm
Includes provision for 80mm pins (currently unused)
Lower Pin:
Diameter: 100mm
PCD: 585mm
Between Ears: Bushed to 310mm
Compatibility: Multi-fit design suitable for 22.5–35 ton machines
Condition: Good
Sale Basis: As is, where is
Offers: Reasonable offers considered
For more information or to make an offer, contact us at (
visit us at Lot 12 Middle Beach Rd, Middle Beach, SA 5501.
Detroit Auto Sales SA is a South Australian owned and operated company, importation and distribution of quality products and equipment. We can arrange delivery Australia wide.
Detroit Auto Sales SA import and sell a wide range of products from Forklifts, trucks,trailers, Tools, compressors ,machine attachments ,generators and a wide range of industrial equipment,both new and used
If you would like any further information please contact one of our friendly staff and we will be happy to assist w
