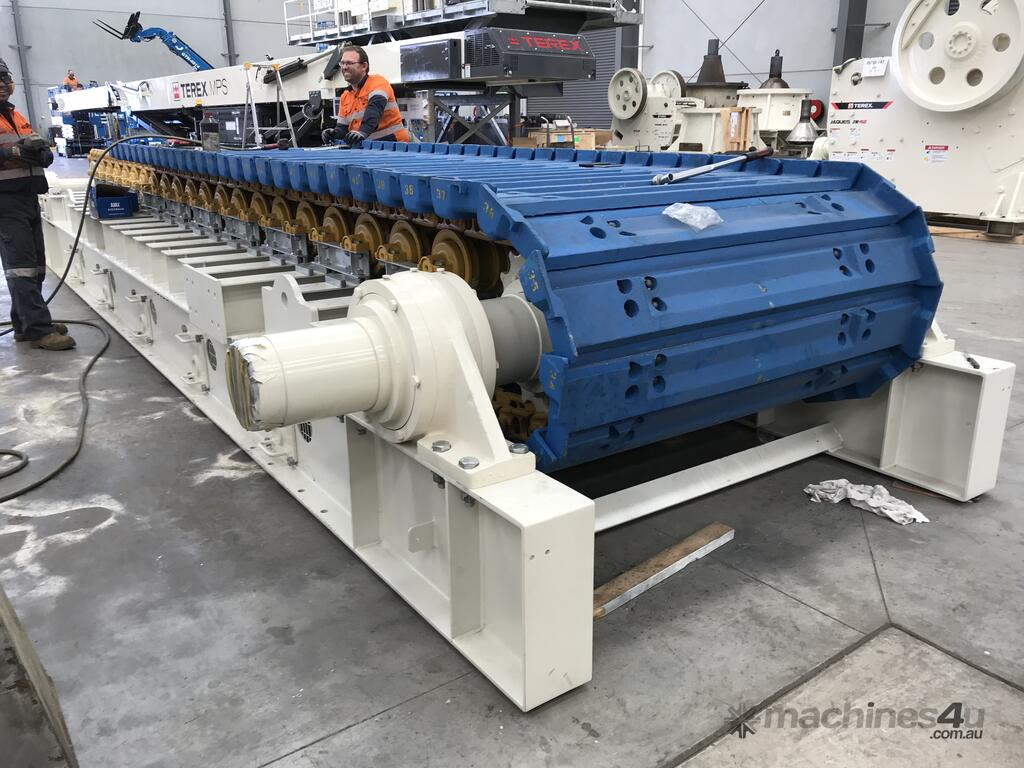

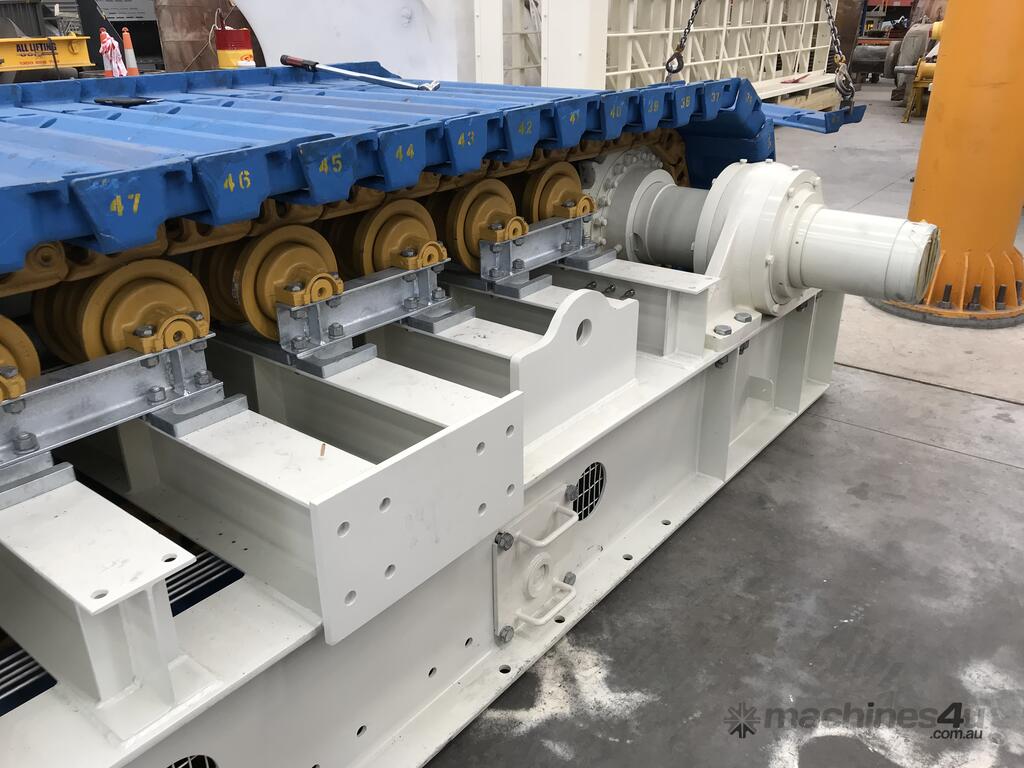

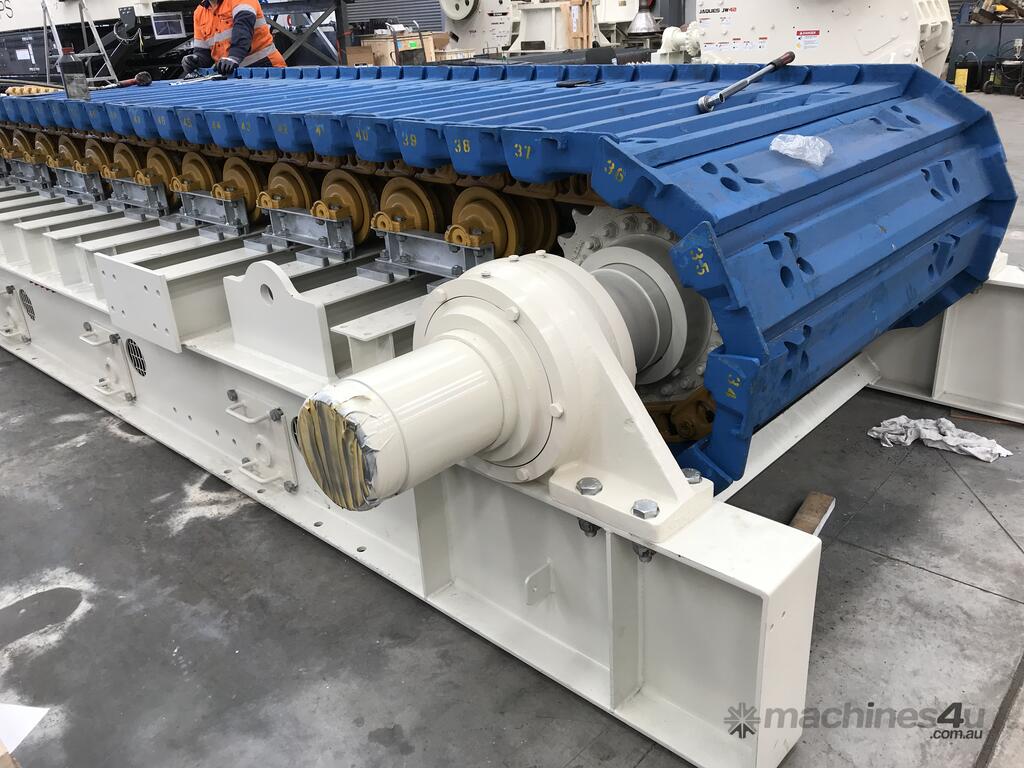

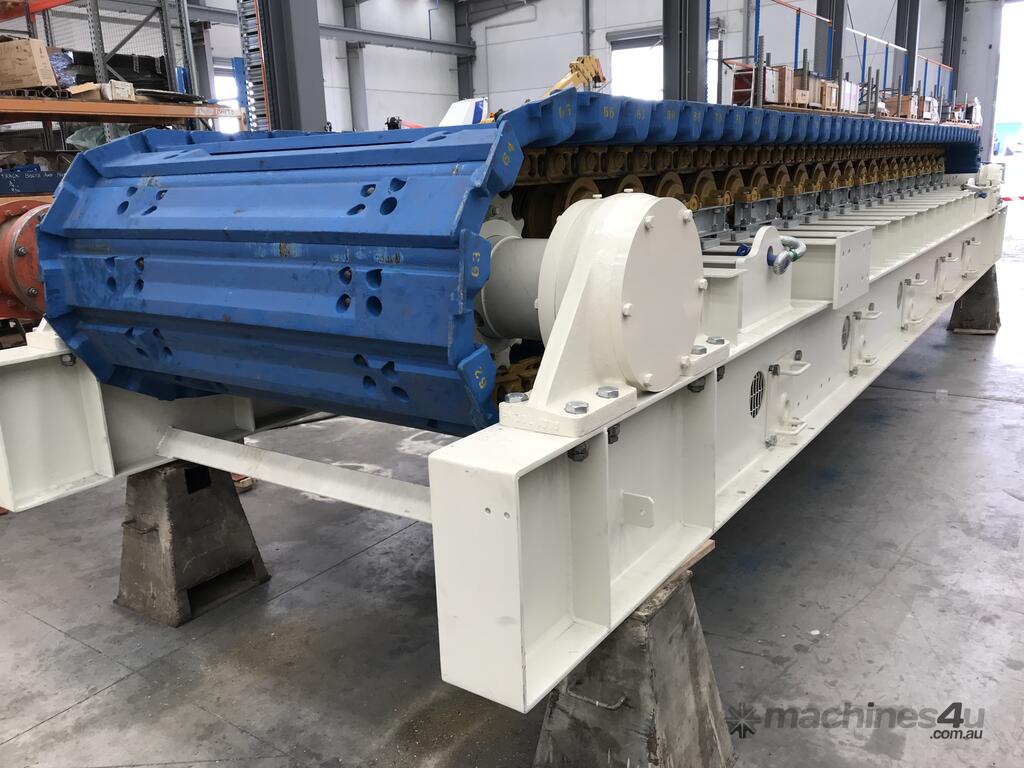

The Terex Jaques D34 Apron Feeder is a compact, heavy-duty feeder designed for controlled material handling in hopper recovery, stockpile reclaim and crusher feed applications.
Australian designed and built, the D4 uses proven crawler tractor components to deliver long service life, low maintenance and reduced operating costs, making it an ideal entry-level apron feeder.
Key Features:
- Heavy-duty crawler tractor design
- Cast work-hardening manganese steel flights
- Sealed and lubricated (SALT) track chain as standard

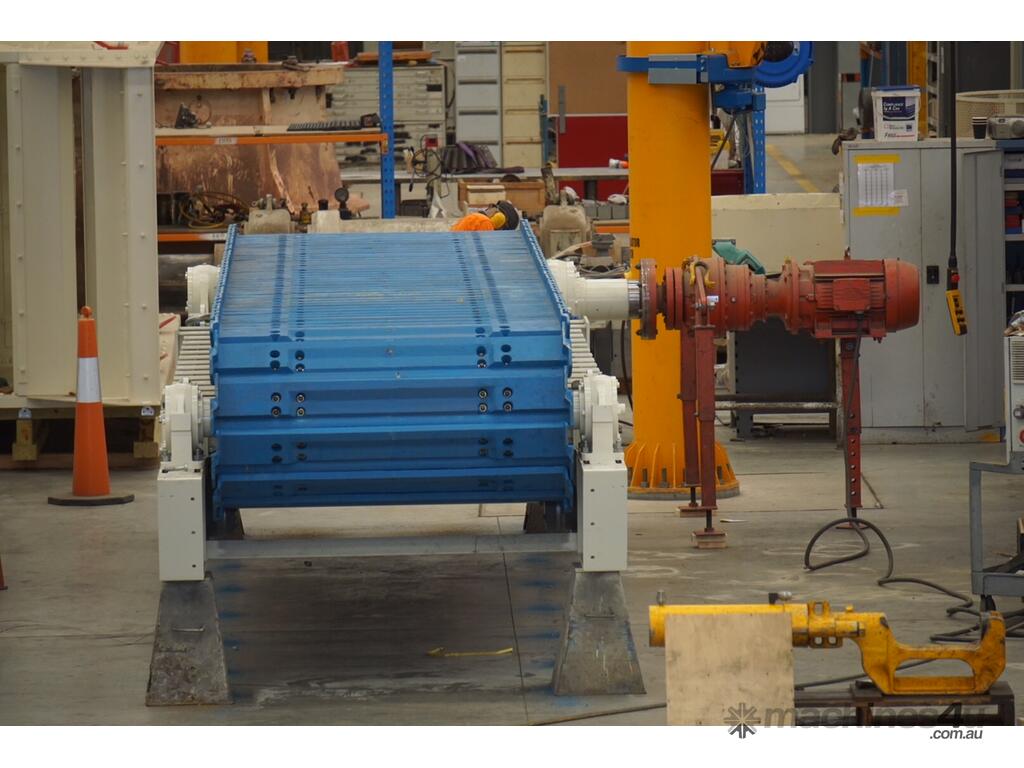

- Variable speed electro-mechanical or hydraulic drive
- Reversing capability to clear blockages
- Can operate on inclines up to 25°

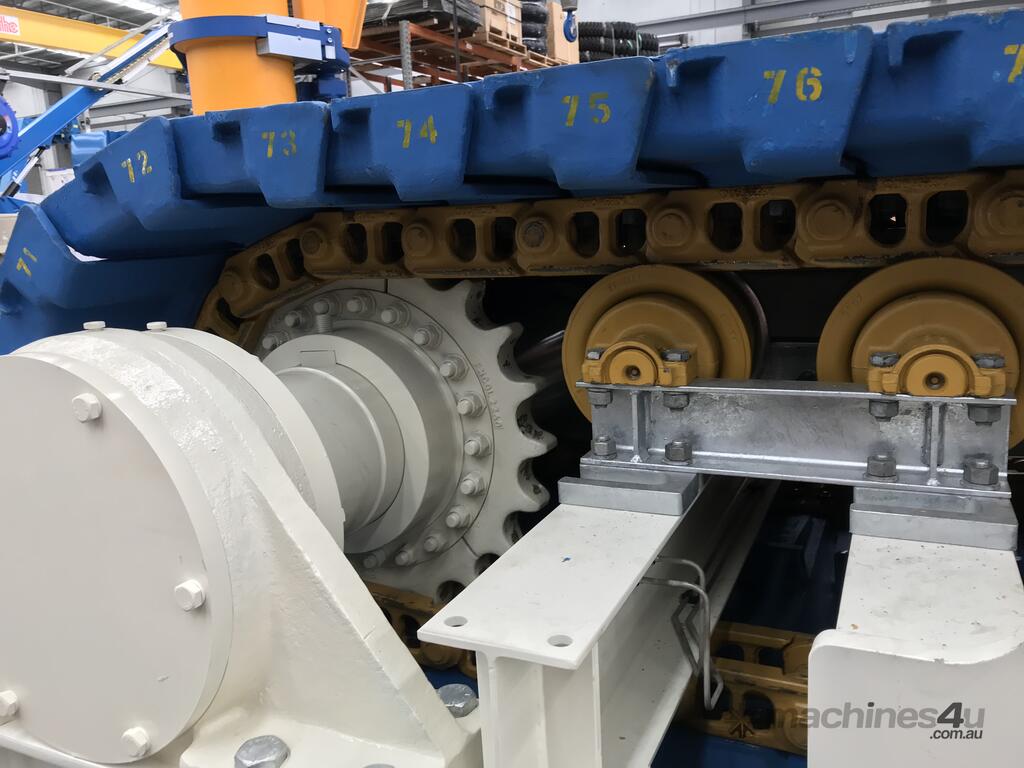

- Segmental sprockets and traction wheels – no chain splitting
- Centralised lubrication points (auto-lube optional)

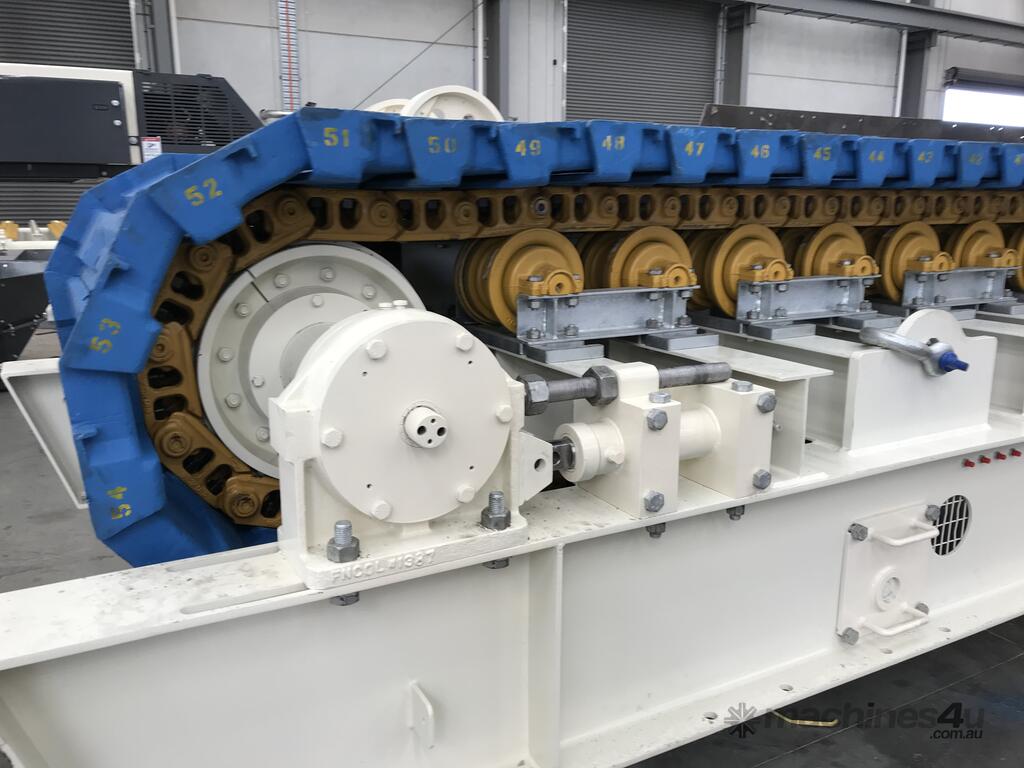

- Hydraulic or manual chain tensioning options
- Optional in-built dribble or scraper conveyor
Approximate Dimensions – D4
Width: 170 mm
Overall height: 1048 mm
Length: 600 mm
Chain pitch: 59 mm
Drive allowance: 300 mm (electro-mechanical) / 150 mm (hydraulic)
(Dimensions are approximate and subject to final certified drawings.)
Backed by Terex Jaques’ nationwide service and parts network and over 55 years of apron feeder design experience, the D4 delivers reliable performance in demanding applications.
