New Terex Jaques Industrial Hopper Feeders for sale - D6 Apron Feeder

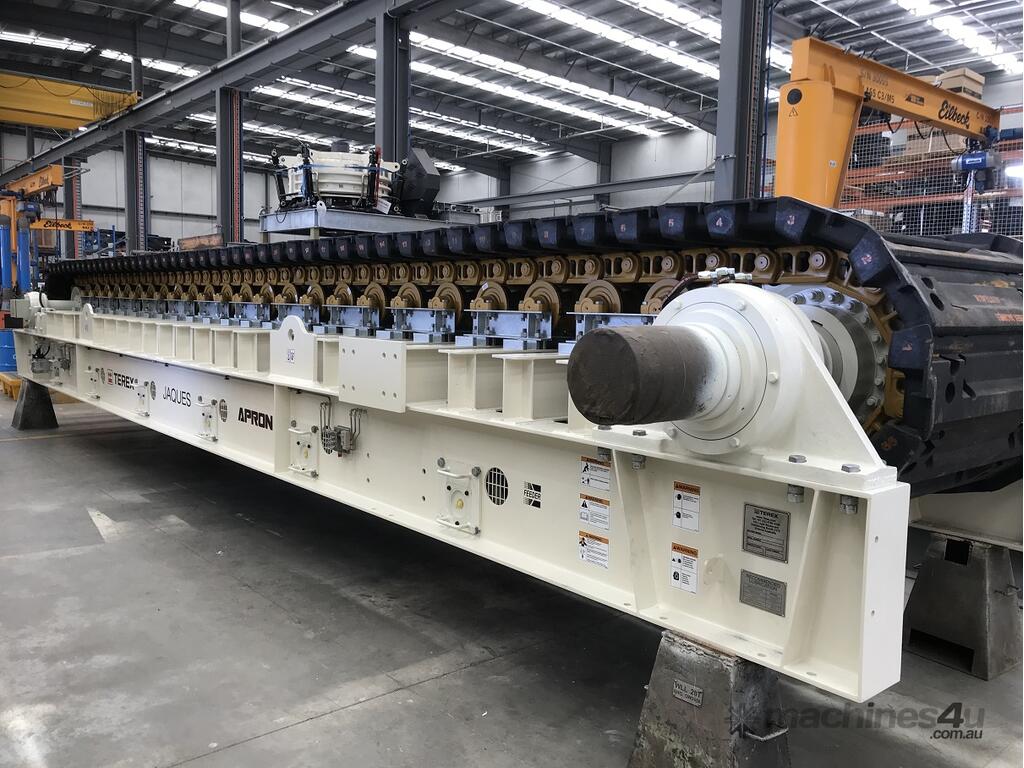

The Terex Jaques D6 Apron Feeder is a robust, heavy-duty feeder designed for higher load capacity applications where reliability and controlled material flow is critical.
Australian designed and built, the D6 sits in the mid-range of the Terex Apron Feeder line, offering increased strength and capacity over smaller models whle maintaining low maintenance requirements and long service life.

Key Features:
- Heavy-duty crawler tractor design
- Cast work-hardening manganese steel flights
- Sealed and lubricated (SALT) track chain as standard

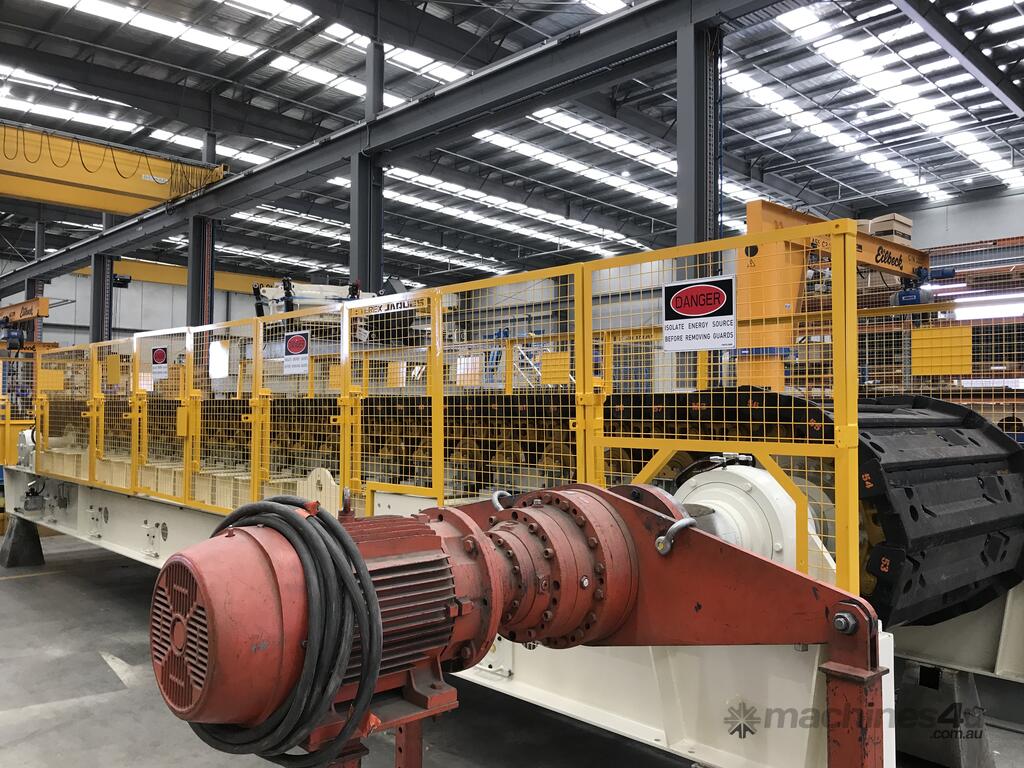

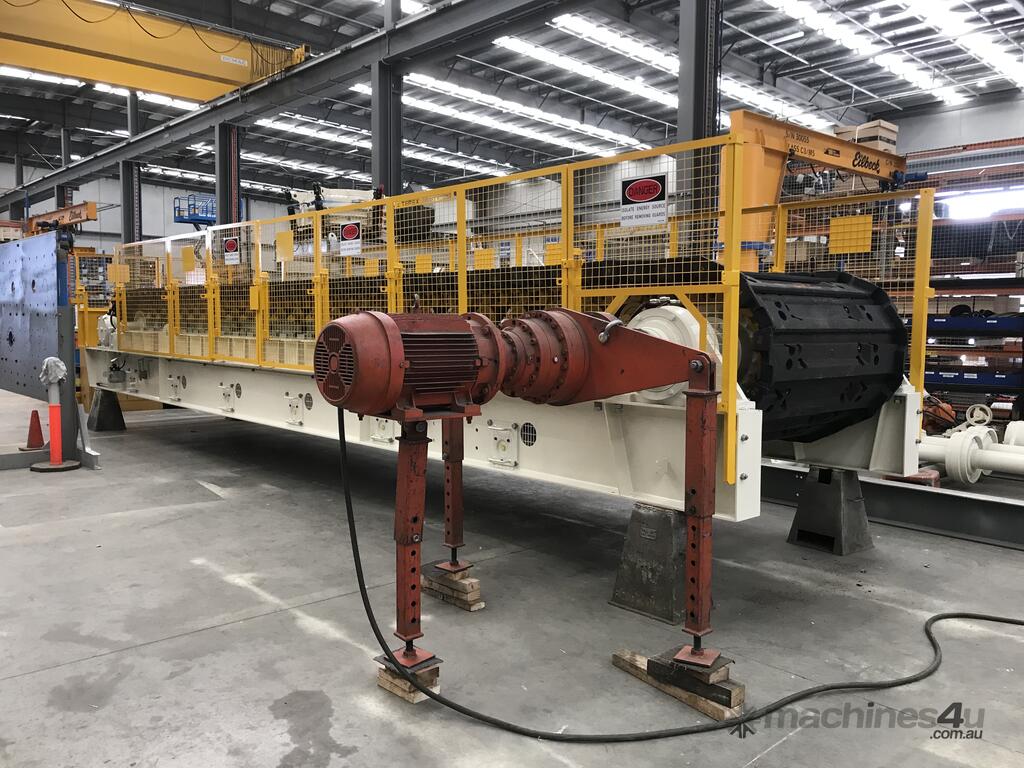

- Variable speed electro-mechanical or hydraulic drive
- Reversing capability to clear blockages
- Can operate on inclines up to 25°
- Segmental sprockets and traction wheels – no chain splitting
- Centralised lubrication points (auto-lube optional)
- Hydraulic or manual chain tensioning options
- Optional in-built dribble or scraper conveyor

Approximate Dimensions – D6
Width: 200 mm
Overall height: 1270 mm
Length: 750 mm
Chain pitch: 60 mm
Drive allowance: 300 mm (electro-mechanical) / 150 mm (hydraulic)

(Dimensions are approximate and subject to final certified drawings.)

Backed by Terex Jaques’ nationwide service and parts network and over 55 years of Apron Feeder design experience, the D6 delivers reliable performance in demanding quarrying and mining applications.
