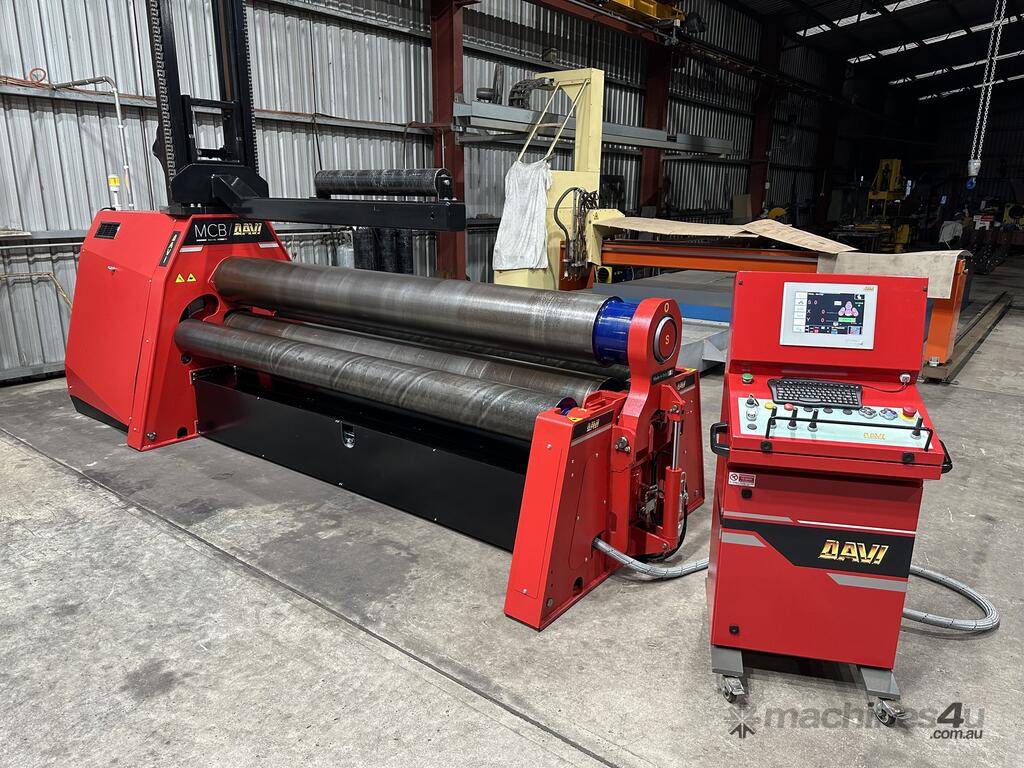

DAVI MCB E30
Serial Number: 21740105
Number of rolls 4
Rolls length 3100 mm
Top roll diameter 340 mm
Bottom roll diameter 310 mm
Side rolls diameter 240 mm
Small possible diameter 380 mm
Rolling speed Up to 6 m/min
Installed power HP 25 equivalent to 19 Kw
Power supply 400 V., 50 Hz
Hardened rolls
DAVI Easy S NC Control System colour touch screen monitor
Powered Overhead Support with capacity up to 2,5 Tons, mm 2.500 max. diameter
Right side support on the floor 1.5 Tons capacity extendable
Cone Rolling Package
18 mm capacity in pre-bending x 3100 mm width sheet metal x 1700 ID – 250 Grade steel
Installed in 2018, barely used in great condition as new
Ottotech Services is your official DAVI agent in Australia and New Zealand - Quality Italian designed plate roll machinery and forming technology for the sheet metal industry.
