DEMO CNC 3 AXIS MILLING MACHINE

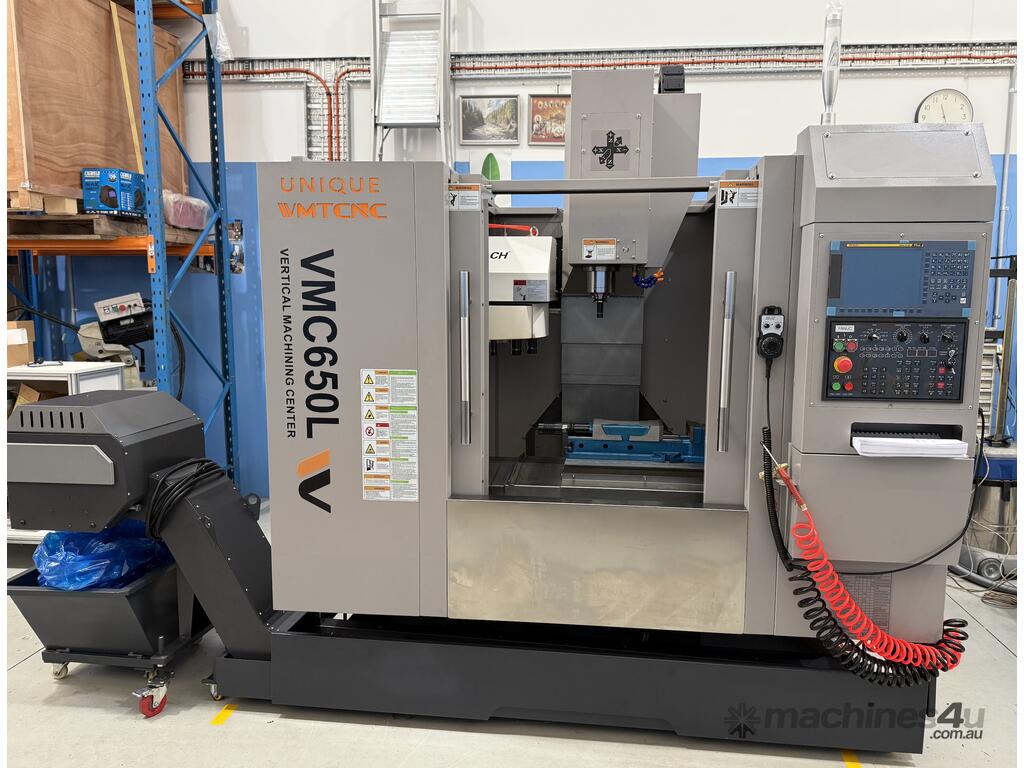

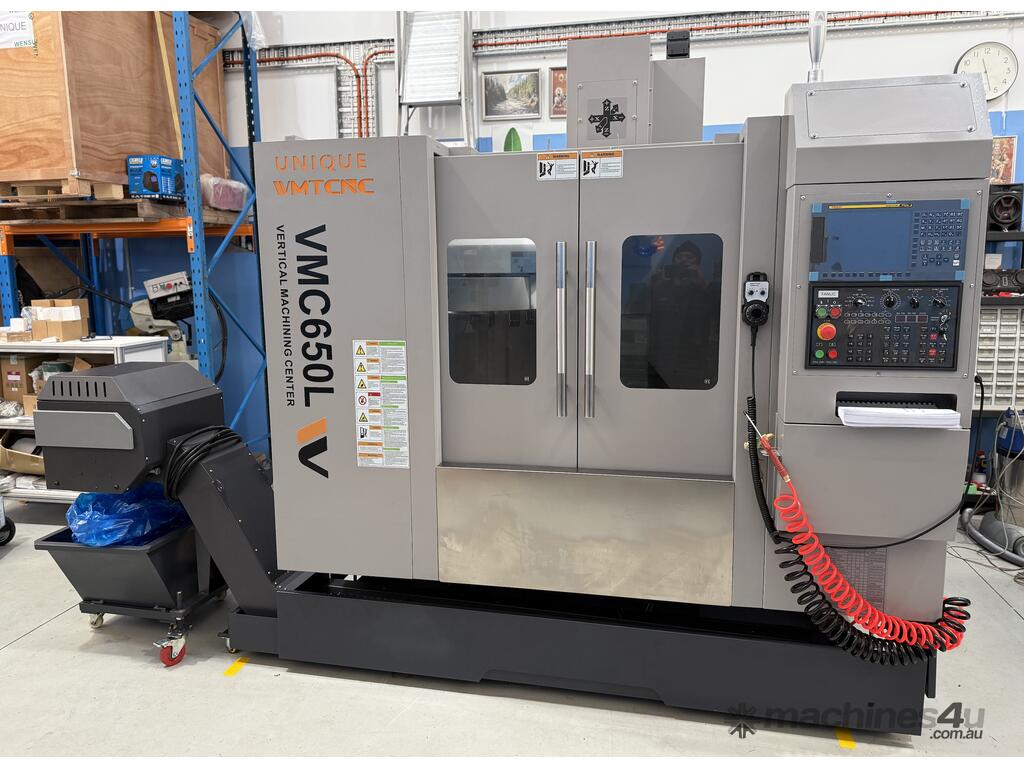

NEW/DEMO CNC MILLING MACHINE

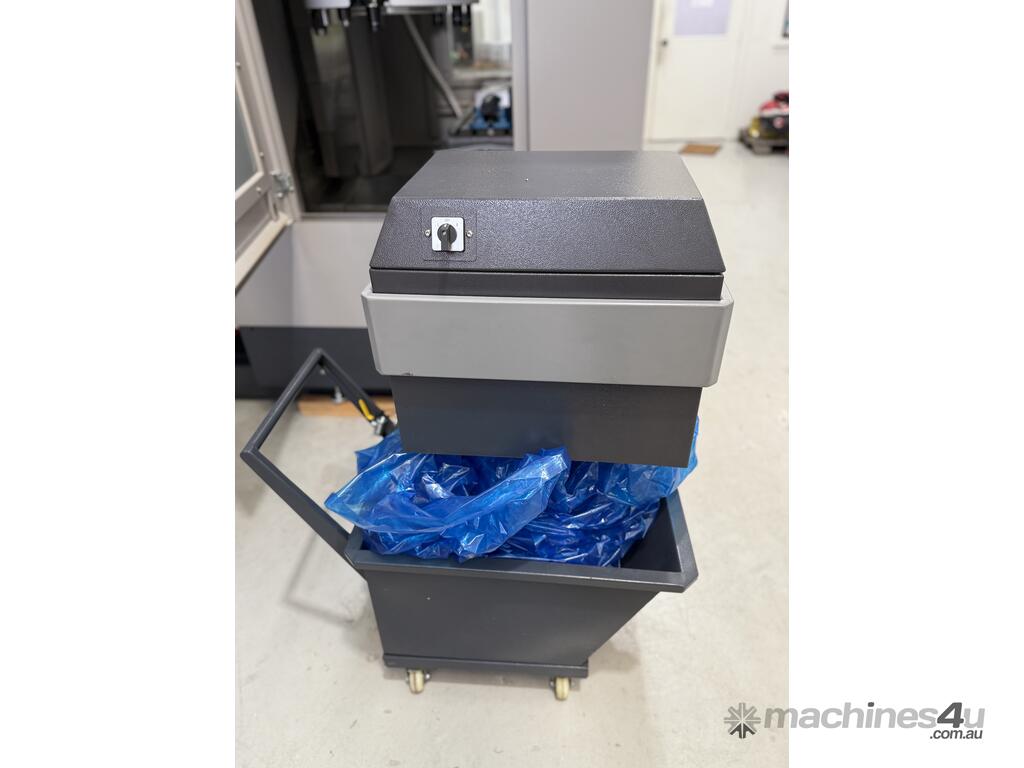

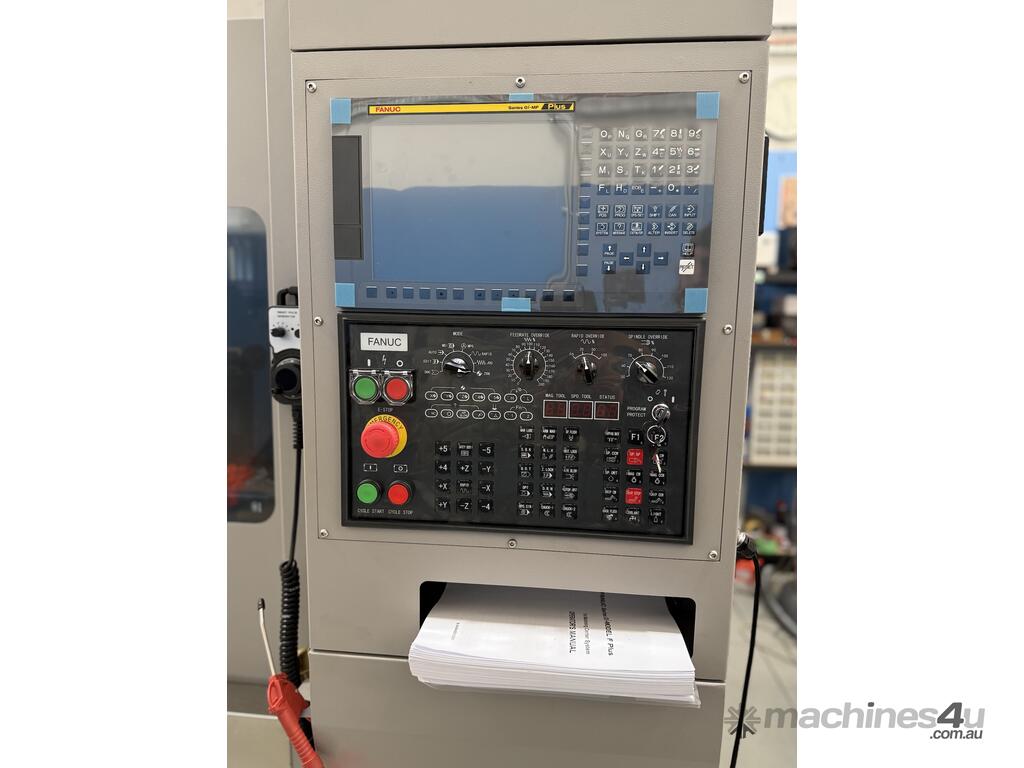

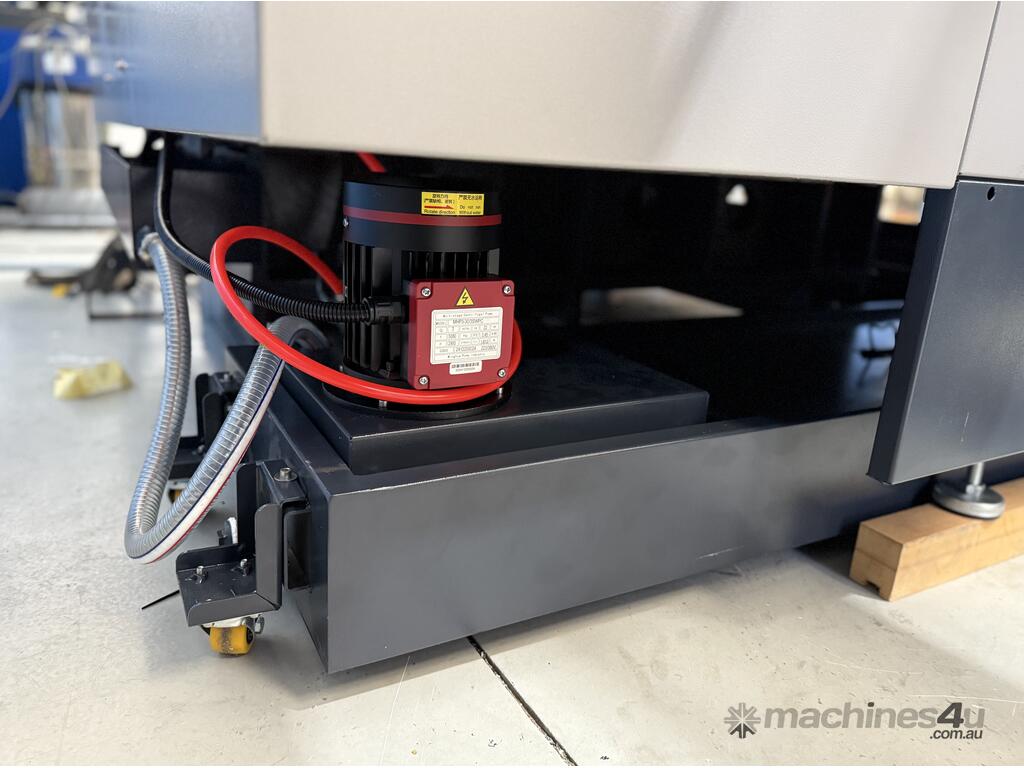

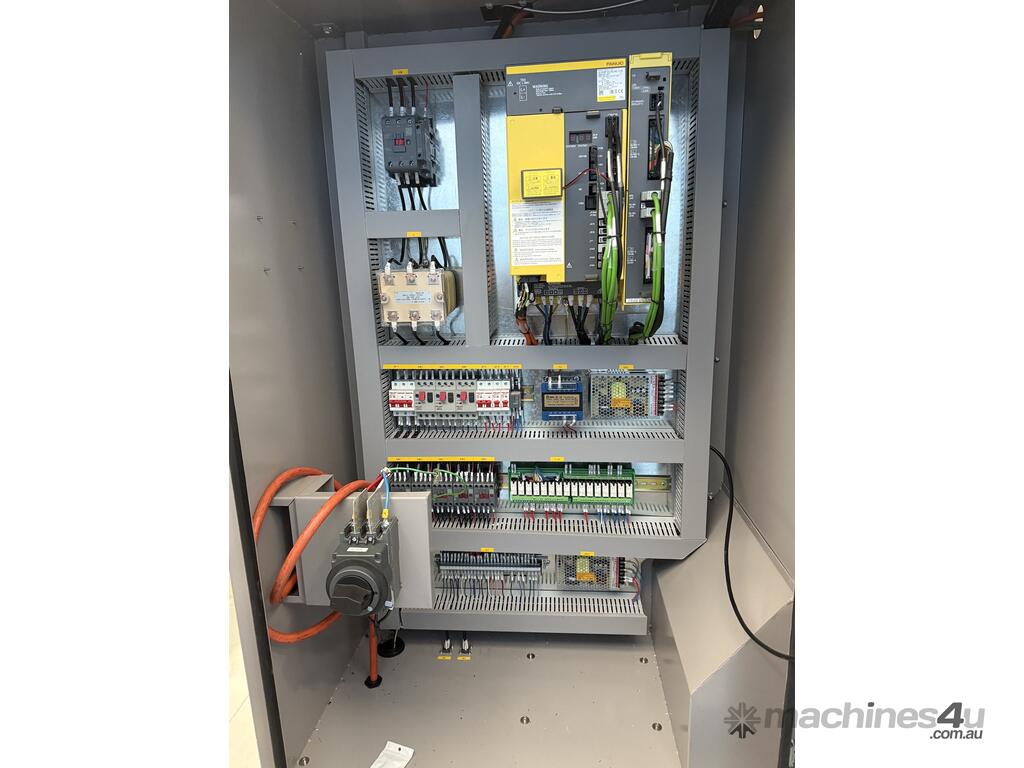

With Fanuc Oi Mf Plus controller, Chain Type Chip Conveyor, Coolant pump and Tank. (SAFEWAY VICE & TOOLING NOT INCLUDED)

CONTACT US FOR THE FULL RANGE OF MACHINES


SPECIFICATIONS VMC650L

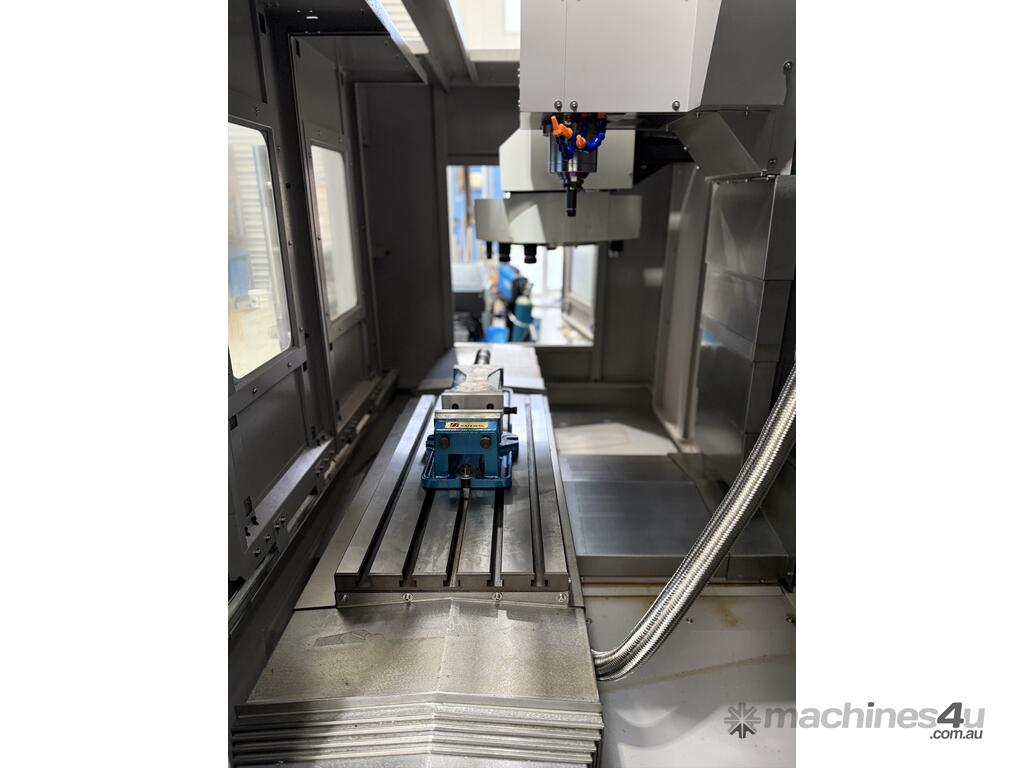

Worktable size (L×W) 900×400mm
T-slots size (N×W×D) 5-16x75mm

TRAVEL:
X/Y/Z axis travel 650/450/500mm

MACHINING RANGE:
Distance from spindle center to column 500mm
Distance from spindle nose to worktable surface 120-620mm

SPINDLE:
Spindle taper BT40
Spindle power 5.5/7.5kw
Max. spindle speed 8000rpm

FEED:
Max. feed speed 10m/min
Rapid feed speed (X/Y/Z) 20/20/12m/min

BALL SCREW:
X/Y/Z axis ball screw 4012

TOOL MAGAZINE:
Tool magazine capacity 16T
Max. length of tool 250mm
Tool change time 7s

POSITIONING ACCURACY:
Positioning accuracy (X/Y/Z) ±0.007mm
Re-positioning accuracy (X/Y/Z) ±0.005mm

MACXHINE DIMENSIONS:
L×W×H 2300×2200×2400mm

MACHINE WEIGHT:
Max. loading of worktable 400kg
Machine weight 3800kg


MAIN FEATURES:

Inexpensive cnc milling VMC650L with resin sand casting.

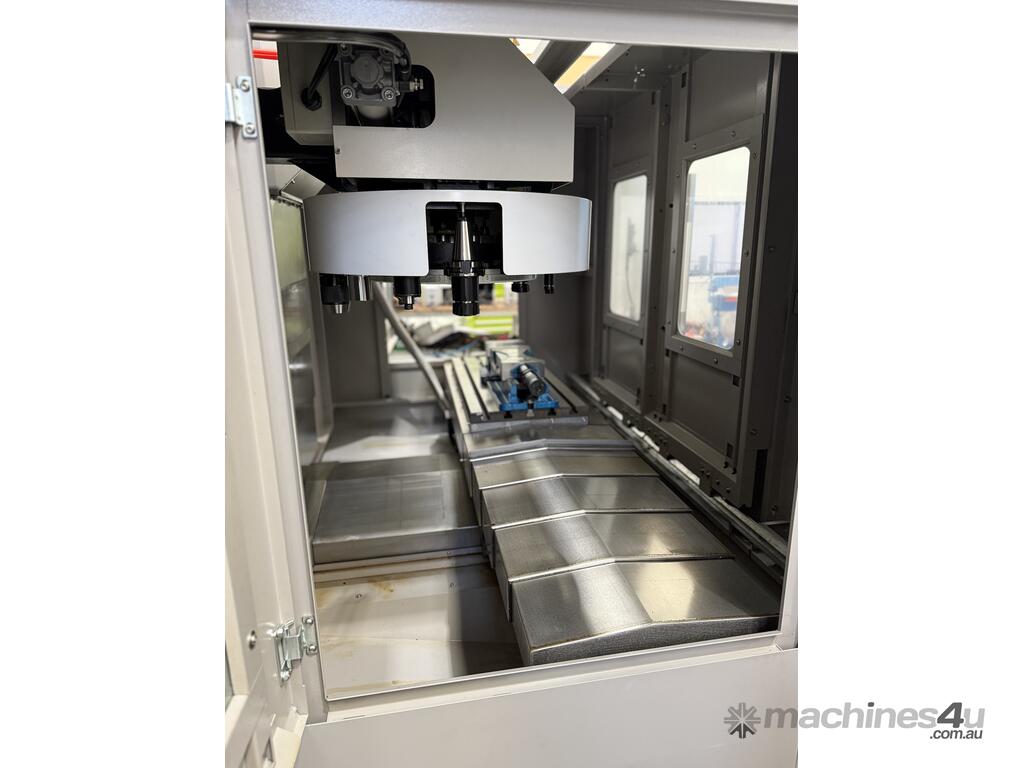

X, Y, Z rails adopt stainless steel telescopic cover.
Standard with belt-driven spindle, optional for the direct driven spindle.

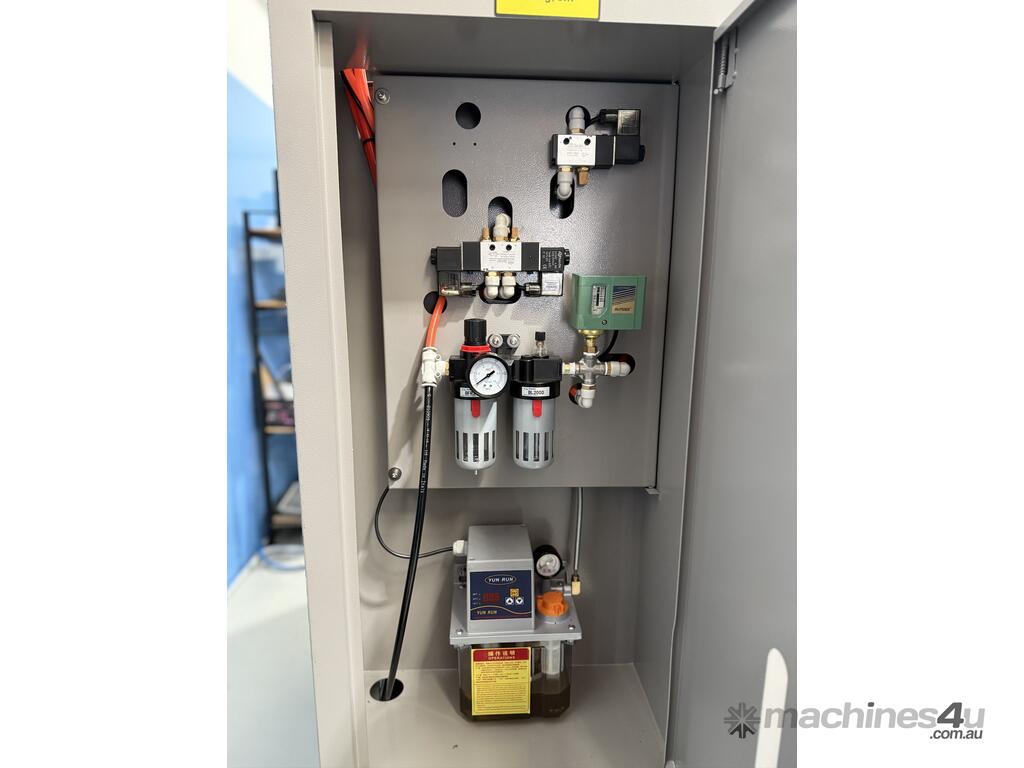

Taiwan production pneumatic cylinder.
Taiwan ATC, carousel type, and disc type are available as options.
Import coupling.
Headstock balancing system has heavy casting or nitrogen balance system as an option.
CNC controller: KND, GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
