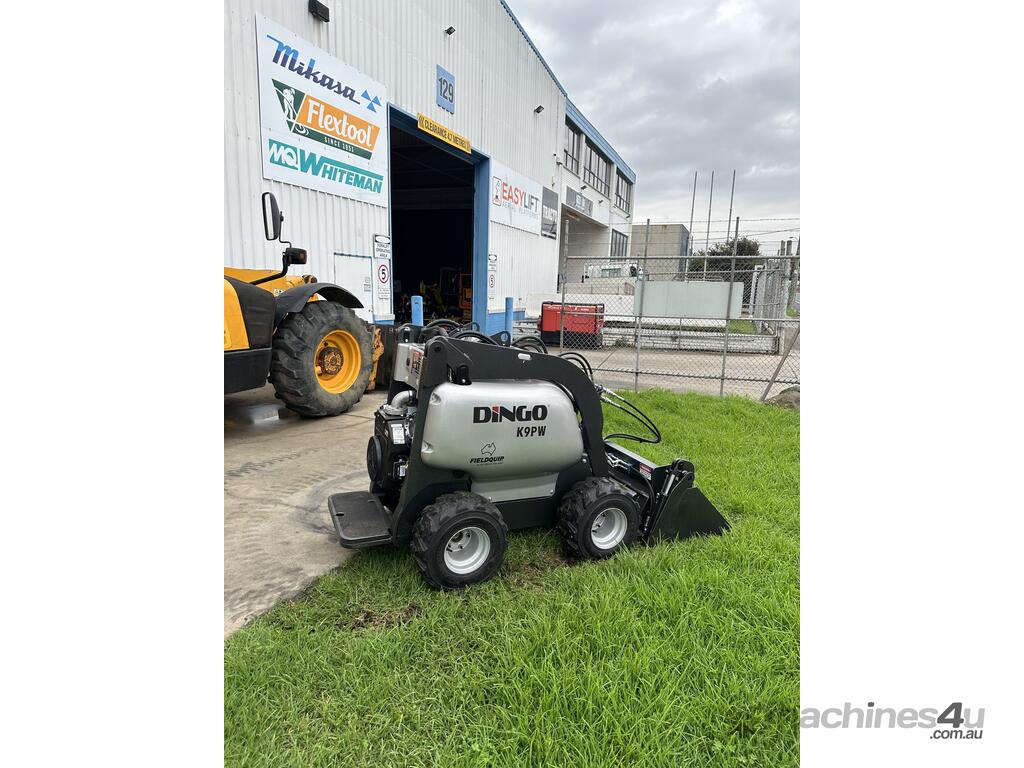

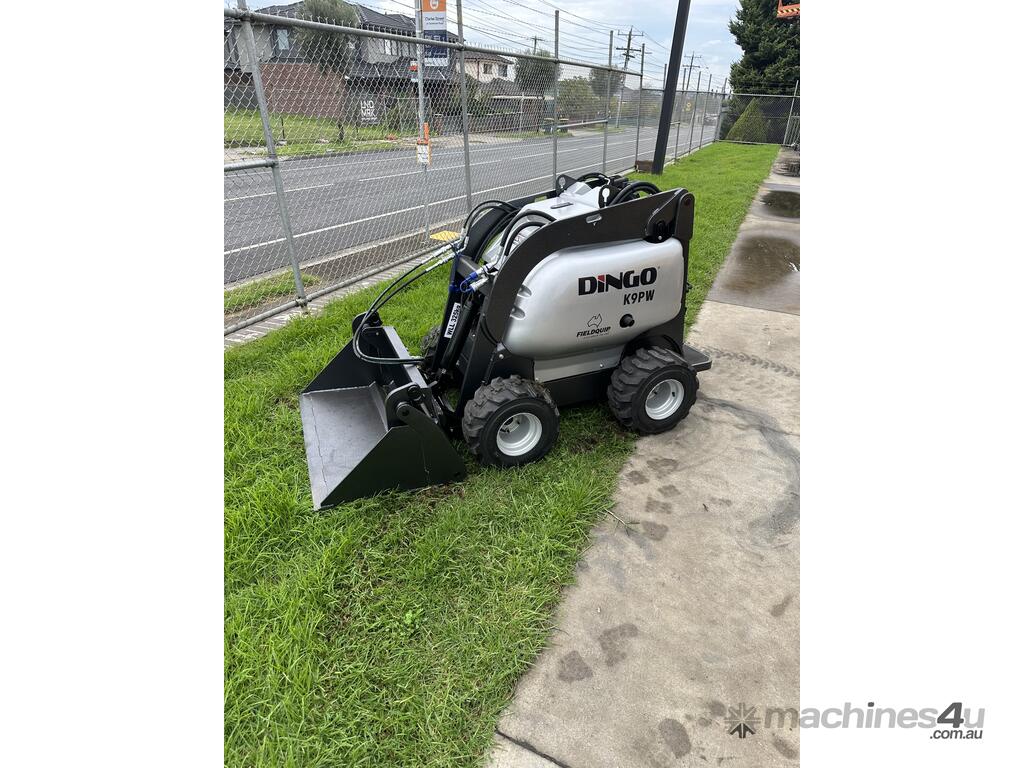

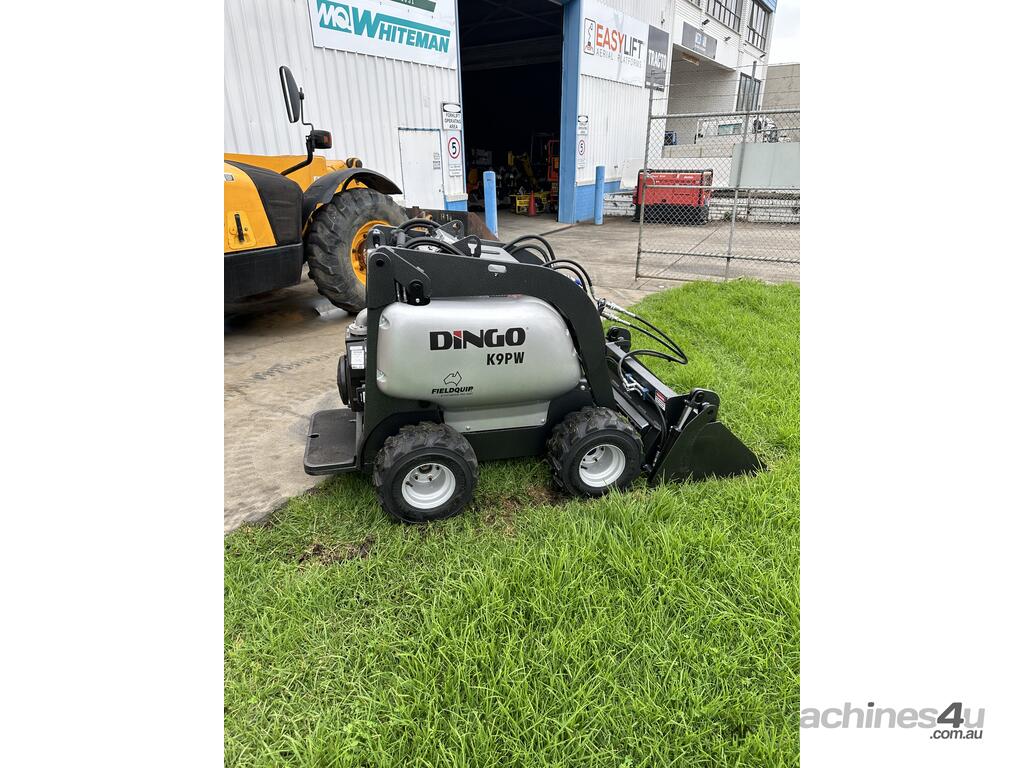

DINGO K9PW PETROL DIGGER

Dingo K9PW Petrol Digger

WHAT YOU GET
• The ORIGINAL DiNGO®
• Designed and manufactured in Australia
• Latest Low Emission range of Engines
• Best in class Traction and Trenching
• No Steel-on-Steel Wear
• Ultra Heavy Duty Powder coated Finish
PERFORMANCE

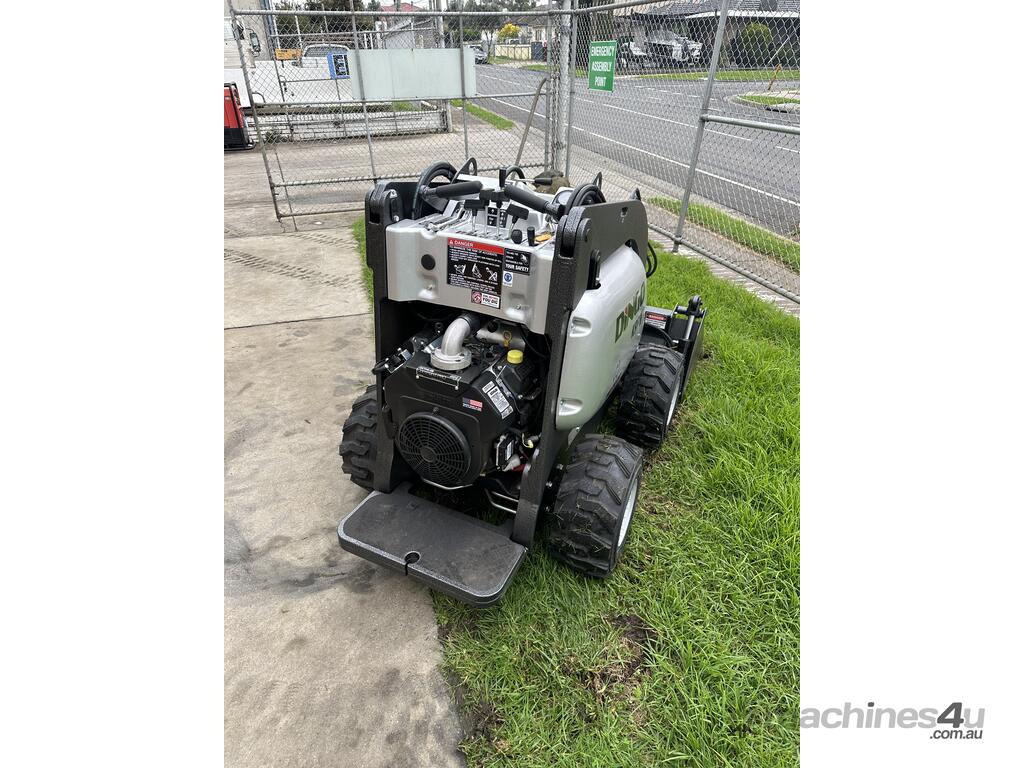

Engine 23 HP Kohler Petrol
Hydraulic pumps 2 pumps
Pump sizes 11 & 4 cc
Relief pressure (AUX) 3,200 psi (220 bar)
Hydraulic output 47 L/m
Max travel speed 7.5 km / h
Rated lift capacity 325 kg
DIMENSIONS
Overall width 780 mm & 1,040 mm
Overall length 1,600 mm
Overall height 1,200 mm
Max operating height 4 in 1 2,680 mm
Turning radius with 4 in 1 bucket 1,300 mm
Angle of departure 25°
Wheel base 800 mm
Ground clearance 140 mm
Dump height standard bucket 1,450 mm
Dump height 4 in 1 bucket 1,835 mm
Reach fully raised 4 in 1 bucket 800 mm
Height to hinge pin 1,940 mm
Machine width 4 in 1 bucket 1,050 mm & 1,200 mm
Hydraulic reservoir capacity 76 L
Machine mass 862 kg
Warranty 5 yrs / 5,000 hrs



1

All wheel drive system
Through 4 specifically designed and
OEM manufactured Hydraulic Drive
Motor
2

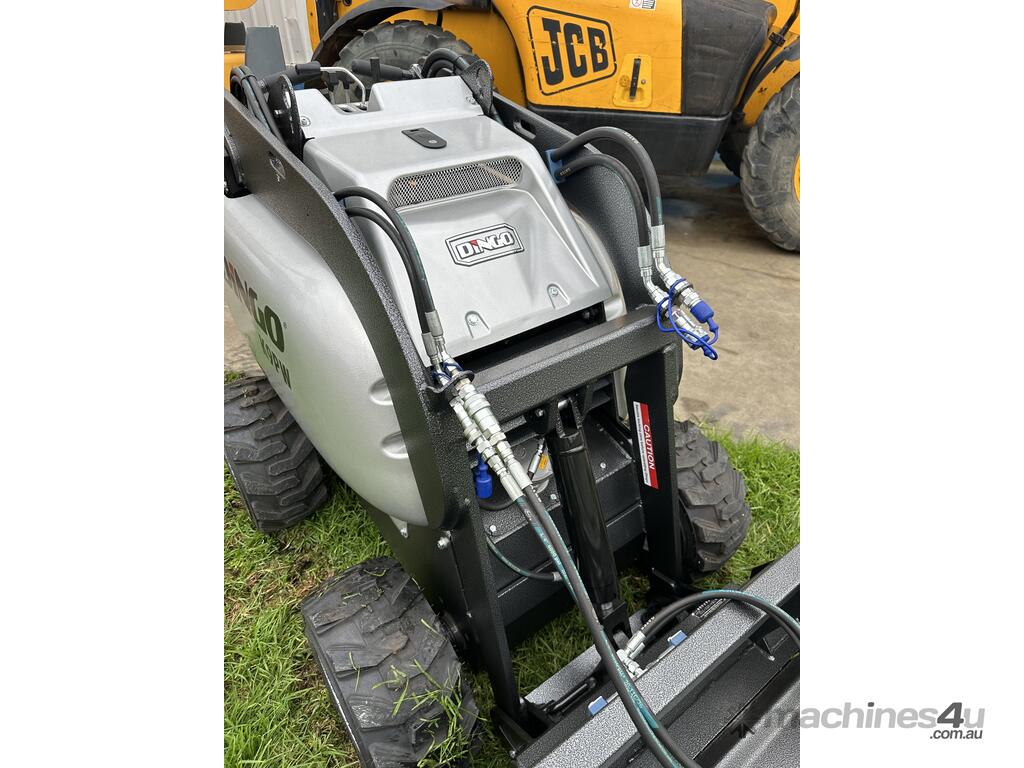

High Flow Auxiliary Hydraulics
For powering attachments through
the toughest conditions.
3
Grease free
For Lower Cost maintenance and
Quick hitch system.
4
180° access
Safer for operators – no risk of being
trapped from behind and side bars.
5

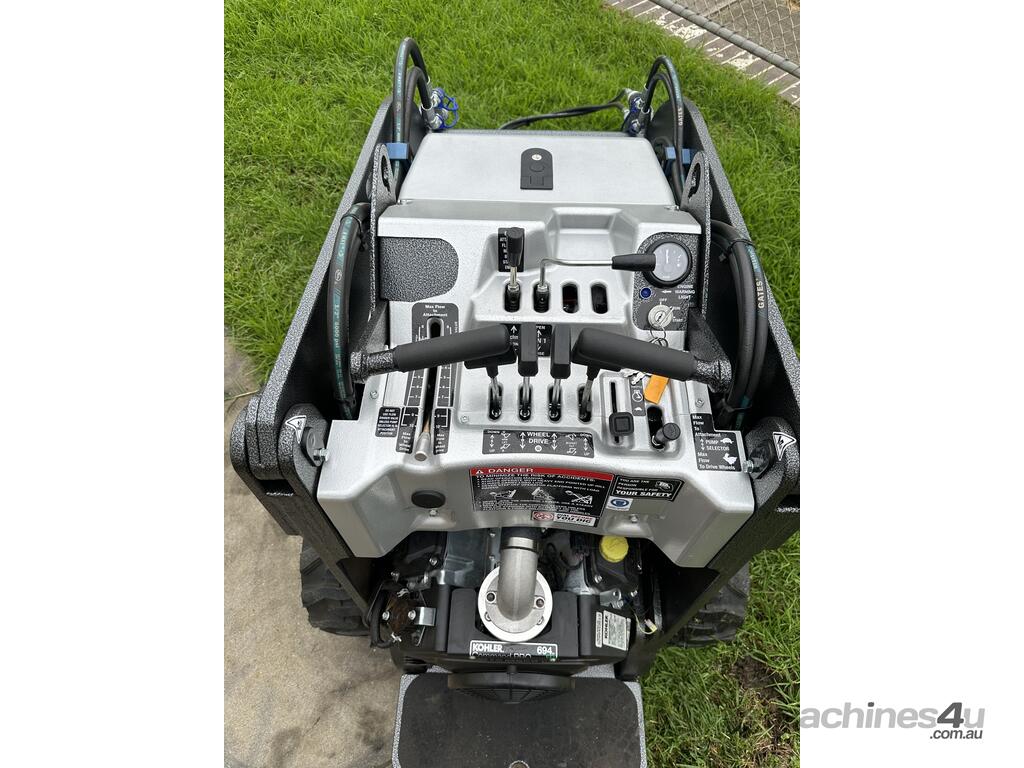

Soft touch controls
Minimise fatigue while providing
accurate control.
6
1,840mm lift
Lifts into utes & most trucks,
tips over fences.
7
Rupture resistant fuel tank
Full vented cap with true-fill
opening for easier refuelling

Call the team at Mech-N-Air Construction and Access Equipment today.
