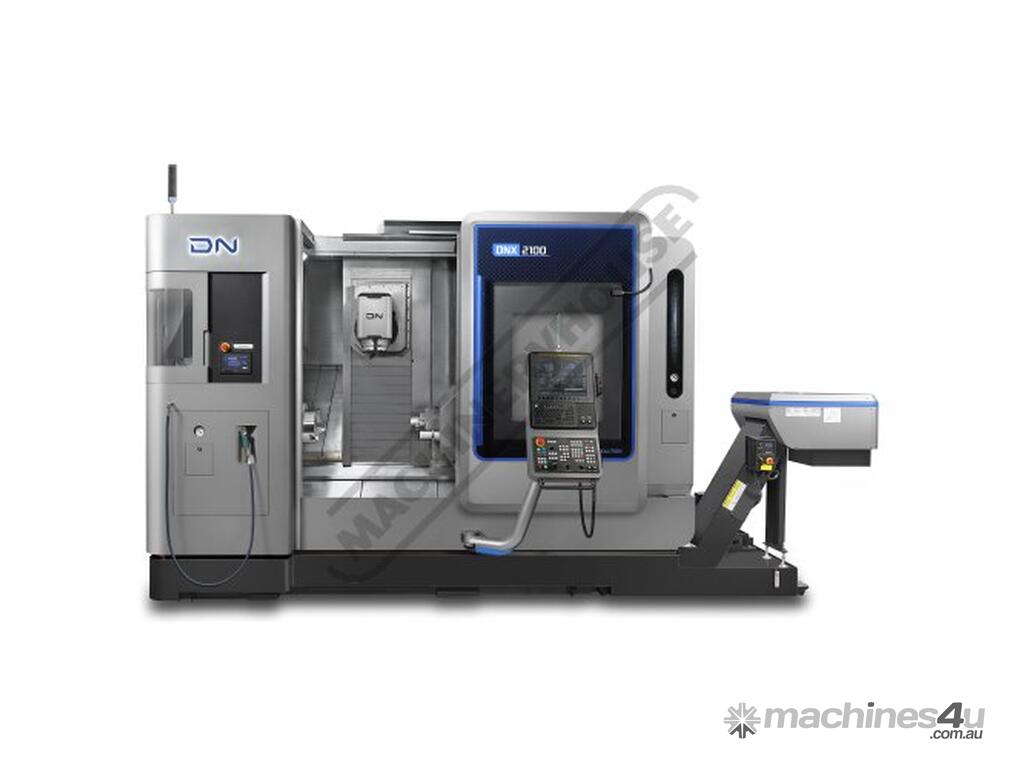

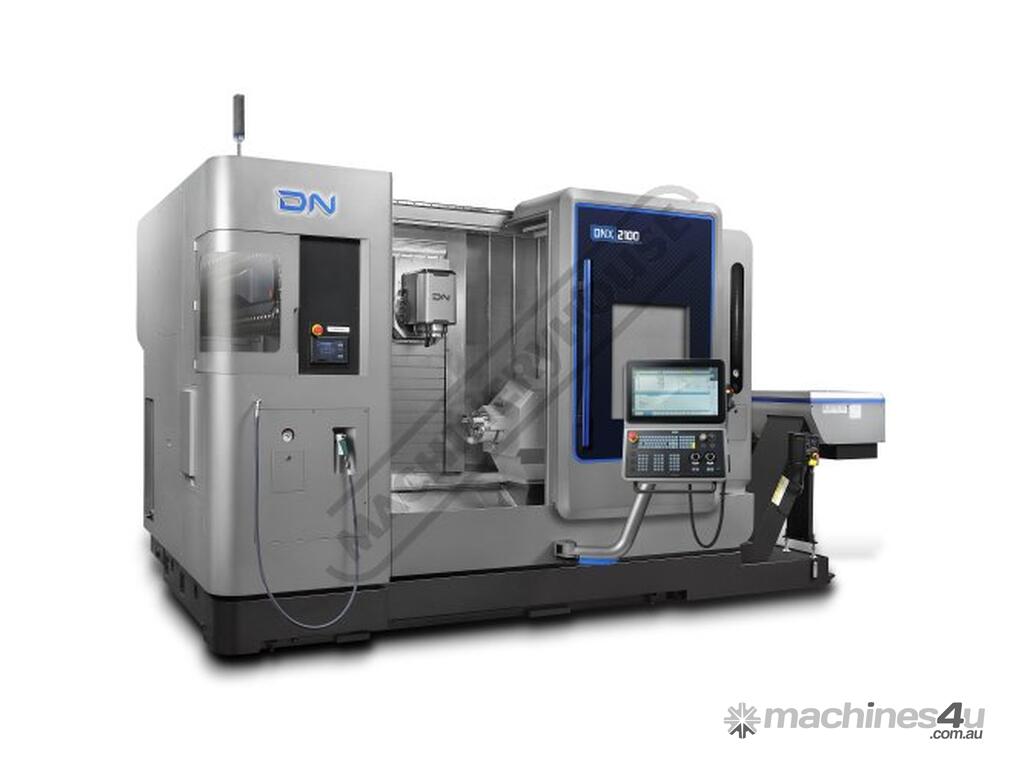

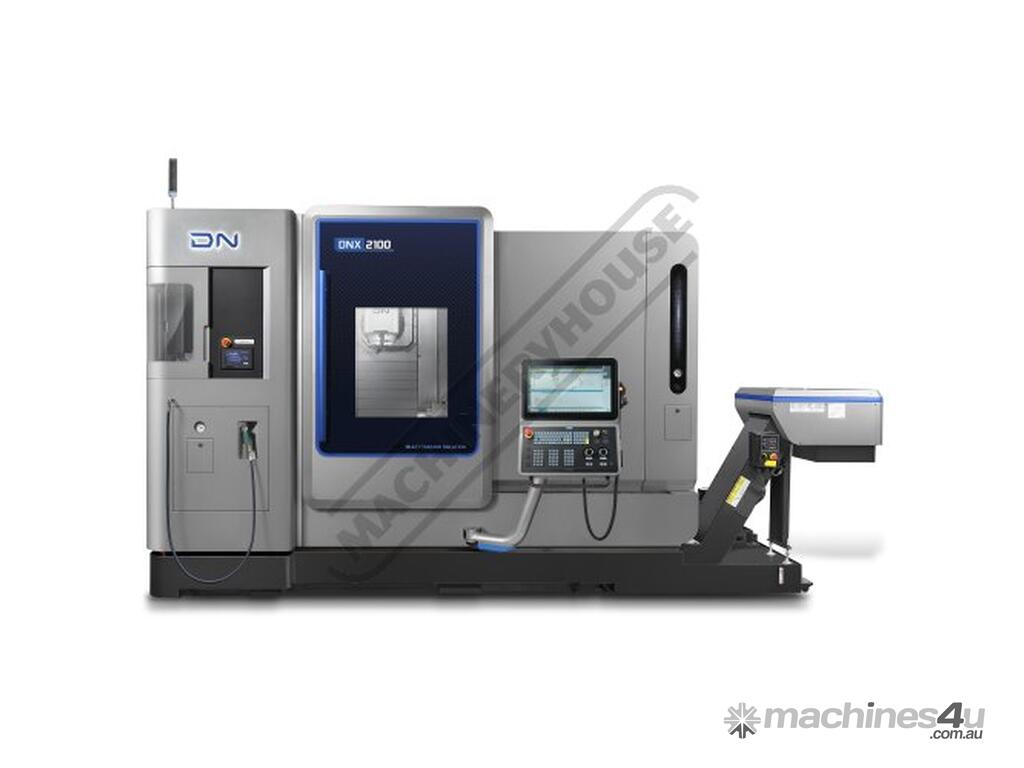

DNX Multi Tasking CNC Turning Centres Series Details

DN SOLUTIONS DNX Multi Tasking CNC Turning Centres Series Details
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: I8018

Features:
Roller Cam Contouring B Axis
Capto C5 Milling Spindle
Through Spindle Coolant
Tool Load Monitoring
Hydraulic Chucks
Hard and Soft Jaws
Coolant System
Fully Enclosed Guarding with Door Interlocks
Work Light
Operator Training
In House Service and Support Australia Wide


Specifications:
ORDER CODE: I8018
MODEL: DNX 2100/B/S/SB
Swing (mm): 635
Max Turning Diameter (mm): 410
Machining Length (mm): 1100
Chuck Diameter (mm): 255/210
Bar Diameter Capacity (mm): 65/81
Turning Spindle Speed (rpm): 4000/5000
Turning Spindle Power (kW): 18.5/22
Milling Spindle Taper: HSK-A63
Milling Spindle Speed (rpm): 12000
Milling Spindle Power (kW): 18.5
Milling Spindle Travel (deg): 240 (±120)
Y Axis Travel (mm): 240 (±120)
Auto Tool Change (No.): 30/60
Guideways: Roller LMG
Control: Fanuc 0iPLUS
Programming: EZI Guide I Conversational
C Axis Resolution (deg): 0.001
Sub Spindle: Optional
Lower Turret: Optional
