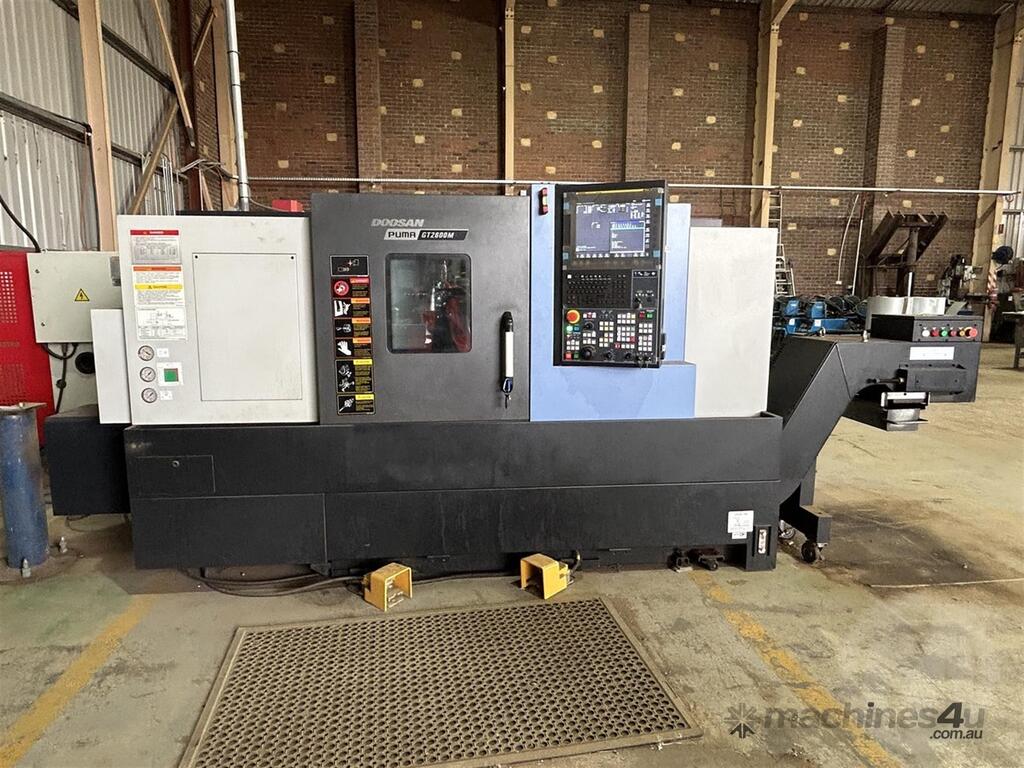

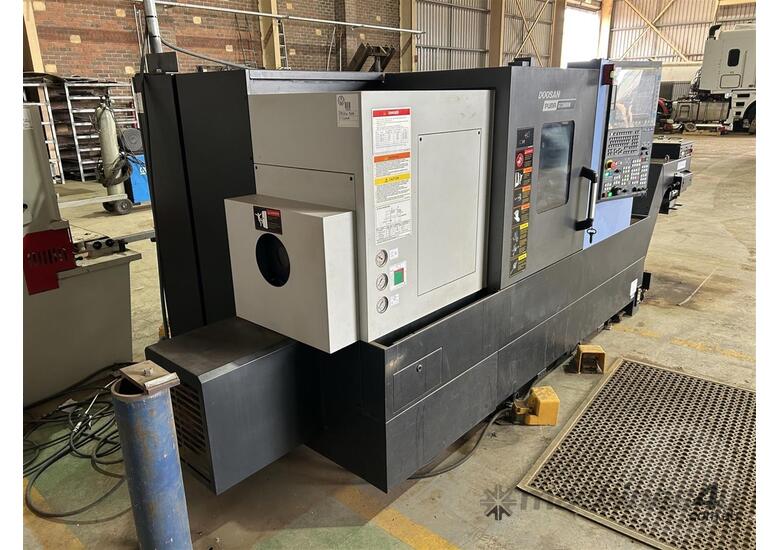

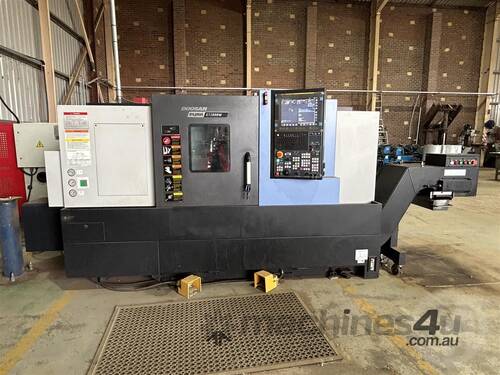

DOOSAN PUMA GT2600M CNC LATHE WITH MILLING FUNCTION - SUIT NEW BUYER

OVER $30K OF TOOLING INCLUDED WITH THE MACHINE.

Basic Specifications
• 630mm Swing Over Bed
• 460mm Swing Over Saddle
• 610mm Turning Length
• 410mm Turning diameter
• 3600 (0.0010 Resolution) C Axis
• 220kg Main Spindle Capacity. 520kg Shaft Work Capacity

Main Spindle
• 81mm Bar Capacity
• 250mm Ø Hydraulic Chuck
• 3500RPM Spindle Speed
• 22kW Spindle Power
• 633Nm Spindle Torque

Tailstock
• MT5
• 100mm Quill Ø
• 100mm Quill Travel
• Programmable Positioning

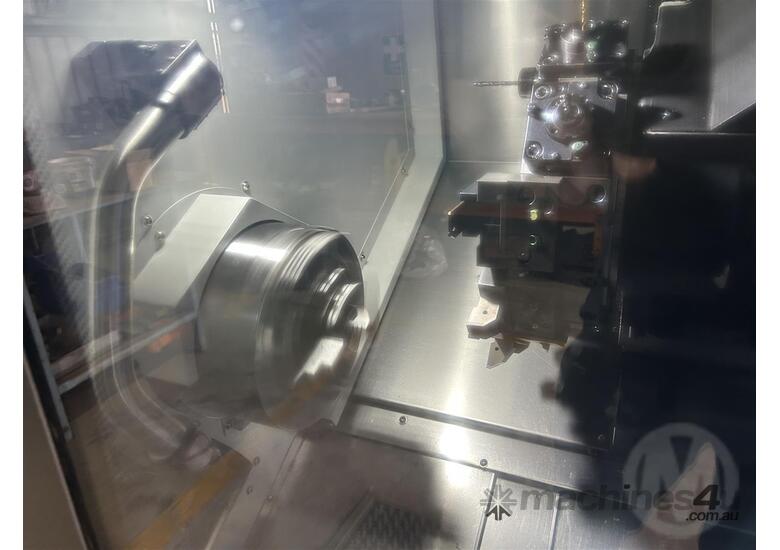

Turret
• BMT 55 Tool Mounting
• 5000rpm Live Tool Speed
• 5.5kW Live Tool Power
• 47.1Nm Live Tool Torque
• 12 Station Turret
• 25mm Square / 40mm Ø Tool Capacity
• ER25 Live Tool Collet Size
• Eppinger Preci-Flex Tooling System

CNC Control
• Doosan Fanuc I Series (0i-MD) CNC Controller
• 10.4” Colour LCD Monitor
• Rigid-synchronised tapping
• Custom Macro B
• Ethernet Interface
• RS232 Interface
• USB & PCMCIA Memory Card Slot
• Doosan Ezi Guide “I” Conversational software:
• Graphical Turning Cycles
• Graphical Milling Cycles
• Full 3D Graphical Simulation
• Onboard G & M code assistance
• + more

Standard Equipment - Included
• 3 Jaw Hydraulic Power Chuck
• Chuck Cleaning Air Blast
• Eppinger rotary tool holders with Preci-Flex adapter set
• Coolant supply equipment
• Foot switches
• Transformer
• Full enclosure chip and coolant shield with front door interlock
• Hand tool kit
• Automatic lubrication equipment
• Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
• Safety name plates/tags where required
• Risk assessment
• Work light


Optional Equipment Included
• Chuck open close confirmation proximity switches

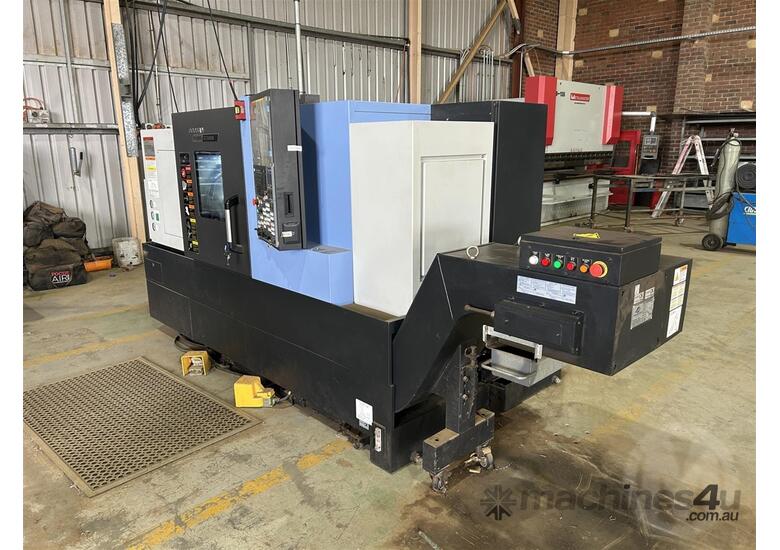

• Chip Conveyor (Side Discharge, Hinged Belt)
• Auto Tool Setter (Hydraulically operated)
• Coolant Oil Skimmer
• 7 Bar High Pressure Coolant
• Barfeed Interface
• Programmable Tailstock
