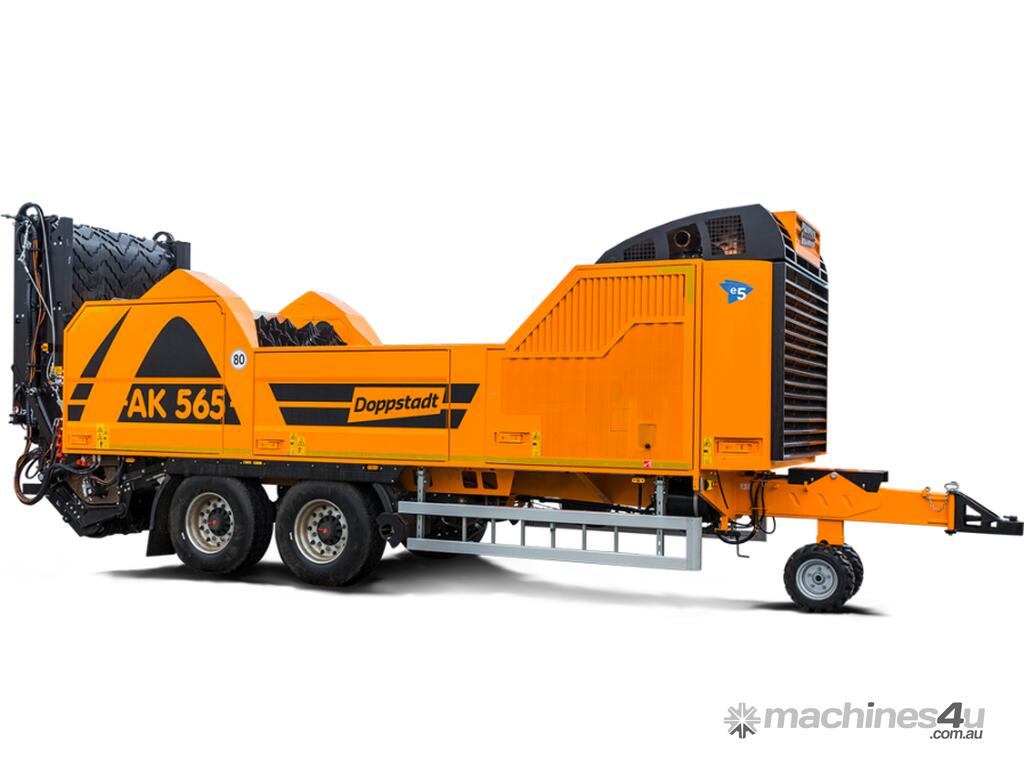

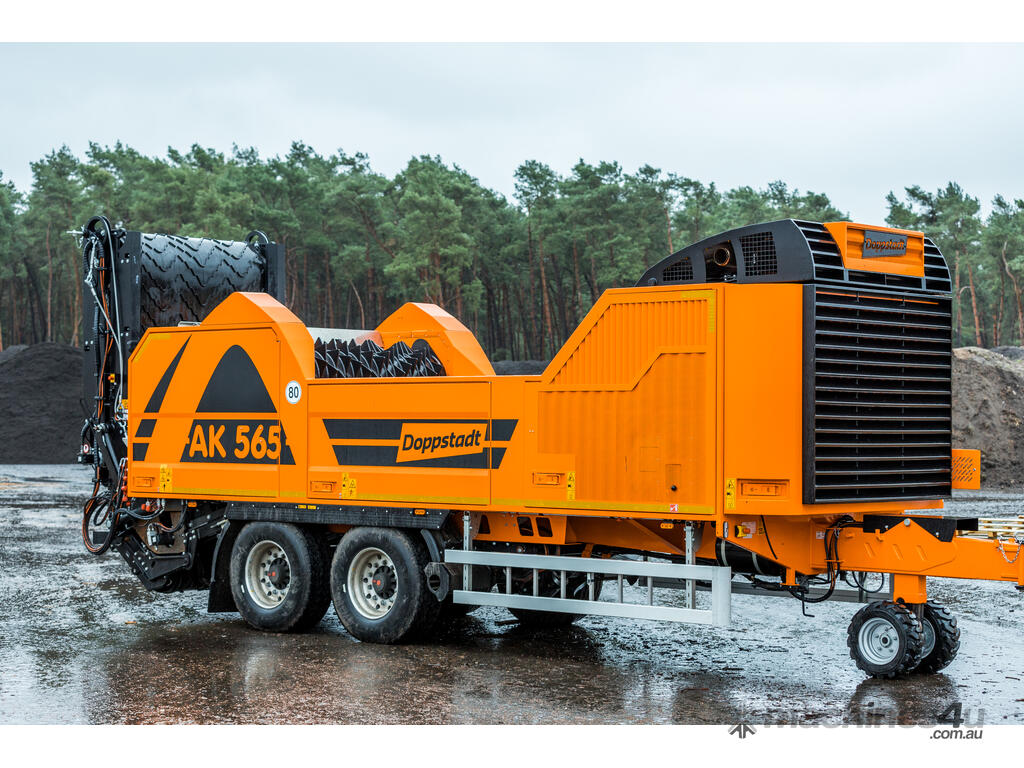

DOPPSTADT AK 565 Mobile Grinder

Strong Throughput with Future-Proof Drive

The powerful AK 565 mobile shredder is flexible and universally applicable and scores points with a lowerable rear discharge conveyor for improved ease of maintenance. The new engine meets the Stage V emissions standard.

APPLICATION
- Old wood
- Green waste
- Compost
- Commercial waste
- Substitue fuels – EBS
- Agricultural residues

SPECIAL FEATURES

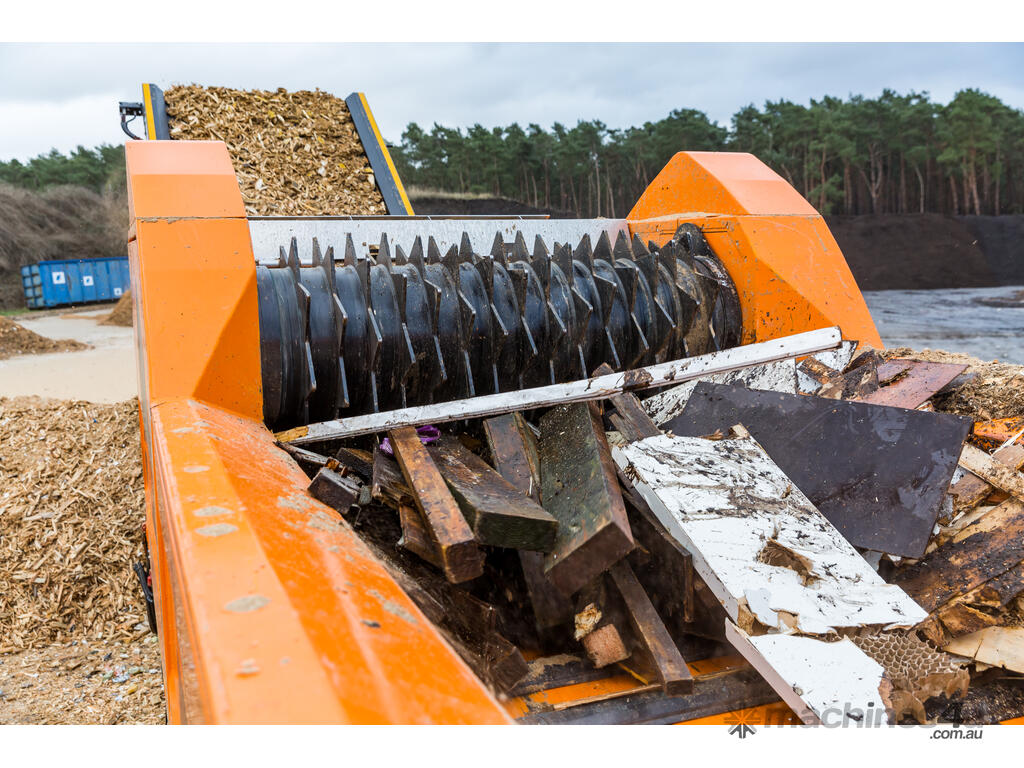

Maximum throughput is one of the main features of this machine. The material is fed via a scraper floor and a feed roller, which are controlled by an electro-hydraulic system depending on the load. In this way, the engine power is continuously used optimally. The scraper floor and feed roller are driven separately, which improves the intake and straightening of the material.

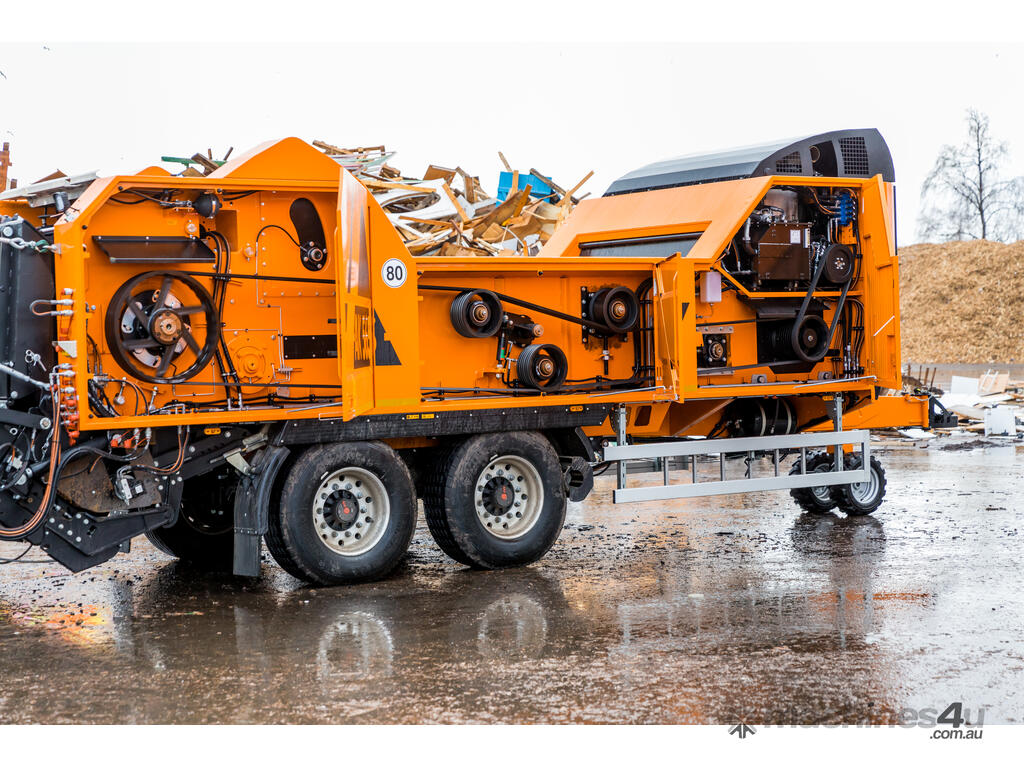

Another guarantee for the high performance of the AK 565 is the adapted main drive, which not only meets the latest emission level V, but also has a consistently higher torque (plus 140 Nm) than the previous model. The heart of the machine is the heavy belt-driven flail drum, which rotates at 1,000 rpm and is equipped with the high-quality flail tips Plus as standard.

The universally applicable Doppstadt AK 565 can be used for a very wide range of materials, such as green waste, garden and park waste, organic waste, pre-shredded logs and roots, old wood and wooden pallets. For special applications, the AK fine shredders can be ideally combined with other Doppstadt products - e.g. with pre-shredders or screening machines.

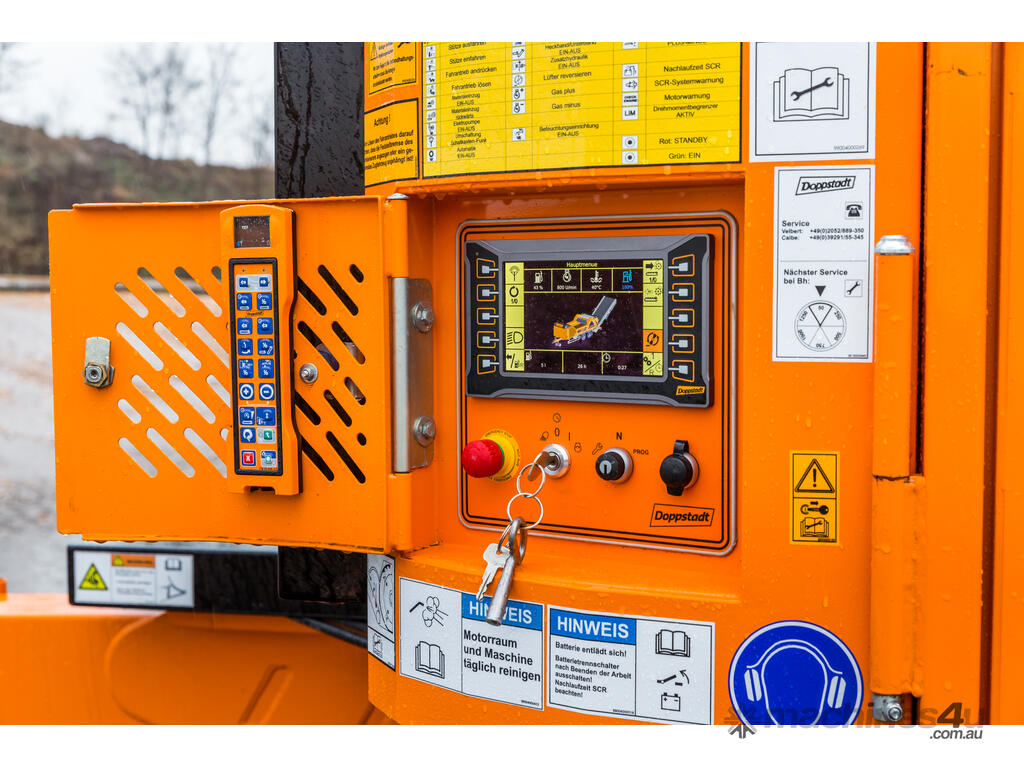

The lowerable rear conveyor belt, the high diagnostic capability and the easy exchangeability of the components ensure a high level of ease of maintenance. The improved fire protection and more effective cooling control ensure optimized operation with maximum operational reliability.

ADVANTAGES
• Separate drive of scraper floor and pendulum-mounted feed roller for optimal material feed and high throughput
• Insensitive to foreign matter due to freely swinging hammers, continuous shredding due to load-controlled material feed
• Latest engine and exhaust technology, compliance with emission standard Stage V, exhaust system made entirely of stainless steel, covered with the highest quality integral insulation

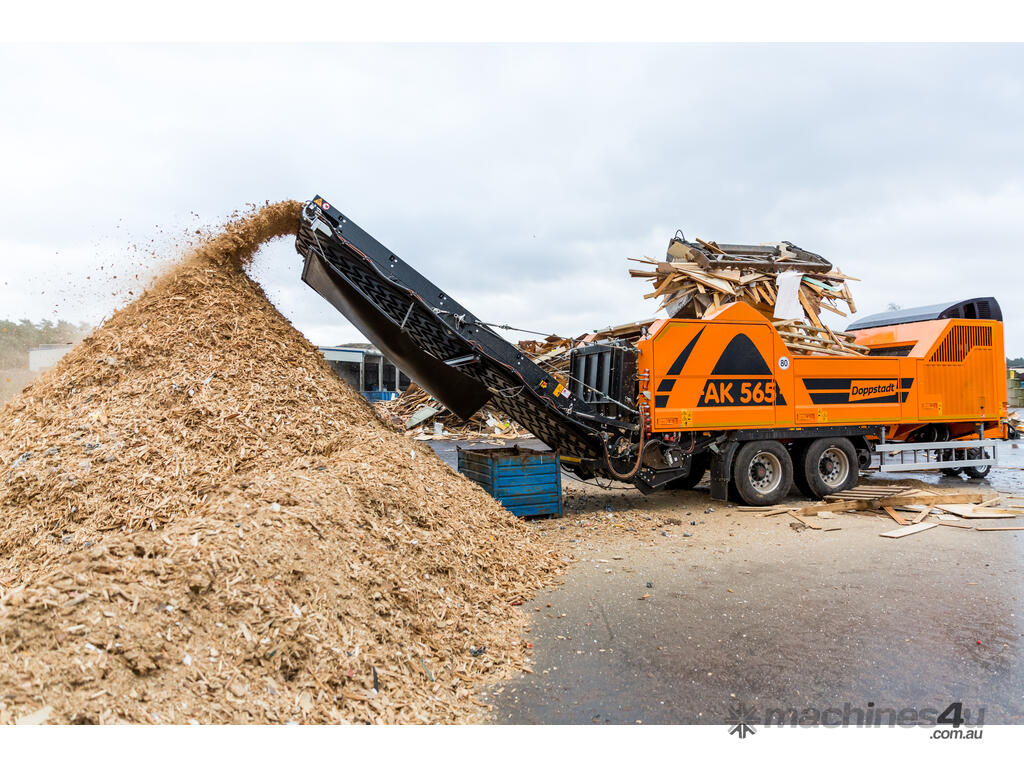

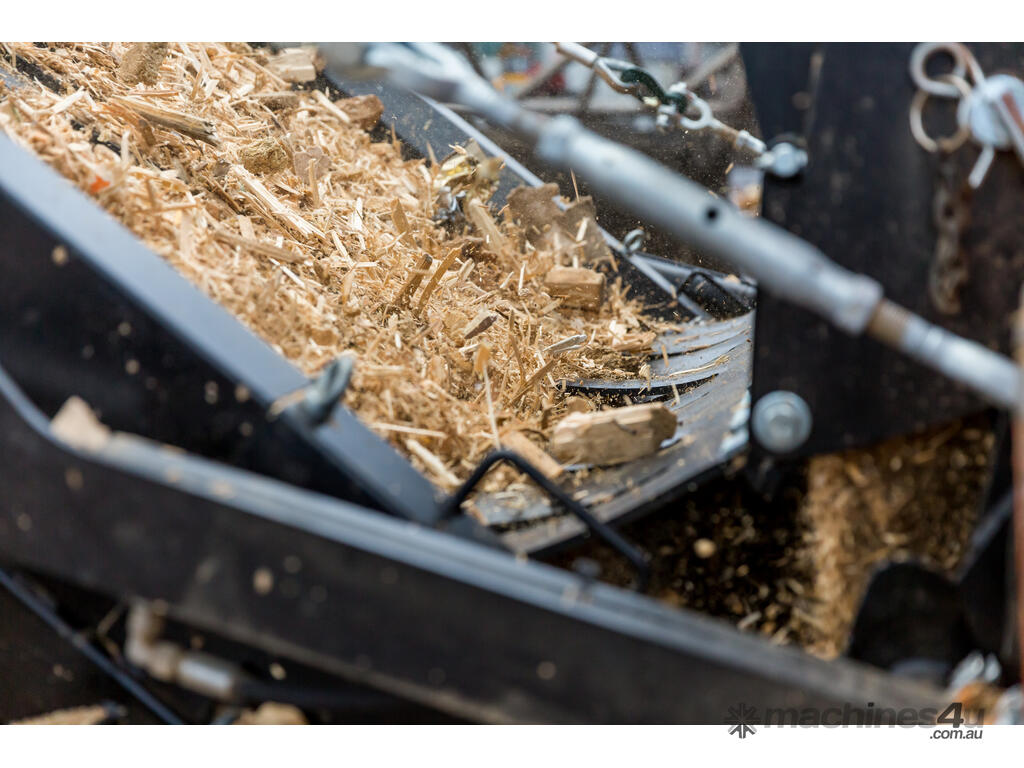

• Lowerable rear conveyor* for shortest set-up times and maximum accessibility and ease of maintenance to the flail drum, tools or rear basket (*optional)
• rear conveyor length of 4 m or 6 m* (*optional)

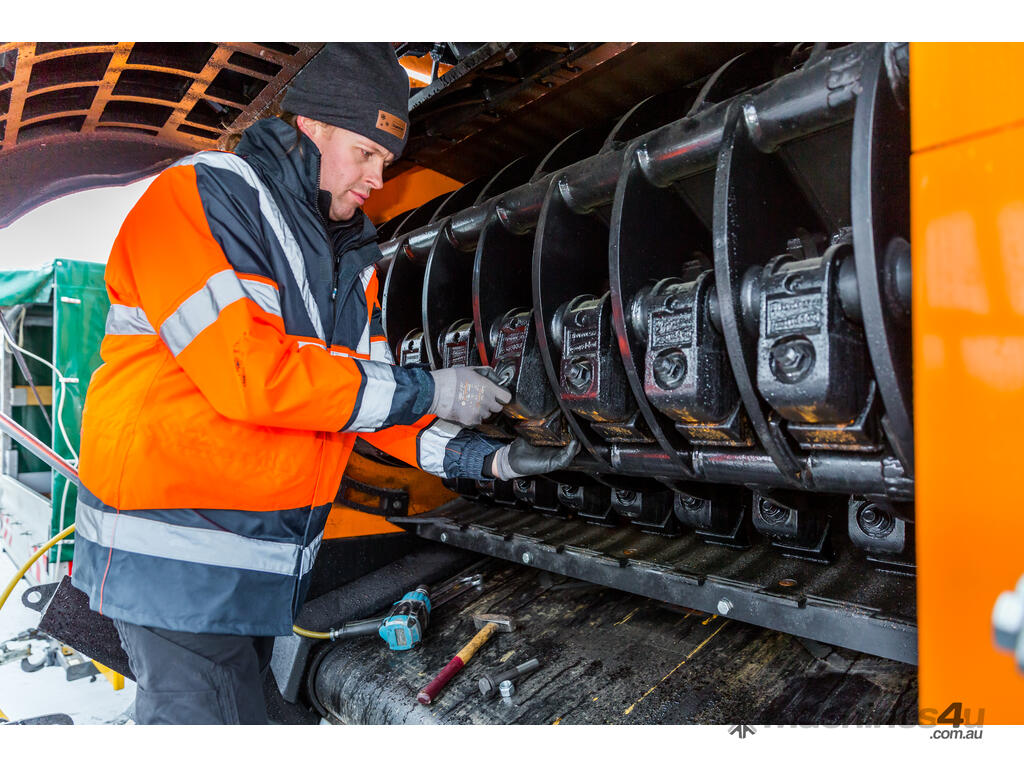

• Free-swinging flails of the flail drum, with a flywheel mass of approx. 2.5 t, have quickly individually exchangeable flail tips that are adapted to the material (e.g. hard metal or armored tips)
• Replaceable fine shredding basket*, the material grain size is determined by the mesh size (30 – 400 mm), (*optional)
