DOPPSTADT METHOR Multi-Purpose Recycling System

METHOR: THE MULTITOOL - Versatility in a new dimension: MORE FLEXIBILITY. MORE EFFICIENCY.

Adaptable and versatile like no other of its class – Methor takes things as they come. As a multipurpose recycling system it is simply unstoppable. Whether opening (bags), dosing, charging, disintegrating, crushing or cutting – indestructible and resistant to contaminants, it covers the widest range of applications even under the most adverse conditions.

Our multitool Methor offers the widest variety of applications of its class. The shredding of industrial waste, construction and demolition waste, mattrasses, building rubble, biowaste or waste wood, for example, do not pose a problem, but even entangled waste from paper and plastic production, the shredding of rolls or roll goods or magnetic tape scrap and the opening of the yellow waste bags are easy with the Methor. For high-performance process chains, it can be optimally combined, e.g. with a drum screen or the Selector 400 with SWS spiral shaft screening deck.

THE FUTURE IS MOBILE-MODULAR
Doppstadt solutions are distinguished by innovative processes, great efficiency and high economic viability. This applies in particular to our mobile-modular processing concept, in which we are able connect standard machines in a smart and efficient manner. The METHOR is at the heart of this concept. The flexible, powerful multitool opens up new perspectives for you in a wide variety of applications. As carrier variation, you can combine it with additional processing technologies using an attachment, thus creating a compact treatment system.


APPLICATIONS
- Waste wood
- Green waste
- Commercial waste
- Mixed Construction waste
- Biowaste and sieve residues


SPECIAL FEATURES
As the Methor is easily adaptable, it enables by far the widest range of applications of its class. Enterprises with smaller volume flow rates as well as users with special fractions profit from its precisely adjustable and efficient performance and from the possibility to adapt the highly contaminant-resistant shredding system to changing materials -quickly and tailored to suit the needs.

Apart from its smart operation, ease of operation and component construction, the Methor as a multi-purpose recycling system also offers many upgrade options in order to adapt to changing material flows.

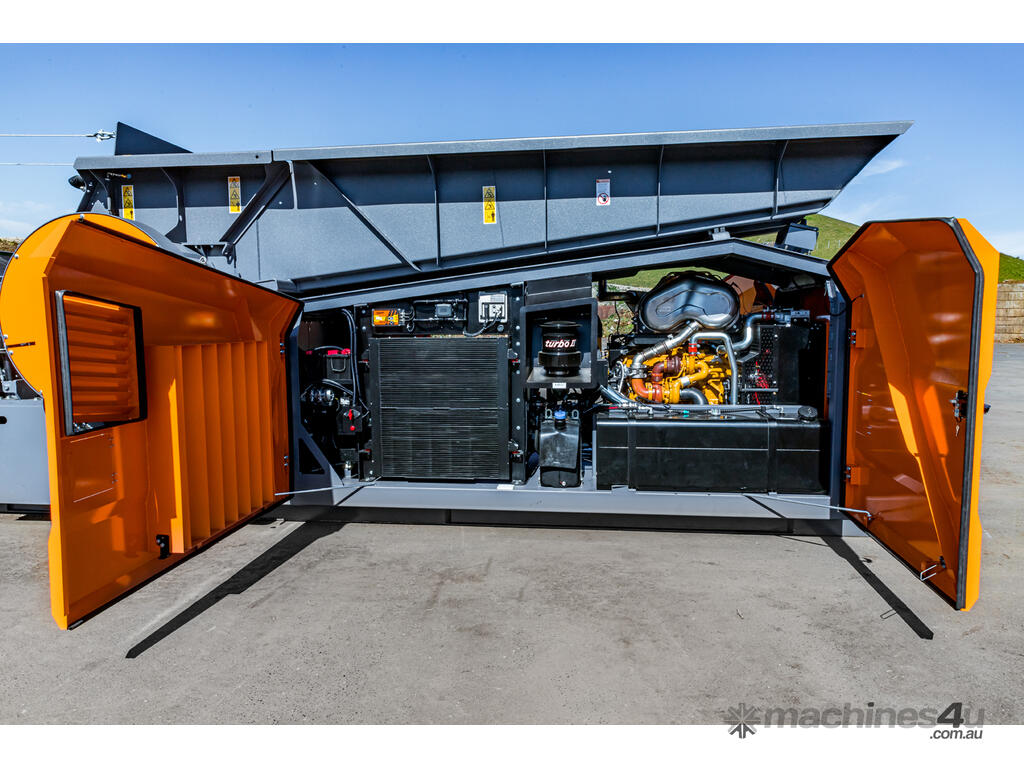

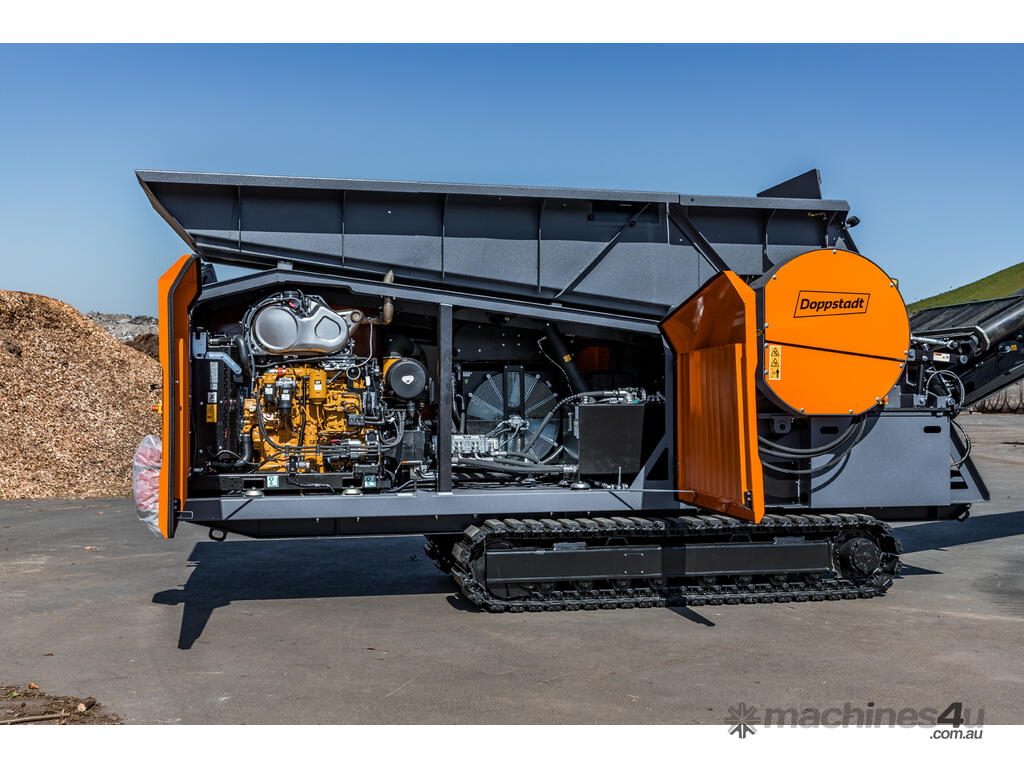

After all, the Methor allows operators to respond quickly to changing challenges thanks to its modular design. Each machine is built on the basis of a modular system, which starts with the drive. Customers have the option to choose between a standard diesel engine or a standard electric motor. But even a variant without its own drive system is possible, since the drive train can also be connected to an external engine.

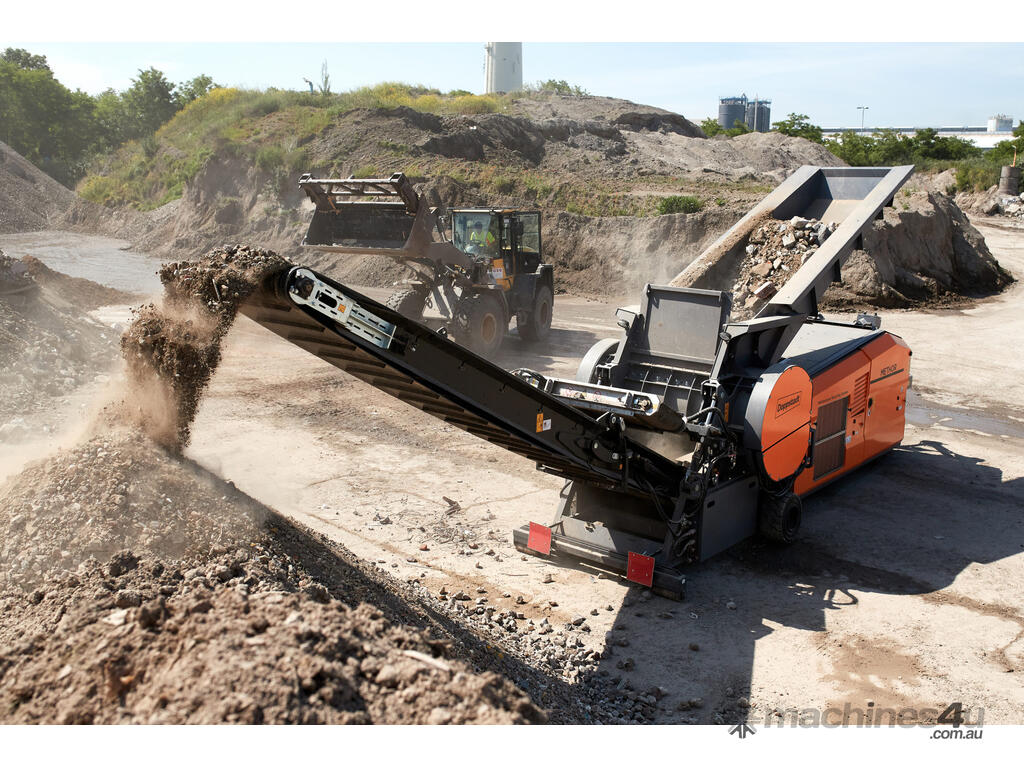

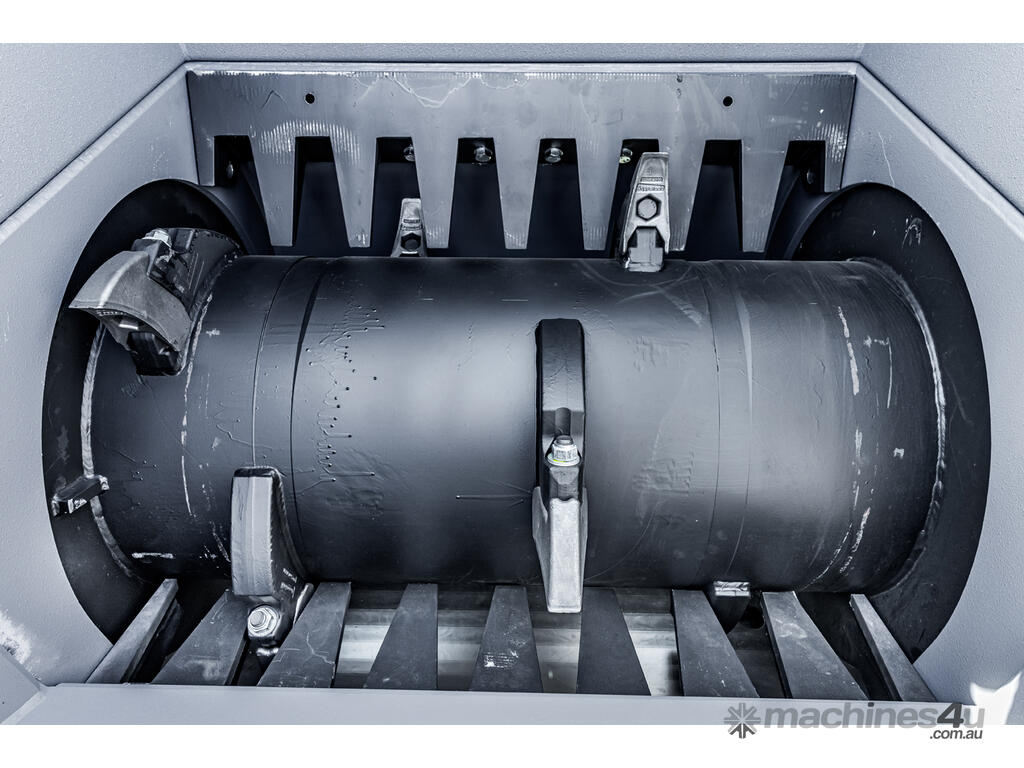

The Methor is the only single shaft shredder in its class with bolt-on tools – and at the same time the system with the largest selection of tools. And it can be retrofitted within 30 minutes. Installed crosswise, the shredding roller discharges the material in conveying direction of the belt, thus ensuring outstanding process reliability.

The innovative HydraulicDirect Drive continuously adapts the shredding system’s performance to demand. At the same time, the load torque on the drive is continuously optimized, which has a positive impact on consumption and wear and tear. If the pump pressure increases suddenly as a result of a blockage, the drive automatically switches, e.g., to the reversing program thus protecting the Methor automatically from damage.

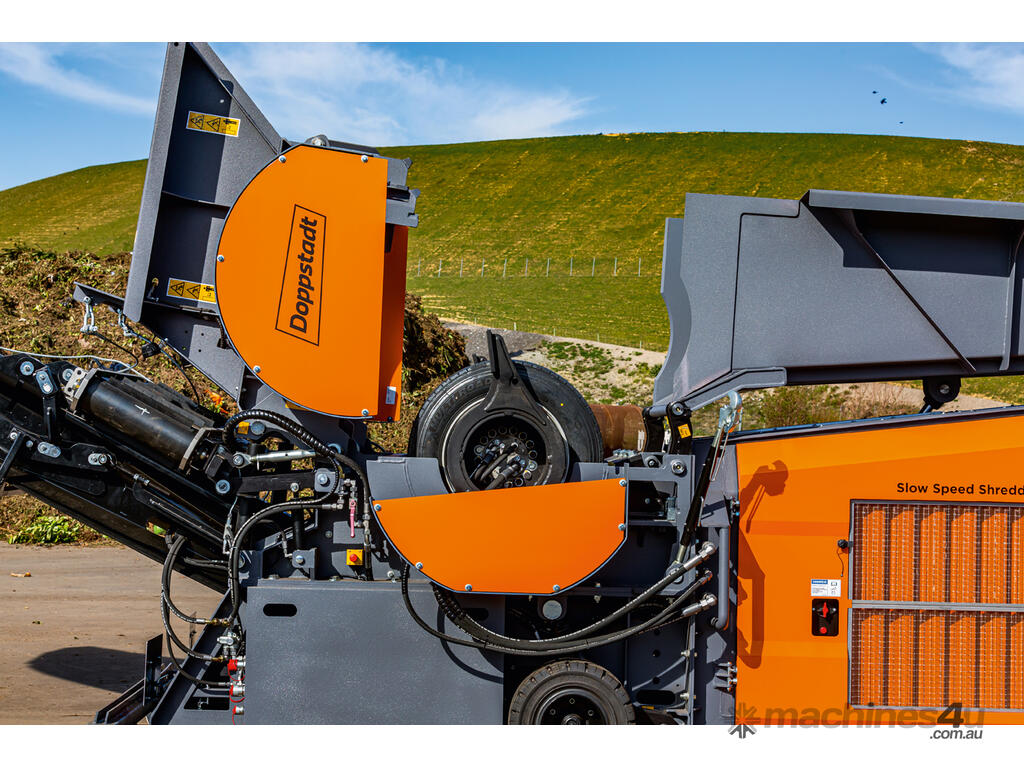

The hydraulic drive, the overall design a of the shredding chamber and the roller supported by cushioning tyres make the Methor extremely contaminant-proof and therefore resistant against foreign bodies. Even under the most adverse conditions it is simply indestructible and unstoppable.

The load-sensing material feed system works closely together with the HydraulicDirect Drive. It utilizes the pump pressure of the drive to control the angle of the feed hopper. As a result, the Methor can be loaded in relation to the machine's current load, allowing it to operate continually and even more dynamically.

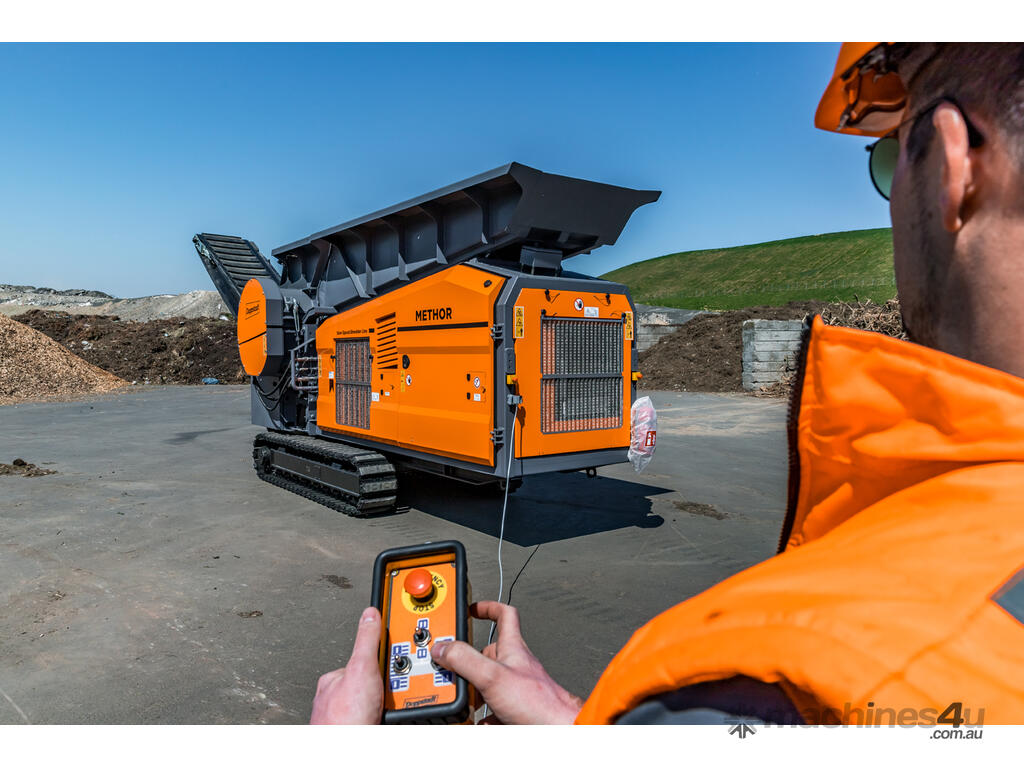

After all, its operating concept also takes into account that the Methor can be used in very different work environments. In addition to using the machine’s intuitive control panel, key functions can also be activated using the wireless remote control. The Methor can also be used to set up a WiFi hotspot, allowing it to be configured and monitored using any browser installed on an internet-enabled device.

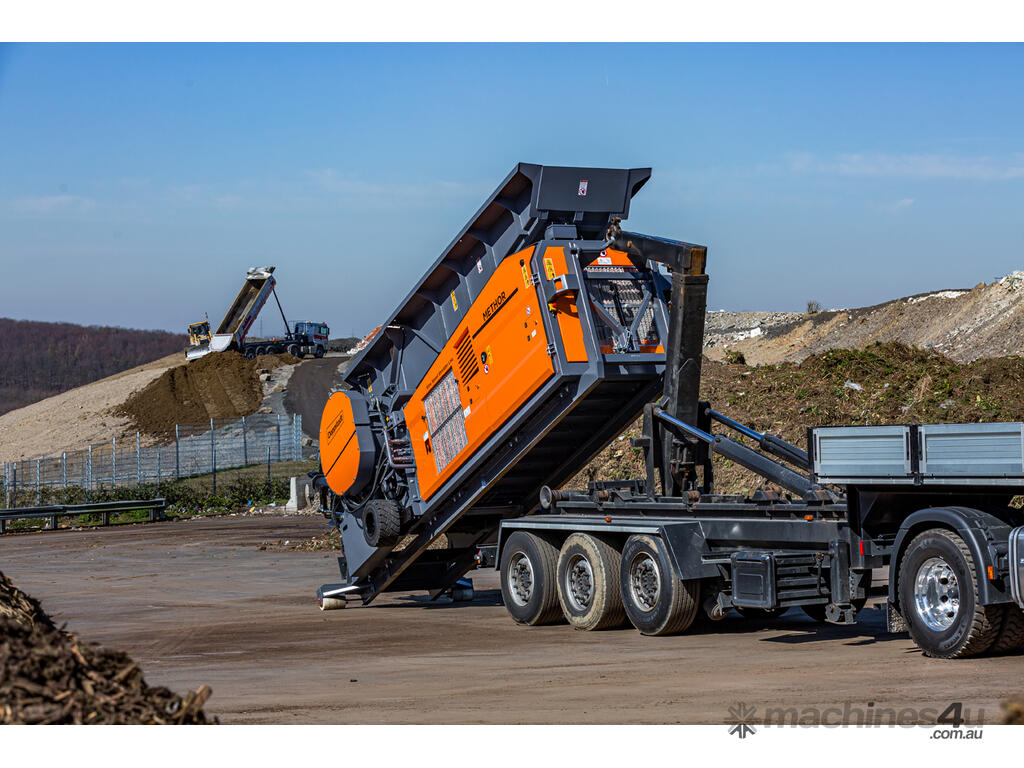

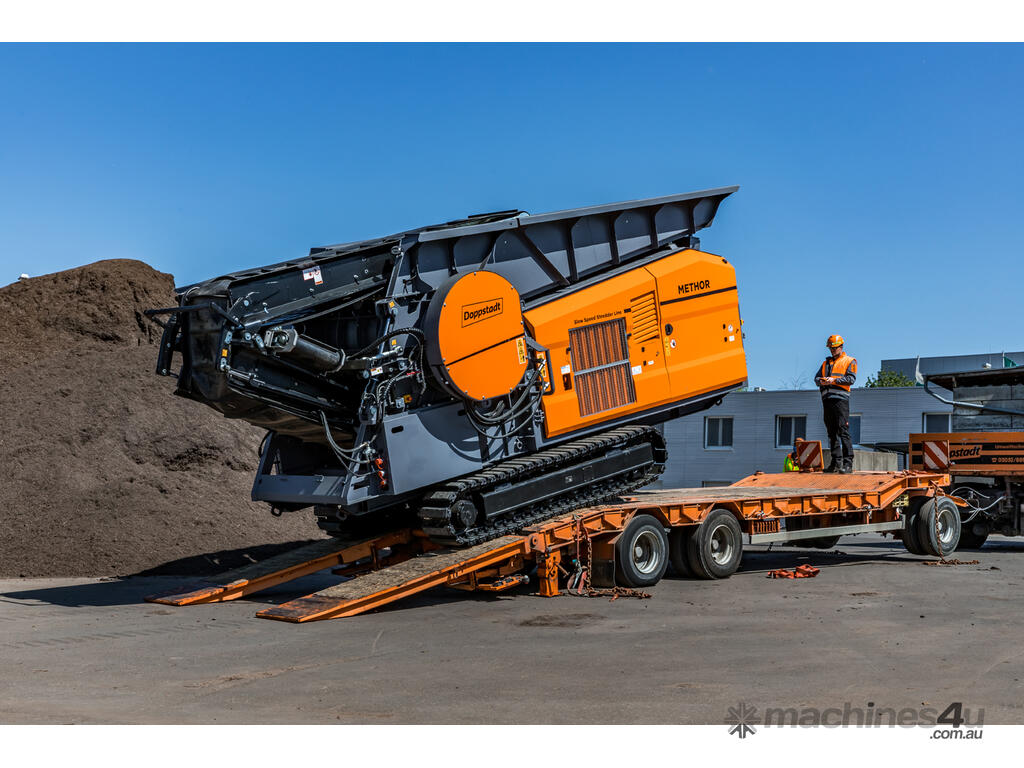

Depending on the operating conditions, the Methor can be equipped with a hook lift or with a tracked chassis, allowing it to move independently. The shredding unit is also available as a stand-alone component for stationary use.


BENEFITS
- A system that is designed for highest adaptability and versatility
- Single-shaft shredder with the widest range of applications in its class
- Efficient multi-purpose shredding solution for smaller volume flows and special fractions
- Unique quick tool replacement thanks to our patented Dopp-Lock® system
- Largest selection of tools in its class, with roller tooth sizes S, M, and L
- The only single shaft shredder in its class with screwable tools and perfect accessibility
- HydraulicDirect Drive ensuring performance that meets your needs and contaminant-resistant operation
- Selectable variants such as track-mounted chassis or mobile hook lift with yard chassis
- Smart handling – simple construction and impressive ease of maintenance and operation
