DPM-K 1570-150 Industrial Motorised Hydraulic Press with Movable Head - 150 Tonne 300mm Ram Stroke &

Name: DPM-K 1570-150 Industrial Motorised Hydraulic Press with Movable Head - 150 Tonne 300mm Ram Stroke
Brand: LFSS
SKU: P138M
Price: 21500 AUD
Availability: InStock

NSW, SA, VIC, WA, QLD - Delivers Nationally

Play Video

$21,500 AUD($23,650 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$74.89
Per Week

3.7% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Specifications

Condition:

New

Category:

Workshop Press

Make:

LFSS

Model:

DPM-K 1570-150

Year:

Not specified

Member Since: Sep 2007

Platinum Member

Listings: 4223

Sellers stock ID:

P138M

Description

LFSS DPM-K 1570-150 Industrial Motorised Hydraulic Press with Movable Head - 150 Tonne 300mm Ram Stroke & 800mm Height From Ram To Table Includes Movable Cylinder Ram, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P138M

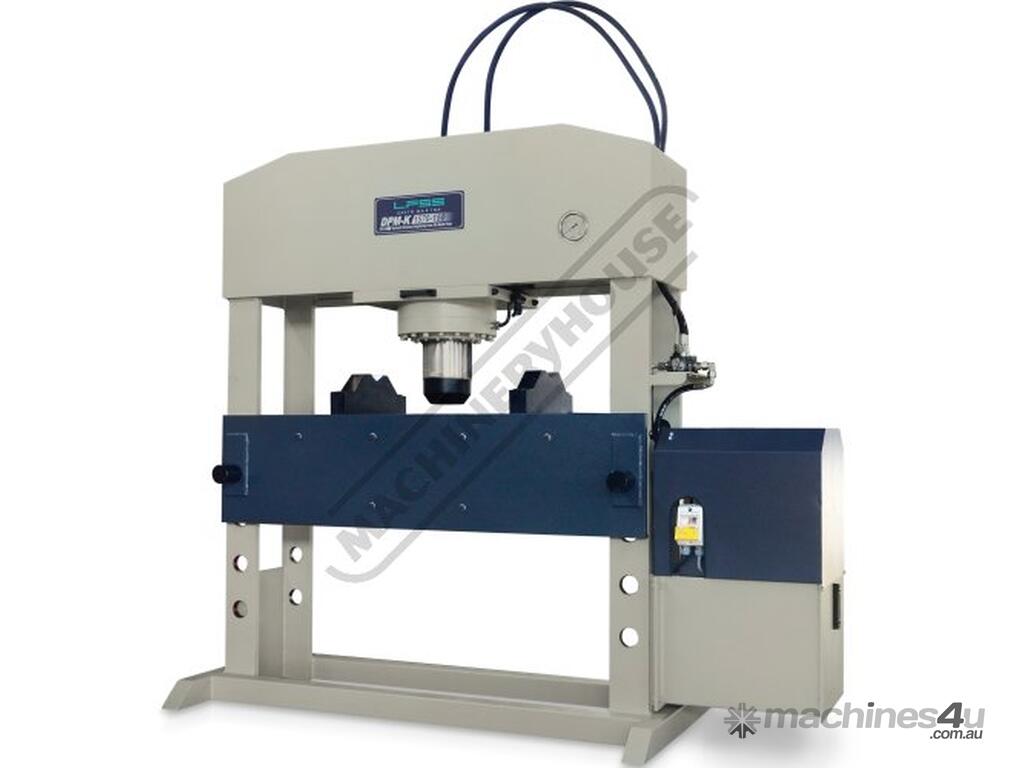

The LFSS DPM-K1570 150 Tonne electric hydraulic press features a sliding cylinder which can be moved from side to side allowing for those offset pressing jobs.
Suited for the Industrial workshop, for pressing of bearings, bushings & straightening shafts, bending steel as well as all general pressing applications.

Features:
Heavy duty steel welded frame
Movable cylinder ram (left-right) allows operator to reposition the cylinder for off centre work
1570mm width between front posts
Dual-speed joystick control (fast approach slow bend)
Pressure gauge fitted for easy control of pressing operations
Heavy duty worktable with 5 adjustable positions
Worktable can be adjusted using the provided chain system which works in conjunction with the hydraulic ram
Safety overload valve
Safety contactor switch with overload protection
Built to CE regulations

Includes:
- Pair bending plates
- Table lifting and lowering chains
- Hydraulic oil

Specifications:
ORDER CODE: P138M
MODEL: DPM-K1570
Pressing Capacity (Tonne): 150
Hydraulic Ram Operation (Type): Motorised System
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 1570
Width Between Side Posts (mm): 360
Table Top Opening - (Front to Back) (mm): 425
Ram To Table (Max.) (mm): 800
Cylinder Stroke (mm): 300
Ram Diameter (mm): Ø280
Piston Diameter (mm): ~
Minimum Air Flow Rate required (L/Min): ~
Motor Power (kW / hp): 11 / 15
Voltage (V): 415
Floor Space (W x D x H) (mm): 2660 x 1050 x 2480
Nett Weight (kg): 2100
