1991 Danieli Rolling Steel Bar Mill, 330,000 tpa with upgrades and $3m spares

Comprising:

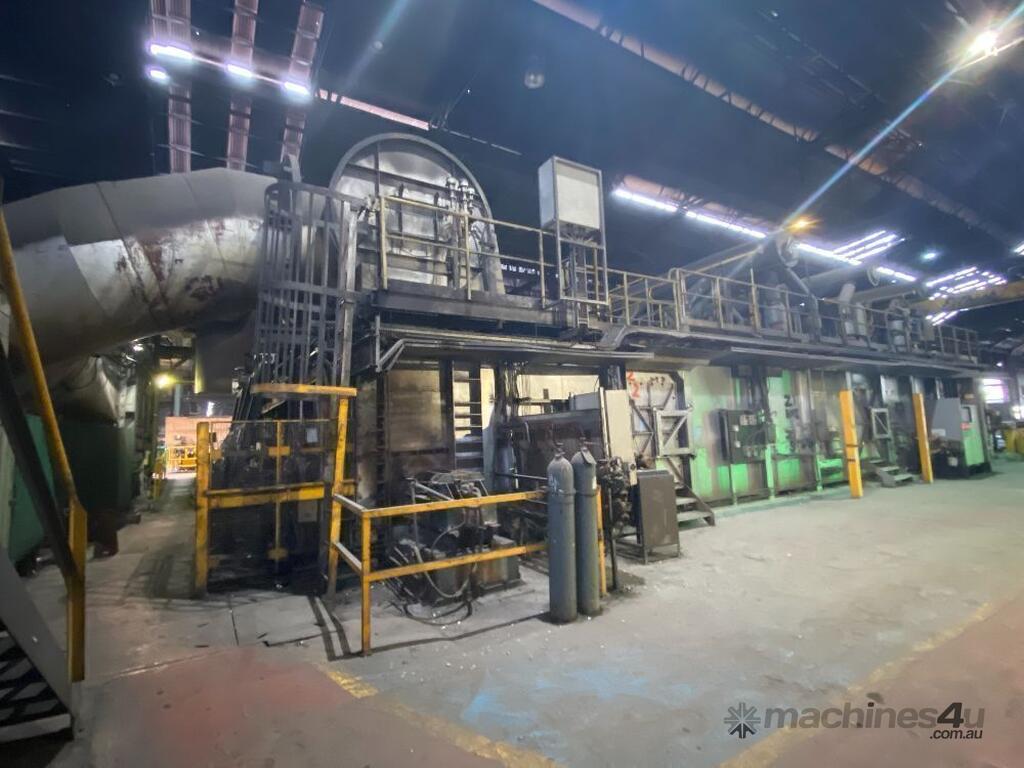

Reheat Furnace :

Stein Heurtey Italiana Combustion Walking Hearth.
Natural Gas Top Fired – Ultra Low NOX invisible flame swell burners (Replaced Approx. 10 Yrs Ago)
Separate Recouperator Combustion Air Pre-heat System (Energy Recovery Heat Exchanger installed approx. 2014)
Walking Hearth By Hydraulic Ram Operation
70 metric TPH ( Run at 60 Metric TPH)
Side rollerline charge & discharge
Hydraulic Pusher Rams

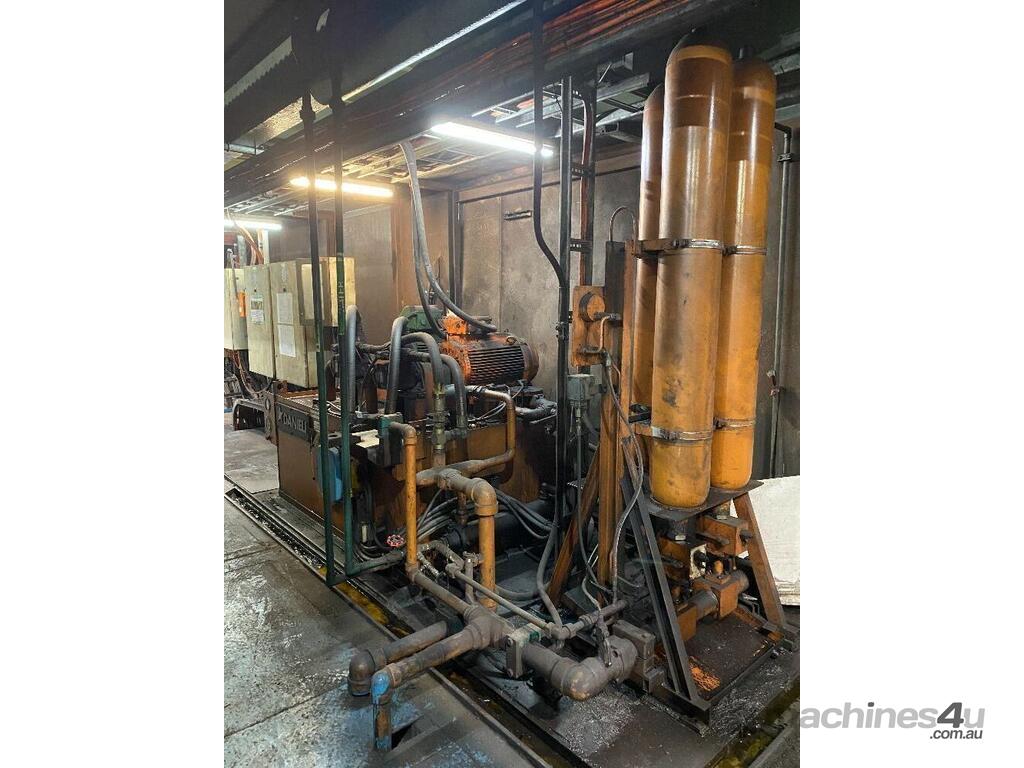

Hydraulic Power Unit With 4 x WEG 3 Phase Motors, 2 x Standby 3 Phase Motors
Howden Combustion Air Fan, 3 Phase WEG 220Kw Motor & Vacon VSD
Water Cooling
Distribution Switchgear & Instrument Control Enclosure
Charge Bed, Hydraulic Operation, Selector Arm, Scale, Roller Feed Into Furnace
Billet length in furnace increased from 7.4 to 8.3m in 1994.
Standard Billet 160 x 160 x 8000 (1600kg) – capable 175mm billet

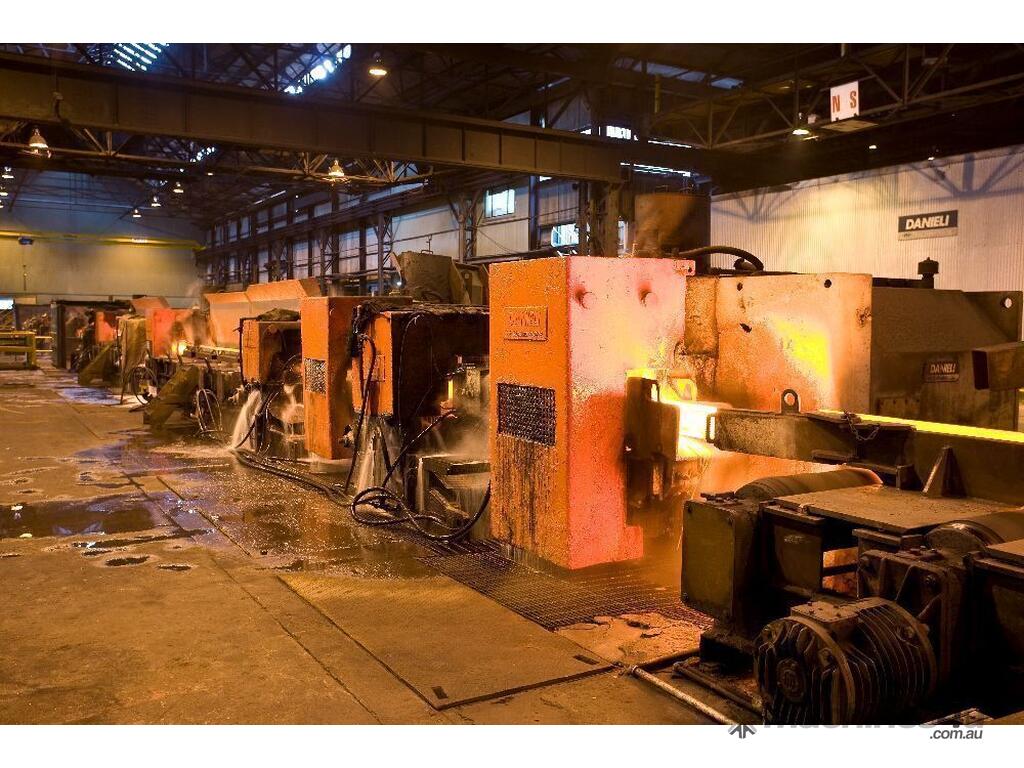

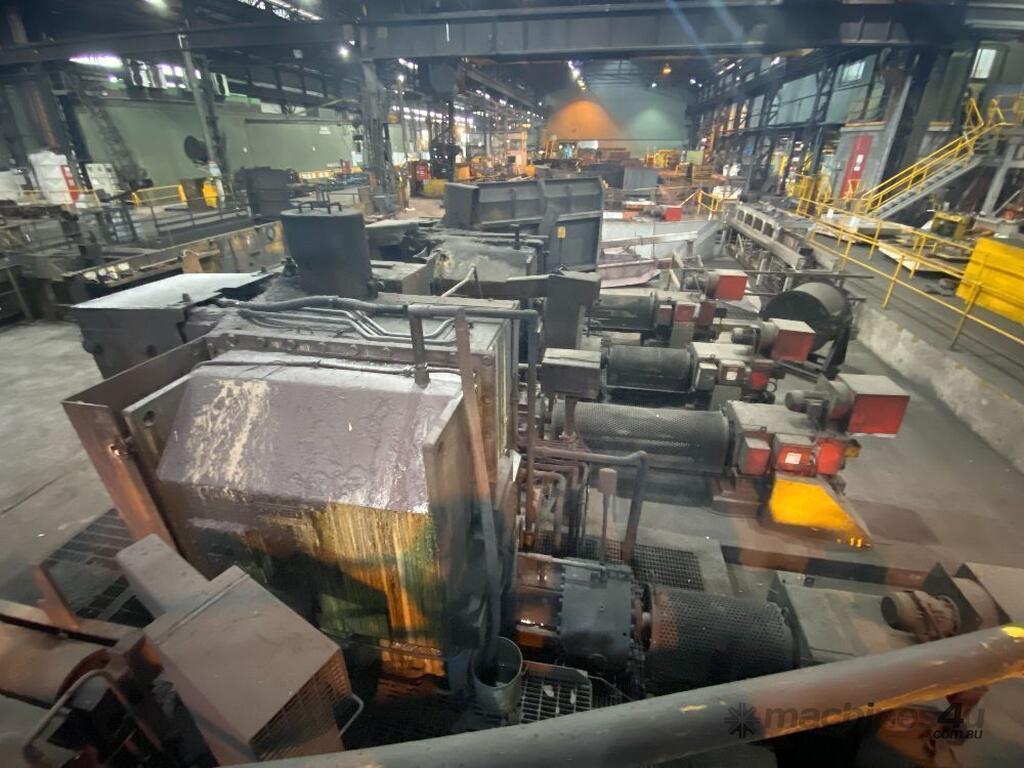

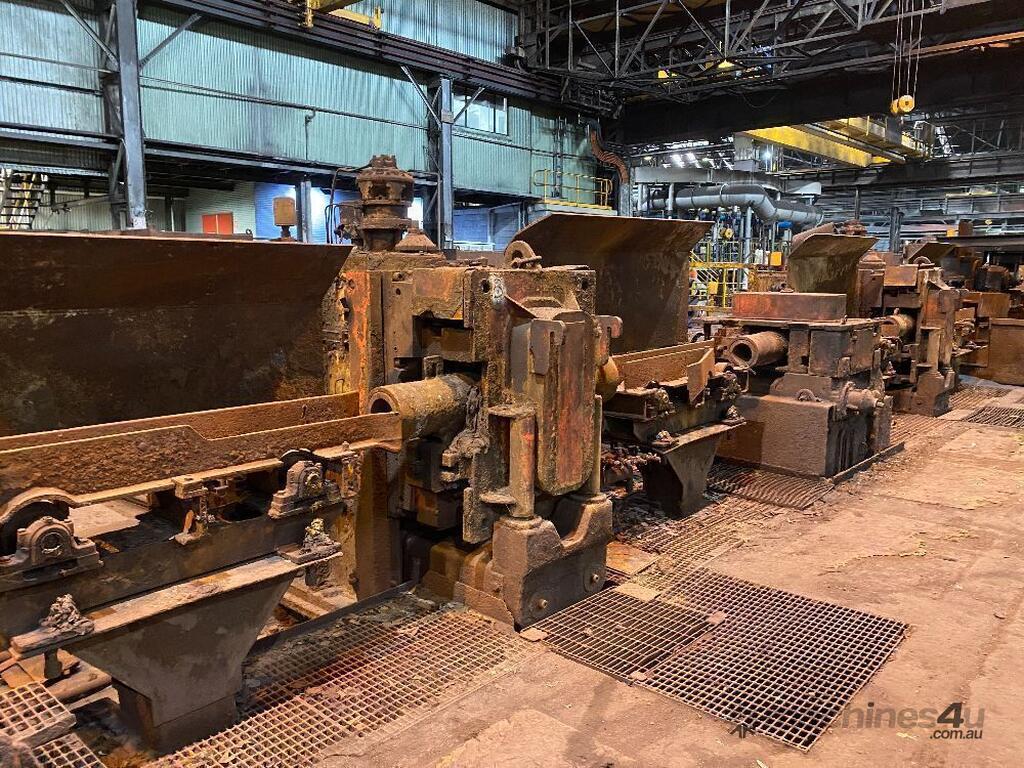

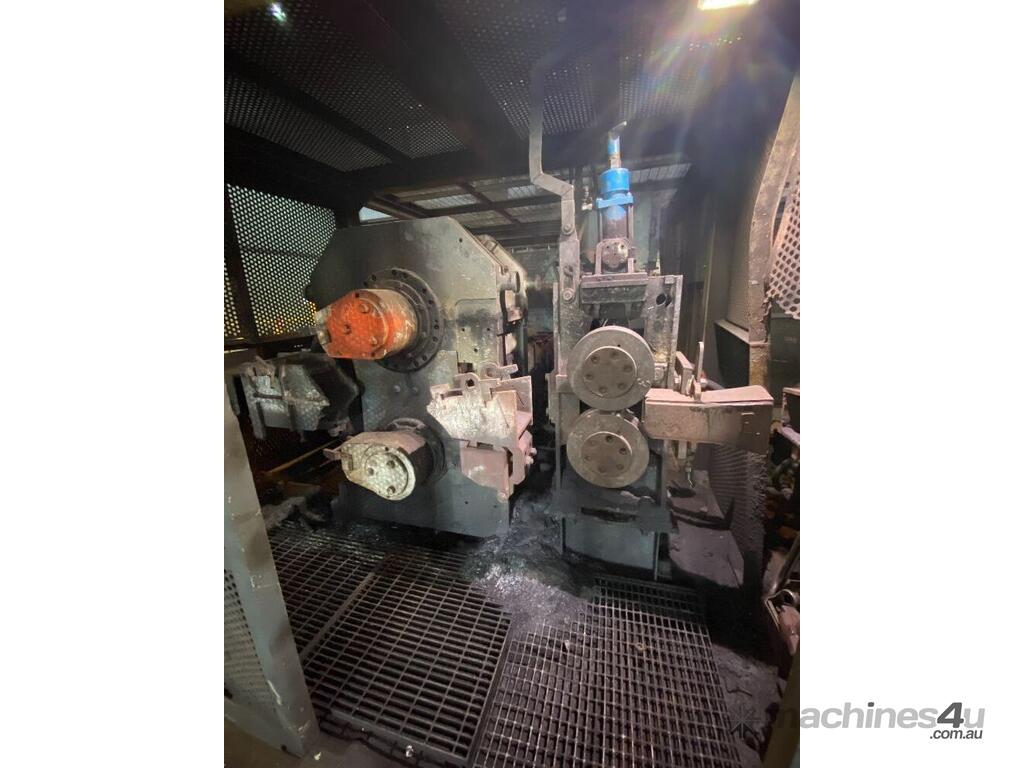

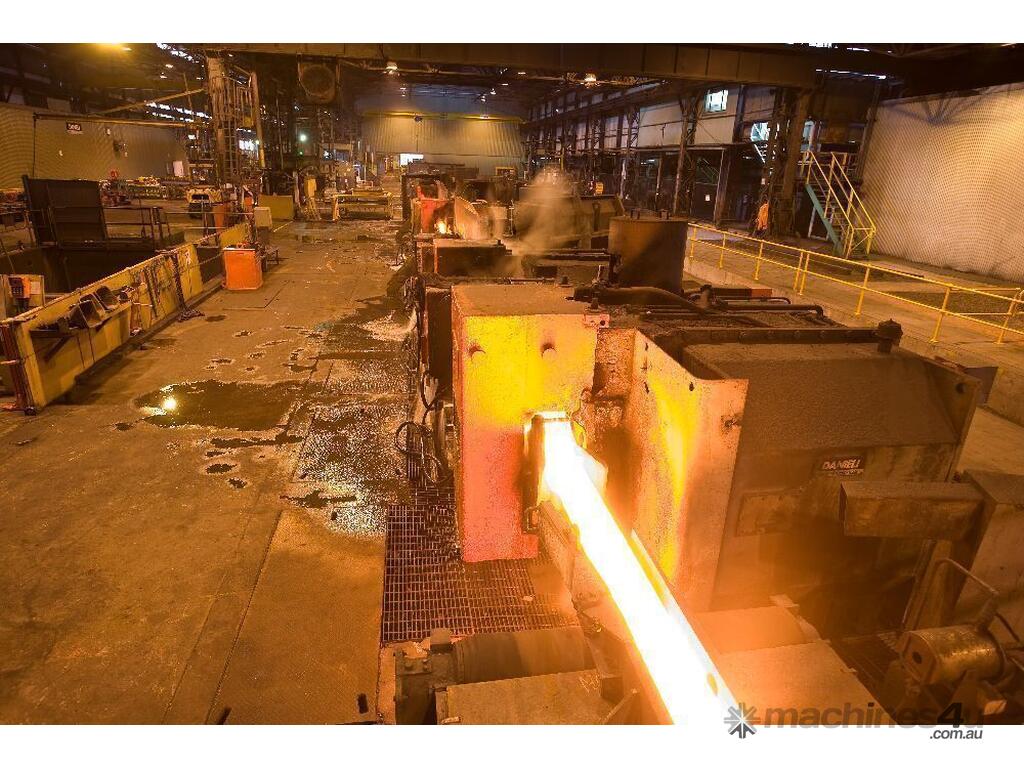

Danieli Inline Mill, 16 Stand :-

Upgraded in 1994 to increase billet length in the furnace to 8.3M and bar length to 12 m.
All cantilevered Mill Stands.
Alternate horizontal / vertical configuration. In 1994 the installation of “rougher” stands A to F, increased the length of billet in the furnace to 8.3M and bar length up to 12M
Stand A Danieli ESS 680. (1994)
Stands B,C Danieli ESS 550. (1994)
Stands D,E,F,1 Danieli ESS 480. (1994)
Stands 2 to 6 Danieli ESS 430.
Stands 7 to 10 Danieli ESS 380.
Most Mill stands (gearboxes/mandrel assemblies) have been repaired, modernized or refurbished in recent years. There are some complete spre units some 4 years old with zero hours on them at a replacement cost of $1M.


Danieli Mill Shears :-

Nose, tail, crop & cobble Crank Shear located after Stand 2.
Divide Shear located after Stand (used up to & including 68.5mm).
Mill Electrics :-

Furnace - Citect.
Mill - Danieli supply.
Stands A - F 280 kW a.c. drives.
Stands kW d.c. drives.
Mill Cooling System :-

Roughing Mill Water - 250 cubic m/hr.
In-Line Mill Water - 400 cubic m/hr.

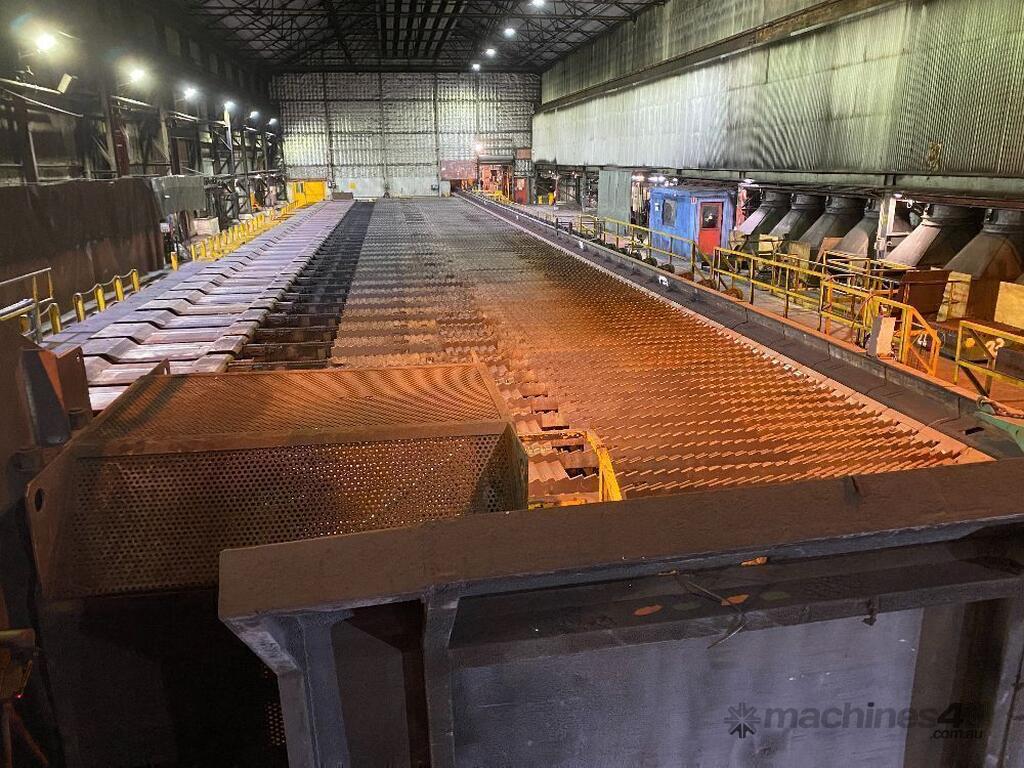

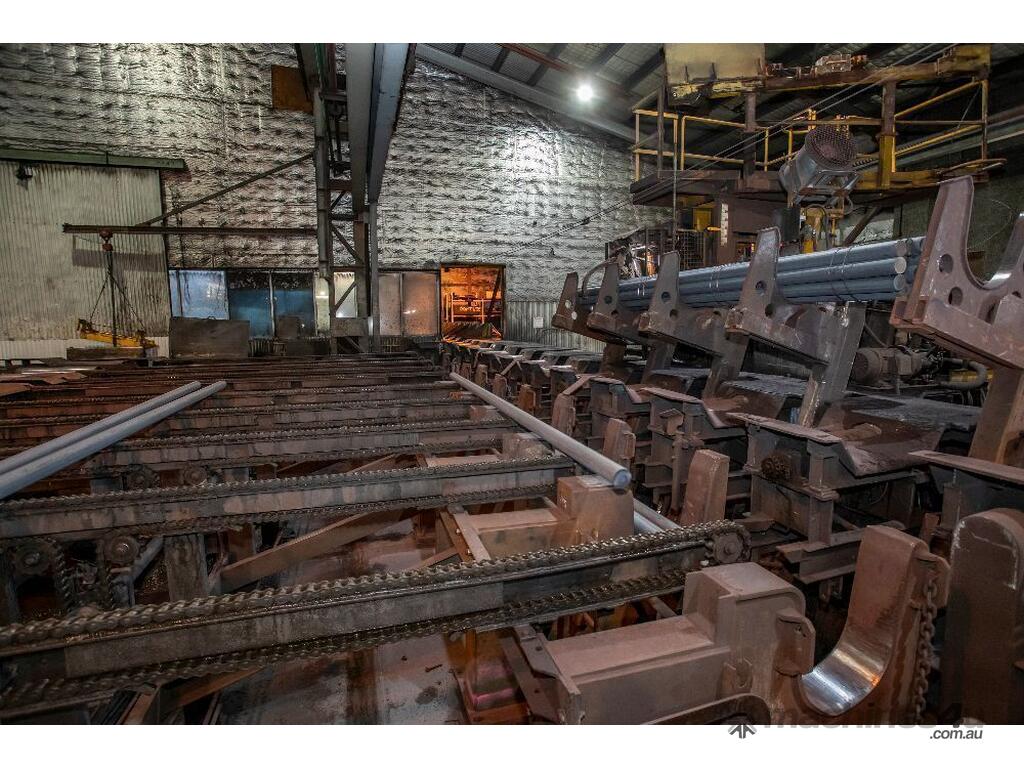

Danieli Cooling Bed :-

54m long x 9m wide.
125mm tooth pitch.
Aligning rolls.

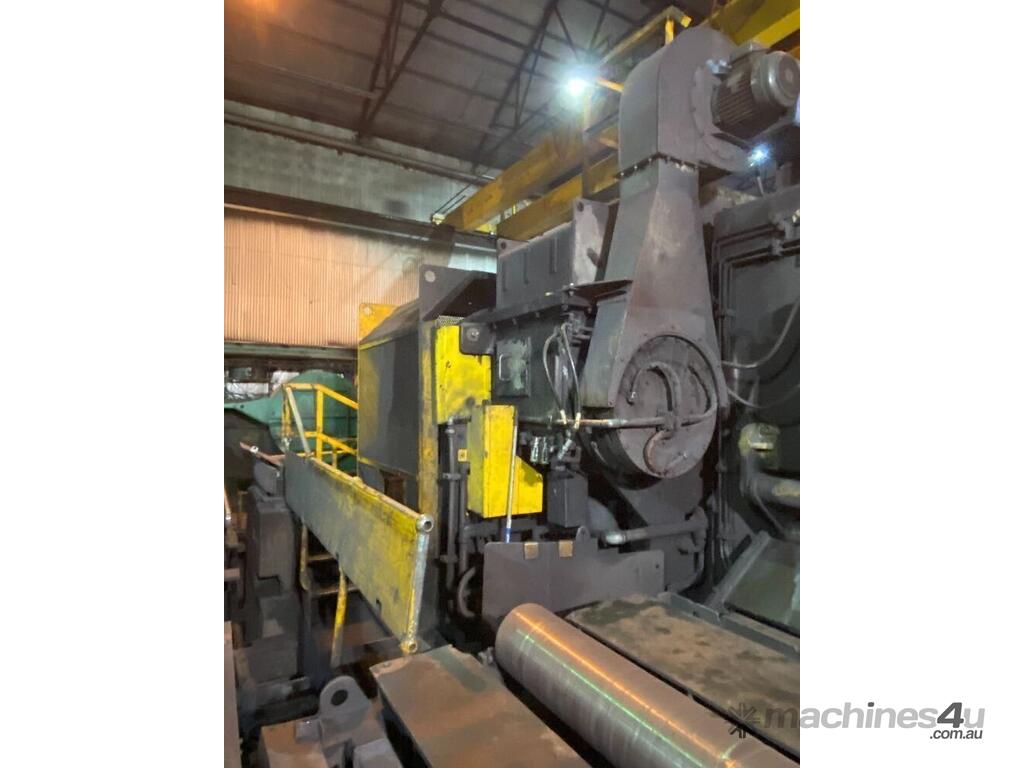

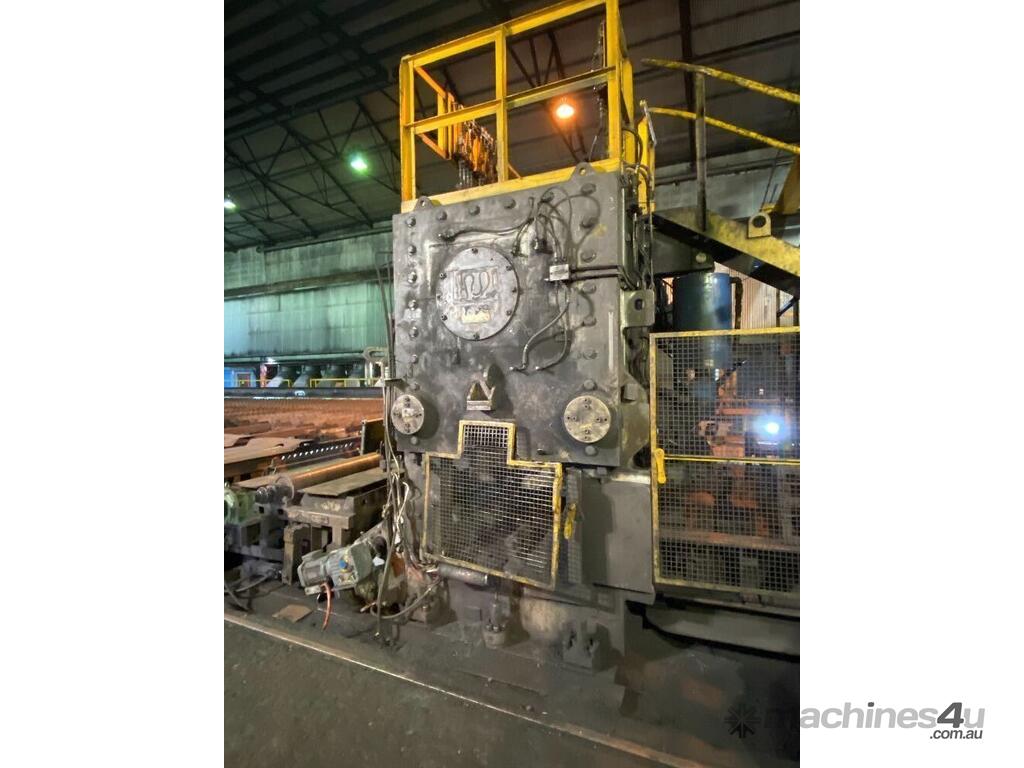

Danieli Mechanical Finishing Shear :-

Reciprocating Mechanical Shear.
1000t capacity.
1400 x 70mm Blades (2 to 26 slot).
12m max. Customer length.

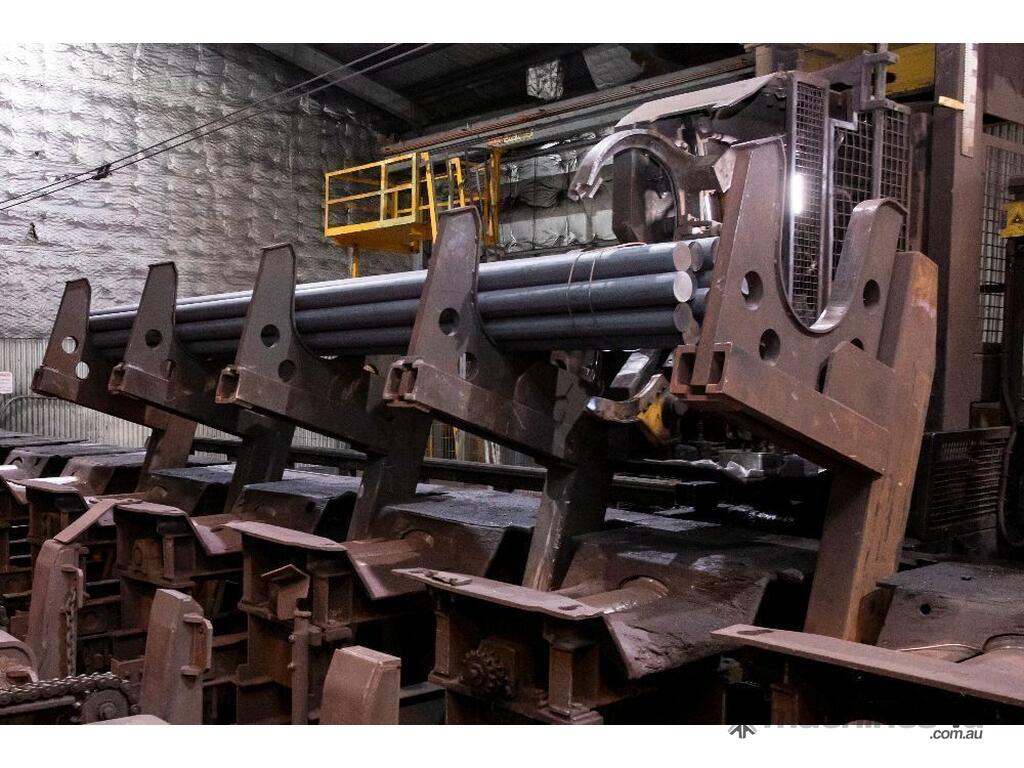

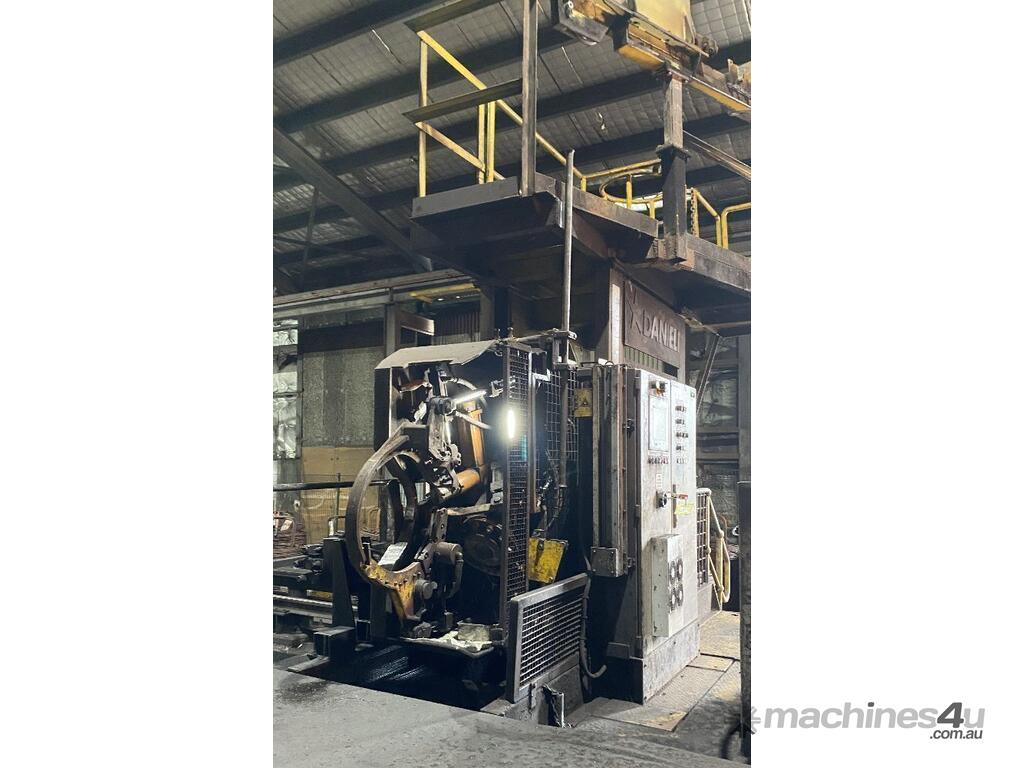

Danieli Bundle Tying Machine:

Dual fixed & mobile pocket bundling.
Hydraulic tying machine.
Automatic bundle weighing system.

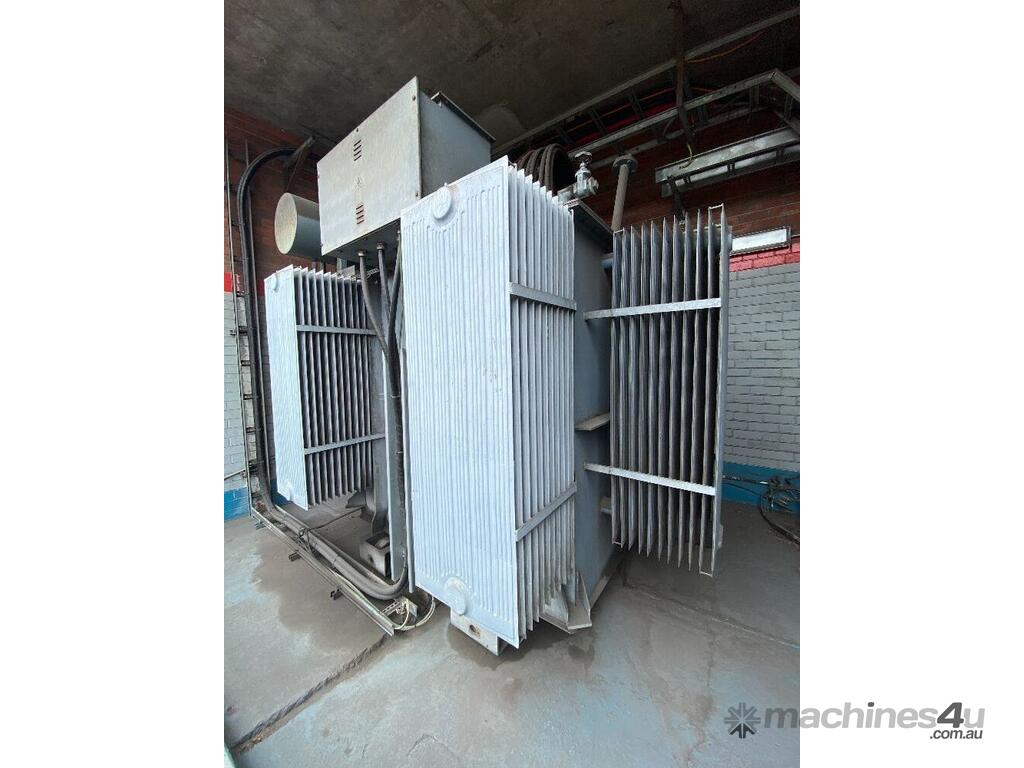

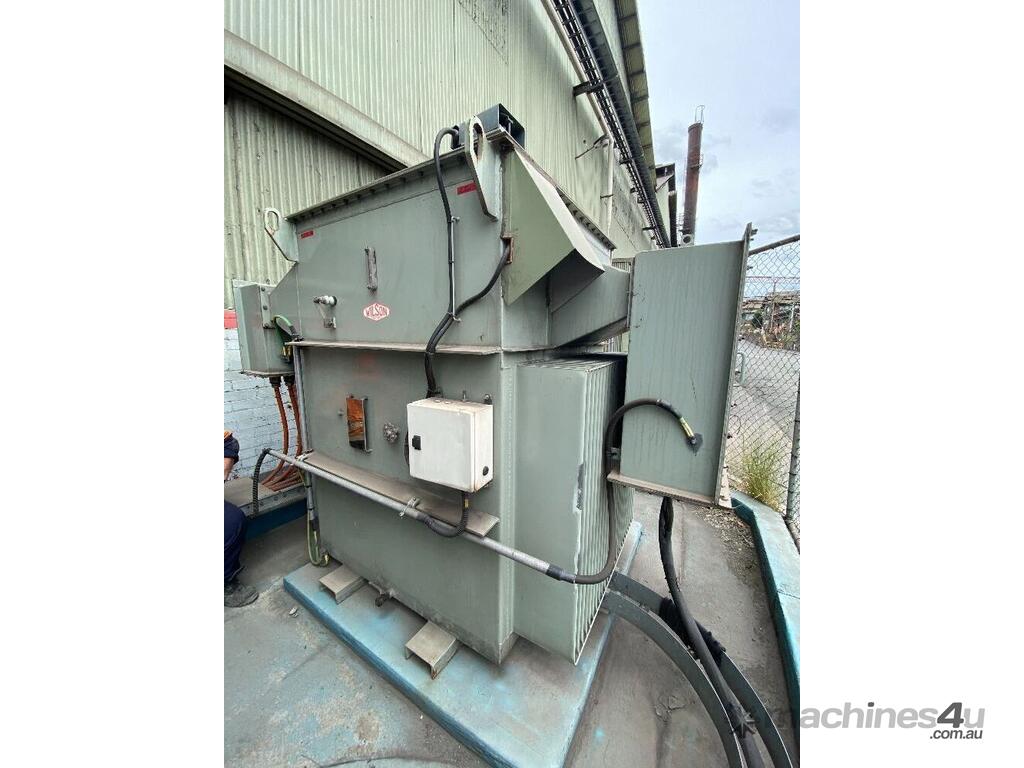

Bar Mill Transformers:

In Service Transformers:

Transformer – ID#: TX2 Bar Mill – Mill Stand Drive – OCREV – 3.86 MVA – Dual Secondary Winding – DOM: 1991.

Transformer – ID#: TX4 Bar Mill – Mill Stand Drive – Wilson – 1.97 MVA – Dual Secondary Winding – DOM: 1994.

Transformer – ID#: TX8 Bar Mill – Mill Stand Drive – OCREV – 3.29MVA – Dual Secondary Winding – DOM: 1991.



Spare Transformer:

Transformer – ID#: Spare – Bar Mill – Mill Stand Drive – Stem Trento – 2.5MVA – Dual Secondary Winding – DOM: 1994.

Spares:

Approximately $3M Stores

Other Upgrades :

Electrical drive upgrades , control system upgrades across most areas, ultra low NOx burner upgrade to the billet reheat furnace, installation of an energy recovery heat exchanger (recuperator) to pre-heat combustion air in the billet reheat furnace.

Most mill stands (gearbox/mandrel assemblies) have undergone replacement/modernisation or refurbishment in recent years. There are complete spare units some as young as 4 years old with zero hours on them and asset replacement value for some items - $1M.

Capacity

The mill is capable of 70 metric tonnes per hour across many sizes which was the mills ideal delay free rate. Using a conservative 45 metric tonens per hour delay inclusive rate , operating 48 weeks/year and 12 hour maintenance window per fortnight the mill capacity is 350,000 metric tonnes per annum.

Tooling

Complete with tooling to suit rod sizes 26, 27, 30, 32, 33, 35, 36, 39, 40, 42, 45, 46, 48, 50, 50.8, 52, 54, 55, 56, 60, 62, 63.5, 64, 65, 68.5, 70, 75, 76, 80, 85, 90, 95, and 100mm dia.

Complete with tooling to suit bar sizes 24 D Bar, 28 D bar, 40 square, 50 square, 63, square, 75 square








Item Location : Newcastle, NSW
