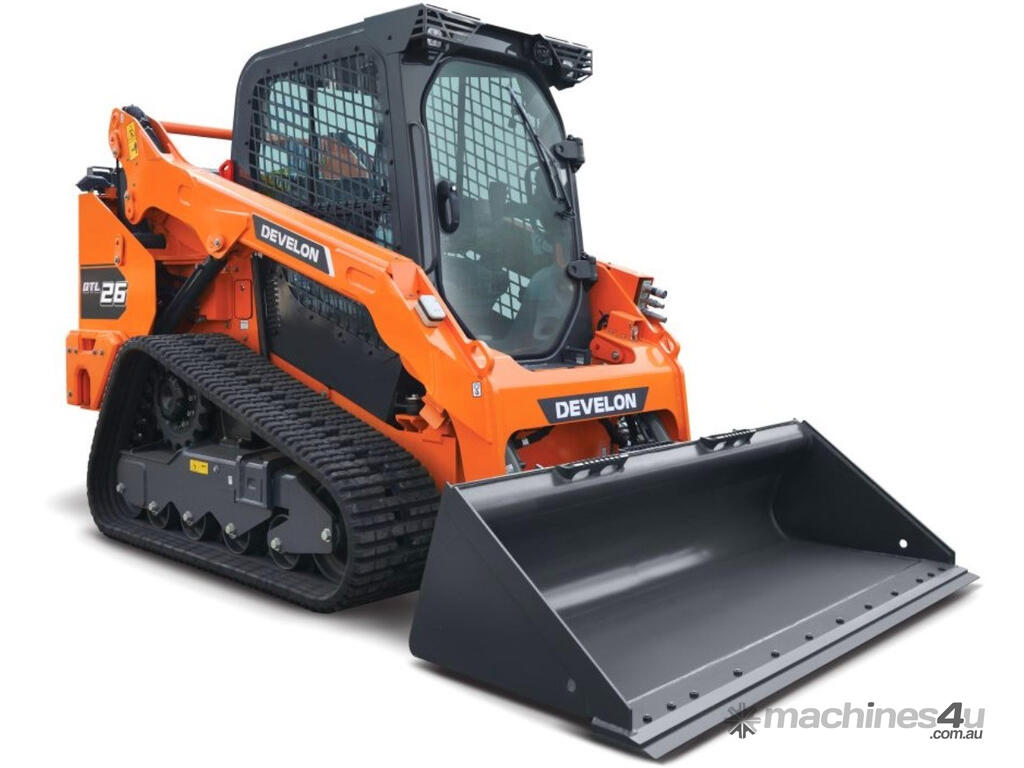

Develon DTL26 Skid Steer Loader

Description: FOLLOW US FOR ALL NEW LISTINGS:
Ph: Andrew or 1300 DIAL DWL
Make DEVELON
Model DTL26
Emissions certification
Number of cylinders 4
Rated power, gross (hp per SAE J1995) 72.7 PS (53.5 kW) 2600 rpm
Rated power, net (hp per SAE J1349) 72.7 PS (53.5 kW) 2600 rpm
Max. torque, net (SAE J1995) 280 Nm 1,600 rpm
Displacement 2,392 cc
Bore and stroke 90 x 94 mm
Starter 12 V x 3.3 kW
Battery 12 V, 100 AH
Asperation
Alternator 12 V, 90 A
Air cleaner Powercore
Aftertreatment DOC (Diesel Oxidation Catalyst)

DTL26
A Tumbler distance 59.1 (1502 mm)
B Overall length of track 78.8 (2002 mm)
C Length (without bucket) 120.1 (3052 mm)
D Length (bucket on ground) 153.1 (3891 mm)
E Max. reach (arms parallel to ground) 61.3 (1558 mm)
F Bucket pin reach at max. lift 22.2 (566 mm)
G Reach at max. lift and dump 43.8 (1114 mm)
H Ground clearance 8.8 (226 mm)
I Height to top of cab 83.3 (2116 mm)
J Max. overall height 162.8 (4137 mm)
K Bucket pin height at max. lift 123.8 (3145 mm)
L Clearance at max. lift and dump 89.9 (2284 mm)
M Cabin height above house

400 mm shoe 71.6 (1821 mm)
450 mm shoe 74.8 (1901 mm)
N Track gauge 59 (1501 mm)
O Bucket width (factory bucket) 72 (1829 mm)
P Departure angle 32
Q Rollback angle 25
R Rack back angle at max. height 86
S Max. dump angle 47.5
T Turning radius from center, rear 68.7 (1747 mm)
U Turning radius from center, coupler 60.5 (1539 mm)
V Turning radius from center, bucket 92.7 (2356 mm)
MACHINE DIMENSIONS

DRIVE SYSTEM
Travel speed [low high] 9.5 / 14 km/h (FULL OPT.)
Max. traction force (drawbar pull) 45.5 / 30.0 kN

REFILL CAPACITIES
Fuel tank 9.4 kg (92L)
DEF tank
Cooling system (radiator capacity) 40 kg
Engine oil 14.6L
Hydraulic tank 30(26.5)L
Hydraulic system
HYDRAULICS
Main pump (STD) 91 Liter/min 2600 rpm
Main pump (high) (US30, US31) 117 Liter/min 2600 rpm
Pressure (STD) 241 bar
Pressure (high) (US30, US31) 280bar

ENVIRONMENT
Sound level (2000/14/EC) 100.6 dB(A)
Cabin sound level (ISO 6396) 75 dB(A)

Industry: Loader
