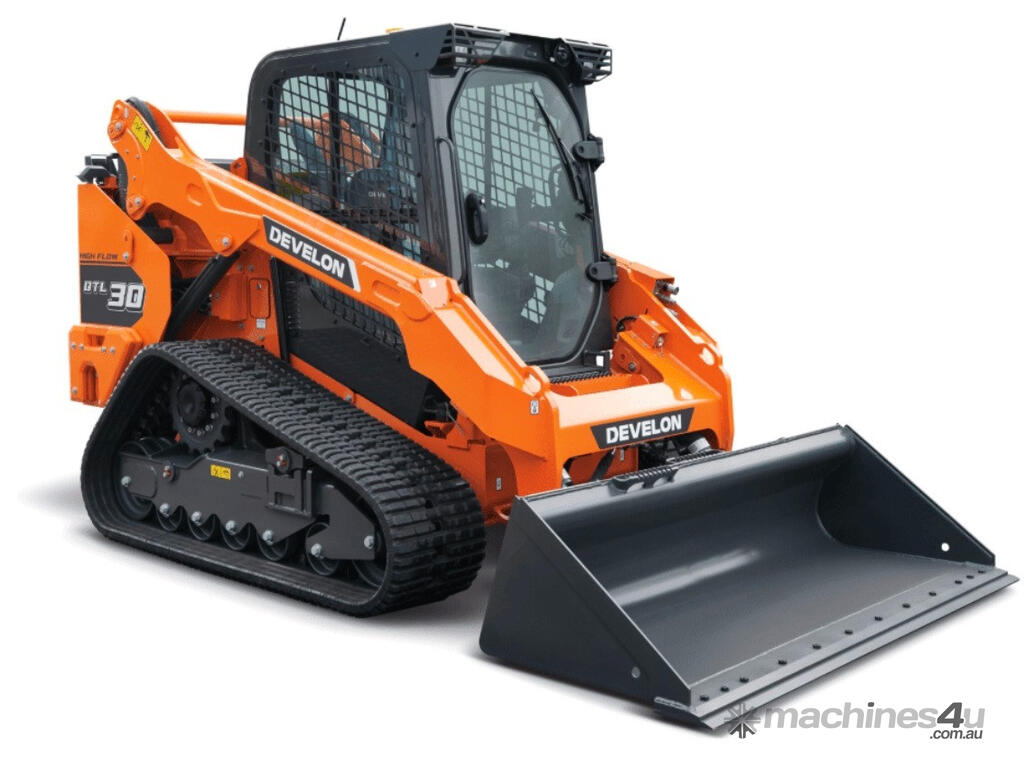

Develon DTL30 Skid Steer Loader

Description: FOLLOW US FOR ALL NEW LISTINGS:
Ph: Andrew or 1300 DIAL DWL
ENGINE
Make DEVELON
Model DTL30
Emissions certification
Number of cylinders 4
Rated power, gross (hp per SAE J1995) 72.7 PS (53.5 kW) 2600 rpm
Rated power, net (hp per SAE J1349) 72.7 PS (53.5 kW) 2600 rpm
Max. torque, net (SAE J1995) 280 Nm 1,600 rpm
Displacement 2,392 cc
Bore and stroke 90 x 94 mm
Starter 12 V x 3.3 kW
Battery 12 V, 100 AH
Asperation
Alternator 12 V, 90 A
Air cleaner Powercore
Aftertreatment DOC (Diesel Oxidation Catalyst)

DTL30
A Tumbler distance 64.1 (1630 mm)
B Overall length of track 83.8 (2130 mm)
C Length (without bucket) 123.1 (3127 mm)
D Length (bucket on ground) 156.1 (3966 mm)
E Max. reach (arms parallel to ground) 62.1 (1579 mm)
F Bucket pin reach at max. lift 20.4 (519 mm)
G Reach at max. lift and dump 47.2 (1200 mm)
H Ground clearance 8.8 (226 mm)
I Height to top of cab 83.3 (2116 mm)
J Max. overall height 169.6 (4308 mm)
K Bucket pin height at max. lift 128.9 (3275 mm)
L Clearance at max. lift and dump 96.8 (2460 mm)
M Cabin height above house

400 mm shoe 76.8 (1951 mm)
450 mm shoe 78.7 (2001 mm)
N Track gauge 61 (1551 mm)
O Bucket width (factory bucket) 80 (2032 mm)
P Departure angle 34
Q Rollback angle 25
R Rack back angle at max. height 87
S Max. dump angle 41
T Turning radius from center, rear 68.8 (1750 mm)
U Turning radius from center, coupler 61.1 (1553 mm)
V Turning radius from center, bucket 98.5 (2504 mm)
MACHINE DIMENSIONS

DRIVE SYSTEM
Travel speed [low high] 9.5 / 14 km/h (FULL OPT.)
Max. traction force (drawbar pull) 45.5 / 30.0 kN

REFILL CAPACITIES
Fuel tank 10 kg (92L)
DEF tank
Cooling system (radiator capacity) 43 kg
Engine oil 14.6L
Hydraulic tank 30(26.5)L
Hydraulic system
HYDRAULICS
Main pump (STD) 91 Liter/min 2600 rpm
Main pump (high) (US30, US31) 132.6 Liter/min 2600 rpm
Pressure (STD) 230 bar
Pressure (high) (US30, US31) 280bar

ENVIRONMENT
Sound level (2000/14/EC) 99.5 dB(A)
Cabin sound level (ISO 6396) 75 dB(A)

Industry: Loader
