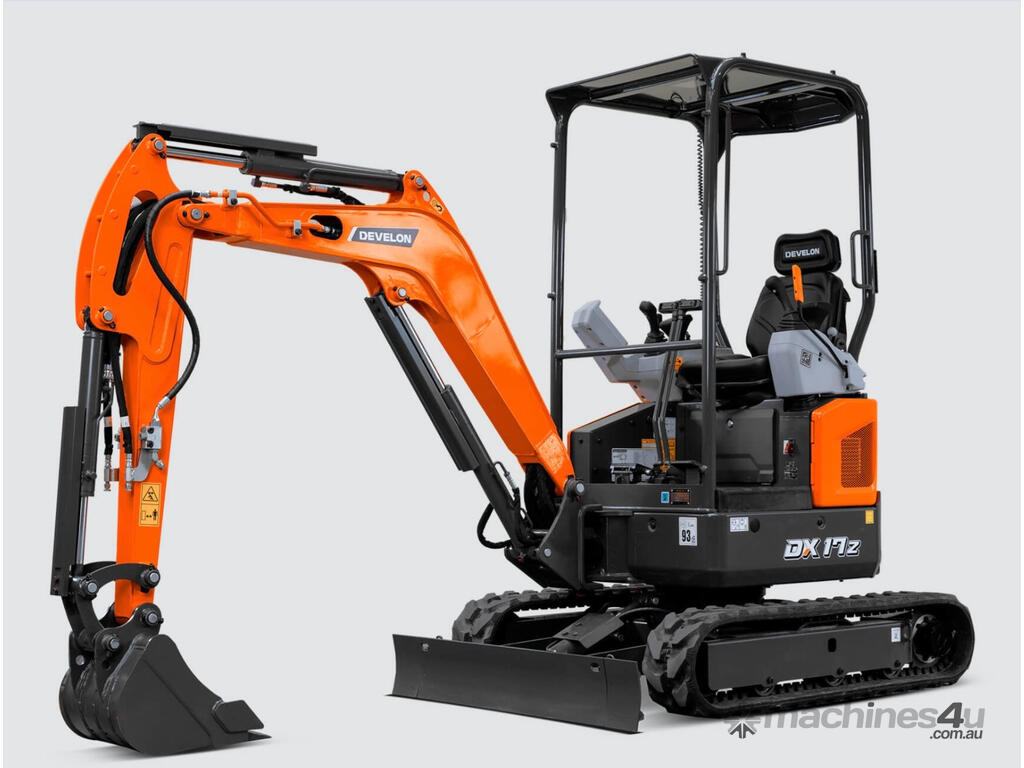

Develon DX17-Z Tracked-Excav Excavator

Description: FOLLOW US FOR ALL NEW LISTINGS:
Ph: Andrew or 1300 DIAL DWL
SPECIFICATIONS DIMENSION & WORKING RANGE
ENGINE
Make KUBOTA
Model D902
Number of cylinders 3
Rated power, gross 16.2 hp (12.1 kW) 2400 rpm
Rated power, net 16 hp (11.9 kW) 2400 rpm
Max. torque, net 5.57 kgf.m 1900 rpm
Displacement 0.898 l
Bore and stroke 72 73.6 mm
Starter 12 V, 1.2 kW
Alternator 12 V, 40 A
Air cleaner Double elements Unit DX17Z-7(Canopy) DX19-7(Cab) DX19-7(Canopy)

Boom length mm 1750 1750
Arm length mm 1230
Bucket capacity m3 0.04 0.04
Undercarriage (track + grouser) - Rubber Rubber
Operating weight kg 2020
Counterweight kg 180 260
A Overall length mm 3835
C Overall width (track extension) mm 994 0)
Y Overall width (dozer blade) mm 1294 1294
B Overall height mm
H Overall width of upper structure mm 980 980
I Overall height of canopy mm
Ground clearance of counterweight mm 415 415
Overall height of engine hood mm 1095 1240
P Minimum ground clearance mm 150 150
Rear-end distance mm
Rear-end swing radius mm
J Distance between tumblers mm 1230 1230
K Undercarriage length mm 1580 1580
L Undercarriage width (track extension) mm 994 0)
M Track gauge (track extension) mm 764 0)
N Track shoe width mm 230 230
Q Height of blade mm 225 225
R Ground clearance of blade up mm 183 183
S Depth of blade down mm 222 222

Unit DX17Z-7 DX17Z-7 DX19-7
(Canopy)
DX19-7
(Canopy)
DX19-7
(Cab)
Arm length mm 1230 1230
C Max. digging reach mm 4130 4130
Max. digging reach (ground level) mm 4040 4040
G Max. digging depth mm 2540 2540
A Max. vertical wall depth mm 2020 2020
E Max. digging height mm 3585 3585
F Max. dumping height mm 2550 2550
I Min. swing radius mm 1760 1760
Boom swing angle (left/right) 55 / 59 55 / 59 55 / 59

MACHINE DIMENSIONS

DRIVE SYSTEM
Travel speed (low high) 2.06 3.73 km/h
Traction force, max. (drawbar pull) 14.13 Kn
Max. Gradeability 35

REFILL CAPACITIES DX17Z-7 DX19-7
Fuel tank 19.5 l 21.3 l
Cooling system (radiator capacity) 5.4 l
Engine oil 3.7 l
Travel device 2 0.33 l
Hydraulic tank 12.1 l 20 l
HYDRAULICS
Main pumps 2 17.3 l/min 2300 rpm
Pilot pump (gear design) 10.4 / 6.2 l/min 2300 rpm
Relief presure aux. line 206 bar
MAXIMUM SYSTEM PRESSURE
Boom/arm/bucket (normal mode) 210 kg/cm2
Swing (crossover relief) 165 kg/cm2
SWING MECHANISM
Swing speed 9.2 rpm
Swing torque 4025 lbf.ft. (557 kgfm)

ENVIRONMENT
Sound level (ISO 6395) 92 dB(A)
