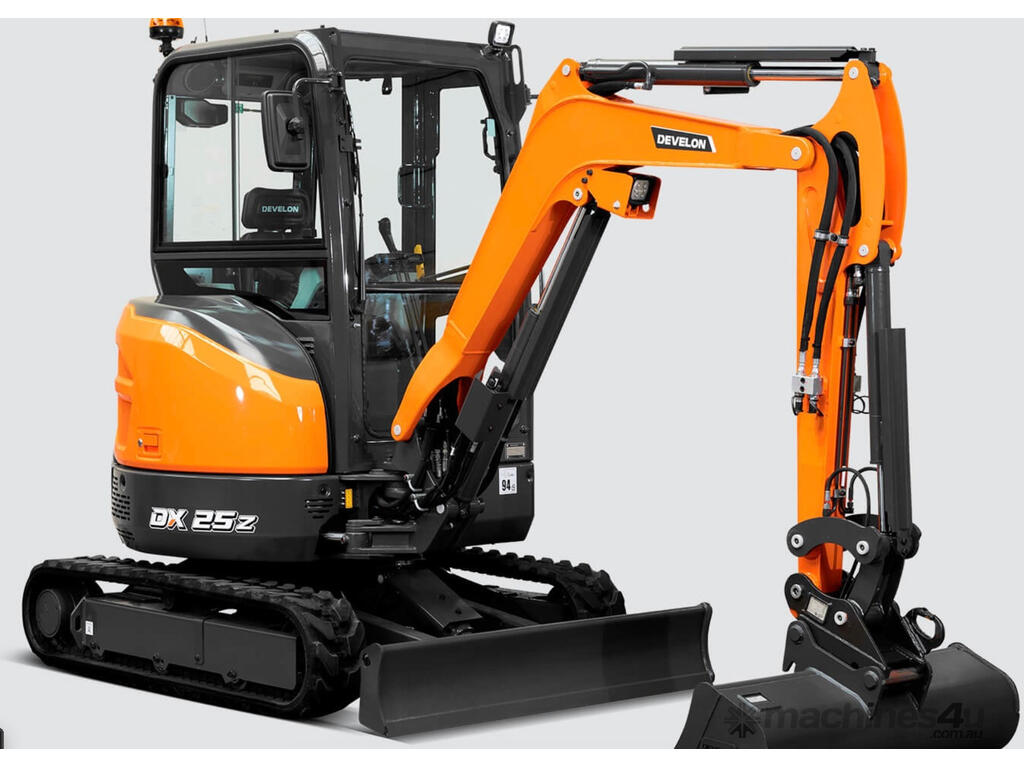

Develon DX25-Z Tracked-Excav Excavator

Description: FOLLOW US FOR ALL NEW LISTINGS:
Ph: Andrew or 1300 DIAL DWL
ENGINE
Make DEVELON
Model D18-DM01P
Number of cylinders 3
Rated power, gross (hp per SAE J1995) 48.8 hp (36.4 kW) 2200 rpm
Rated power, net (hp per SAE J1349) 47.1 hp (35.1 kW) 2200 rpm
Max. torque, net (SAE J1995) 133.0 lbf.ft. (18.4 kgfm) 1600 rpm
Displacement 146.0 in.3 (2.4 L)
Bore and stroke 3.5 x 3.7 (90 mm x 94 mm)
Starter 12 V, 3.6 hp (2.7 kW)
Battery 12 V, 100 AH
Alternator 12 V, 90 A
Air cleaner Double elements Unit 1.3 m arm
Operating weight kg 2 691
Bucket capacity (SAE heaped), standard m3 0.07
A Overall length mm 4 170
B Overall width mm 1 550
C Overall height mm 2 452
D Overall width of upperstructure mm 1 490
E Overall height of cab mm 2 452
F Ground clearance of counterweight mm 504
G Overall height of engine hood mm 1 522
H Minimum ground clearance mm 183
I Rear-end swing radius (add. CW) mm 775 (875)
J Distance between tumblers mm 1 550
K Undercarriage length mm 1 975
L Undercarriage width mm 1 550
M Track gauge mm 1 250
N Track shoe width, standard mm 250
O Blade height mm 300
P Ground clearance of blade up mm 328
Q Blade depth mm 348

Unit 1.3 m arm
A Max digging reach mm 4 725
A Max digging reach on ground mm 4 600
B Max digging depth mm 2 695
B Max digging depth (8 ft level) mm 2 230
C Max vertical wall digging depth mm 2 200
D Max digging height mm 4 290
E Max dumping height mm 2 975
F Min swing radius mm 2 100
Boom swing radius (left/right) mm 70 / 50

MACHINE DIMENSIONS

DRIVE SYSTEM
Travel speed (low high) 2.38 / 4.35 km/h
Maximum traction 2.266 t
Maximum gradeability 2.266 t
REFILL CAPACITIES
Fuel tank 30 l
Cooling system (radiator capacity) 6.9 l
Engine oil 5.7 l
Travel device 0.6 l
Hydraulic tank 27 l
HYDRAULICS
Main pumps 2 28.2 l/min 2 350 rpm
Pilot pump (gear design) 20/10.5 l/min
Aux. line (2 way) 48 l/min

Industry: Excavator
