Dingli BA16CRT BNEW 16m Diesel Articulating Boom Lift - 250kg Capacity, 4WD

Dingli is the largest supplier of Elevating Work Platforms (EWPs) in Australia and ranks third globally. Known for innovation, reliability, and exceptional build quality, Dingli equipment consistently delivers outstanding performance across a wide range of applications.

Our Locations
We have fully equipped depots across Australia for sales, hire, and service support:
- Western Australia: Perth, Kalgoorlie, Karratha, Port Hedland
- Northern Territory: Darwin
- South Australia: Adelaide
- Victoria: Melbourne
- New South Wales: Newcastle, Sydney
- Queensland: Brisbane

Nationwide Transport Available
We can arrange fast and affordable delivery anywhere in Australia.
Contact us today to request a quote or discuss your equipment needs.

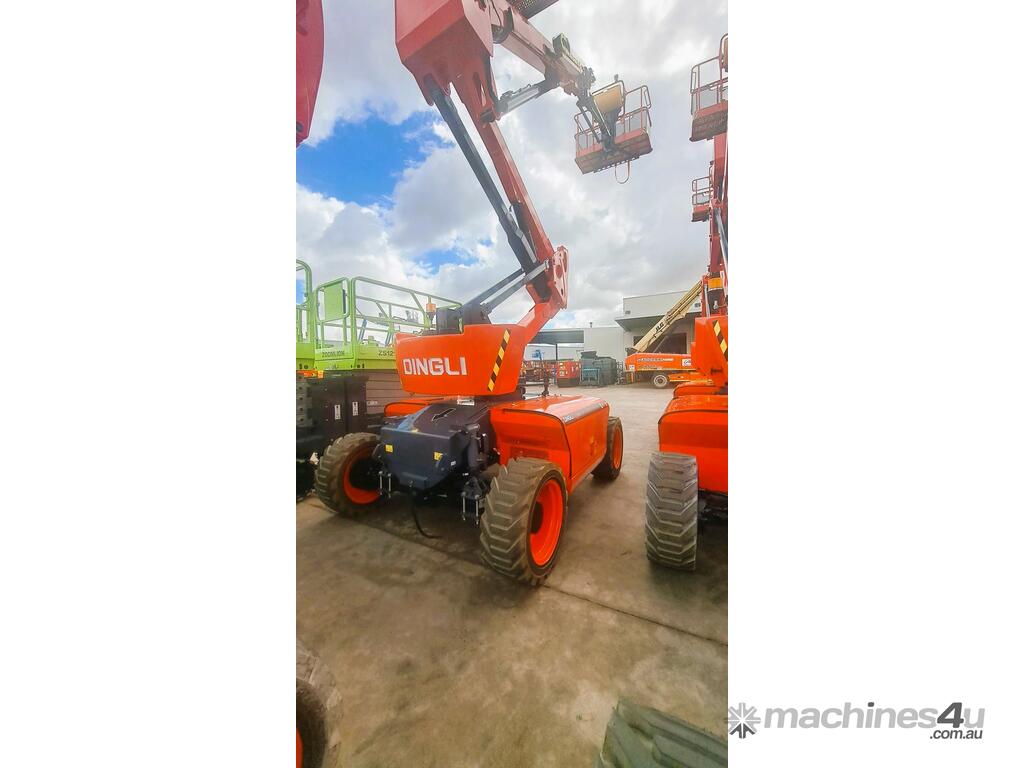

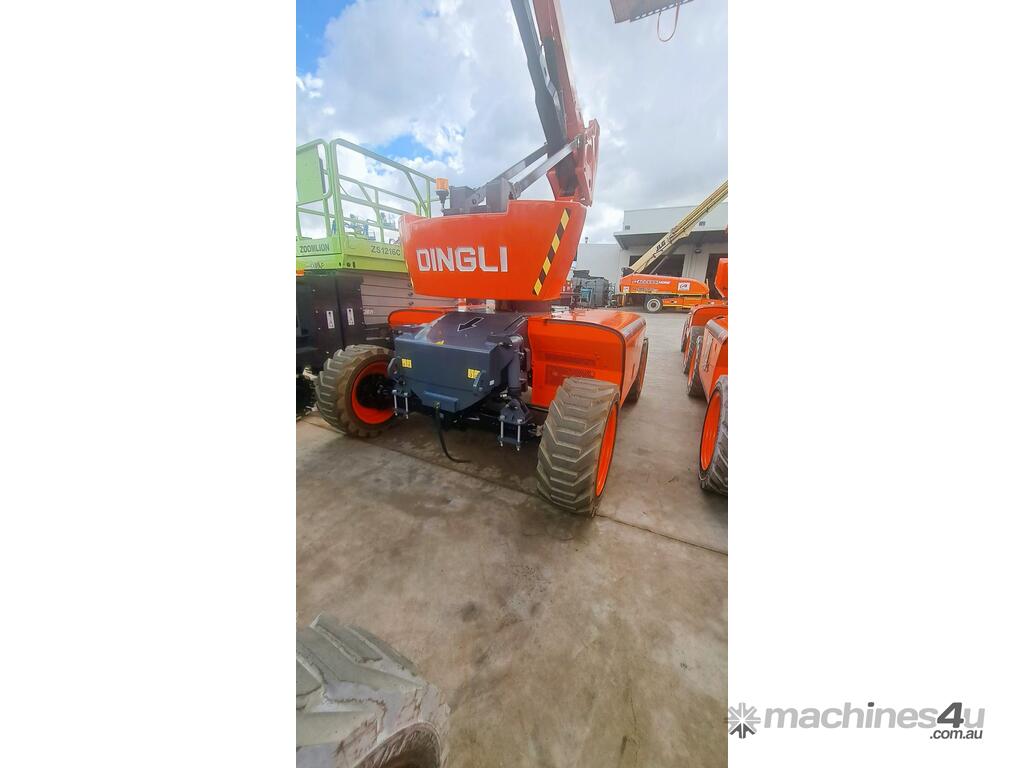

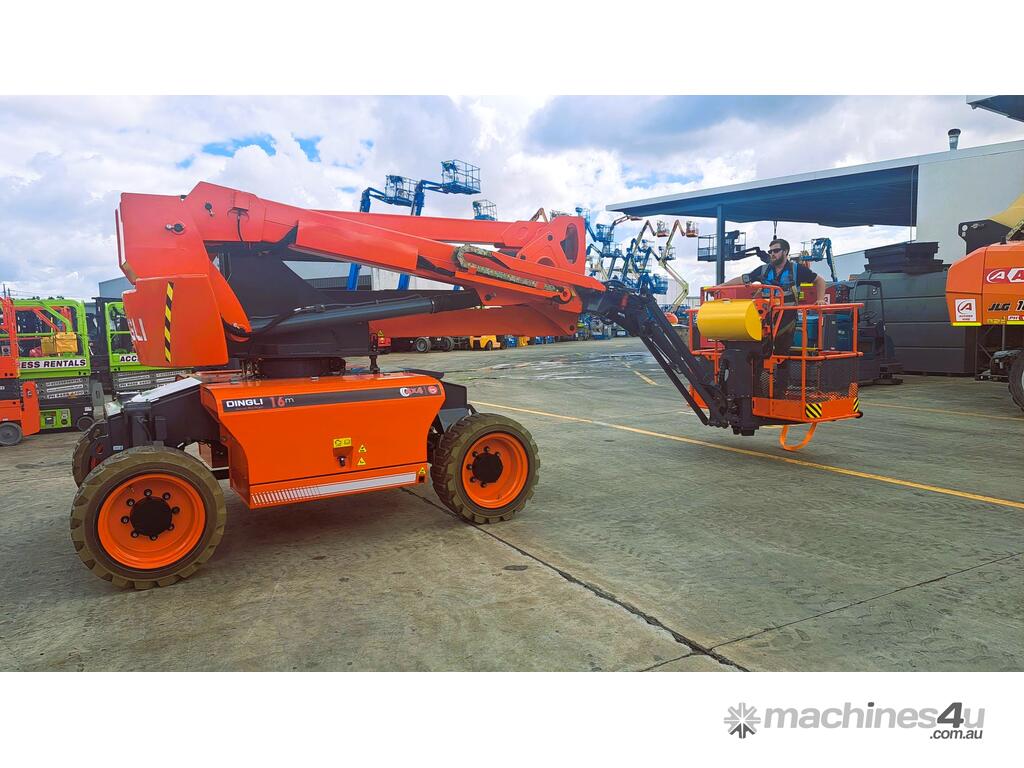

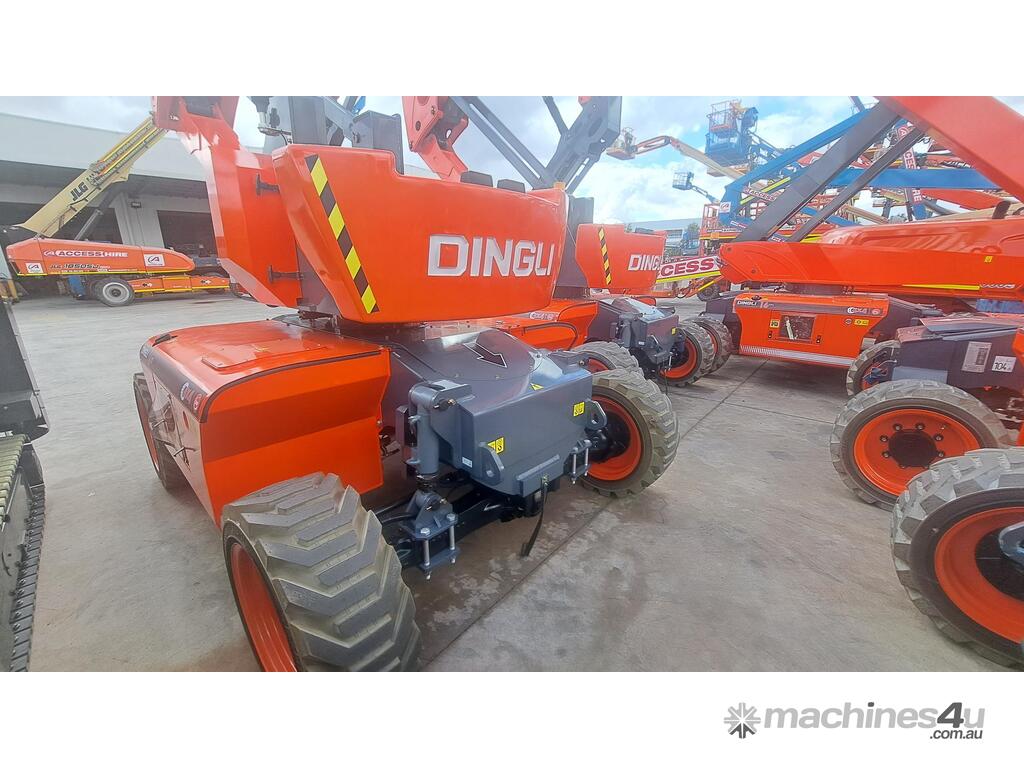

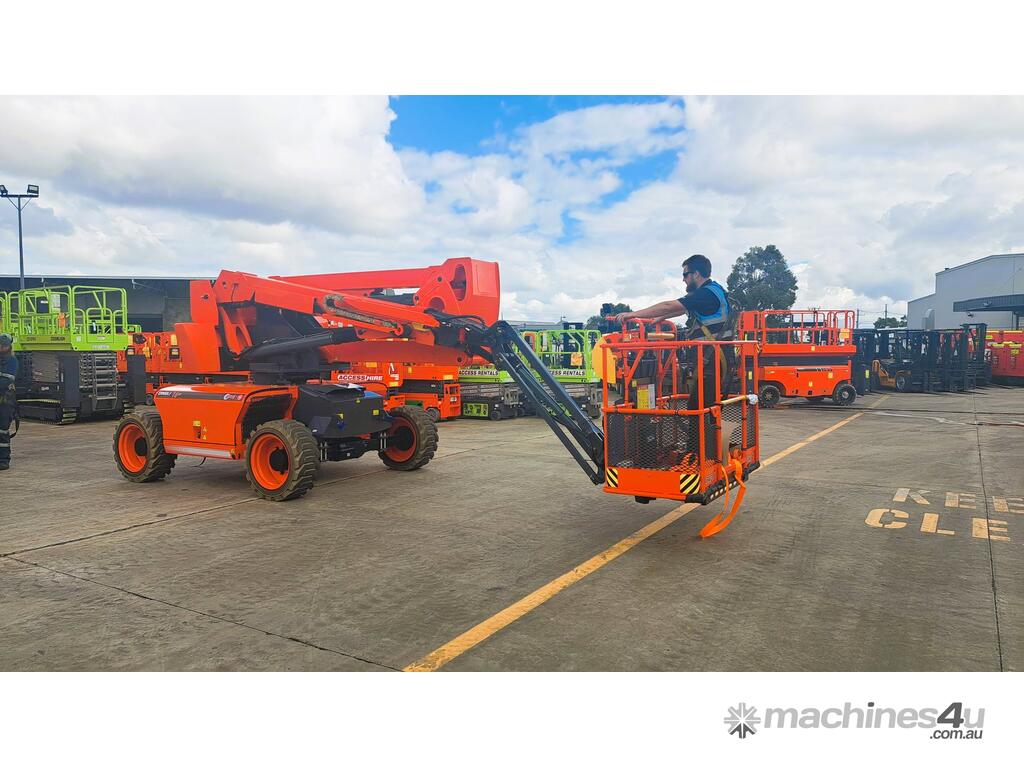

The Dingli BA16CRT is a high-performance diesel articulated boom lift designed for demanding outdoor and rough-terrain applications. It provides a maximum working height of 16.07 m (52 ft 9 in) and a horizontal reach of 8.14 m, allowing operators to access difficult areas with precision and stability. The lift is powered by a Kubota D1105 18 kW diesel engine and supported by a four-wheel drive system with a front oscillating axle for superior traction and balance on uneven ground.

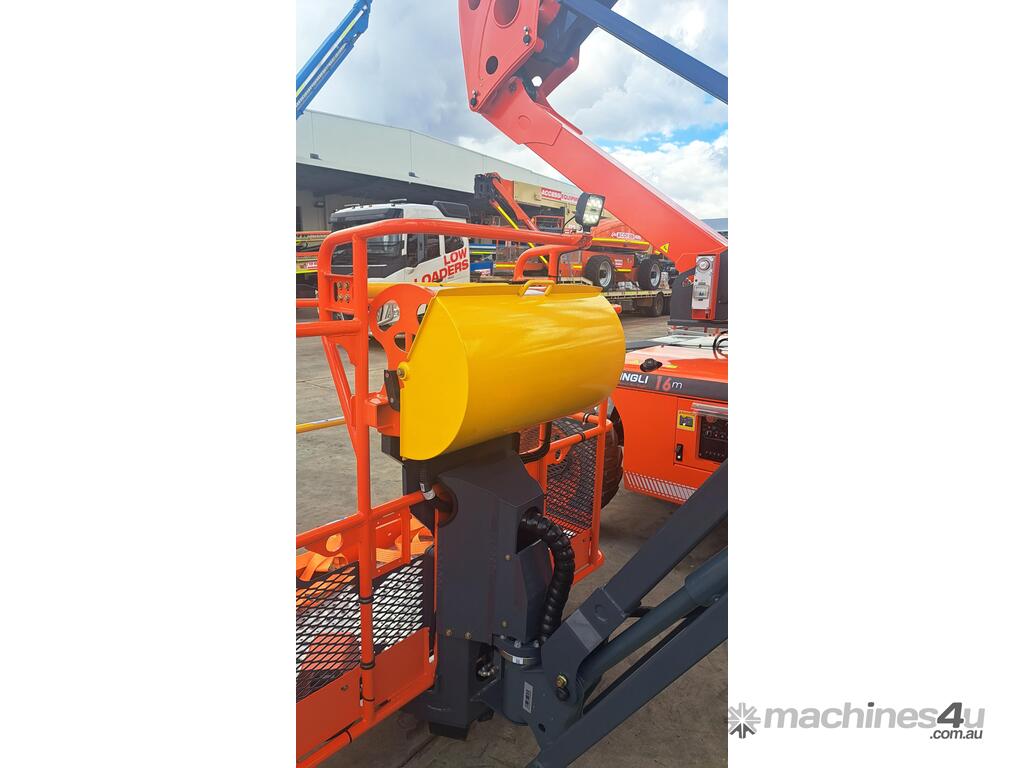

With a safe working load of 250 kg, the BA16CRT comfortably supports two operators plus tools. It features a 1.5 m articulated jib with 132° movement and 180° platform rotation for flexible positioning. The boom’s 360° continuous turntable rotation ensures smooth coverage without the need to reposition.

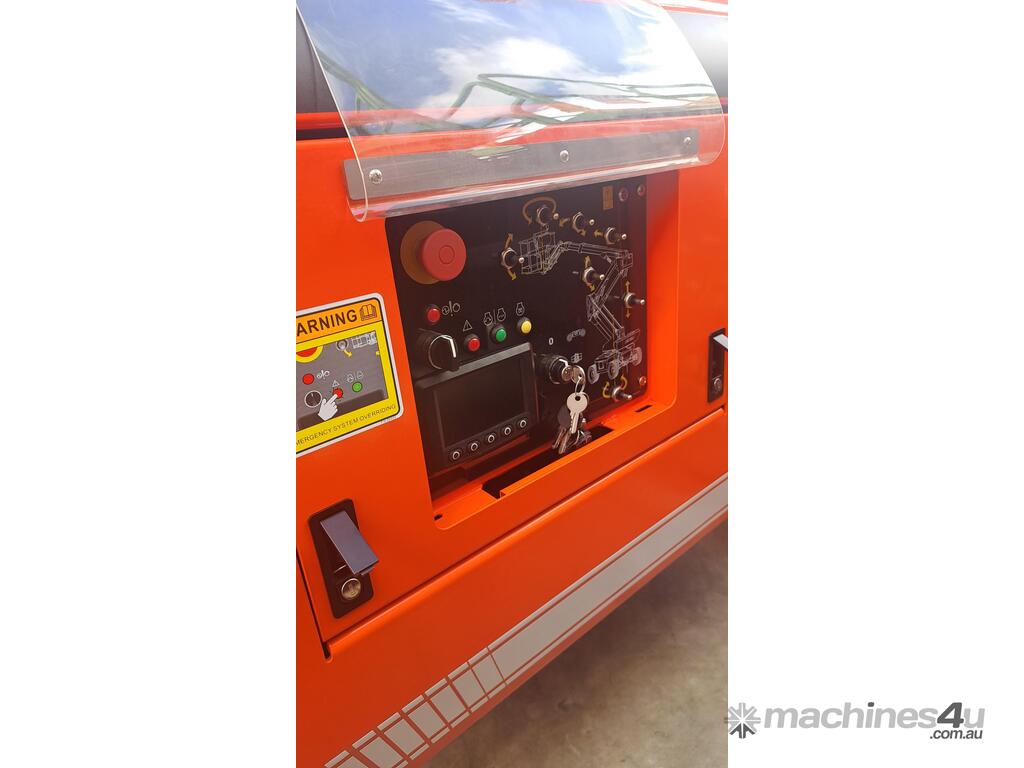

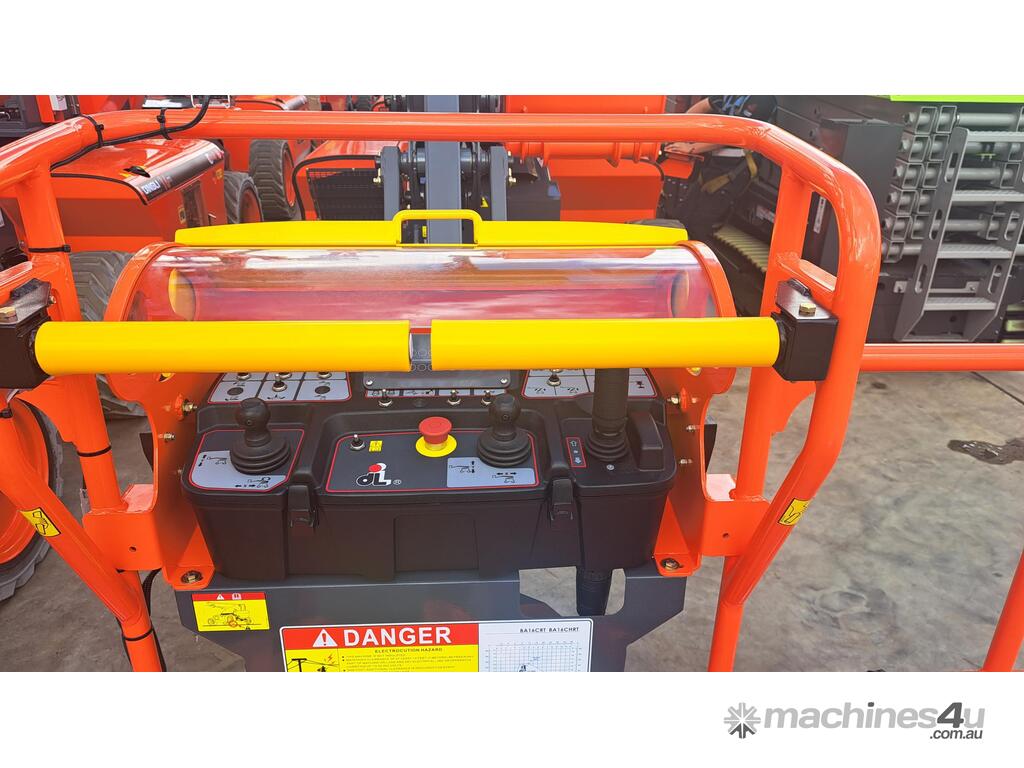

Standard equipment includes self-leveling platform, proportional joystick controls, automatic braking, tilt and motion alarms, pothole protection, hour meter, and automatic engine shutdown. With its robust build and intelligent hydraulic and electrical systems, this model is ideal for construction and infrastructure maintenance tasks requiring reliable height and horizontal reach.

Features
- Working Height: 16.07 m (52 ft 9 in)
- Platform Height: 14.07 m (46 ft 2 in)
- Horizontal Reach: 8.14 m (26 ft 8 in)
- Lift Capacity: 250 kg (551 lb)

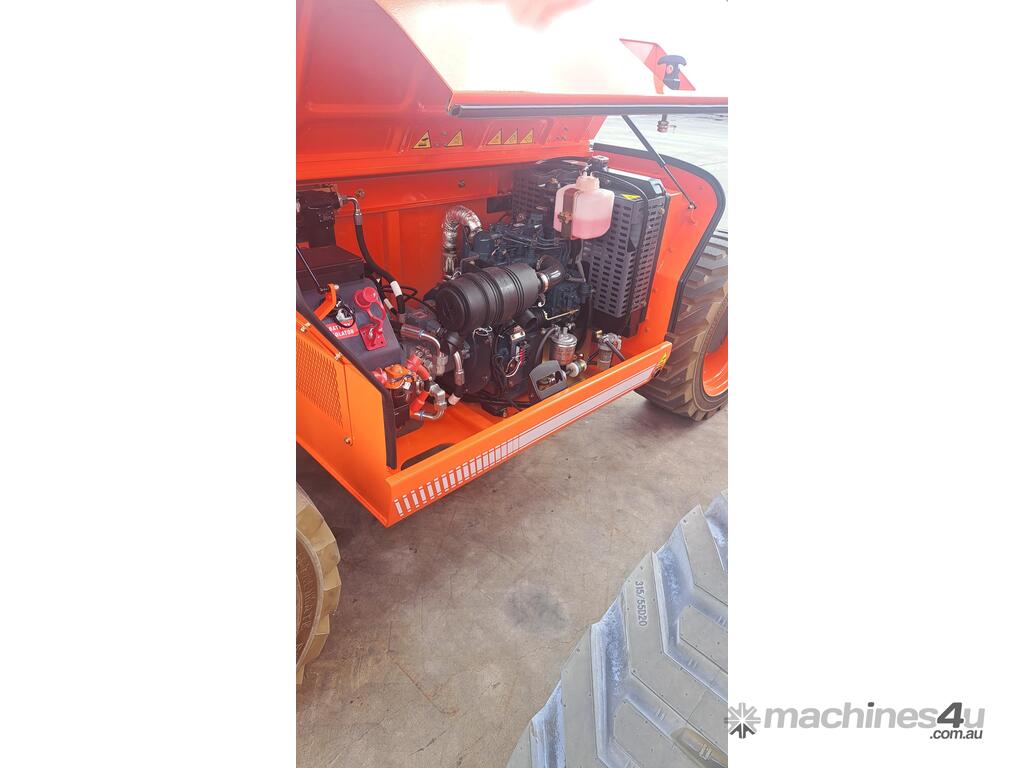

- Power Source: Kubota D1105 18 kW diesel engine
- Drive Type: Four-wheel drive with oscillating axle
- Jib Length: 1.5 m (4 ft 11 in), 132° movement
- Platform Rotation: 180°
- Turret Rotation: 360° continuous
- Gradeability: 40 %
- Travel Speed: 6.0 km/h (stowed), 1.1 km/h (raised)
- Weight: 7,780 kg
- Tyres: 315/55 D20 rough-terrain
- Ground Clearance: 0.31 m (1 ft)

Applications
- Construction and infrastructure maintenance
- Industrial and facility fit-outs
- Building exterior inspection and painting
- Outdoor installations and steelwork
