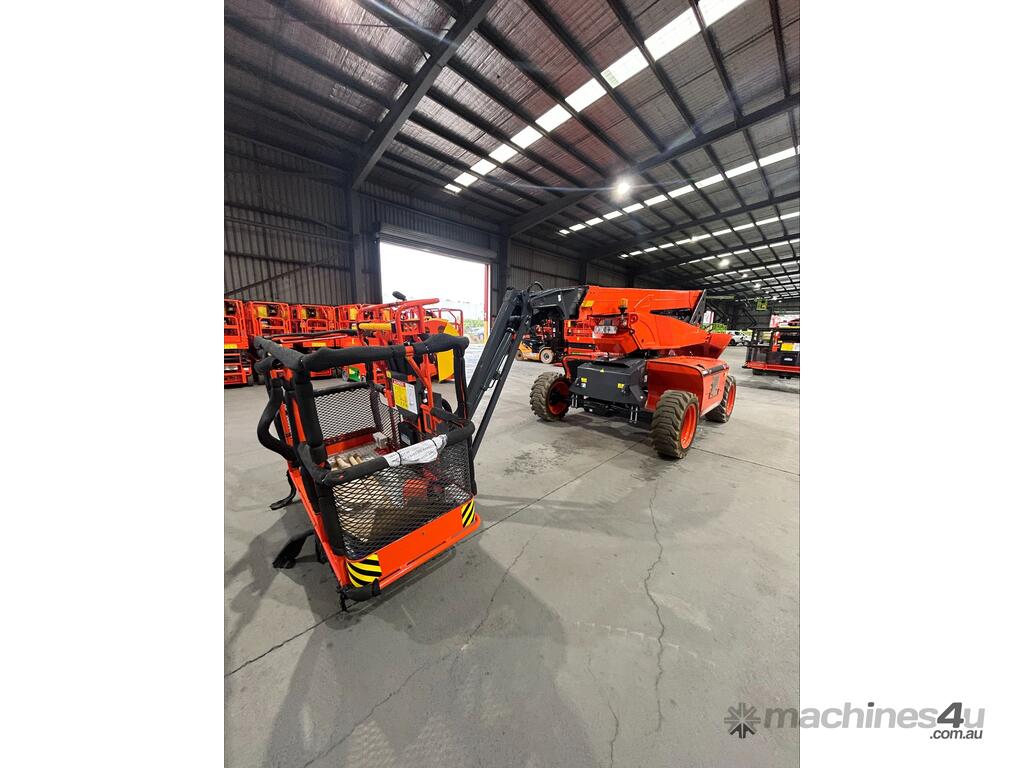

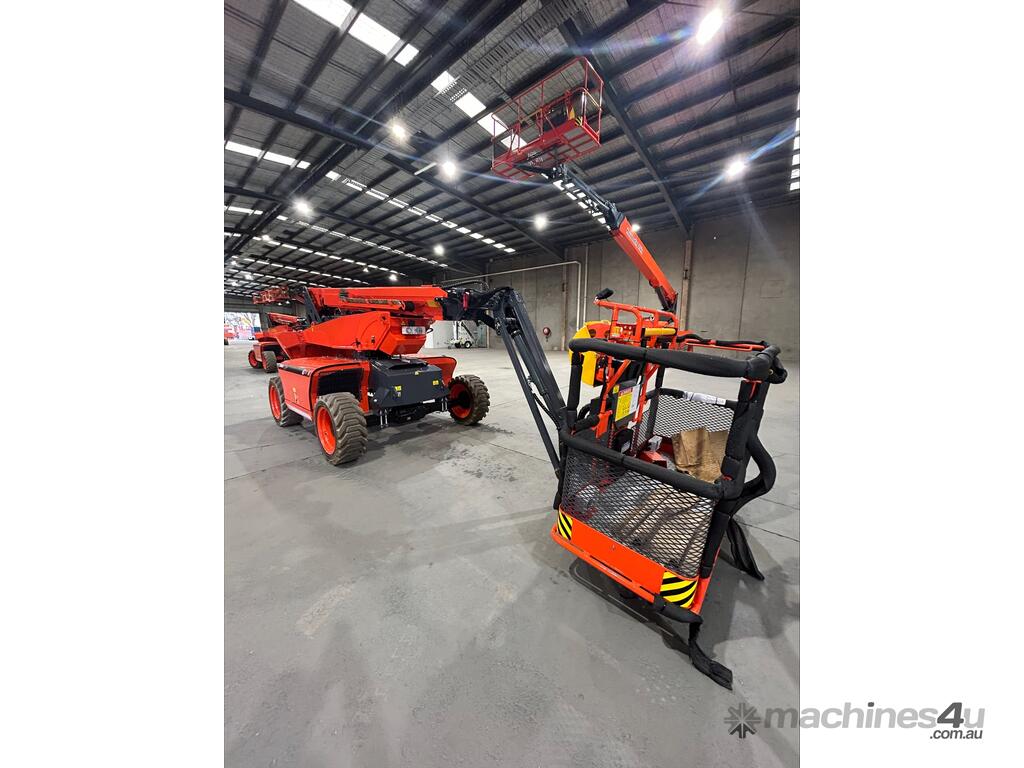

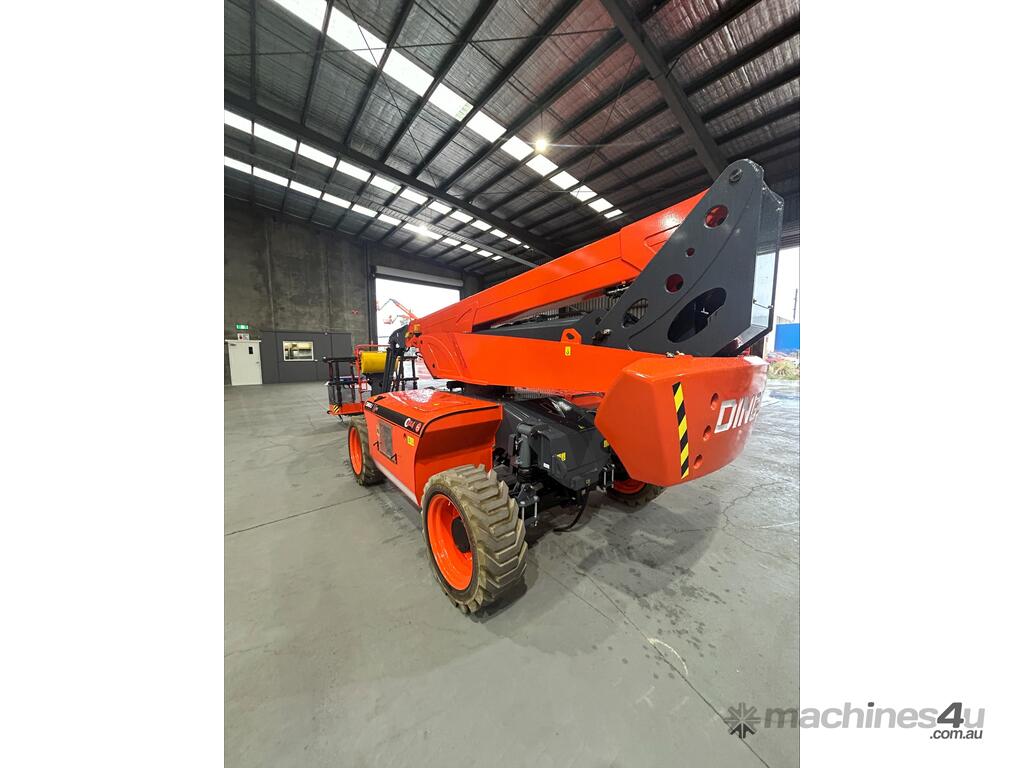

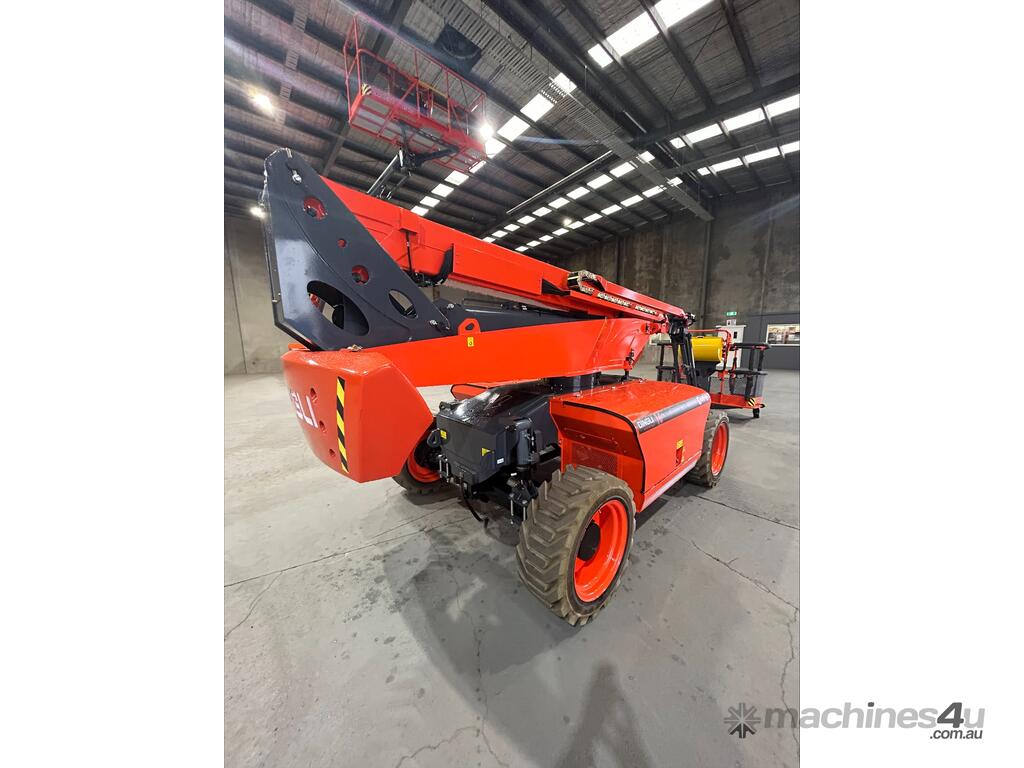

The Dingli BT16CRT is a diesel-powered telescopic boom lift with a platform height of 47 ft (14.33 m) and a working height of 53 ft 7 in (16.33 m). Built for tough rough-terrain conditions, this 2-wheel steer machine delivers a 30 ft 7 in (9.32 m) outreach and 28 ft 7 in (8.72 m) platform range for efficient elevation and lateral access. With a robust 300 kg safe working load supporting two occupants, it’s ideal for heavy-duty construction and industrial applications. The unit features 360° continuous turret rotation, 180° platform rotation, and a 132° jib movement, providing enhanced reach and precision.
Features:
- Platform Height: 47 ft (14.33 m) / Working Height: 53 ft 7 in (16.33 m)
- Horizontal Outreach: 30 ft 7 in (9.32 m)
- Platform Capacity: 300 kg (2 occupants)
- Power Source: Kubota D1105 diesel engine, 18kW
- Gradeability: 40% for efficient terrain handling
- Turret Rotation: 360° continuous
- Platform Rotation: 180°
- Jib Movement: 132° articulation
- Transport Dimensions: 5.48 m × 2.33 m × 2.68 m
- Weight: 6,550 kg
- Tyres: 315/55D20 rough terrain
Applications:
- Outdoor construction and infrastructure
- Industrial facility maintenance
- Elevated access in warehousing and logistics
- Rough-terrain worksites requiring stable lifting
