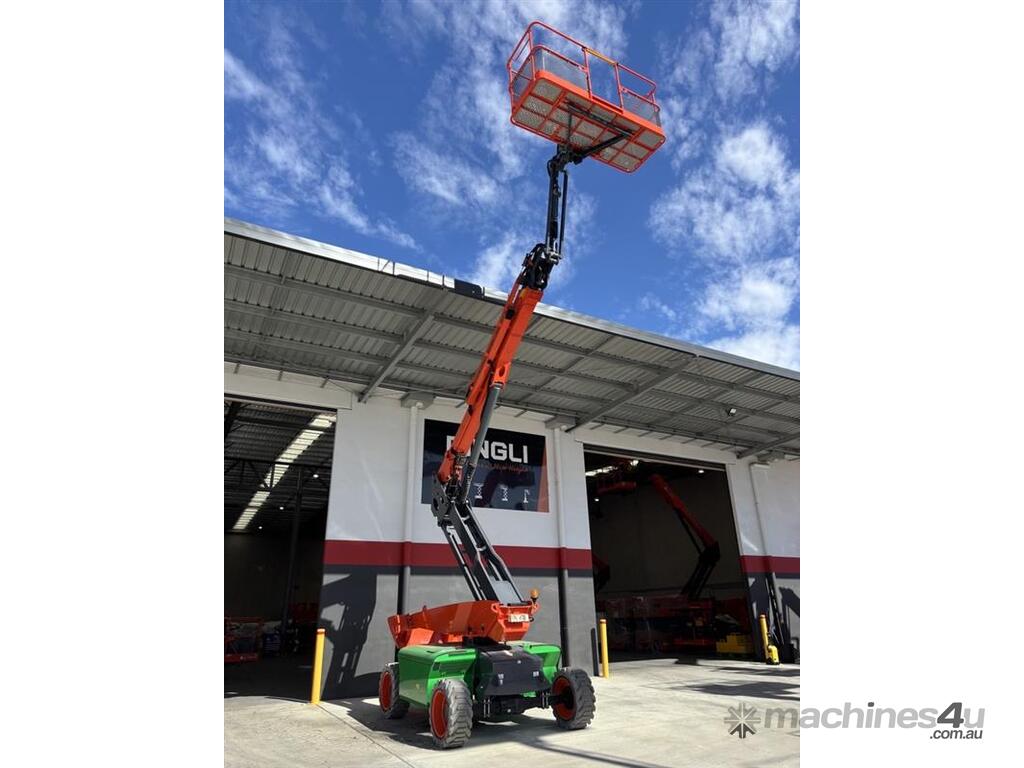

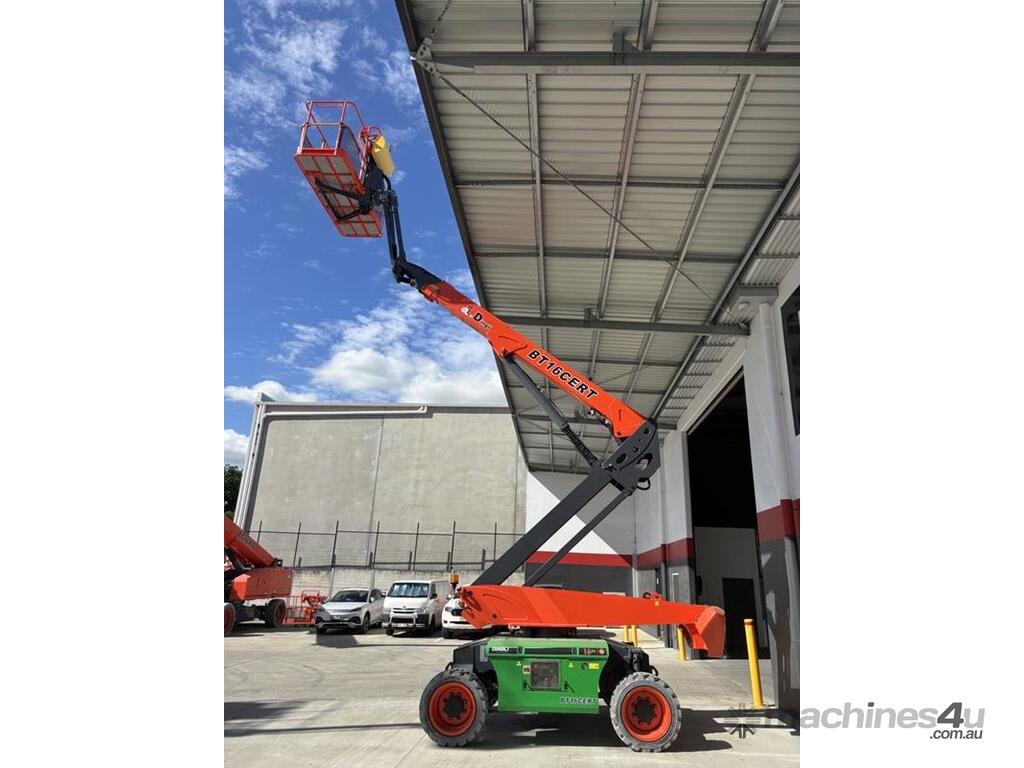

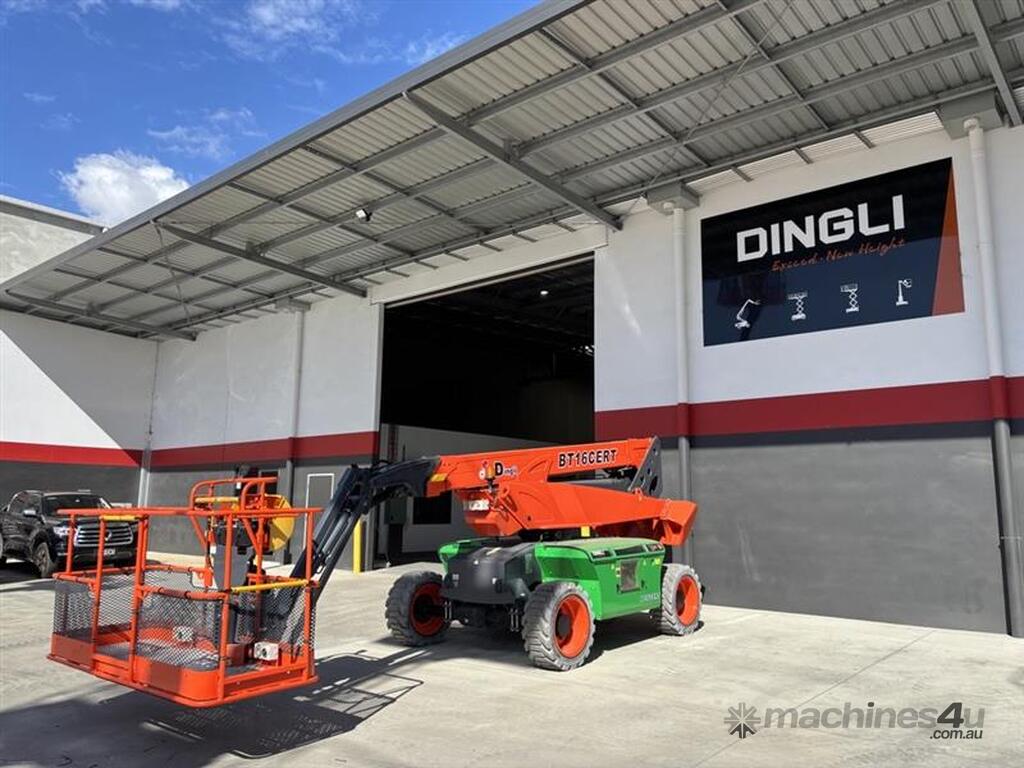

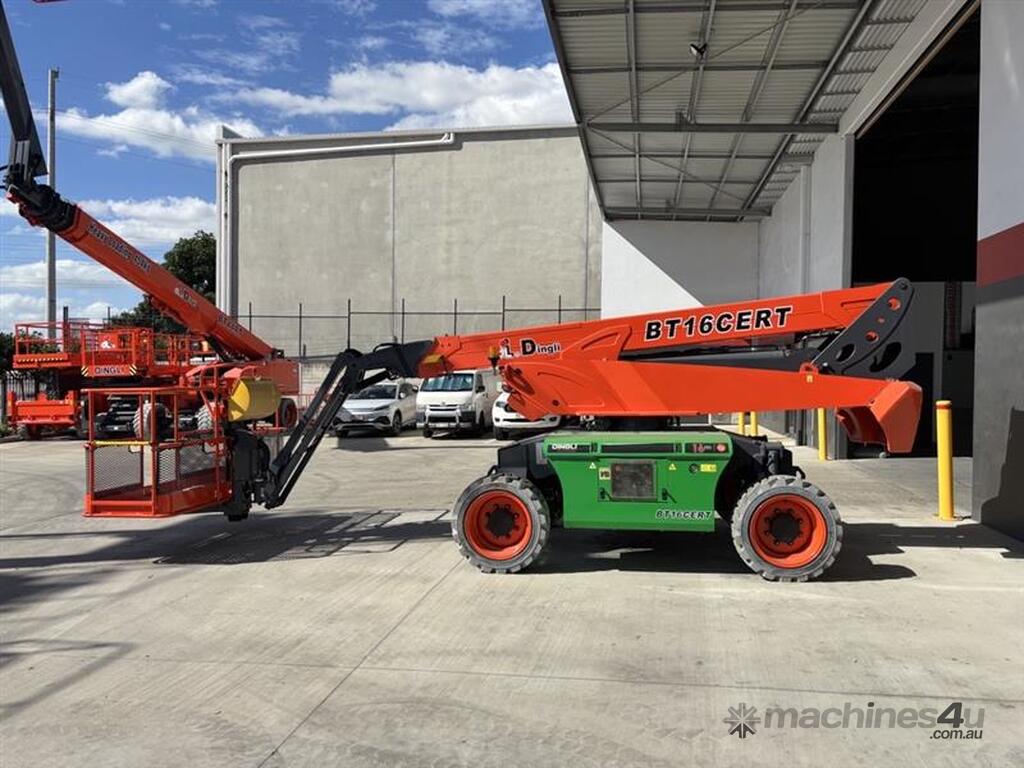

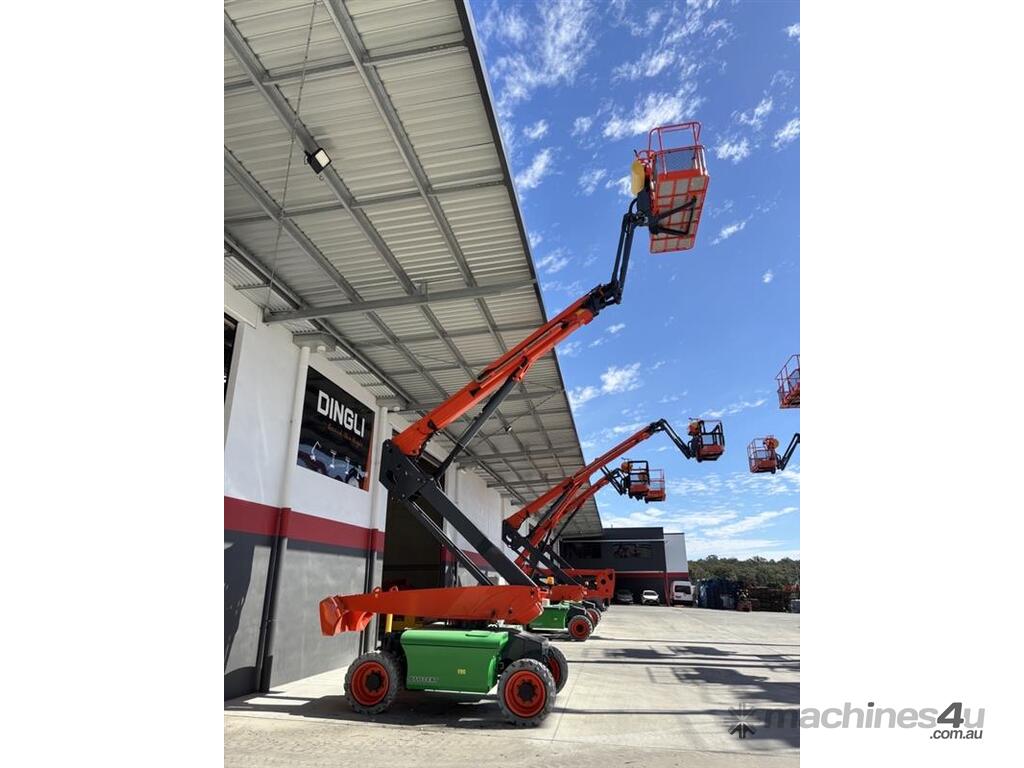

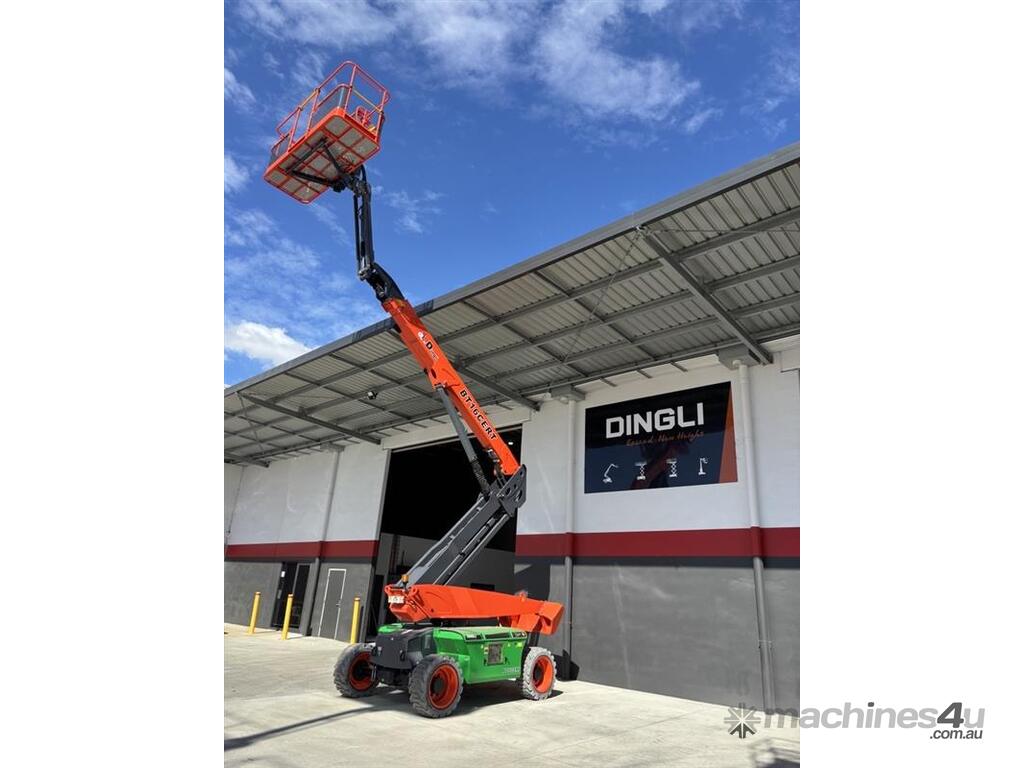

The Dingli D Series Boom Lifts combine advanced modular design, proven reliability, and strong rough-terrain performance. As the largest supplier of EWPs in Australia and the 3rd largest globally, Dingli continues to lead the market with quality and innovation.
Product Highlights and Benefits:
Family modular design: 90% of main components and 95% of structural parts are common across the series, reducing storage costs and simplifying maintenance.
- Low-power engine for lower energy consumption.
- Unique low-profile design improves machine stability.
- Components positioned on both sides of chassis for easier service access.
- Axle-integrated four-wheel drive system for superior rough-terrain ability.
Dimensions:
Max Working Height: 16.22 m
Max Platform Height: 14.22 m
Max Operating Range (+0.6 m): 9.40 m
Max Platform Range: 8.80 m
Overall Length (Stowed): 7.37 m
Overall Length (Transport): 5.49 m
Overall Width (Stowed/Transport): 2.33 m
Overall Height (Stowed): 2.49 m
Overall, Height (Transport): 2.60 m

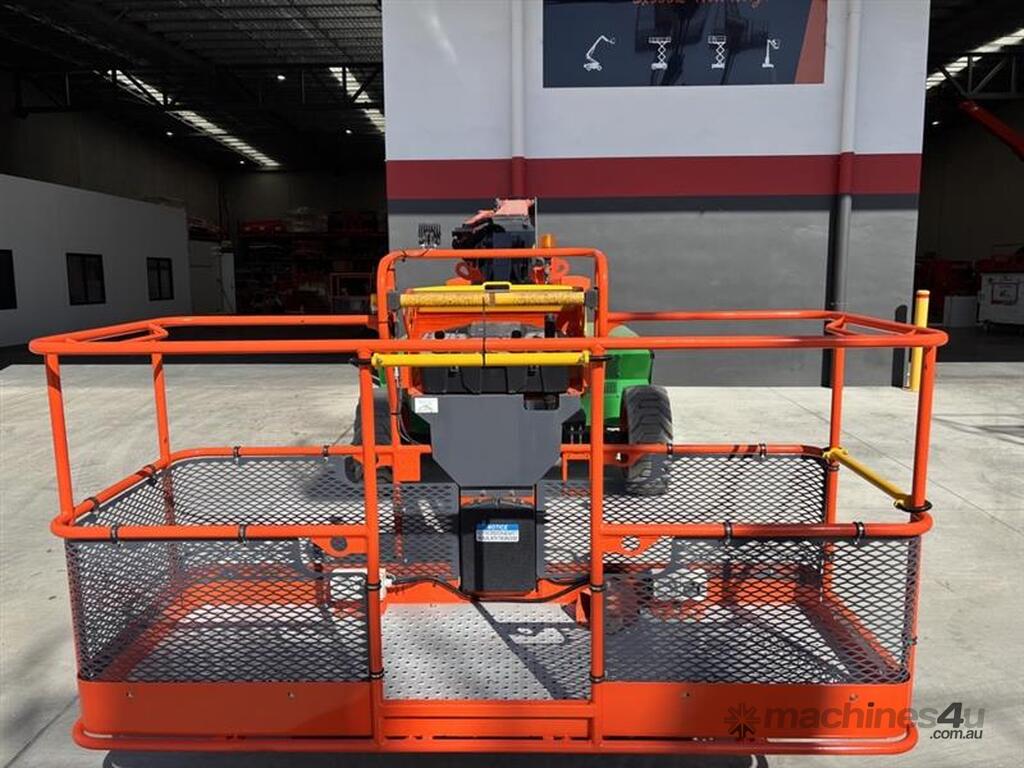

Platform Size (L × W): 1.83 m × 0.79 m
Turntable Tail swing: 1.24 m
Ground Clearance: 0.31 m
Wheelbase: 2.30 m
Performance:
Safe Working Load (SWL): 250 kg
Max Occupants: 2
Gradeability: 40%
Travel Speed (Stowed): 6.0 km/h
Travel Speed (Raised): 1.1 km/h
Max Working Slope: X-5° / Y-5°
Turret Rotation: 360° continuous
Platform Rotation: 180°
Jib Movement: 132°
Main Boom Maximum Angle: 75°
Turning Radius (Inside/Outside): 2.92 m / 4.49 m
Tyres: 315/55D20
Weight:
Overall, Weight: 6,130 kg
Power:
Diesel Engine: Kubota D1105 / 18 kW
Diesel Tank: 115 L
Hydraulic Tank: 145 L
