Dingli BT30ERT 2023 92ft Lithium Electric Telescopic Boom Lift - 230kg SWL

Dingli BT30ERT Telescopic Boom Lift

Combining innovation, heavy-duty performance, and versatility, the BT30ERT is designed for demanding job sites. As the largest supplier of EWPs in Australia and the third largest worldwide, Dingli leads the industry with proven reliability and cutting-edge design.

Product Highlights & Benefits
- Large load capacity, strong power, easy maintenance, high chassis design, and stable control
- Energy-efficient with reduced operating costs
- Family modular design: 90% of main components and 95% of structural parts shared across the series, lowering storage costs and simplifying maintenance
- Range-extended hybrid system:
- 80V (420Ah) lithium battery pack
- Built-in universal range extender for on-site power generation when no charging facilities are available
- Combined with a fuel tank, ensures up to 30 days of continuous operation on-site
- Low center of gravity for greater stability
- Components positioned on both sides of the chassis for easier servicing
- Integrated 4WD axle system delivers superior off-road performance

Dimensions
- Max Working Height: 30.20 m
- Max Platform Height: 28.20 m
- Max Operating Range (+0.6 m): 23.00 m
- Max Platform Range: 22.40 m
- Overall Length (Stowed): 12.30 m
- Overall Length (Transport): 12.00 m
- Overall Width (Stowed): 2.50 m
- Overall Width (Transport): 2.28 m
- Overall, Height (Stowed): 2.87 m
- Overall, Height (Transport): 2.59 m

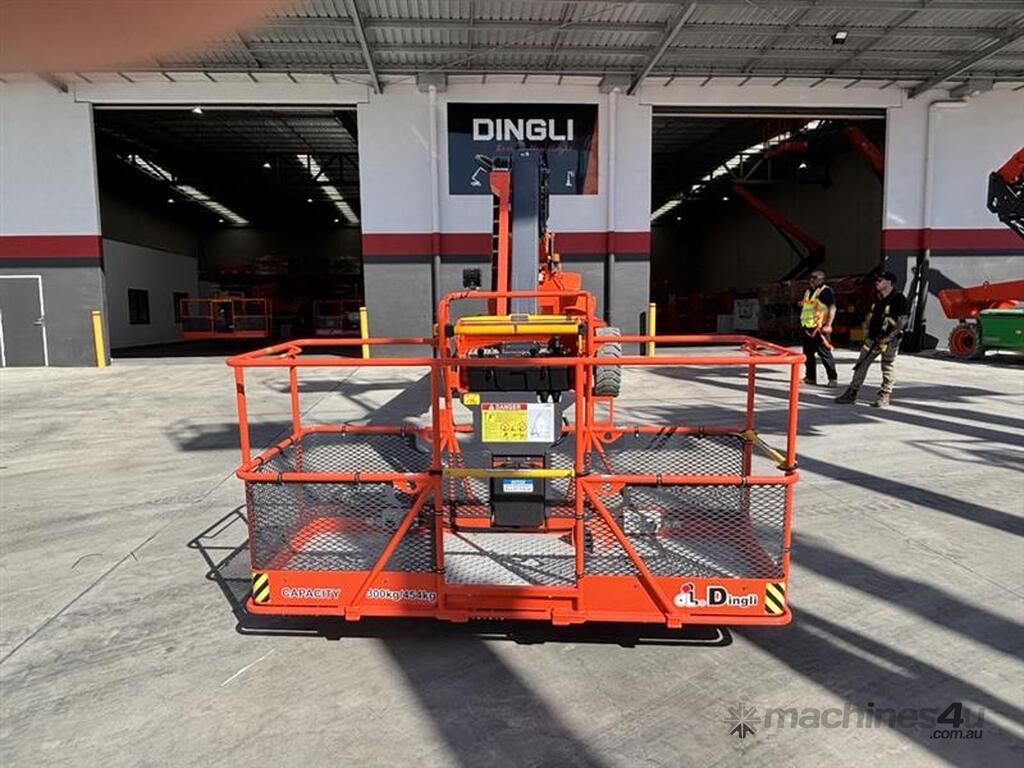

- Platform Size (L × W): 2.44 m × 0.91 m
- Turntable Tail swing: 1.61 m
- Ground Clearance: 0.41 m
- Wheelbase: 2.80 m

Performance
- Safe Working Load (Unrestricted/Restricted): 300 kg / 454 kg
- Max Occupants: 3
- Gradeability: 30%
- Travel Speed (Stowed): 6.0 km/h
- Travel Speed (Raised): 1.1 km/h
- Max Working Slope: X-5° / Y-5°
- Turret Rotation: 360° continuous
- Platform Rotation: 180°
- Jib Movement: 135°
- Main Boom Maximum Angle: 68°
- Turning Radius (Inside/Outside): 1.87 m / 3.22 m

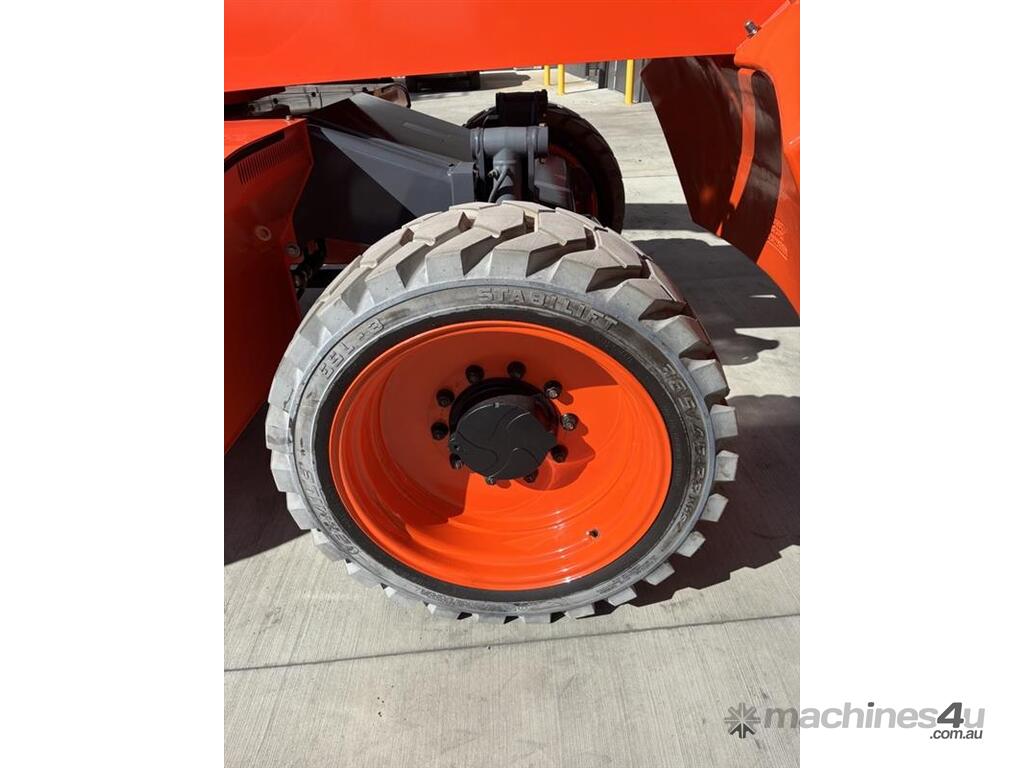

- Tyres: 385/45-28

Weight
- Overall Weight: 18,900 kg

Power
- Lithium Battery: 420Ah / 80V
- Emergency Power System: 12V
- Driving Motor: 54VAC / 18kW
- Range Extended Engine: Kubota Z482 / 9.8 kW
- Diesel Tank: 110 L
- Hydraulic Tank: 165 L
