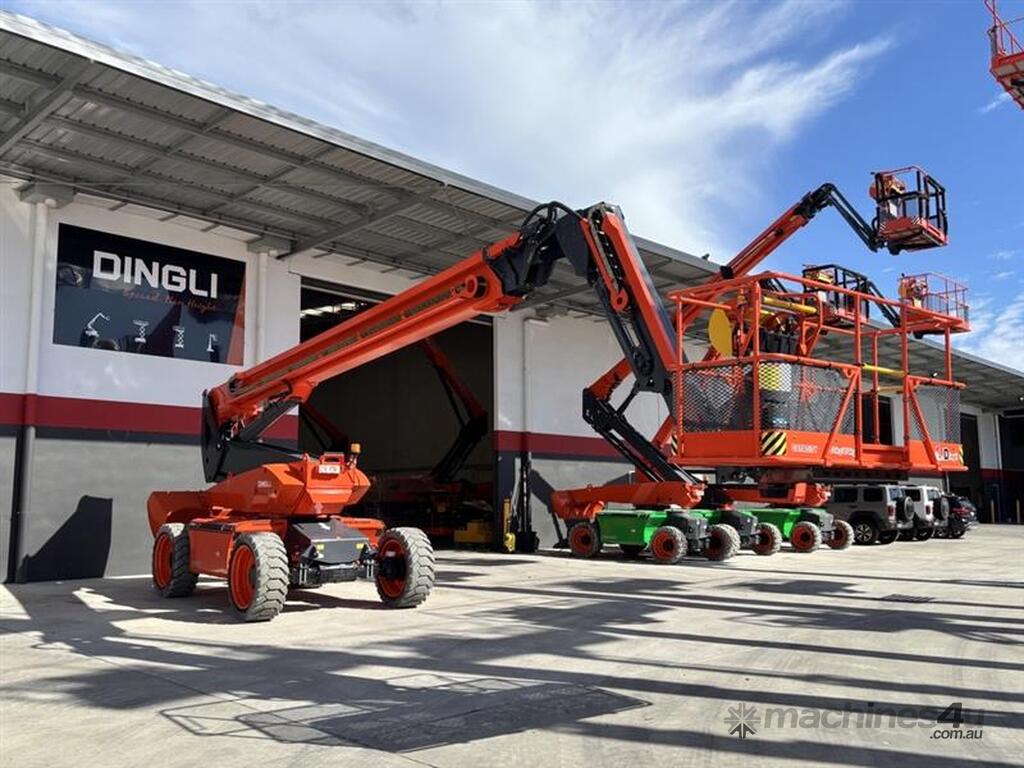

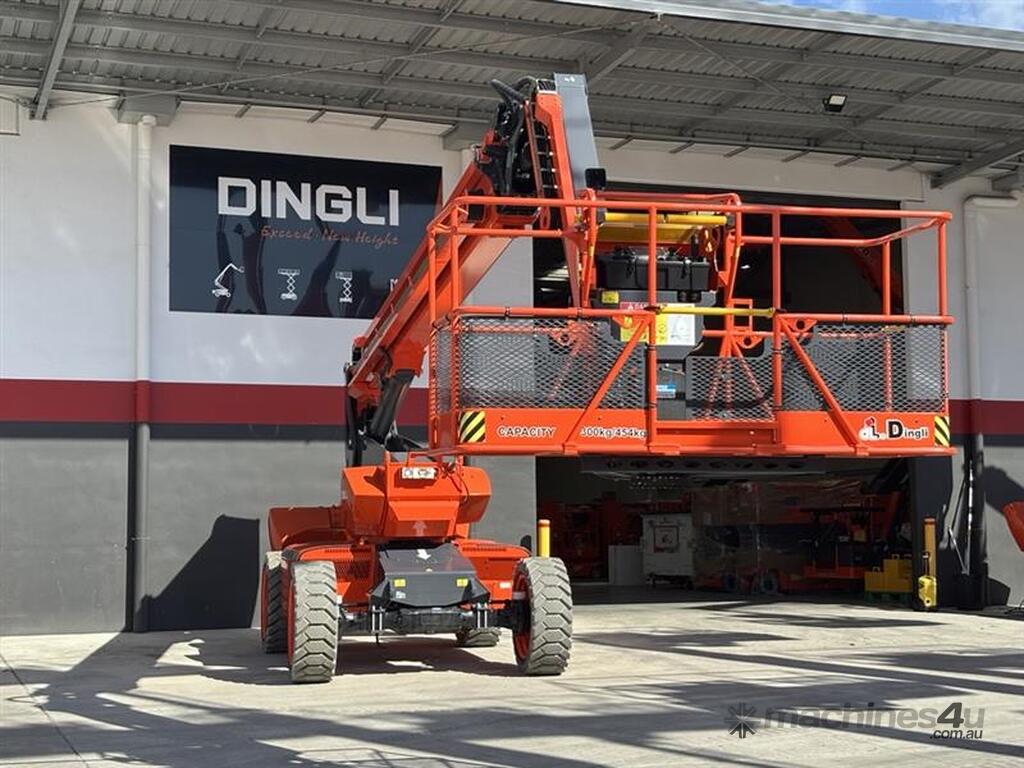

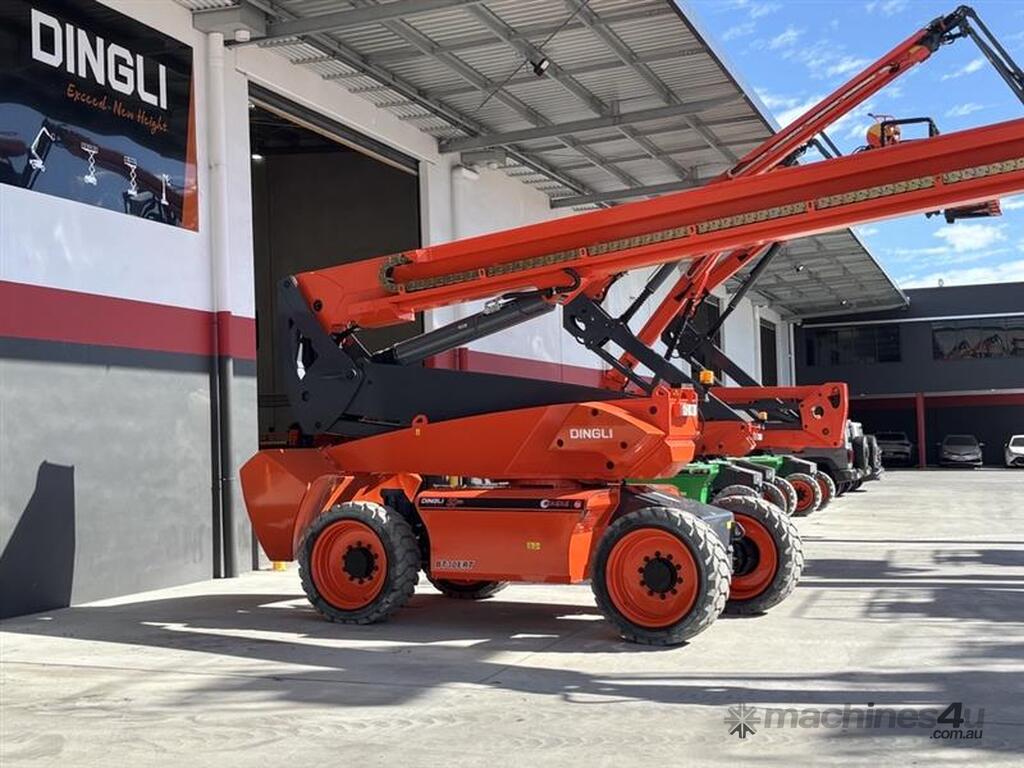

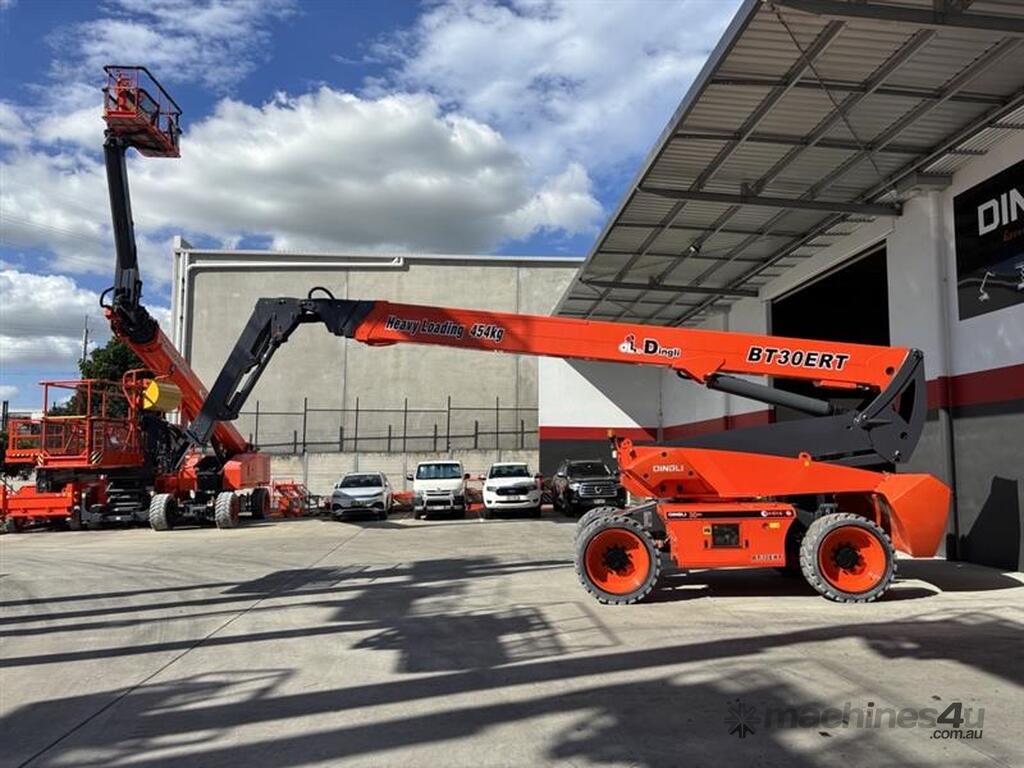

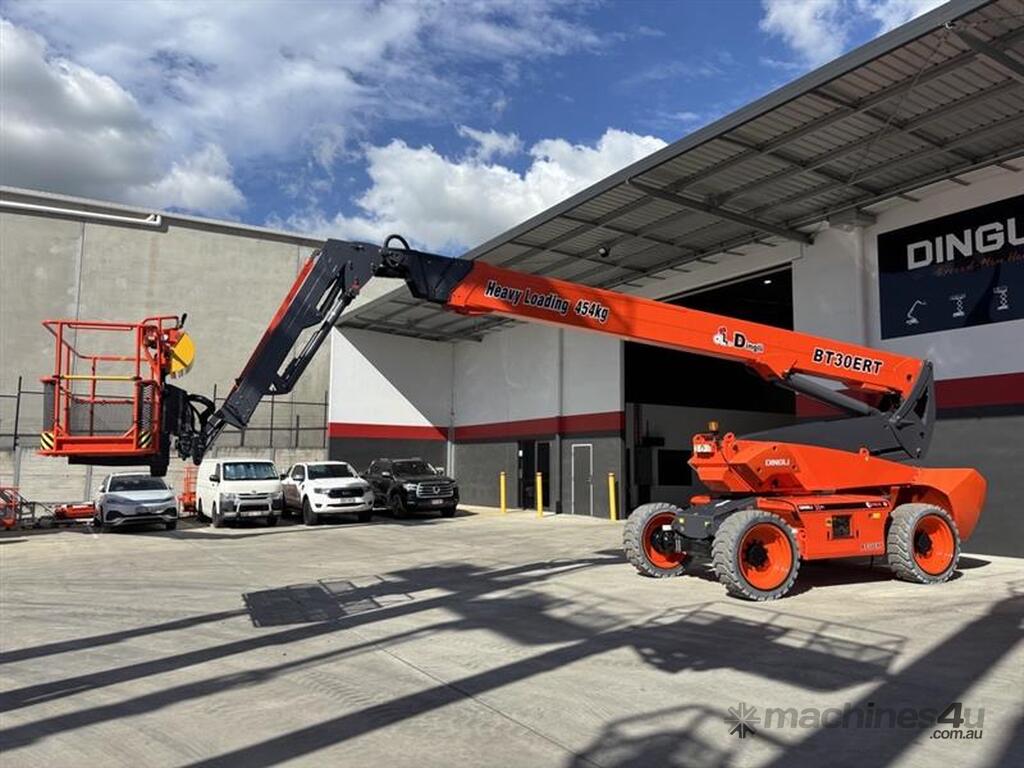

Dingli BT30ERT 92ft Lithium Electric Telescopic Boom Lift

The Dingli BT30ERT is a 92ft lithium electric telescopic boom lift built for high-reach construction, industrial maintenance and heavy-duty outdoor work. It delivers a working height of 99ft (30.20m), a horizontal reach of 75ft 5in (23.00m) and a high 454kg platform capacity. Its lithium battery system provides quiet, zero-emission operation, while the built-in range extender allows continuous on-site use where charging isn’t available. The low centre of gravity improves stability and the integrated 4WD axle system delivers strong off-road performance.

Features
- Platform Height: 28.20m
- Horizontal Outreach: 23.00m
- Platform Capacity: 300kg / 454kg

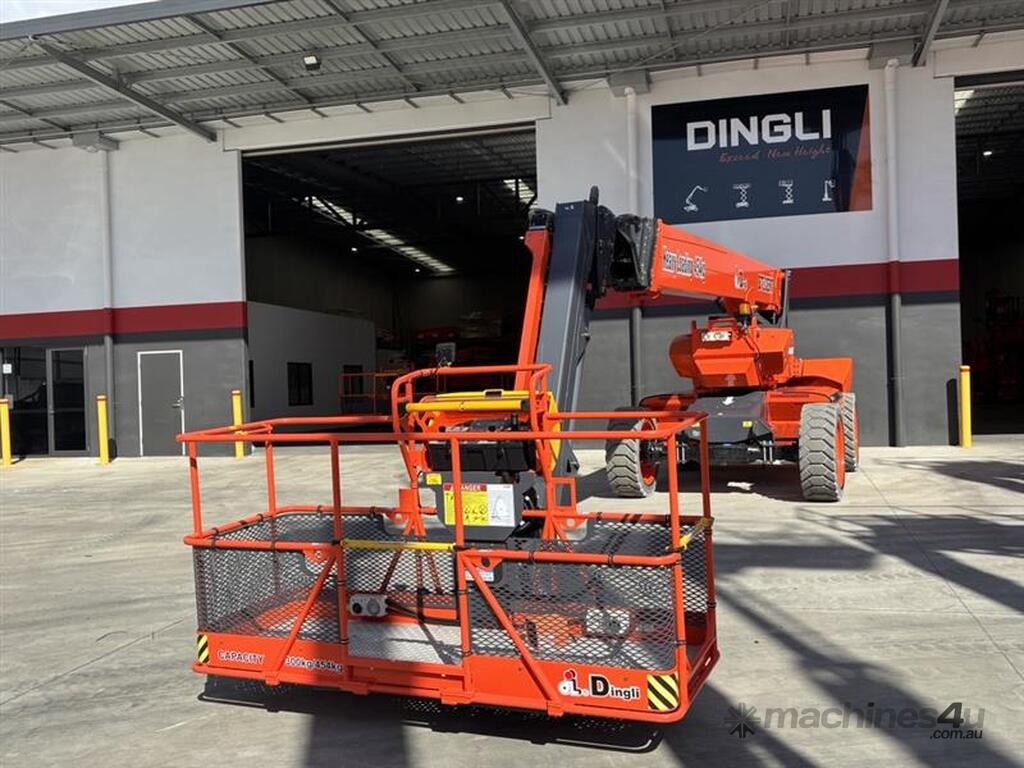

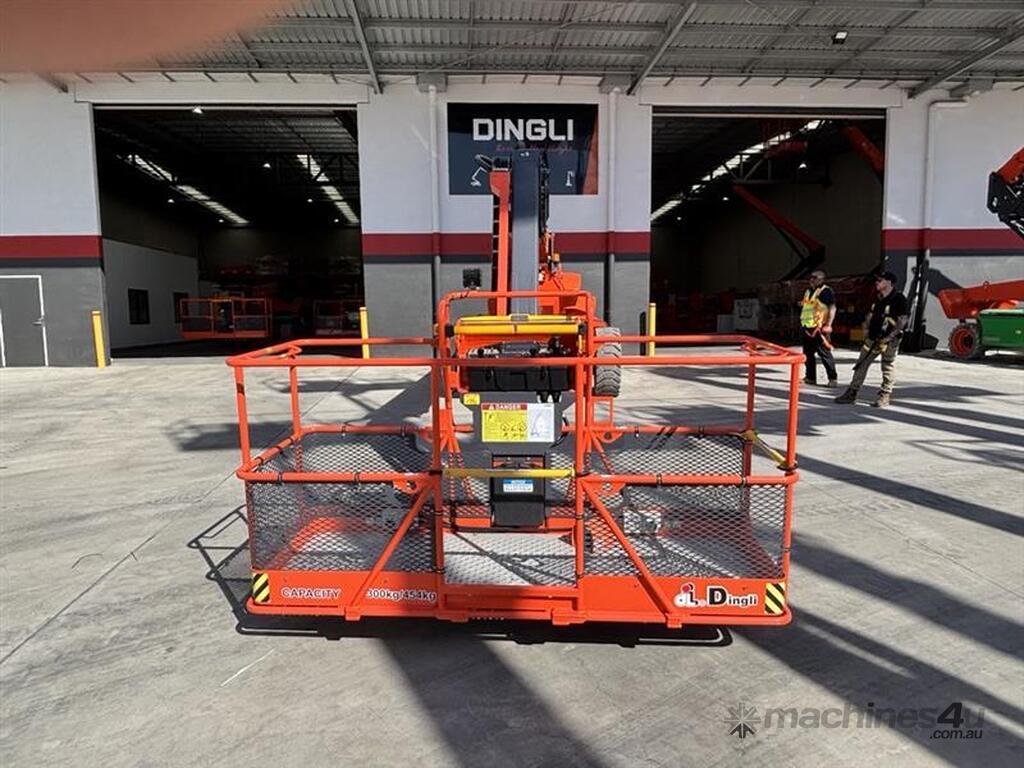

- Platform Size: 2.44m × 0.91m
- Jib Movement: 135°
- Platform Rotation: 180°
- Turret Rotation: 360° continuous
- Drive Speed: 6.0km/h stowed, 1.1km/h raised
- Gradeability: 30%
- Turning Radius: 1.87m inside, 3.22m outside

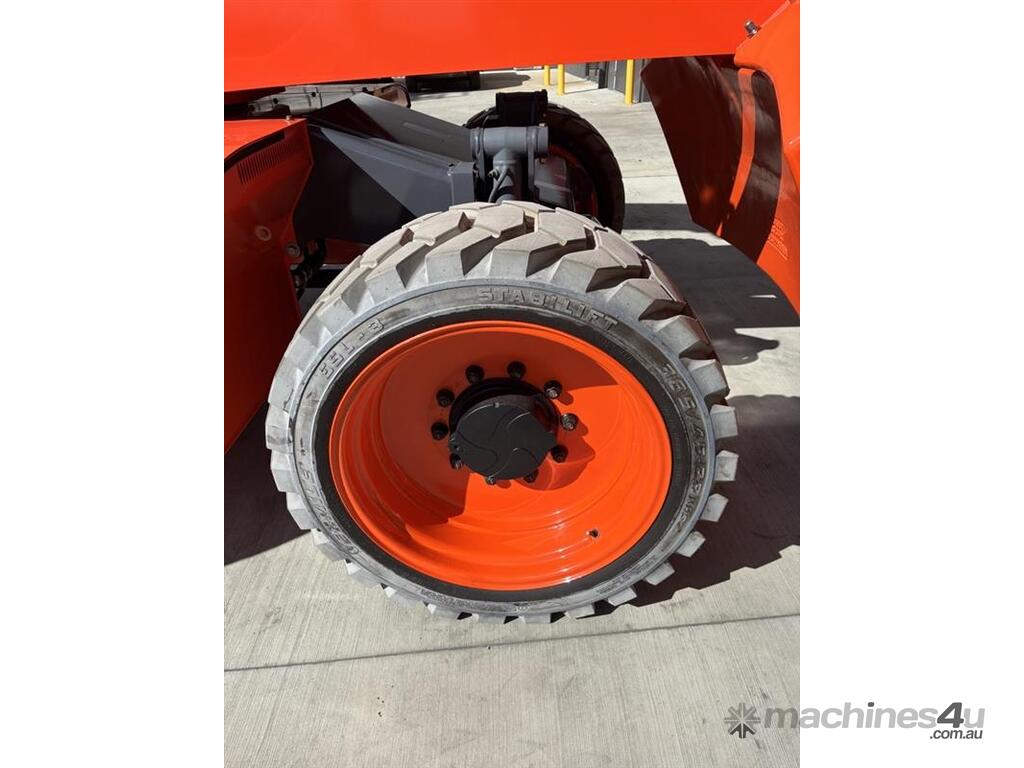

- Tyres: 385/45-28
- Power: 80V 420Ah lithium battery + Kubota Z482 9.8kW range extender
- Fuel Tank: 110L
- Hydraulic Tank: 165L
- Weight: 18,900kg

Dimensions
- Length: 12.30m stowed, 12.00m transport
- Width: 2.50m stowed, 2.28m transport
- Height: 2.87m stowed, 2.59m transport
- Ground Clearance: 0.41m
- Wheelbase: 2.80m
- Tailswing: 1.61m

Applications
- High-reach construction and steel work
- Industrial and facility maintenance
- Electrical and mechanical installation
- Outdoor repair and inspection work
