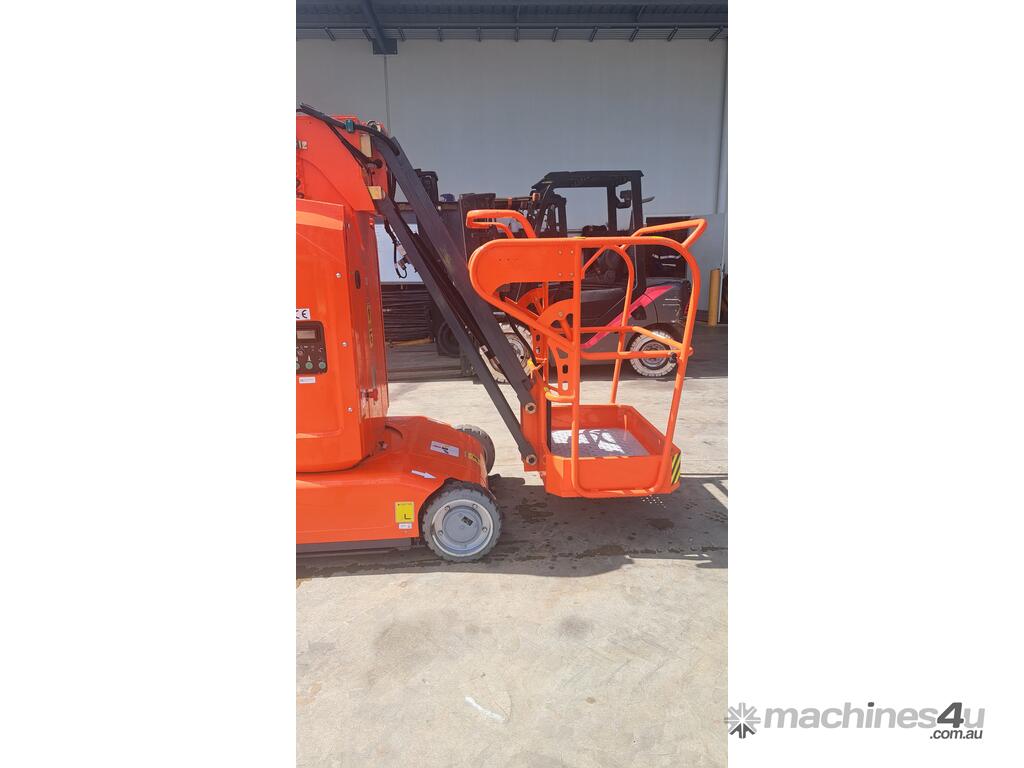

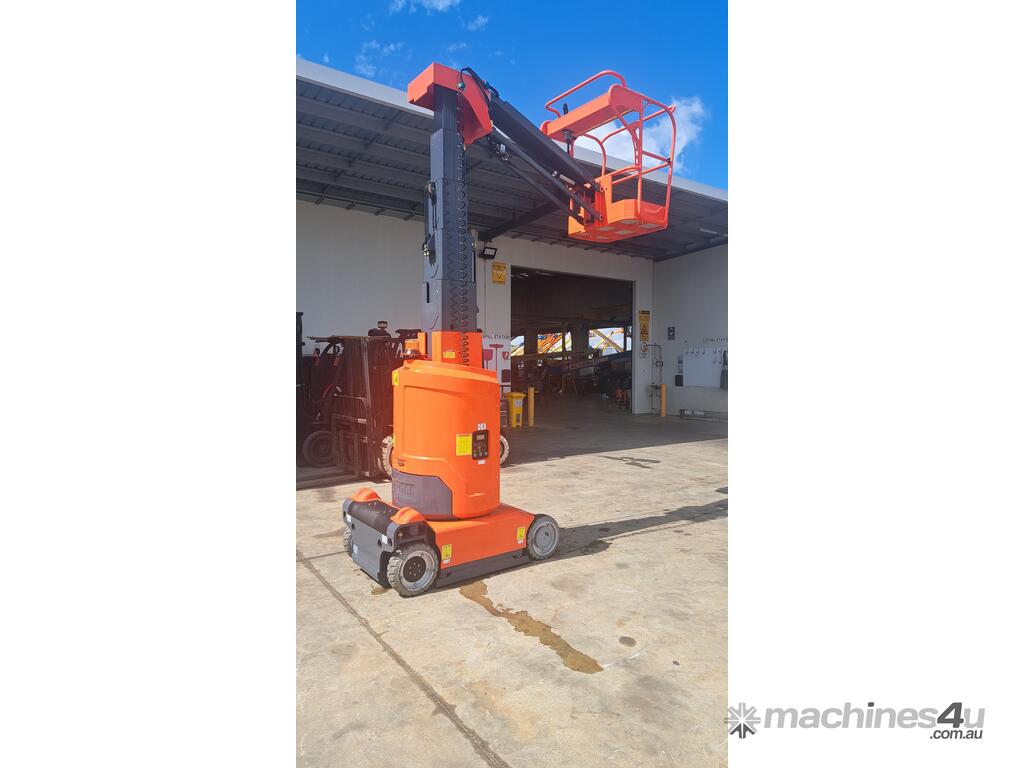

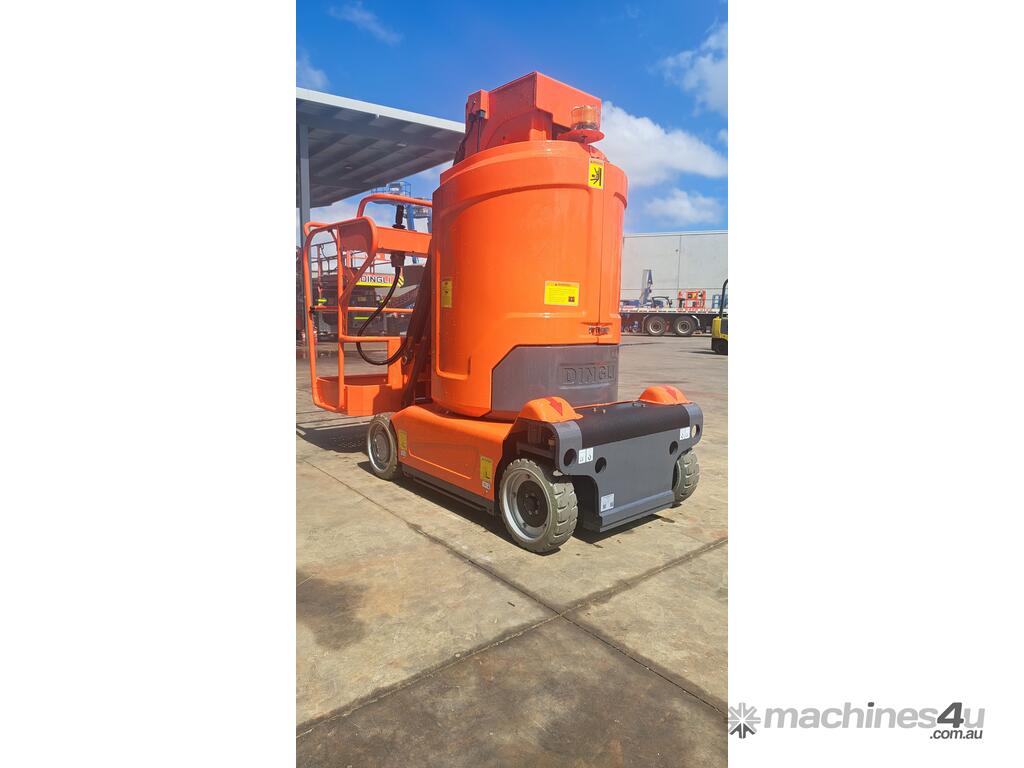

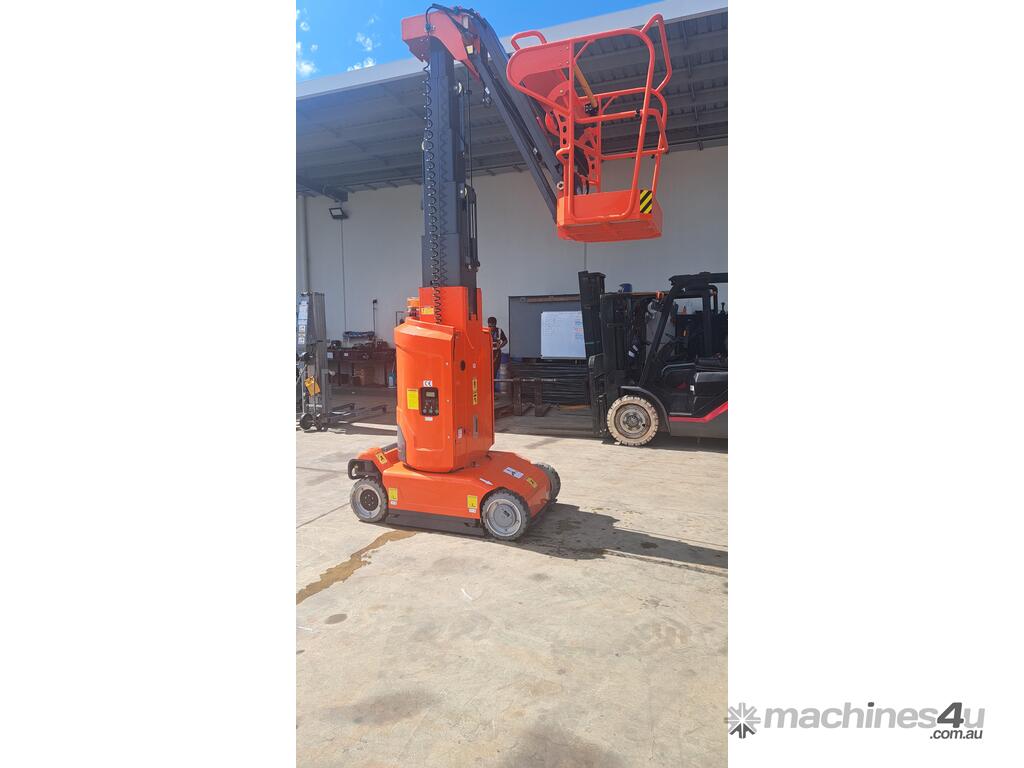

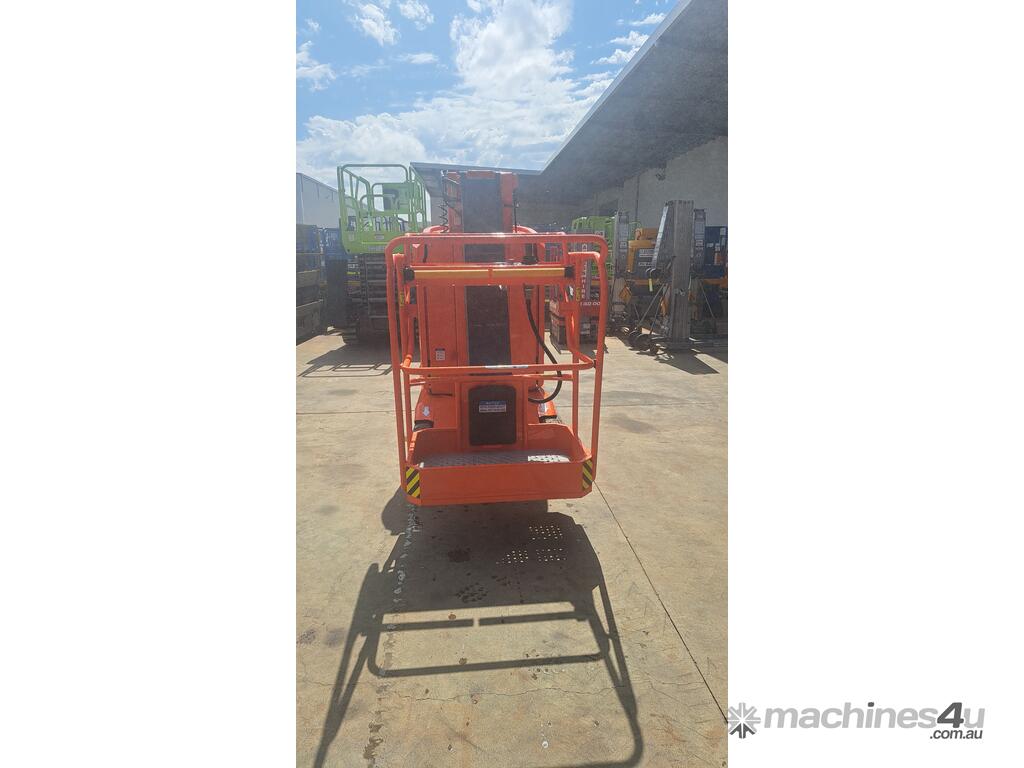

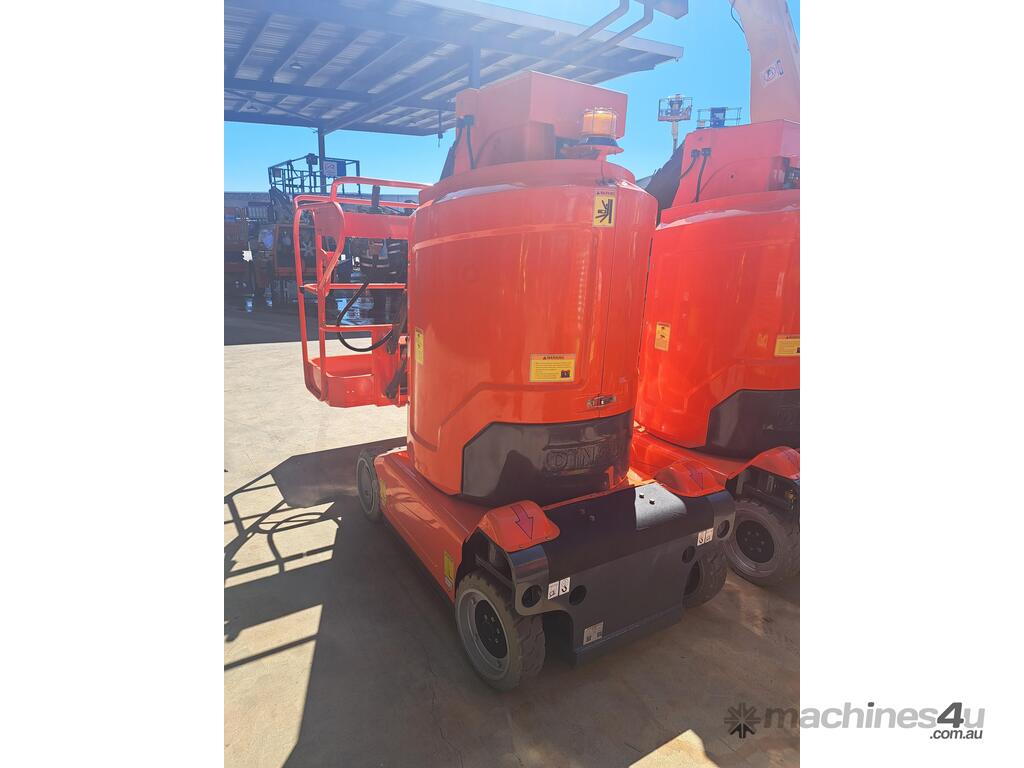

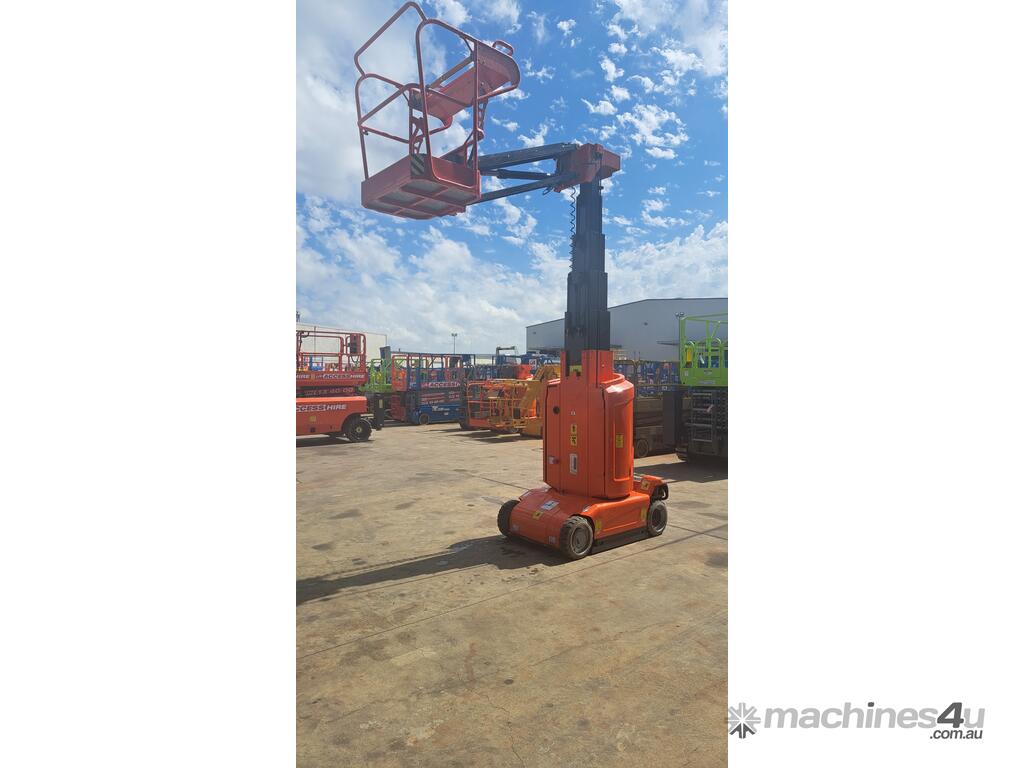

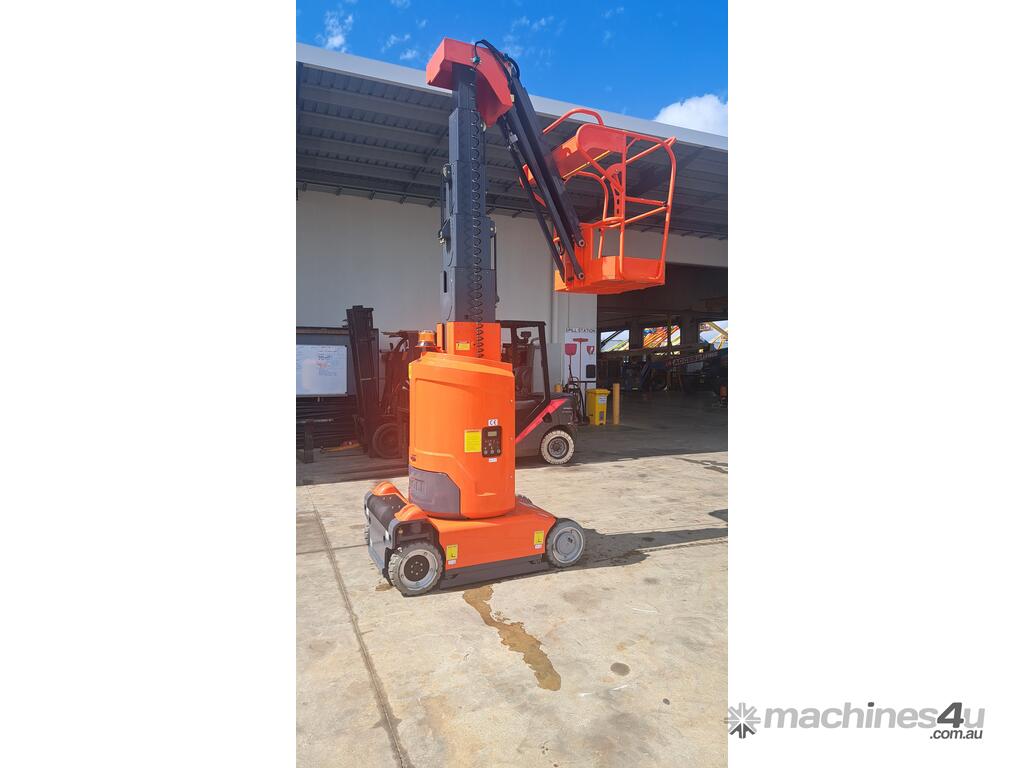

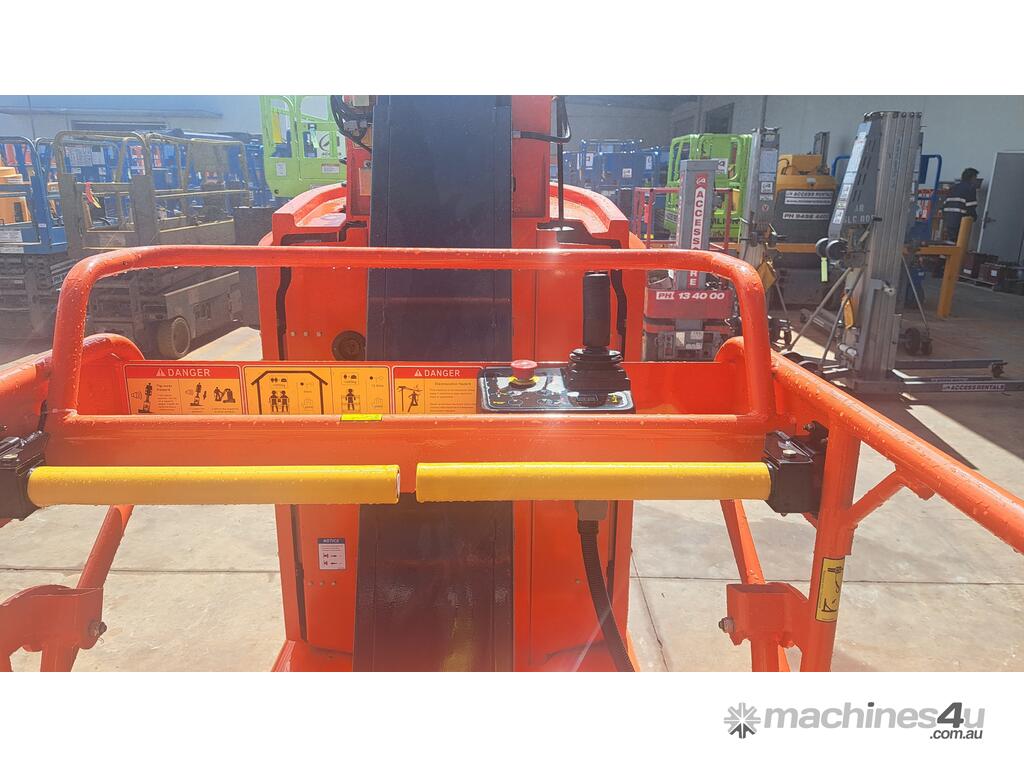

The Dingli AMWP 11.5-8100 is a high-performance self-propelled mast lift designed for precision access in tight indoor and outdoor workspaces. With a maximum working height of 11.2m and horizontal reach of 3.0m, it’s ideal for maintenance, stock picking, facility management and fit-out tasks.
Built with manoeuvrability in mind, this unit features a tight turning radius, compact dimensions and non-marking tyres, making it easy to navigate narrow aisles and confined areas. The 345° turret rotation, articulating jib (+70°/-60°) and smooth proportional controls provide excellent access flexibility and operator control.
Key Specifications:
- Max working height: 11.2m
- Max platform height: 9.2m
- Max horizontal reach: 3.0m
- Platform capacity: 200kg (2 occupants)
- Overall width: 1.0m
- Platform size: 0.62m x 0.87m
- Tight turning radius: 0.23m (inside) / 1.65m (outside)
- Drive speed: 4.5km/h (stowed), 0.5km/h (raised)
- Gradeability: 25%
- Power: 24V battery system with integrated charger
- Weight: 2,950kg
Standard Features Include:
- 345° turret rotation
- Articulating jib for enhanced up-and-over reach
- Automatic pothole protection
- Self-locking gate and drive at full height
- All motion alarm, horn and hour meter
- Platform horizontal outreach and swing-out component covers
Compact, capable and built for safety, the Dingli AMWP 11.5-8100 delivers reliable vertical access performance for a wide range of applications.
