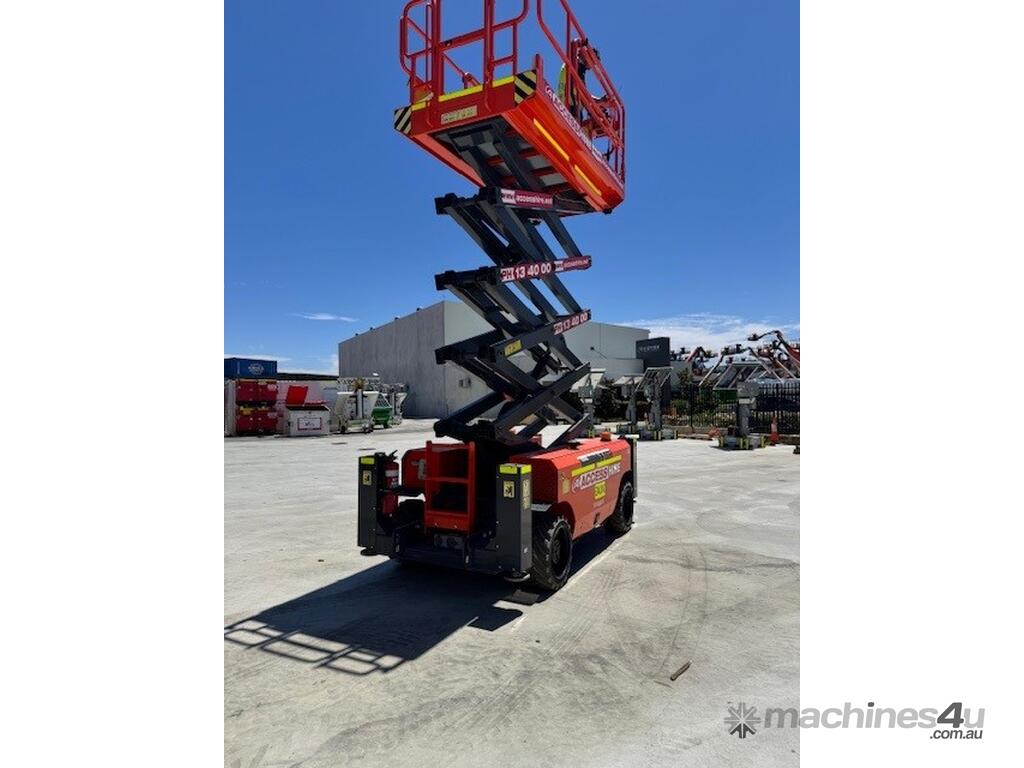

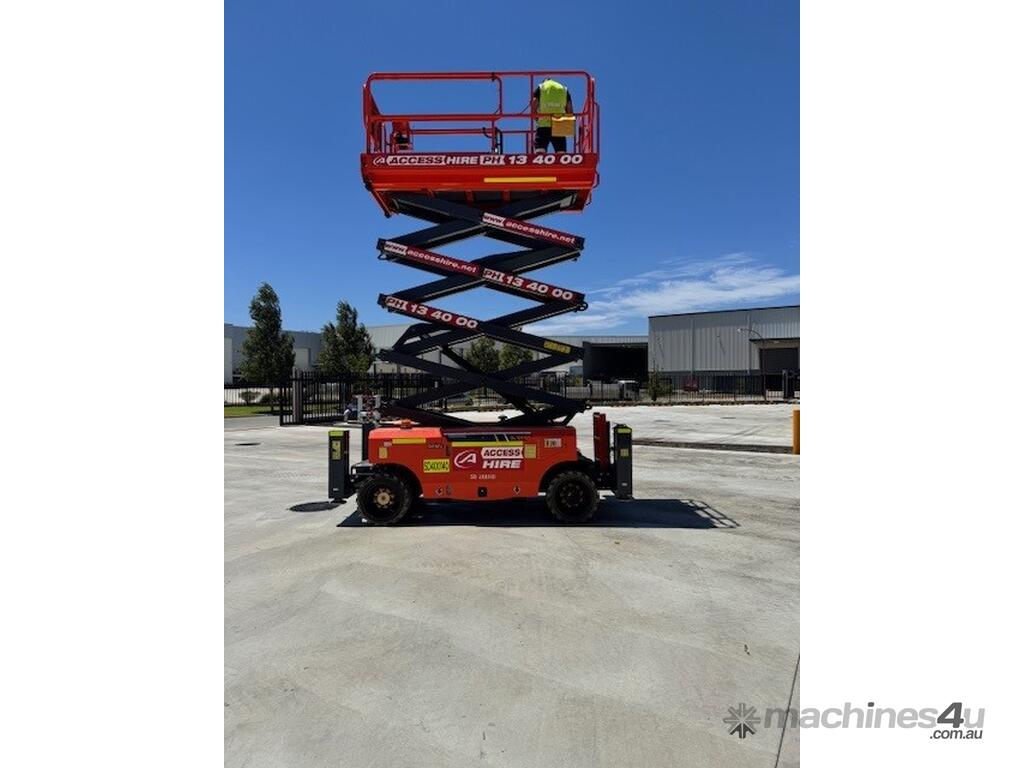

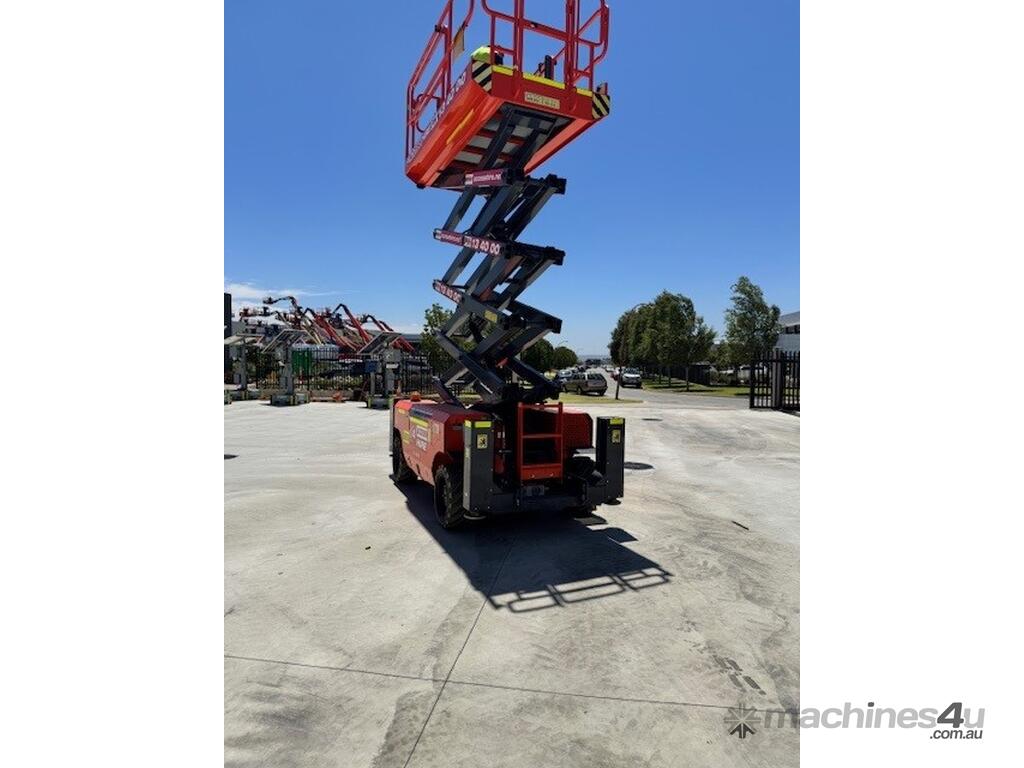

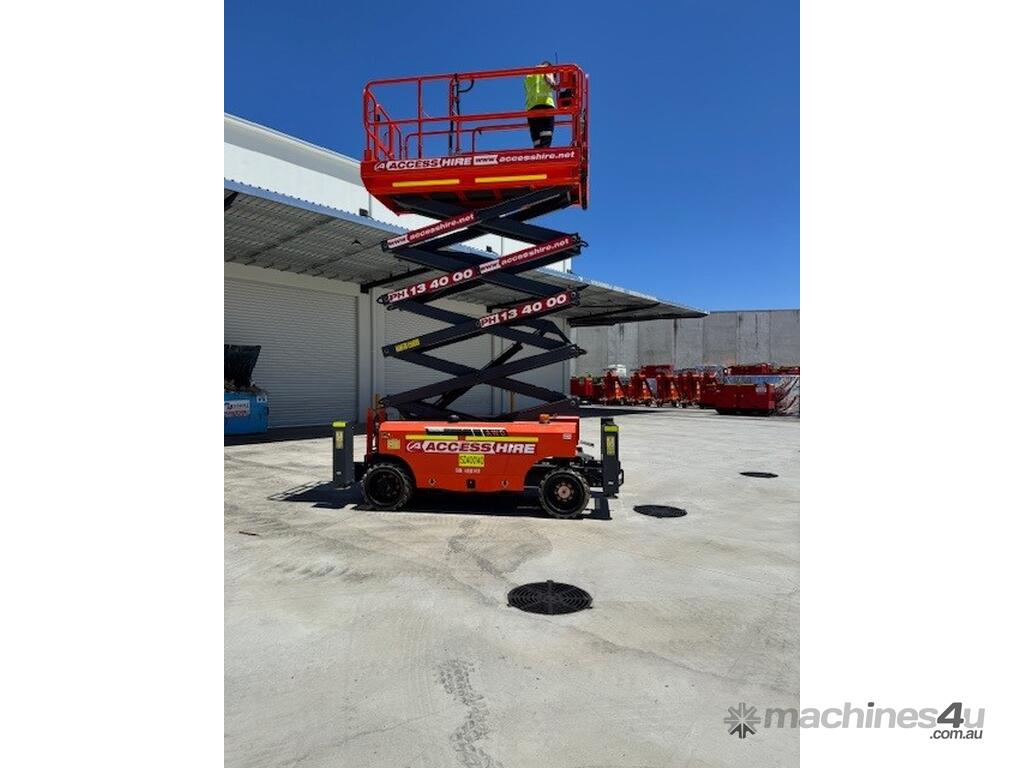

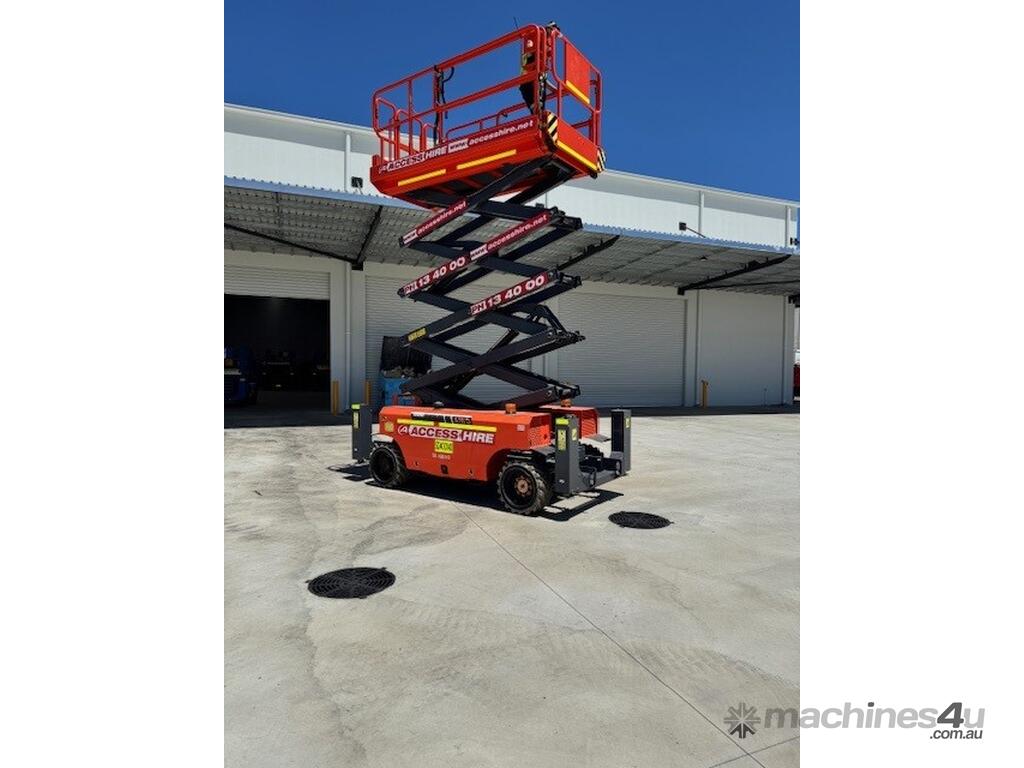

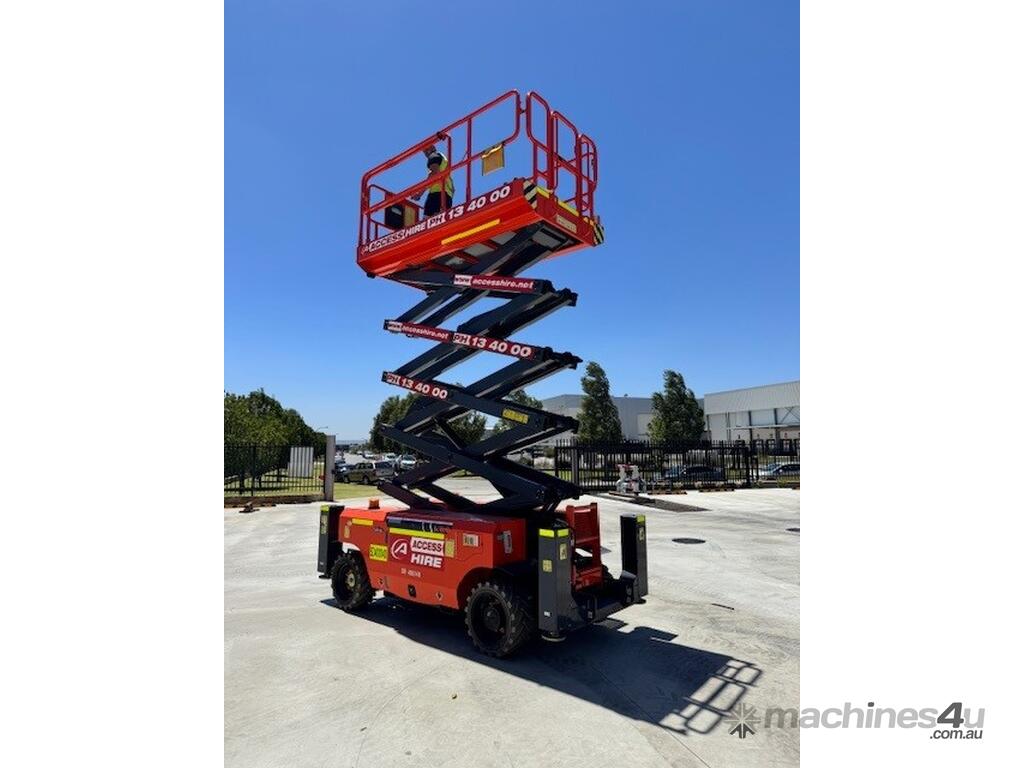

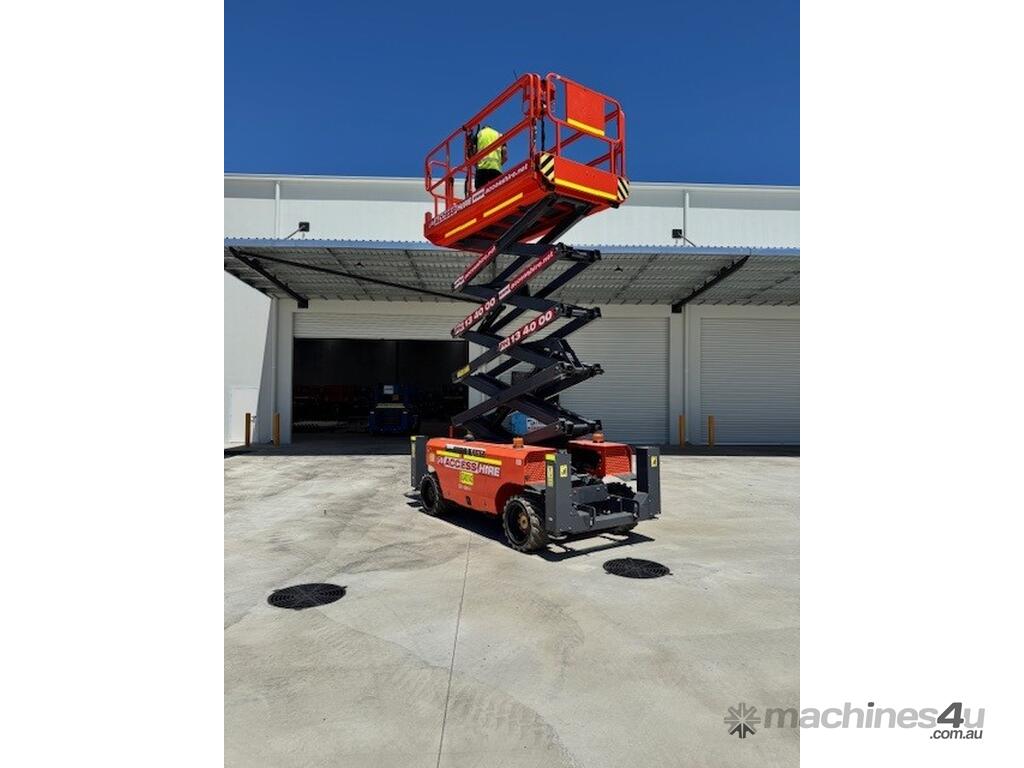

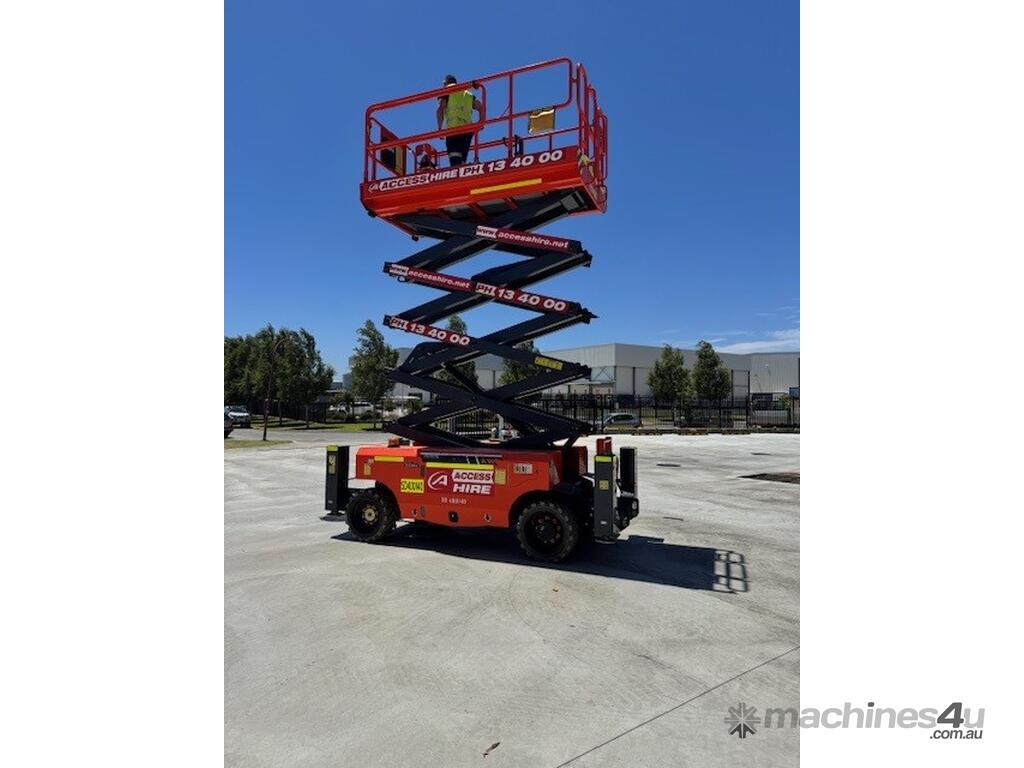

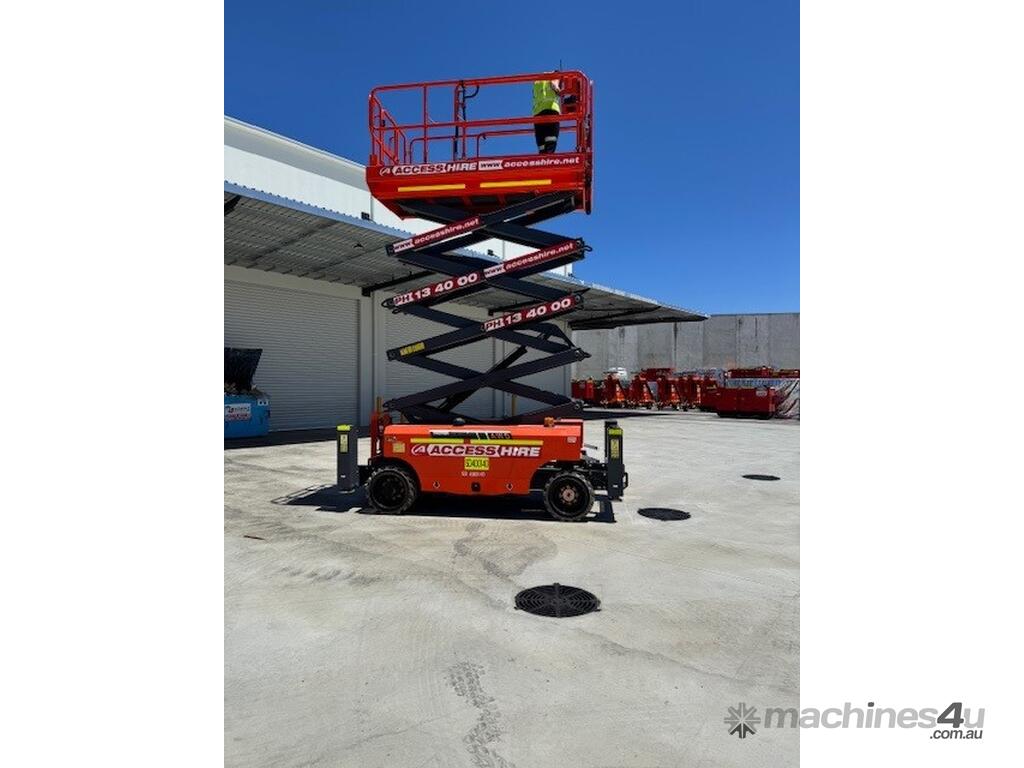

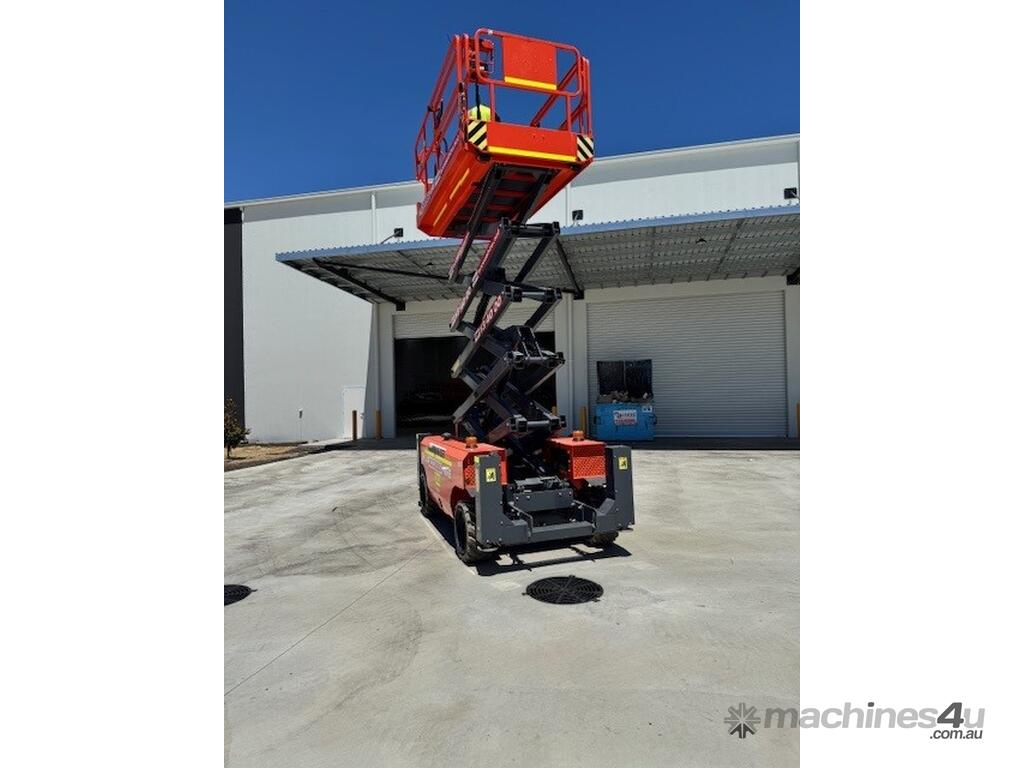

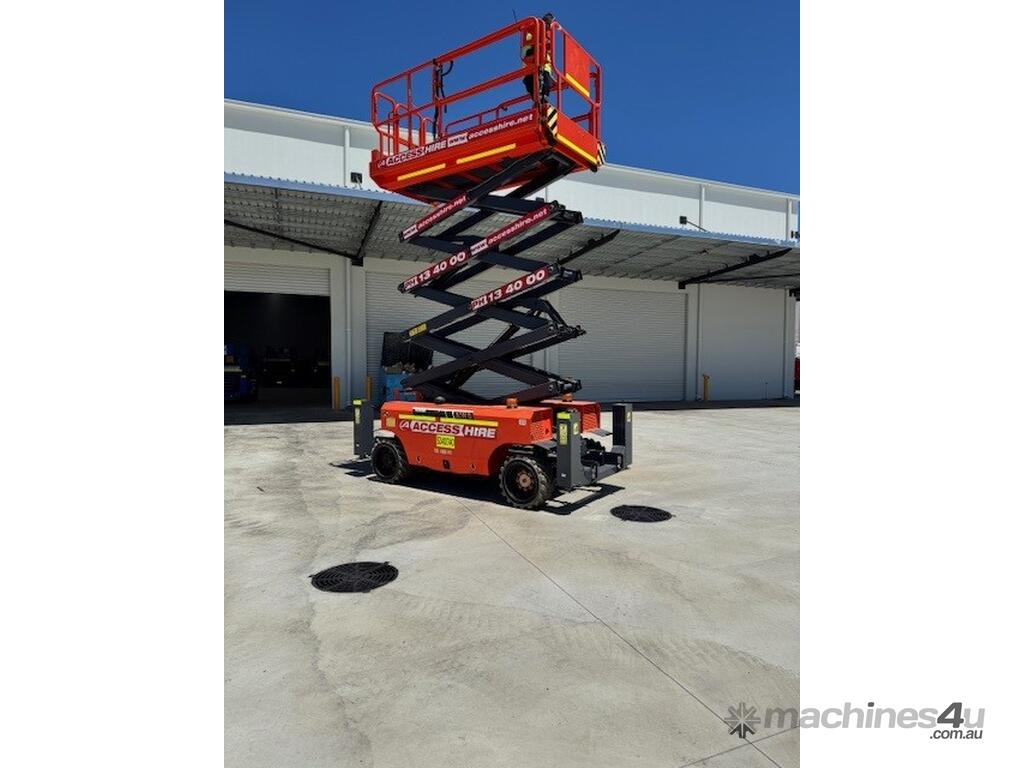

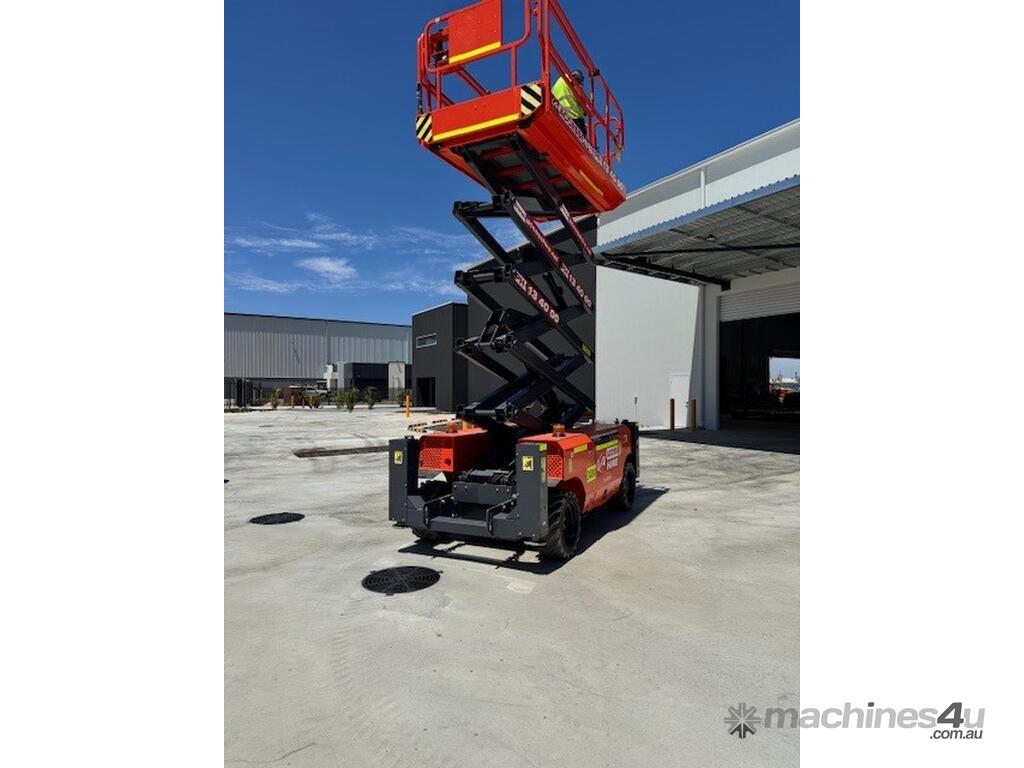

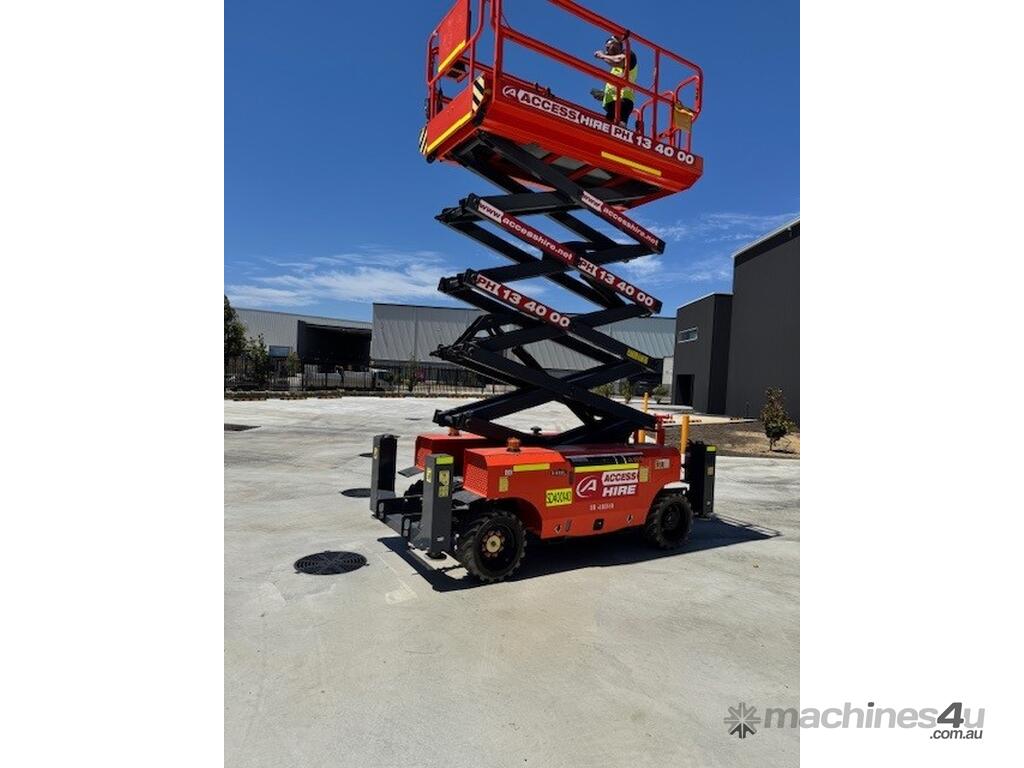

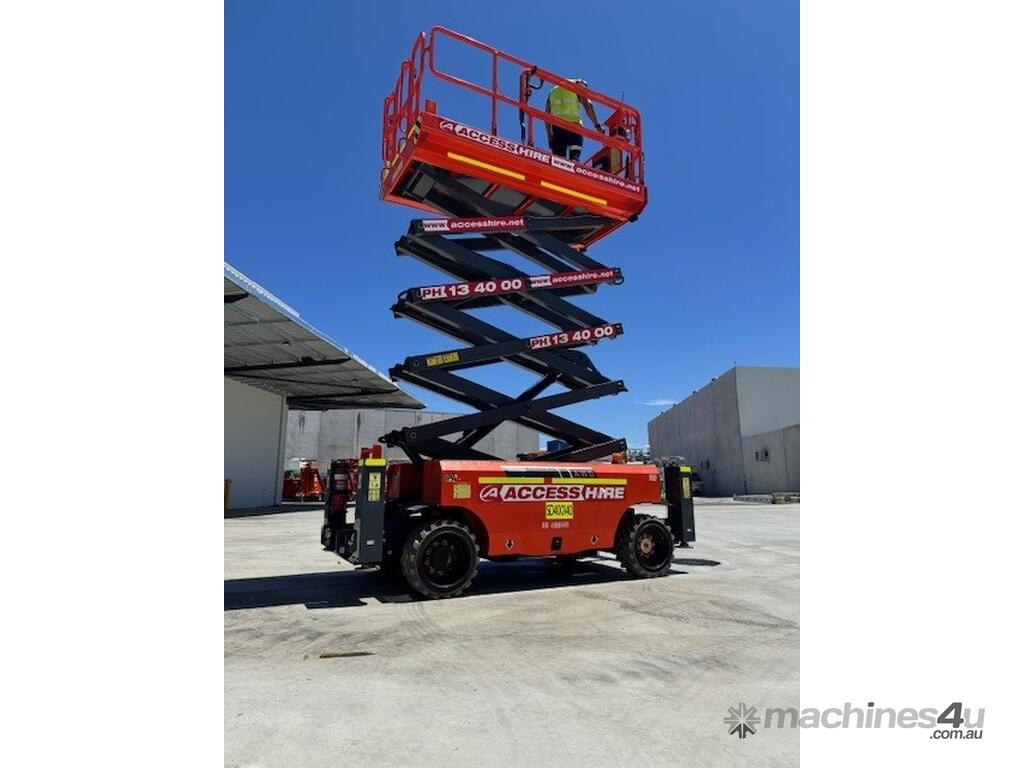

The Dingli SC1218-AWD is a 46ft diesel rough-terrain scissor lift built for high-reach outdoor work on construction and industrial sites. It delivers a working height of 46ft 11in (14.3m), platform height of 40ft 4in (12.3m), and a 363kg lift capacity for reliable elevated operation. With all-wheel drive, 40 percent gradeability, and a wide 2.88m × 1.52m platform, the SC1218-AWD provides stability and traction on uneven ground. A 1.43m deck extension increases working space for tools and materials.
Features:
- Platform Height: 40ft 4in (12.3m) / Working Height: 46ft 11in (14.3m)
- Platform Size: 2.88m × 1.52m (9ft 5in × 5ft)
- Deck Extension: 1.43m (4ft 8in)
- Capacity: 363kg
- Capacity on Extension: 136kg
- Occupants: 3
- Drive Speed: 5.0km/h stowed / 0.45km/h raised
- Gradeability: 40 percent
- Turning Radius: 2.15m inside / 4.85m outside
- Ground Clearance: 0.24m
- AWD: Yes
- Tyres: 26×12-16.5
- Weight: 5050kg
- Power: 18.6kW diesel engine
- Fuel Tank: 47L
- Hydraulic Tank: 71L
Applications:
- Construction and site installation
- Outdoor maintenance and building access
- Civil and infrastructure works
- Elevated work requiring high reach and rough-terrain capability
