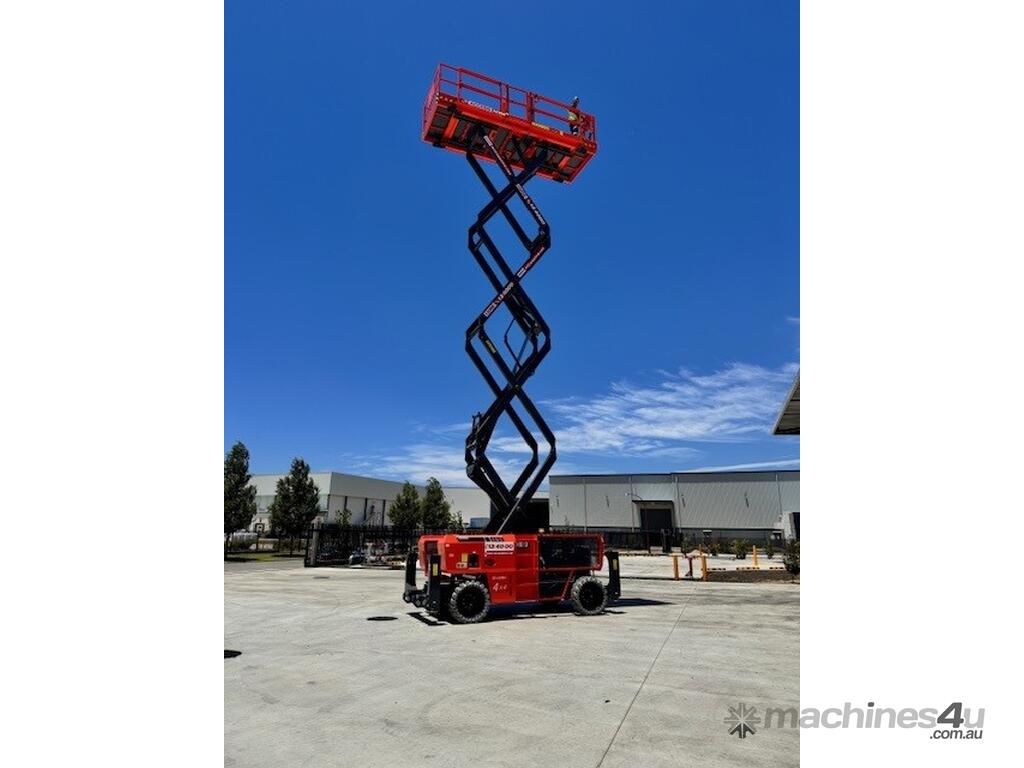

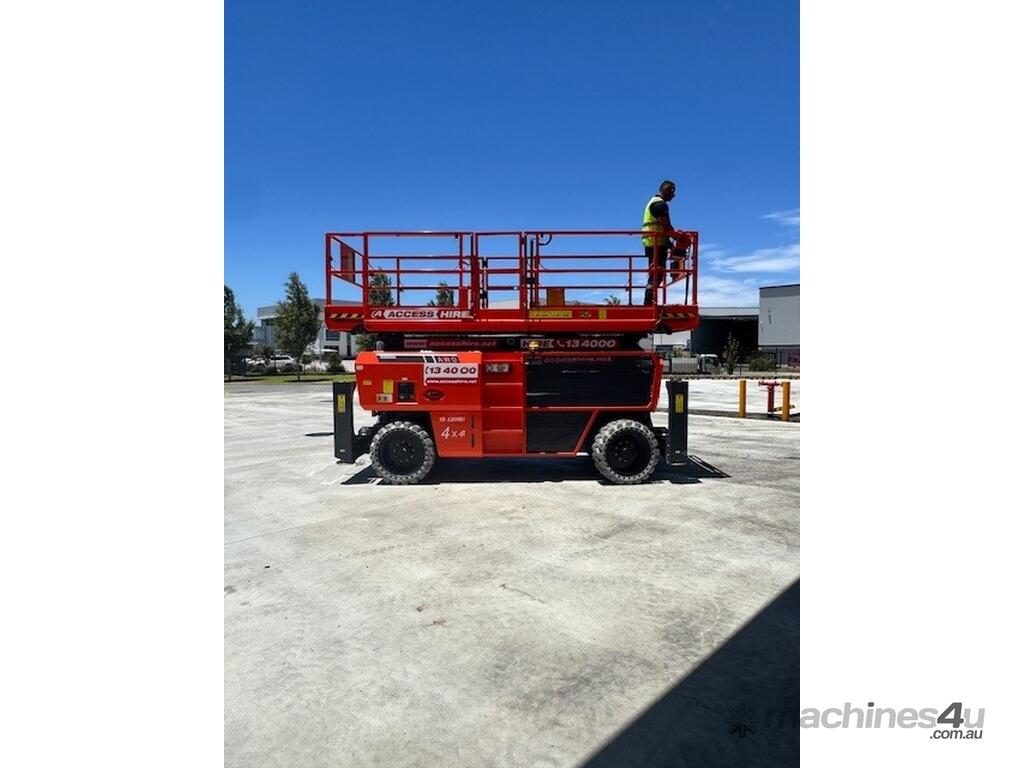

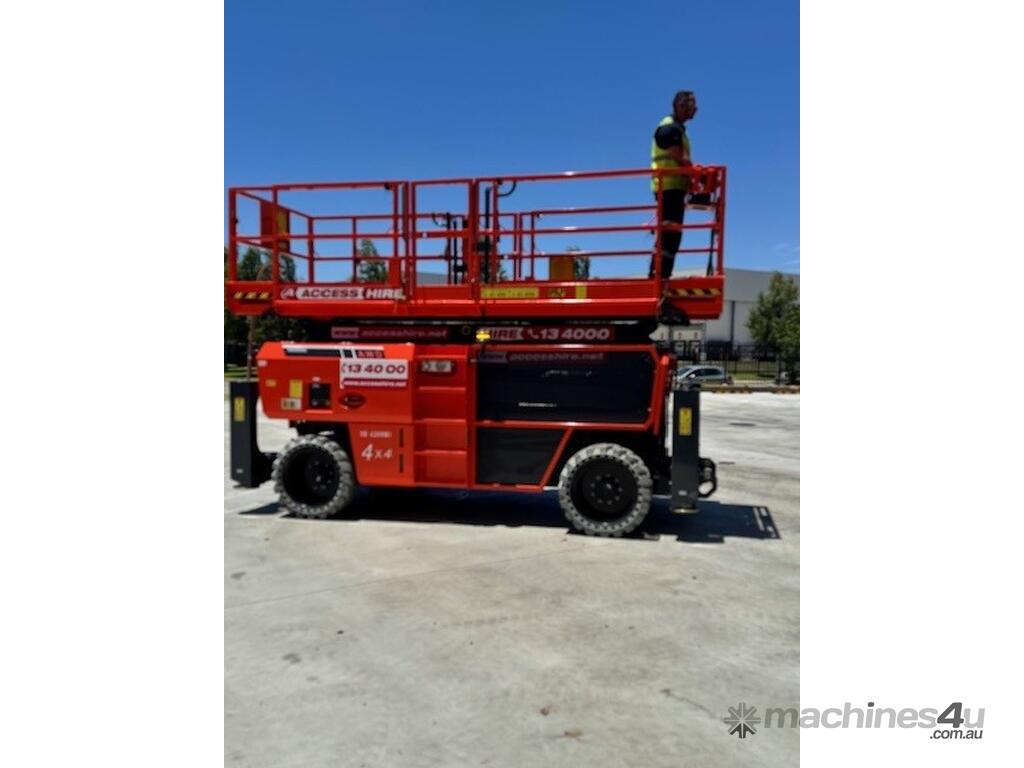

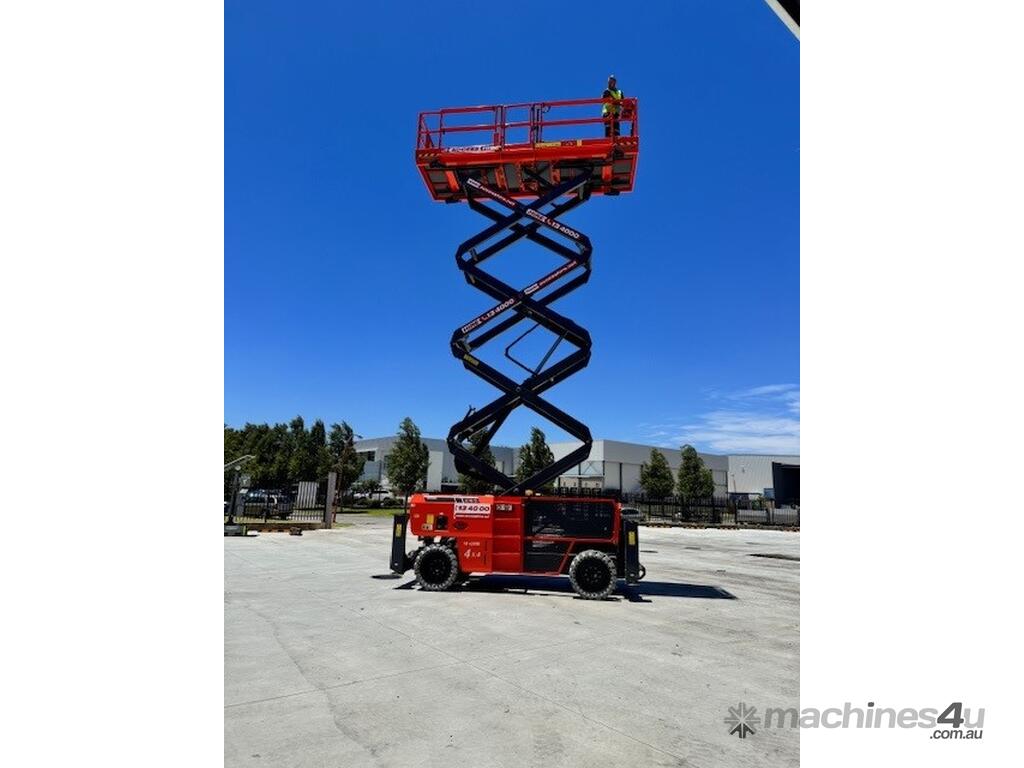

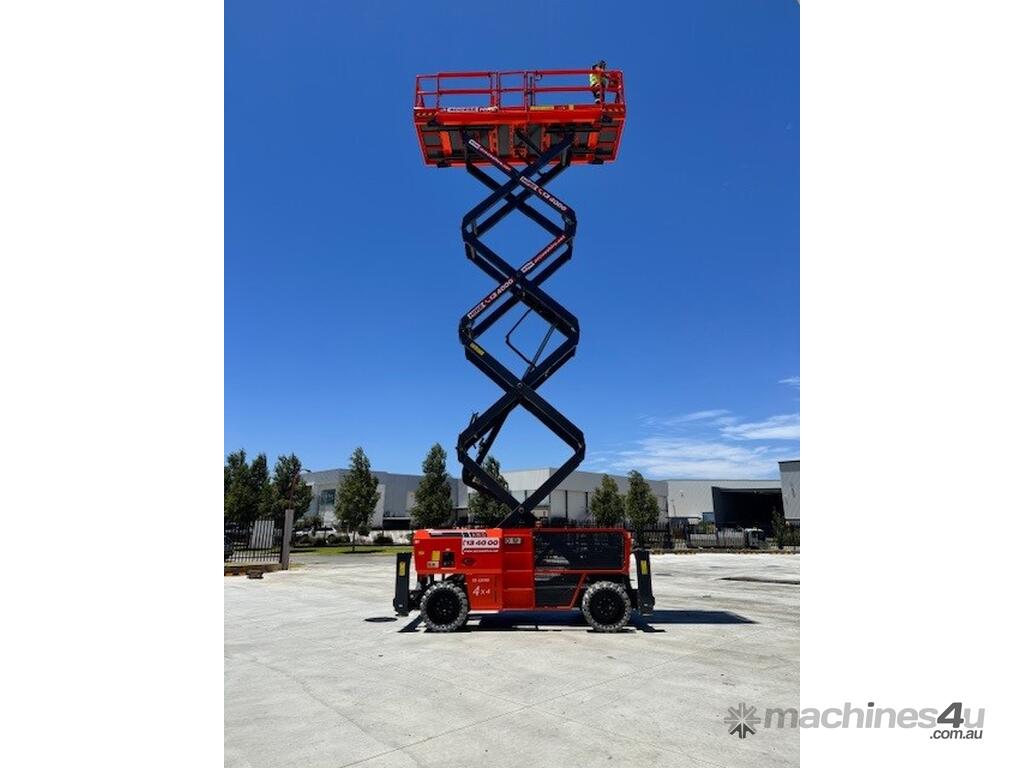

The Dingli SL1323-AWD Series 2 is a 49ft diesel rough-terrain scissor lift built for high-capacity outdoor access on construction and industrial sites. It delivers a working height of 49ft 3in (15.0m), platform height of 42ft 8in (13.0m), and a 680kg lift capacity for heavy-duty elevated tasks. Its large 3.98m × 1.83m platform with a 1.43m deck extension provides ample workspace. With all-wheel drive, 50 percent gradeability, and a wide stance, it offers strong traction and stability on uneven terrain.
Features:
- Platform Height: 42ft 8in (13.0m) / Working Height: 49ft 3in (15.0m)
- Platform Size: 3.98m × 1.83m (13ft 1in × 6ft)
- Deck Extension: 1.43m × 1.16m (4ft 8in × 3ft 10in)
- Capacity: 680kg
- Capacity on Extension: 227kg
- Occupants: 7
- Drive Speed: 6.1km/h stowed / 1.0km/h raised
- Gradeability: 50 percent
- Max Working Slope: 2° lateral / 3° vertical
- Turning Radius: 2.35m inside / 5.20m outside
- Wheelbase: 2.86m
- Ground Clearance: 0.30m
- AWD: Yes
- Tyres: 33 × 12-20
- Weight: 7000kg (without outriggers) / 7900kg (with outriggers)
- Power: 36.8kW diesel engine at 2700rpm
- Diesel Tank: 100L
- Hydraulic Tank: 130L
Applications:
- Construction and infrastructure access
- Large outdoor maintenance projects
- Industrial and mining sites
- High-reach tasks requiring wide platforms and rough-terrain capability
