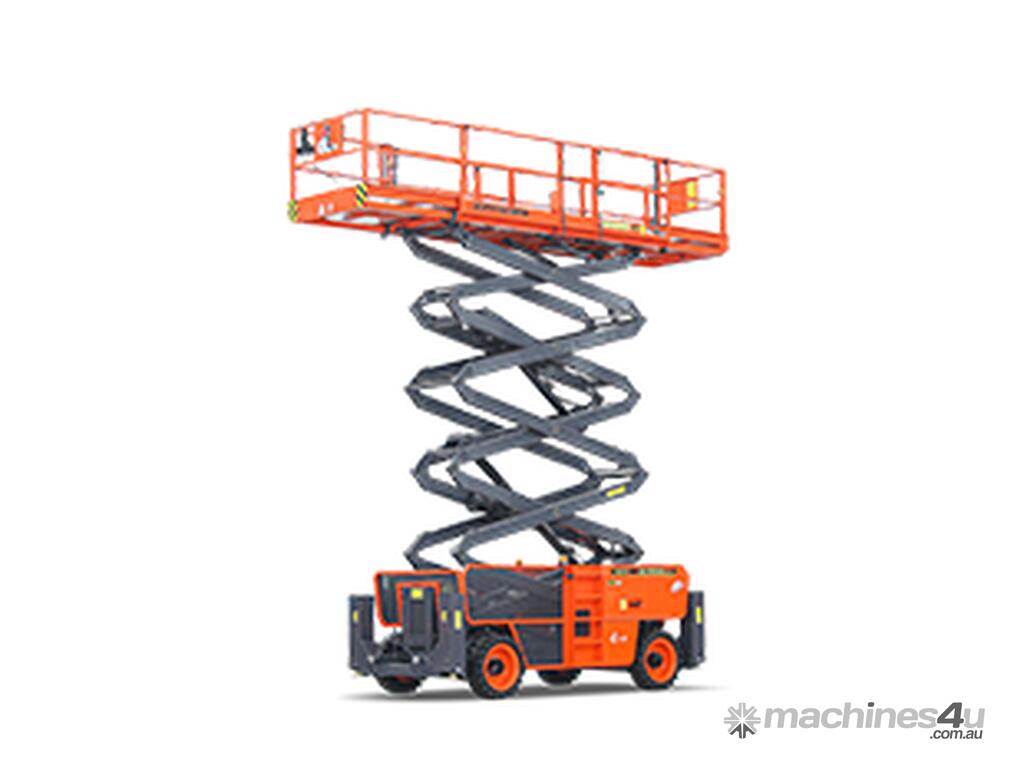

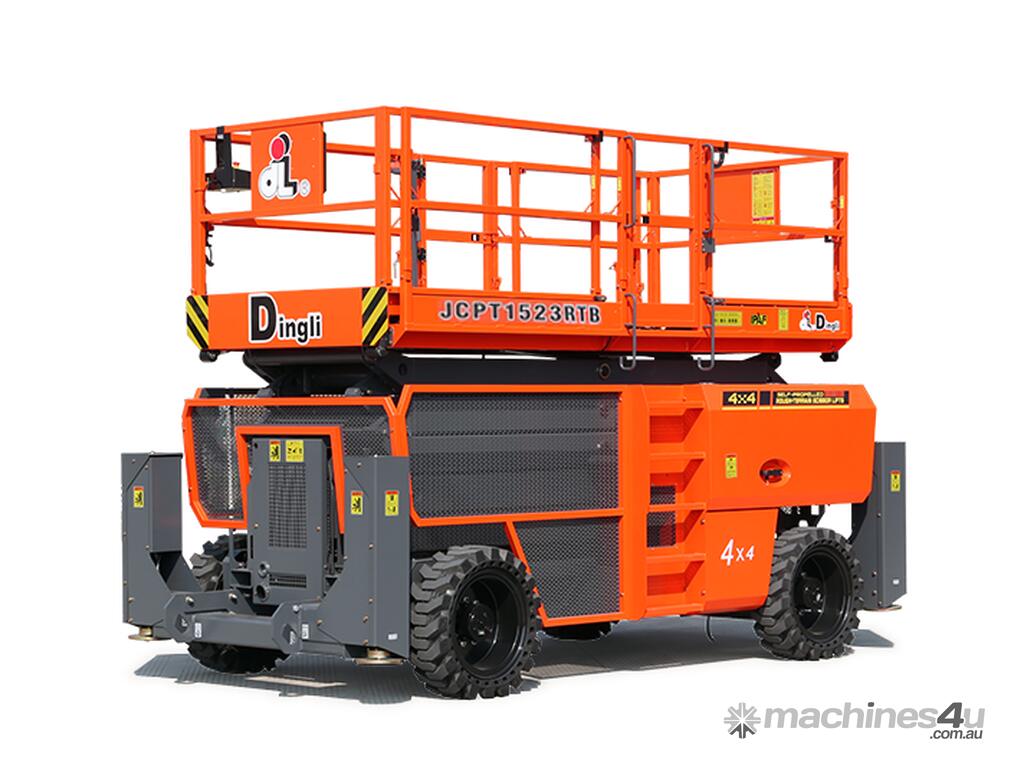

Dingli SL1323AWD (4390RT) New 43ft Rough Terrain Scissor Lift

Dingli SL1323AWD (4390RT) Rough Terrain Scissor Lift - 43ft Working Height

Dingli, Australia’s leading EWP supplier and the world’s third largest, delivers reliability and innovation through every machine. The SL1323AWD is a high-performance rough terrain scissor lift designed for tough site conditions with outstanding reach, capacity and off-road capabilities.

Key Features:
- 15m max working height (13m platform height)
- Large 3.98m x 1.83m platform with dual extension decks (1.43m + 1.16m)
- 680kg SWL / 227kg on extension – supports up to 7 occupants
- 4x4 drive with 40% gradeability and 6.1 km/h drive speed
- Hydraulic self-leveling outriggers for enhanced stability
- Fold-down guardrails for easy transport
- Tight turning radius: 2.35m (inside) / 5.20m (outside)

Specifications:
- Machine Width: 2.27m
- Machine Length: 3.98m (w/o outriggers) / 4.88m (with outriggers)
- Height (Rails Up/Down): 2.98m / 2.28m
- Ground Clearance: 0.30m
- Weight: 7,000kg (w/o outriggers) / 7,900kg (with outriggers)
- Power: 36.8kW diesel engine (2700 rpm)
- Fuel Tank: 100L | Hydraulic Tank: 130L
- Tyres: 33×12-20 foam-filled

Perfect for construction, infrastructure and hire fleets where reach, load, and terrain performance matter.
