Manufacturer: Stanko
Model: 1525

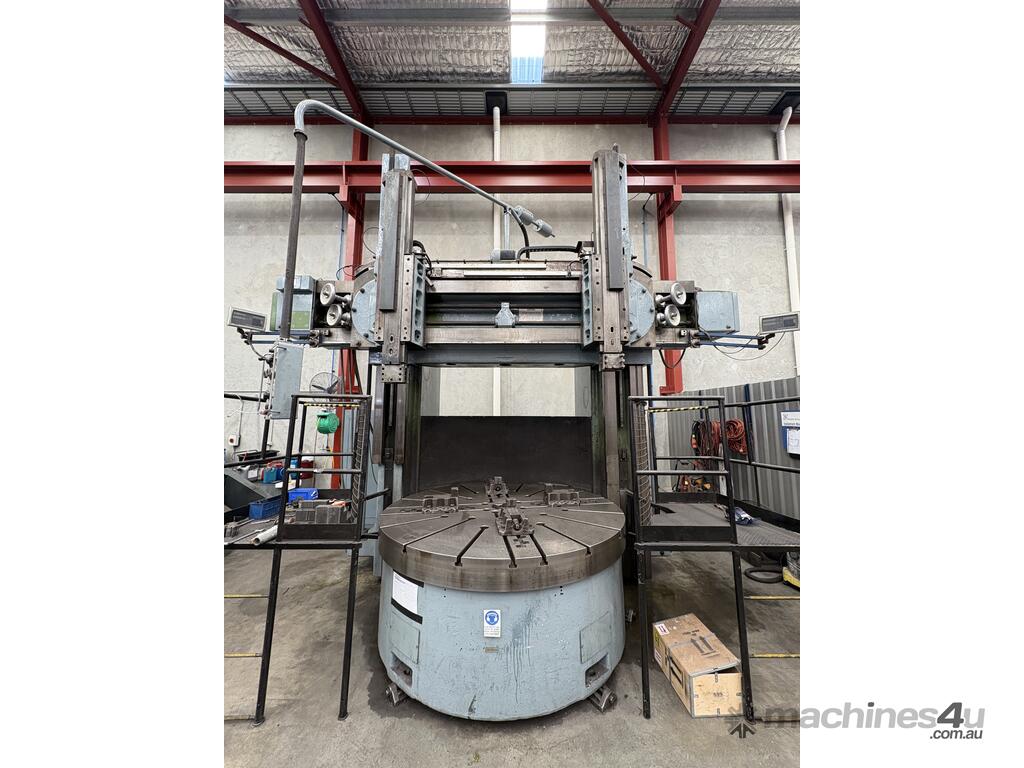

Type: Vertical Boring & Turning Mill
Condition: Good Used Condition / Fully Operational
Location: Wangara, Perth, 6065
Availability: Immediate / On Request
Machine Specifications:
Table Diameter: 2000 mm
Max Swing Diameter: 2500 mm
Max Turning Height: 1600 mm
Max Workpiece Weight: Approx. 10,000 kg
Vertical Travel (Ram Stroke): 1000 mm
Cross Rail Travel: Adjustable (Hydraulic)
Spindle Speed Range: Variable (low/high ranges)
Control Type: Manual / DRO to both columns
Machine Weight: Approx. 40,000-50,000 kg
Features:
- Heavy-duty construction, ideal for large-diameter precision machining
- Twin column support for stability and rigidity
- Adjustable cross rail for flexibility on tall components
- Robust rotary table with high load capacity
- Suitable for turning, boring, facing, and grooving large workpieces
- Well-suited for mining, oil & gas, and heavy industrial applications
Additional Information:
Freight and loading options can be arranged.
