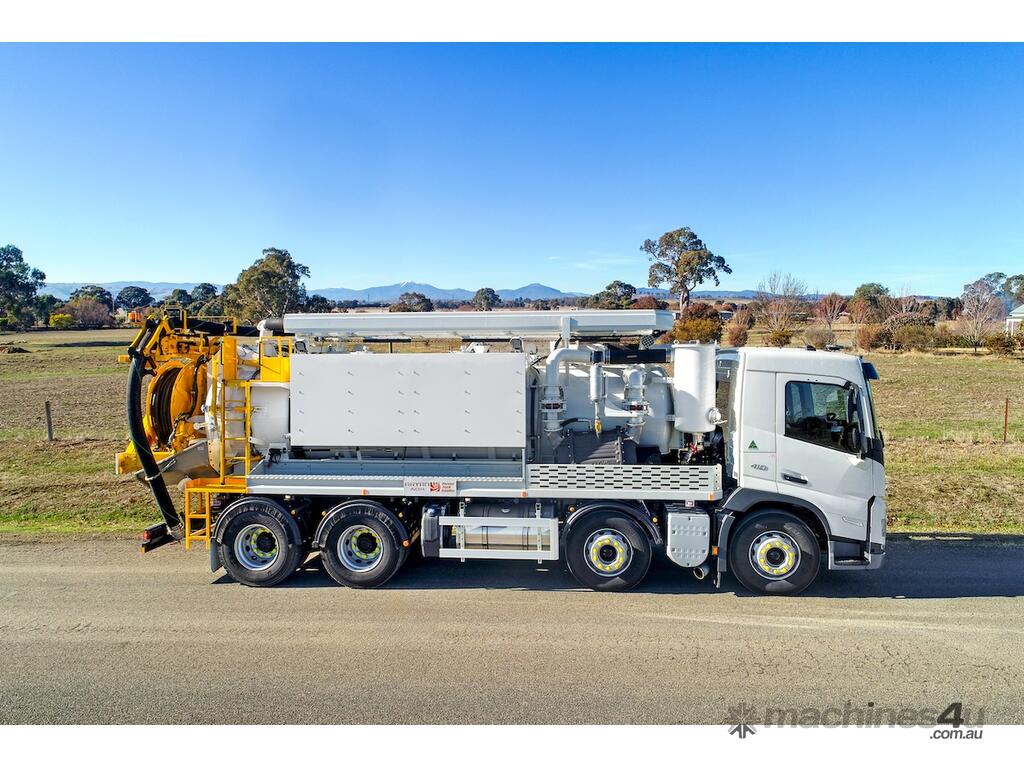

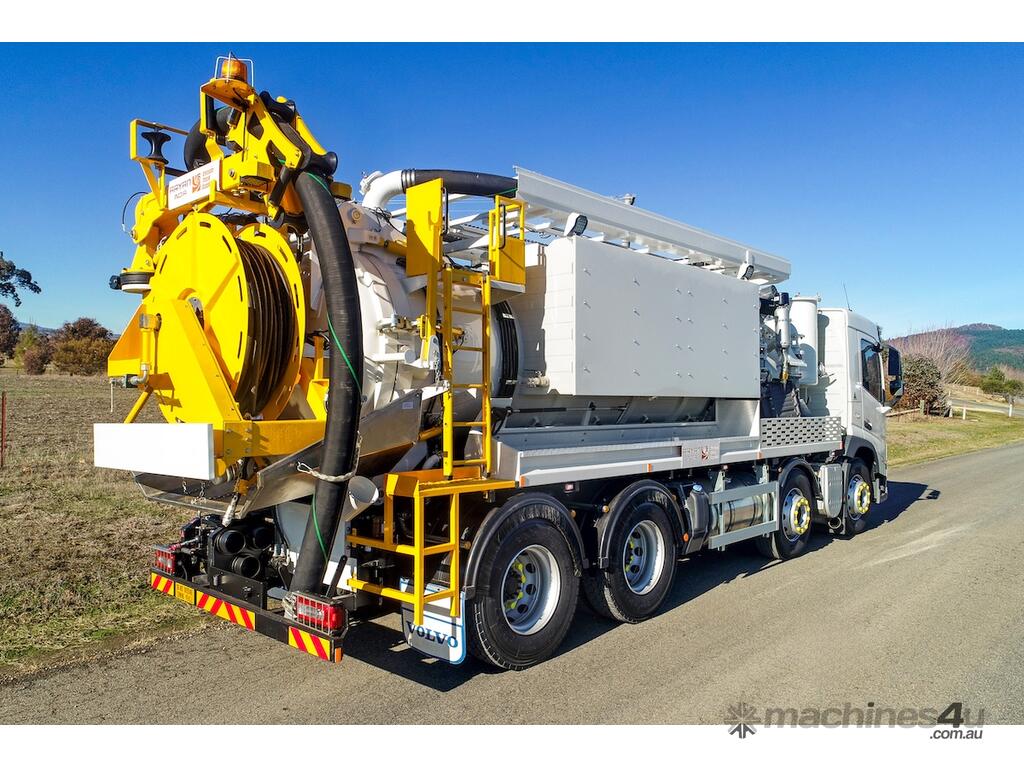

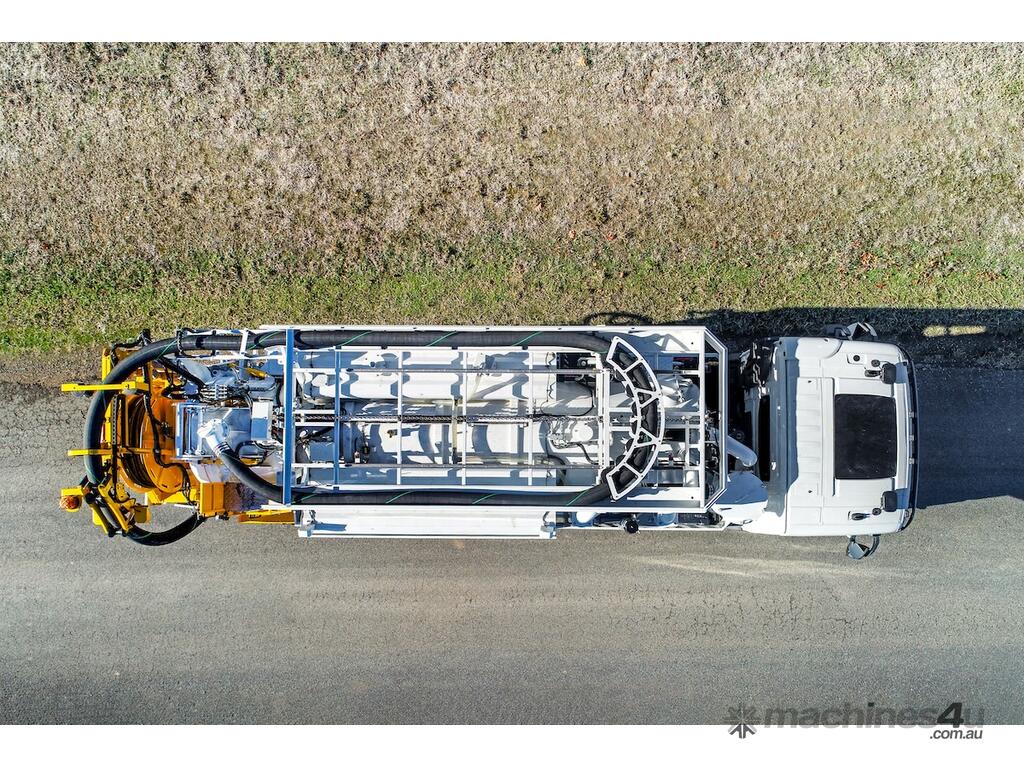

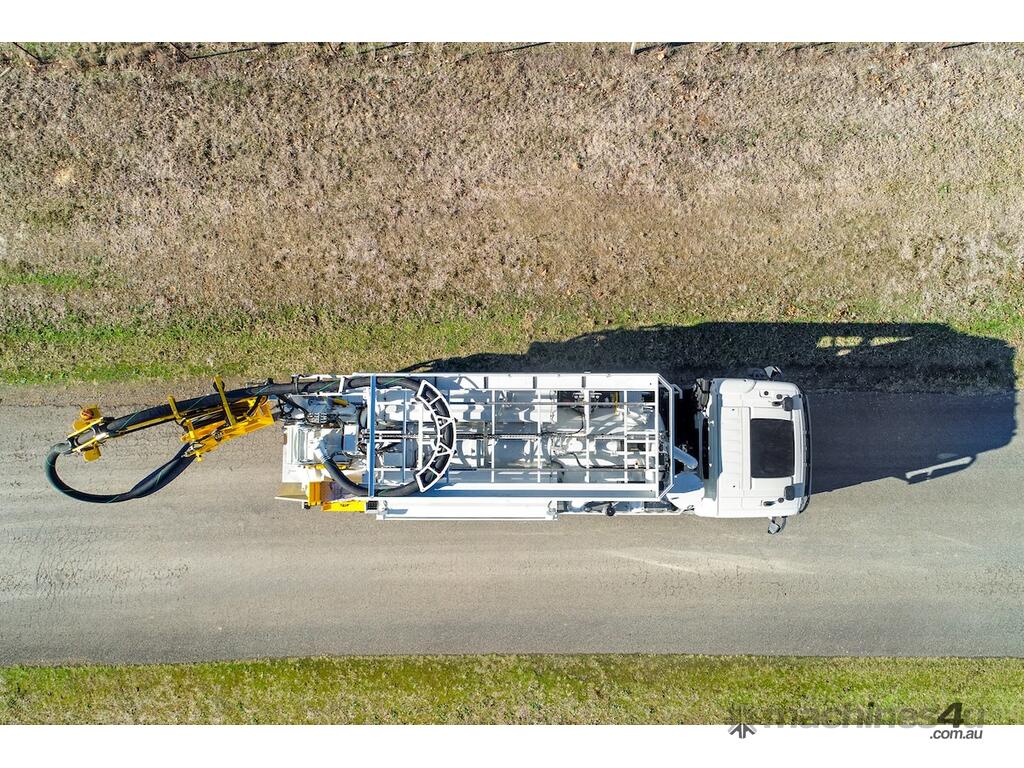

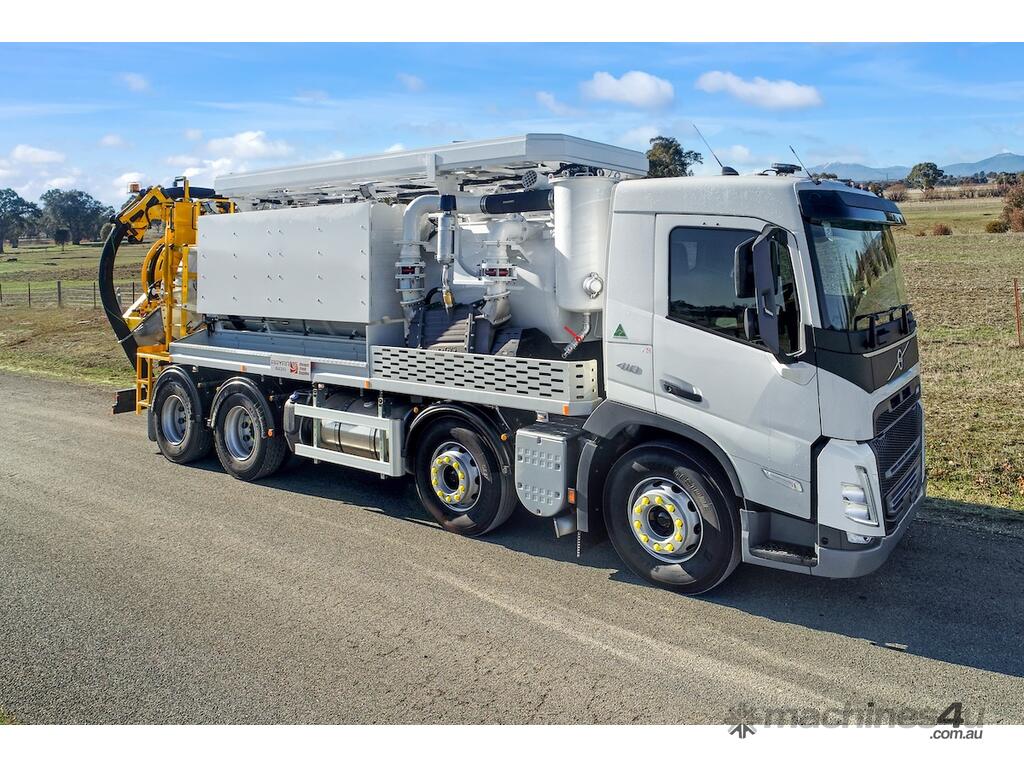

DrainVac 8000 8x4 Hydro Excavation Trucks

Clean and dig with the one truck.

The DrainVac combines drain cleaning and hydro excavation, giving you total flexibility in the jobs you can perform. It has stainless steel waste and water tanks, tipping, and full opening rear door, and our mechanically engineered hydraulic control systems. This unit is easy to operate, and maintain, meaning more time on the job.

Rugged Construction

The DrainVac is engineered for durability, with a fully welded stainless-steel tank that resists corrosion, abrasion, and constant loading. Heavy-gauge materials, precision welds, and a reinforced chassis integration deliver strength under high vacuum pressures and heavy payloads.

Industrial-grade pipework, valves, and fittings ensure reliability, while protected hydraulics and robust sealing systems minimise downtime. Built tough for Australia’s harshest conditions, the DrainVac 8000 is ready for continuous, demanding operation.

Simple operation

The DrainVac 8000 is designed with operators in mind. Its straightforward, hydraulic-driven controls eliminate the need for complex electronics, making the system intuitive and easy to master. Clear panel layouts and manual overrides ensure operators stay in control at all times, even in demanding conditions. With fewer electronics to fail, maintenance is reduced and uptime is maximised. From start-up to shut-down, every function is engineered to be quick, reliable, and hassle-free, so crews can focus on the job, not the equipment.

Easy to Maintain

The DrainVac is built for straightforward servicing, with accessible component layouts and minimal moving parts. Key wear items like filters, seals, and valves are easy to reach and quick to replace, reducing workshop time and costs.

With no unnecessary electronics and a robust hydraulic system, maintenance is simple and breakdown risks are minimised. The result is a truck that stays on the job longer and keeps your business running smoothly.

Capacity:
- 8,000L Sludge
- 4,000L Water

Size:
- 8x4

Cab Chassis:
- Volvo FM 410HP 8x4

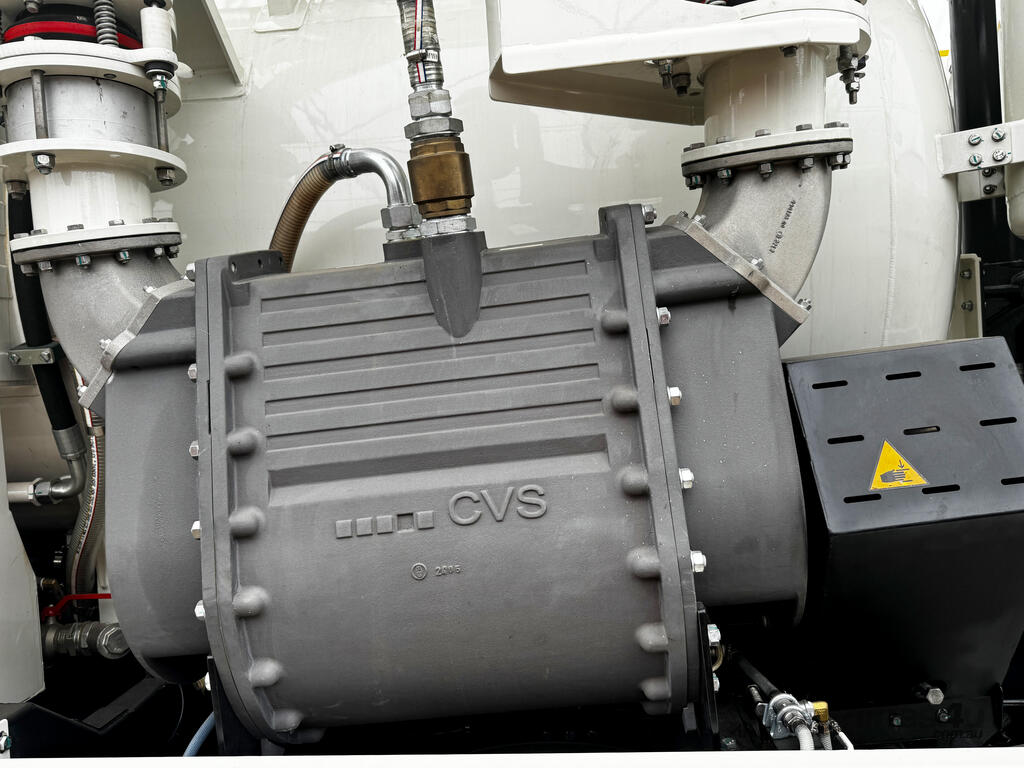

Vacuum Pump:
- 4,000 m3/h
- 2,350 CFM CVS liquid ring vacuum pump, belt driven

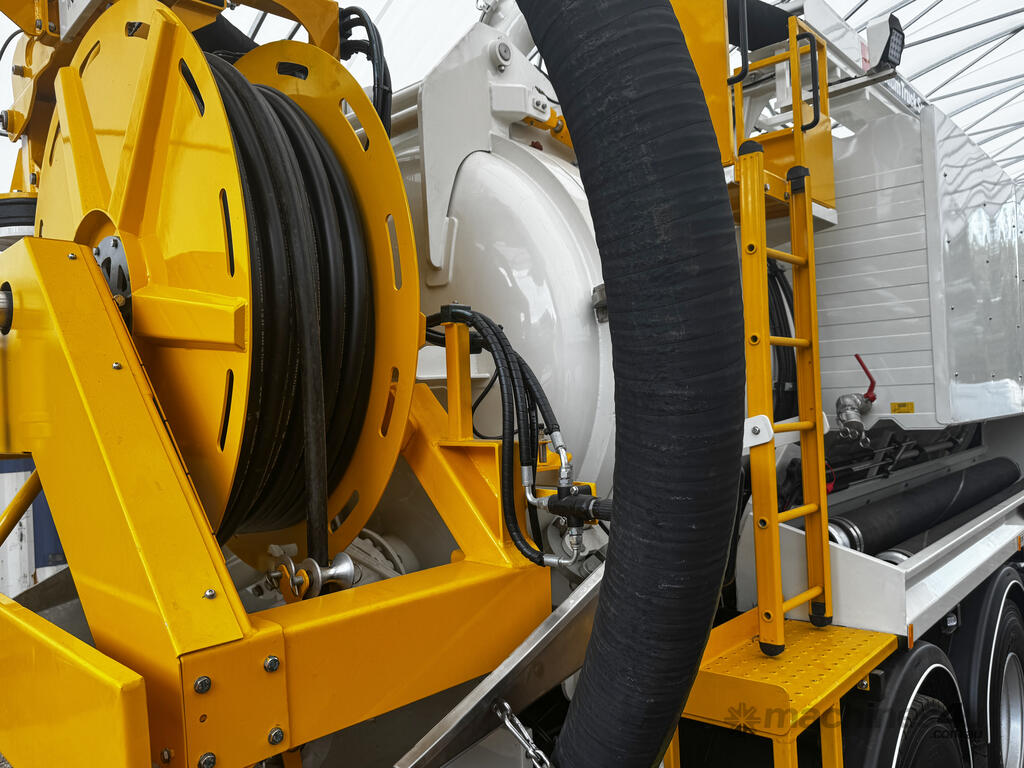

Suction Boom:
- Fully hydraulic 150mm cassette style boom
- 20m length

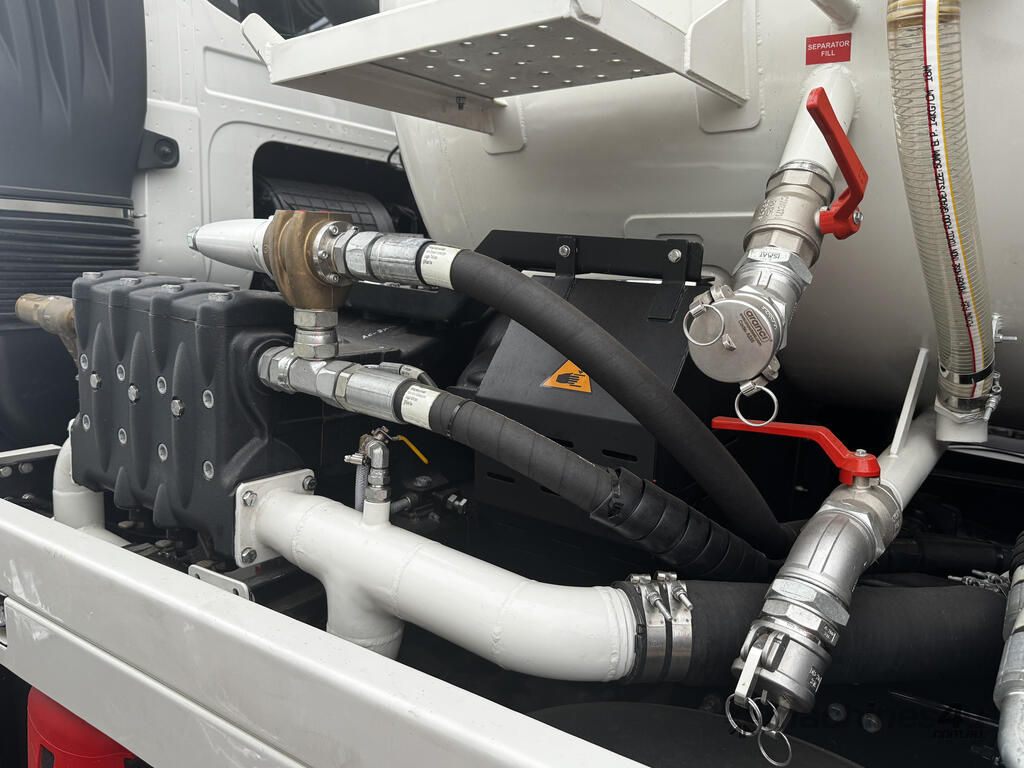

Drain Cleaning Water System:
- Pratissoli drain cleaning pump 346 LPM / 170 BAR

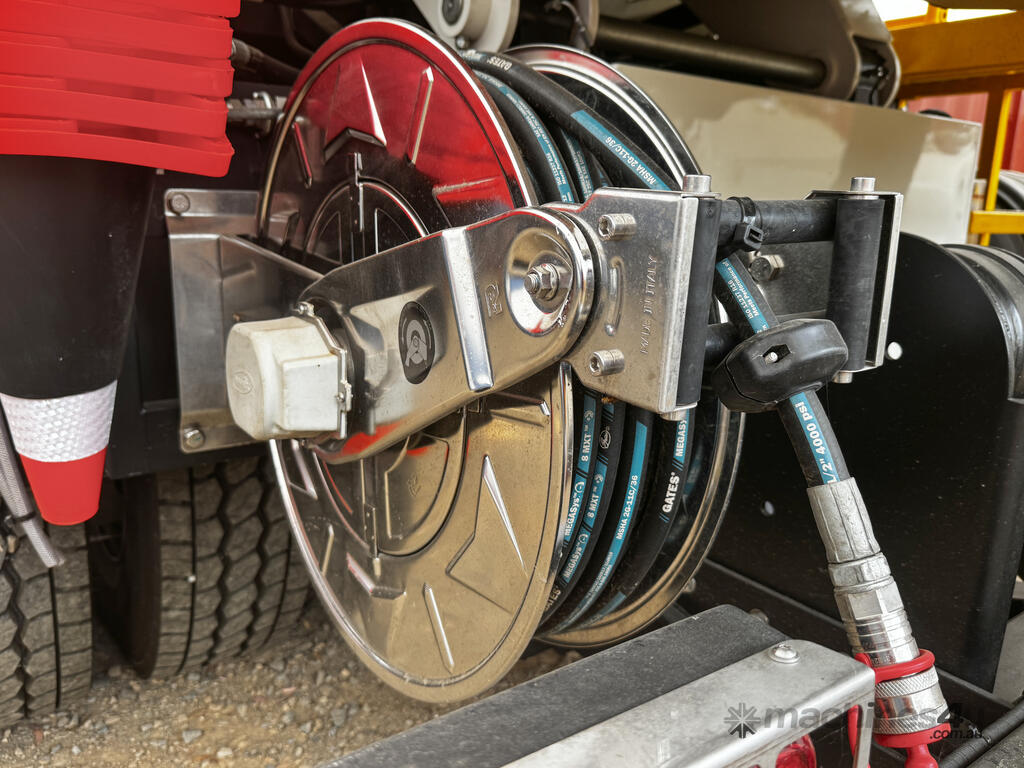

- 25mm 180m hydraulic drive hose reel

Barrel:
- 5mm 304 stainless steel

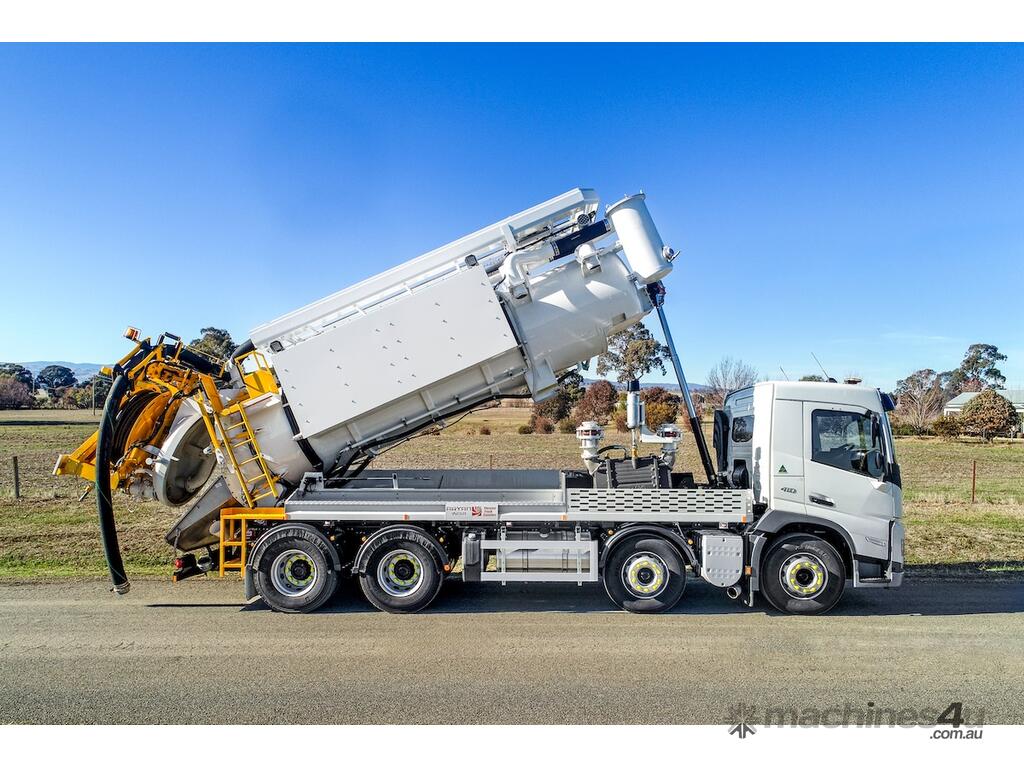

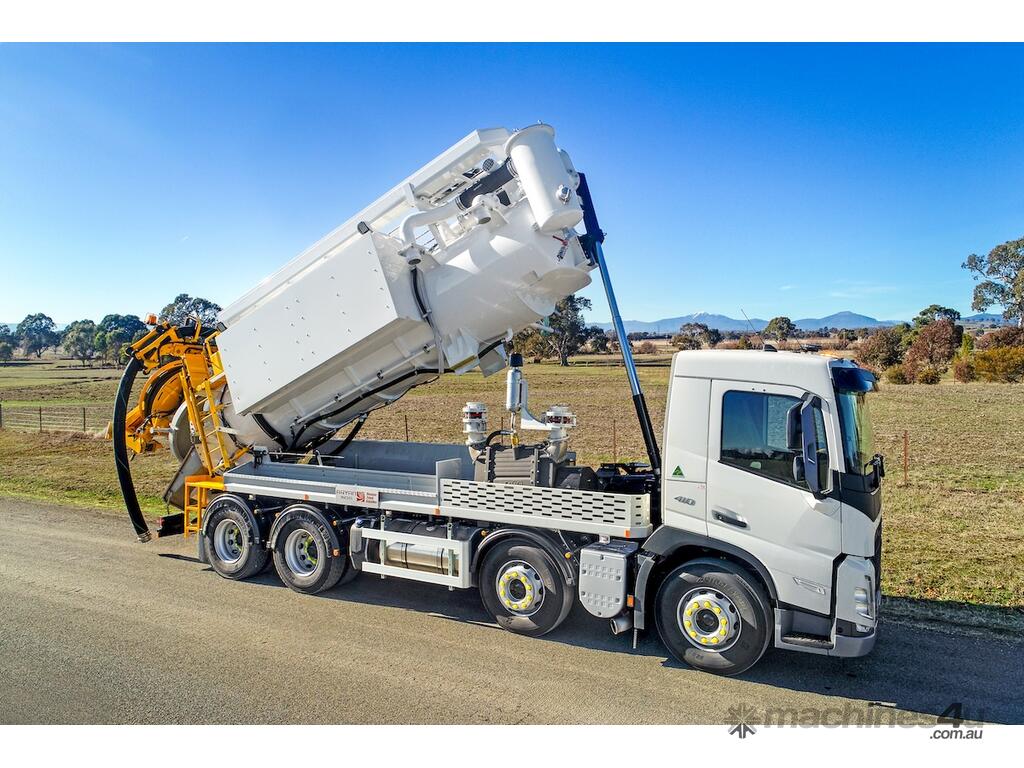

Tipping:
- Hydraulic tipping
- Fully hydraulic opening rear door

NDD Water System:
- UDOR NDD pump 17 LPM / 300 BAR
- 13mm 30m stainless steel spring return hose reel

Manifold:
- Stainless steel separator and manifolding

Inlet and Dump Valve:
- Molex fully rebuildable ball valves

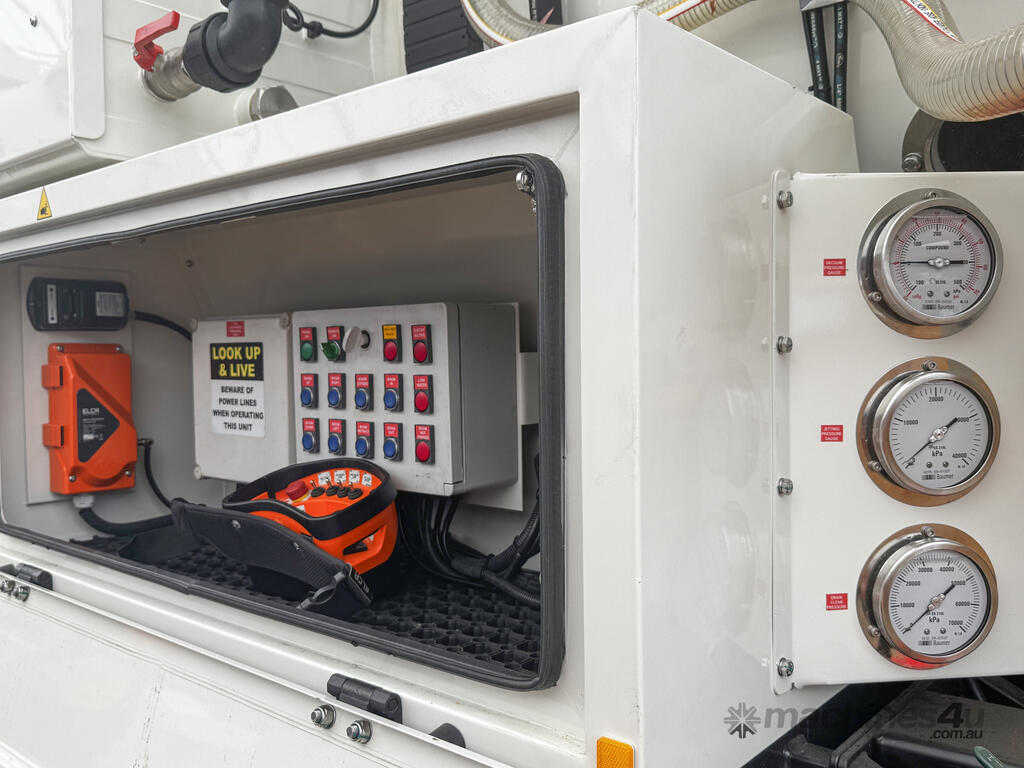

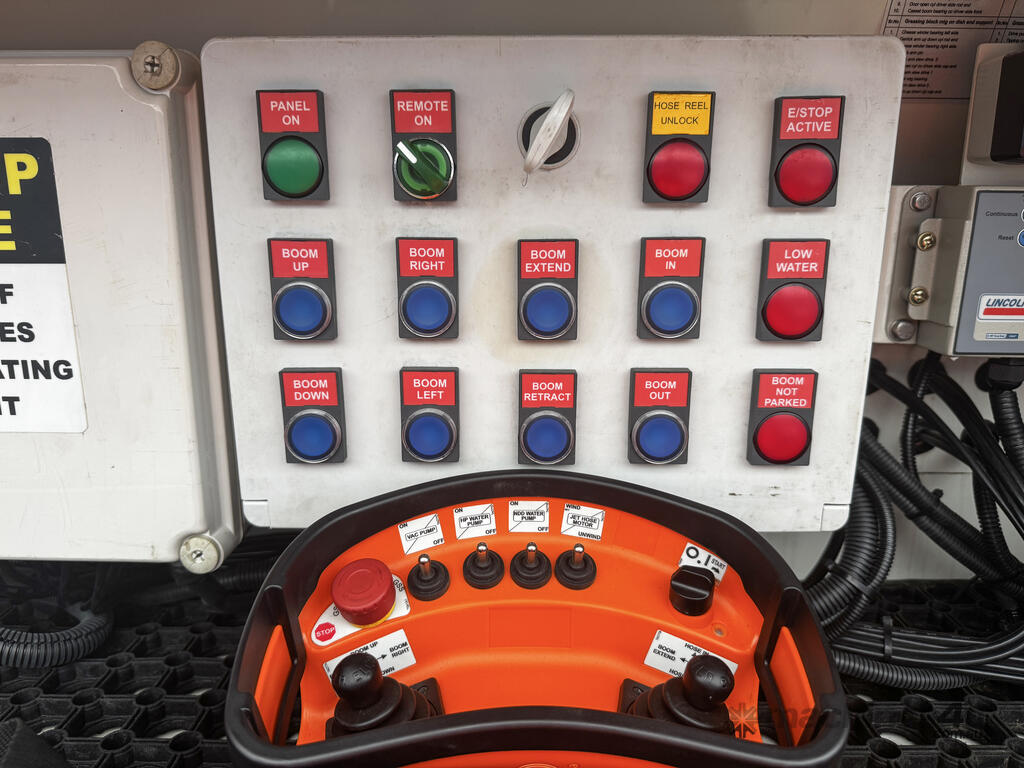

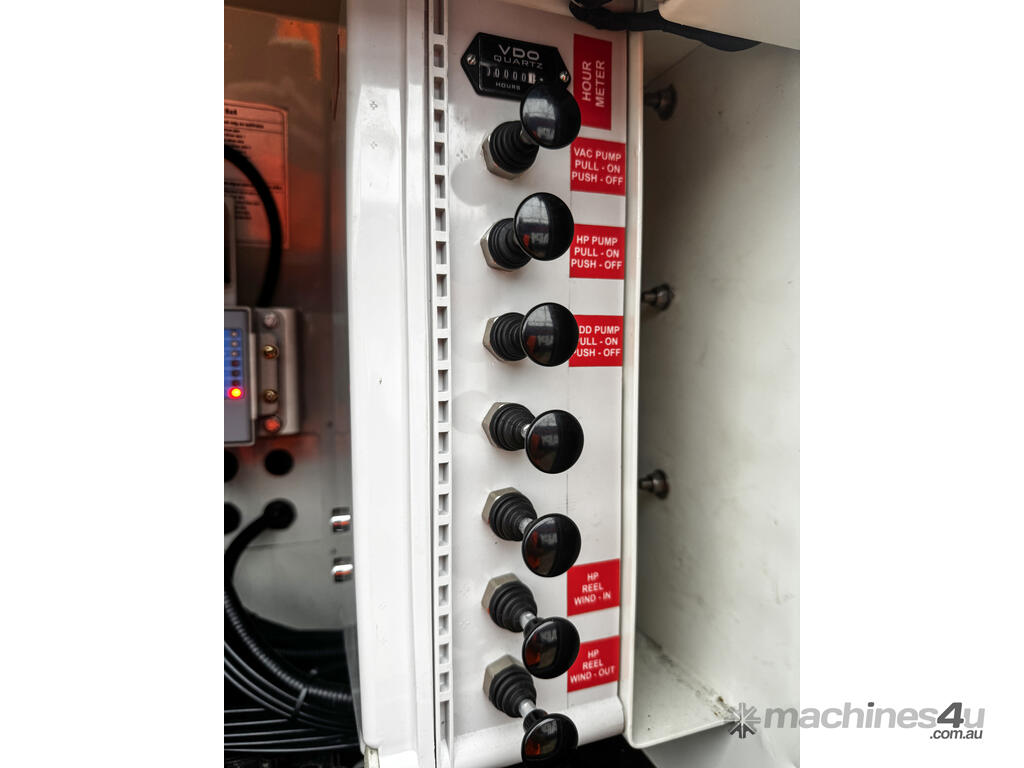

Controls:
- Wireless remote control with manual backup
- Simplified control system: no computers, no worries!
