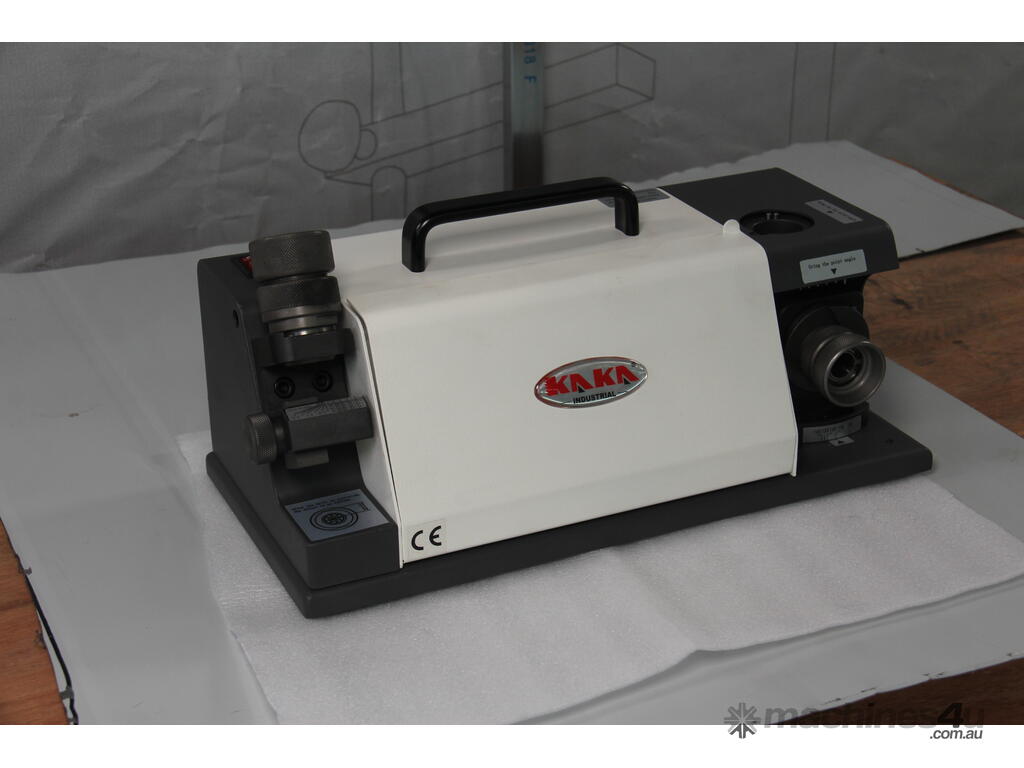

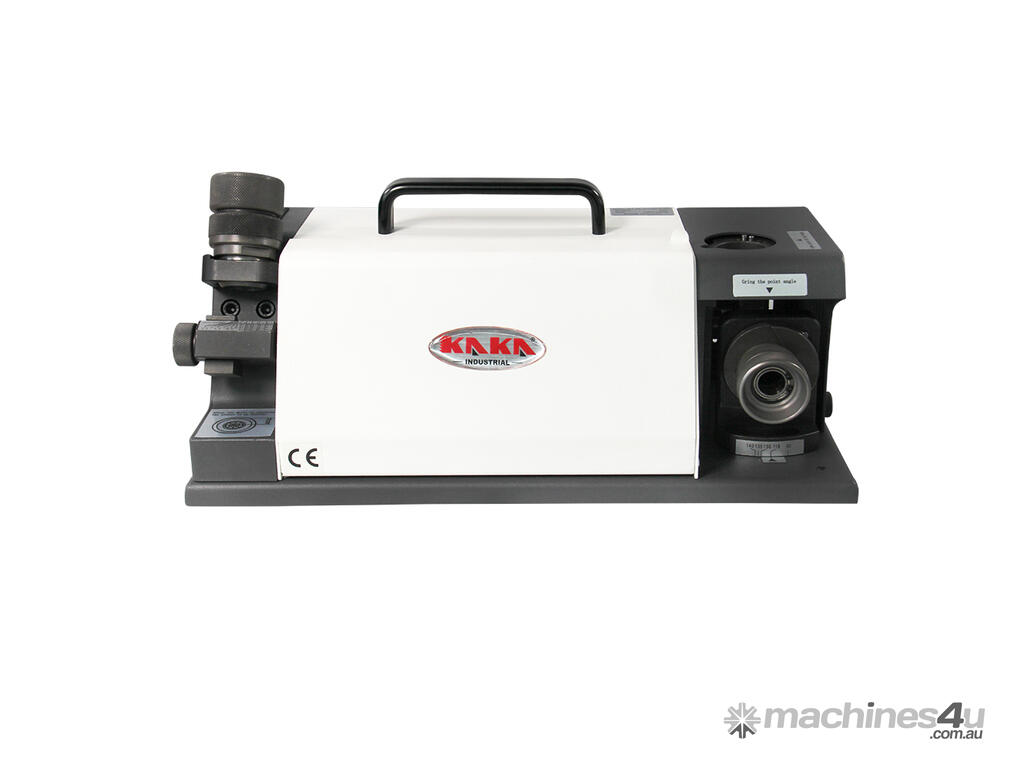

Drill Bit Re-Sharpner TX-Z20 with CBN Grinding Wheel

KANG Industrial Drill Bit Re-Sharpener

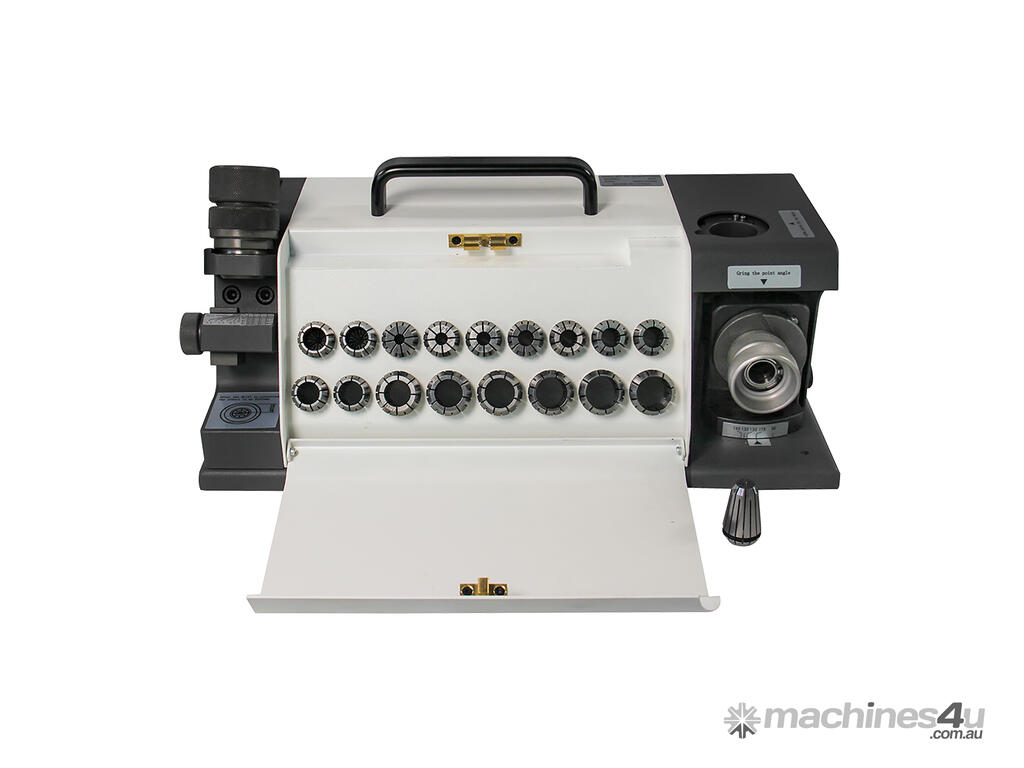

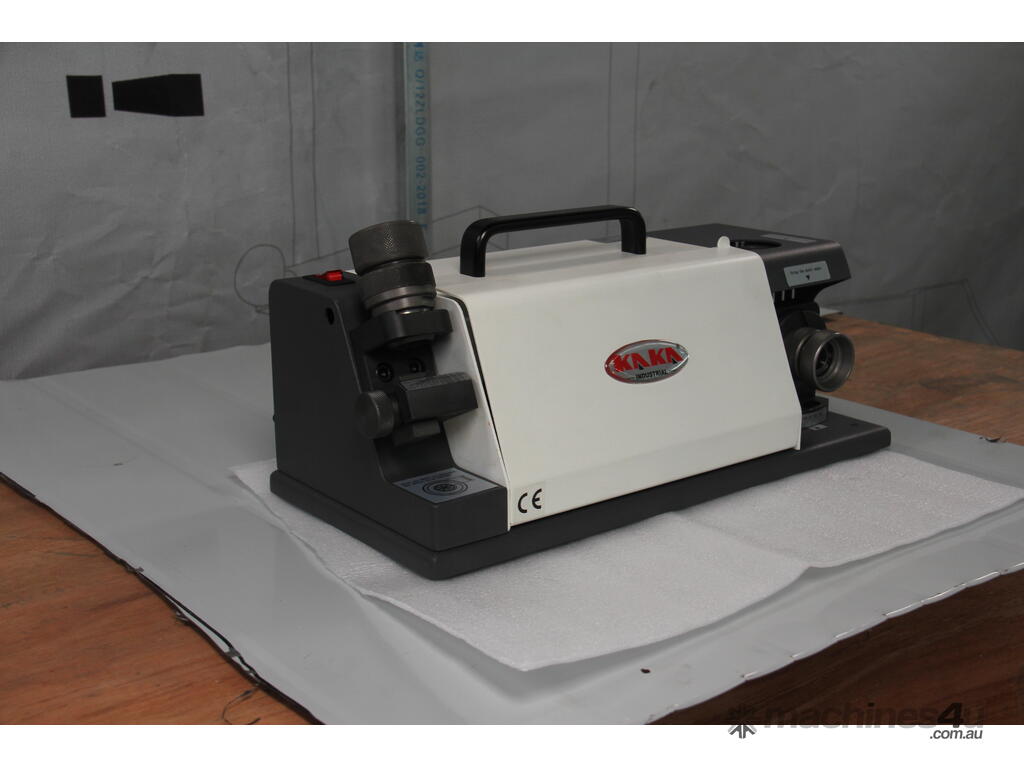

The KANG Drill Sharpener TX-Z20 is a compact, dedicated electric drill bit sharpener designed for accurate re-sharpening of drills from 3 mm to 20 mm diameter. This bench-mounted or pedestal-use machine is ideal for workshops, tool rooms, maintenance shops, and fabrication environments needing to restore HSS (high-speed steel) drill bits to sharp, precise factory geometry without skill-intensive hand methods. It uses a high-quality CBN (#230 grit) grinding wheel optimised for HSS drills (with optional SDC wheel for carbide bits available separately), powered by a reliable 120W motor. The re-sharpenier includes ER20 Collets (3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm) & ER25 Collets (14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm), a built-in drill setting gauge for consistent point angles and relief, adjustable sharpening station with easy setup, and a compact design for bench mounting.

Large Drill Sharpener Capacity (3-20mm). Targets bigger, more expensive bits commonly used in heavy-duty work — structural steel, mining, automotive, or fabrication.

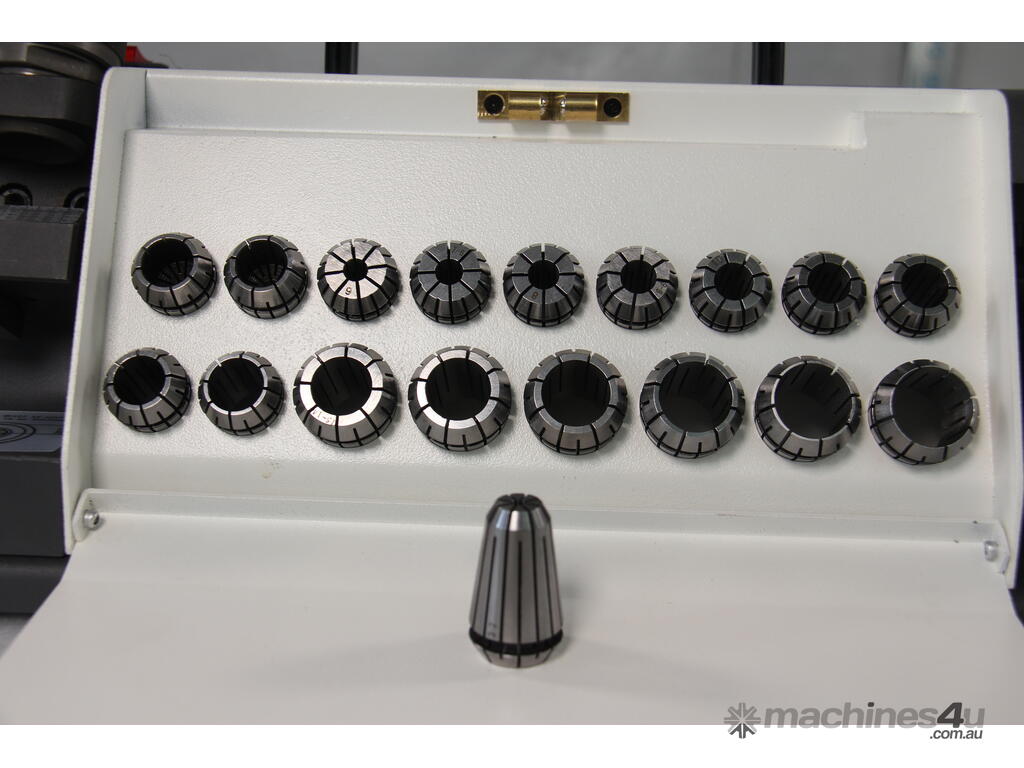

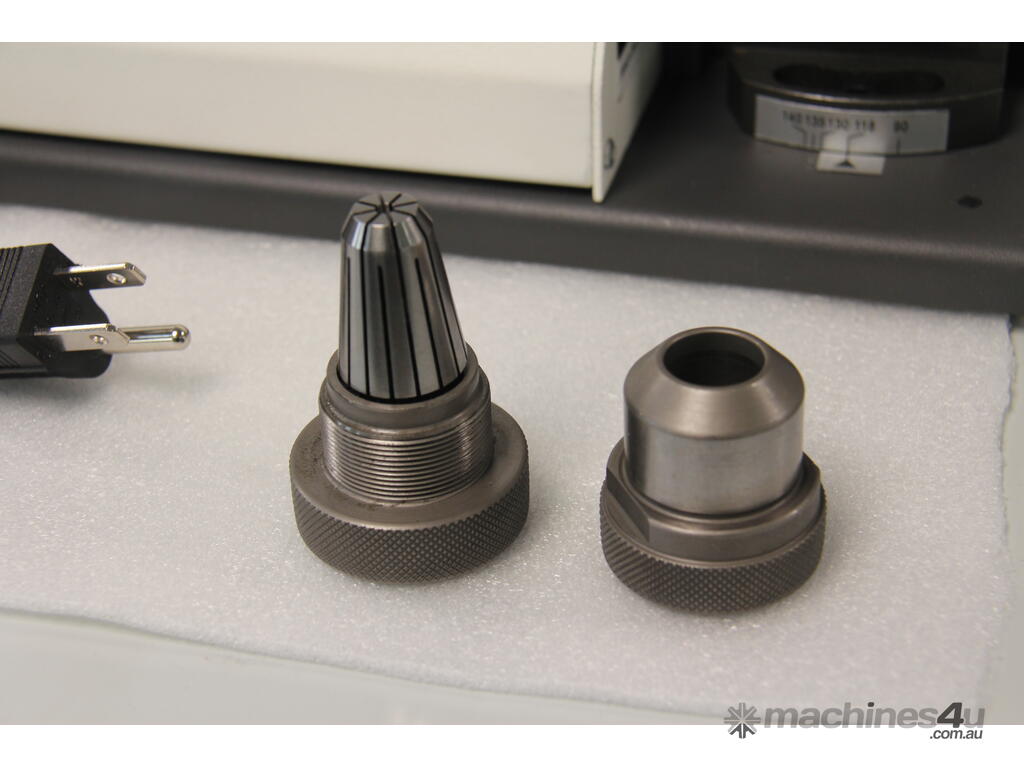

ER20 & ER25 Collet System for Precision Holding. Secure, low-runout clamping with a full collet set included — delivers repeatable, concentric sharpening results that outperform basic jigs or hand methods, ensuring bits drill straighter and last longer.

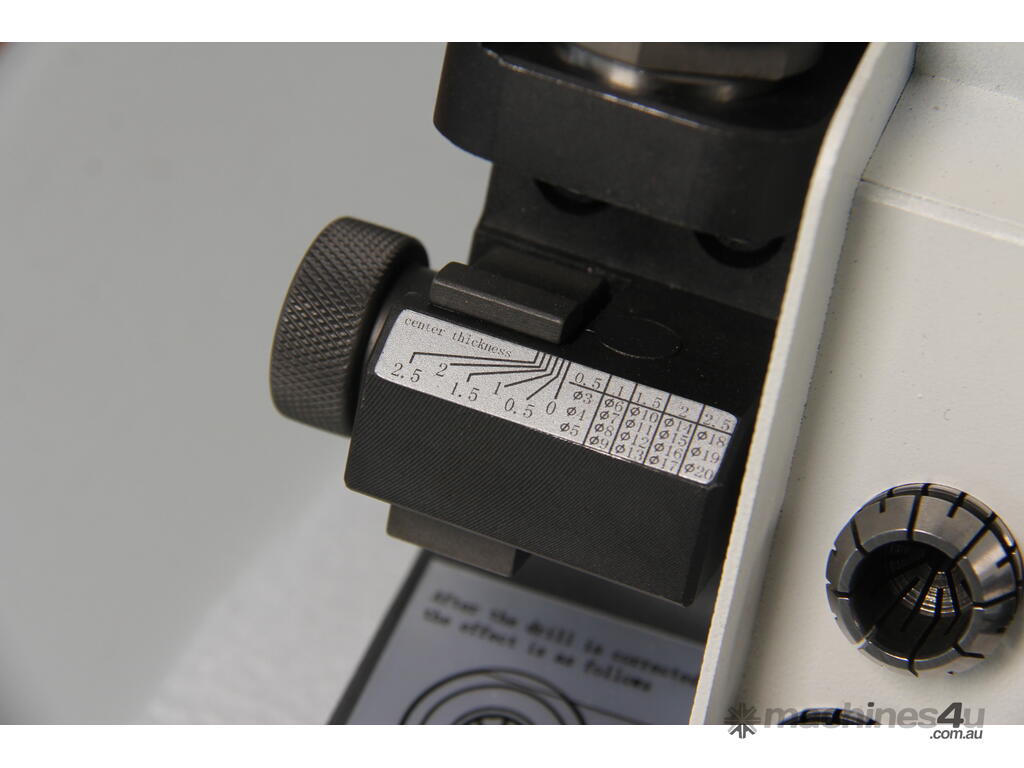

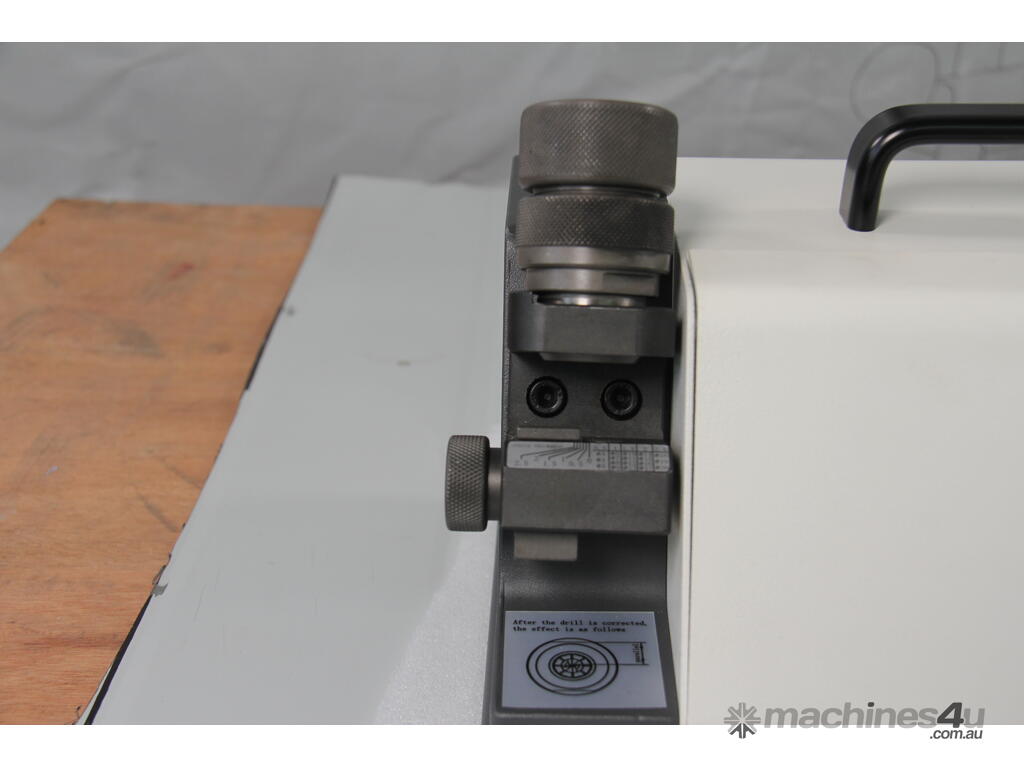

Built-in Setting Gauge & Easy Setup Drill Sharpener. Quick, accurate positioning of point angle, relief, and chisel edge using the integrated gauge — user-friendly for semi-skilled operators or hobbyists; reduces setup time and errors for consistent pro-level results.

CBN Grinding Wheel for HSS Drills. Fast, cool grinding with excellent edge retention; minimal heat transfer prevents temper loss in bits — optional SDC wheel upgrade for carbide extends versatility in mixed-tool workshops.

Single-Phase 240V Power Ready. Plugs straight into standard outlets (no three-phase or converters needed) — ideal for home garages, rural sheds, regional job sites, or small businesses without industrial electrics.

Compact & Robust Bench Design. Fits easily on workbenches or optional stands; sturdy build handles daily use while staying portable enough for mobile tradies or space-constrained Aussie workshops.

Low-Skill, High-Reward Re-Sharpening Operation. Straightforward controls and guided sharpening process — great for solo users or teams; produces better-than-hand-sharpened edges with less effort and risk of over-grinding.

Versatile for Workshop Efficiency. Sharpens twist drills efficiently for metal, reducing downtime on drill presses, pedestal drills, or magnetic base units — complements existing tooling in typical Australian setups.


Features

Runs on 240V power, DC motor

Portable drill bits grinding, accurate and rapid, easy to operate, with no skill requirement to grind

Economic model

Standard with a CBN grinding wheel

Could sharpen the drill bit front cutting lip, lip relief angle

Specifications
Item NO. 161904
Model TX-Z20
Grinding Range ø3- ø20mm

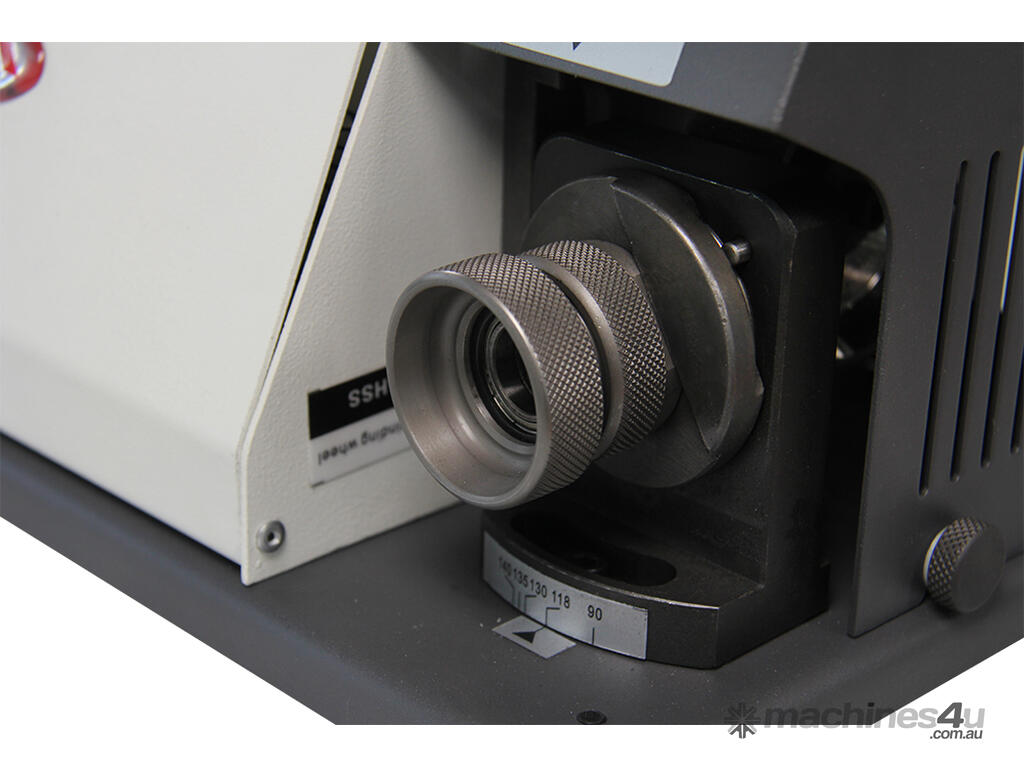

Point Angle 90°-140°
Input power 240V
Motor 120W
Speed 4400 rpm
Standard ER20 Collet ø3-ø13 mm, 11 pcs
Standard ER25 Collet ø14-ø20 mm, 7 pcs
Packing size 31x18x20 cm
N.W./G.W. 18/20 kg
