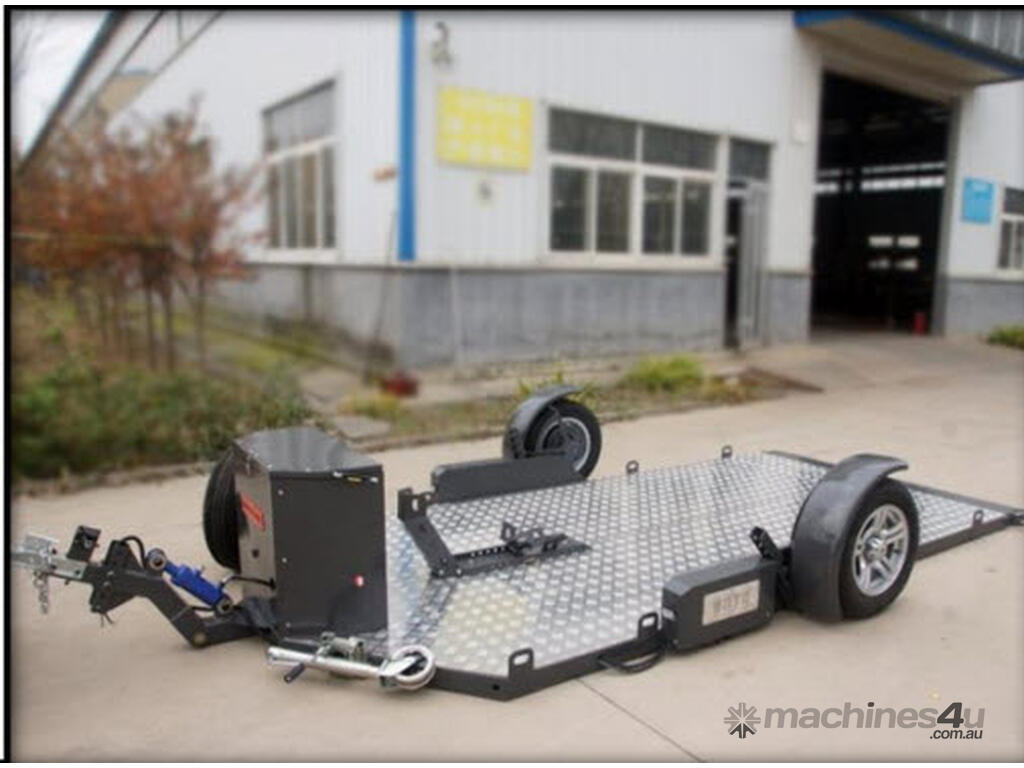

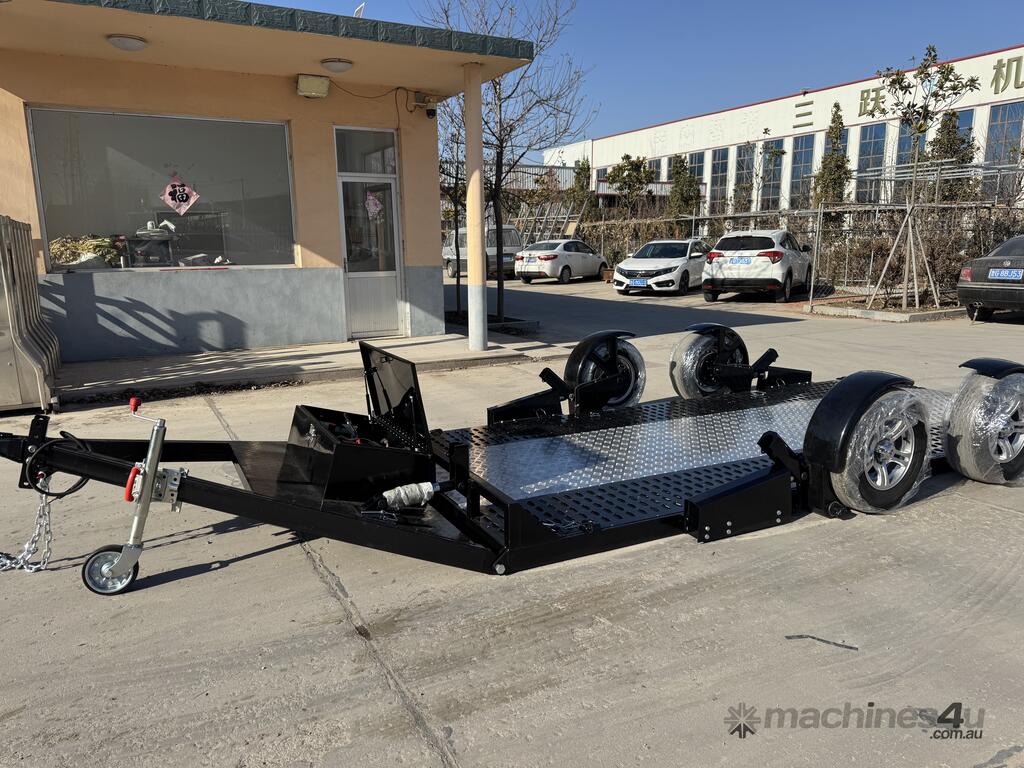

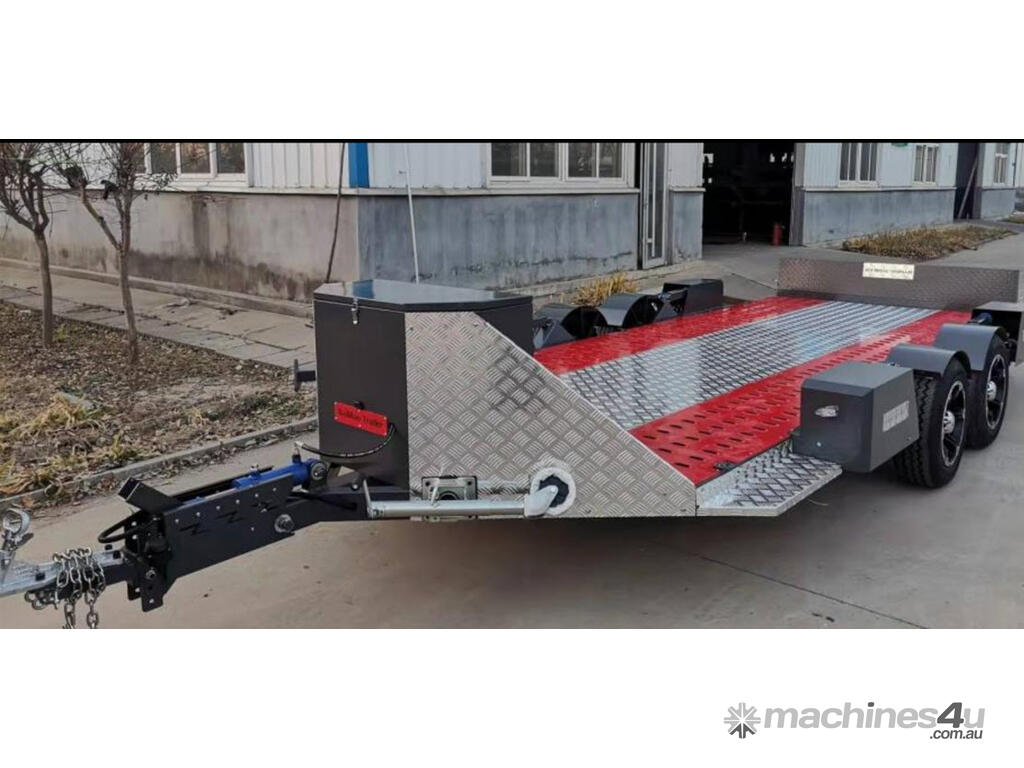

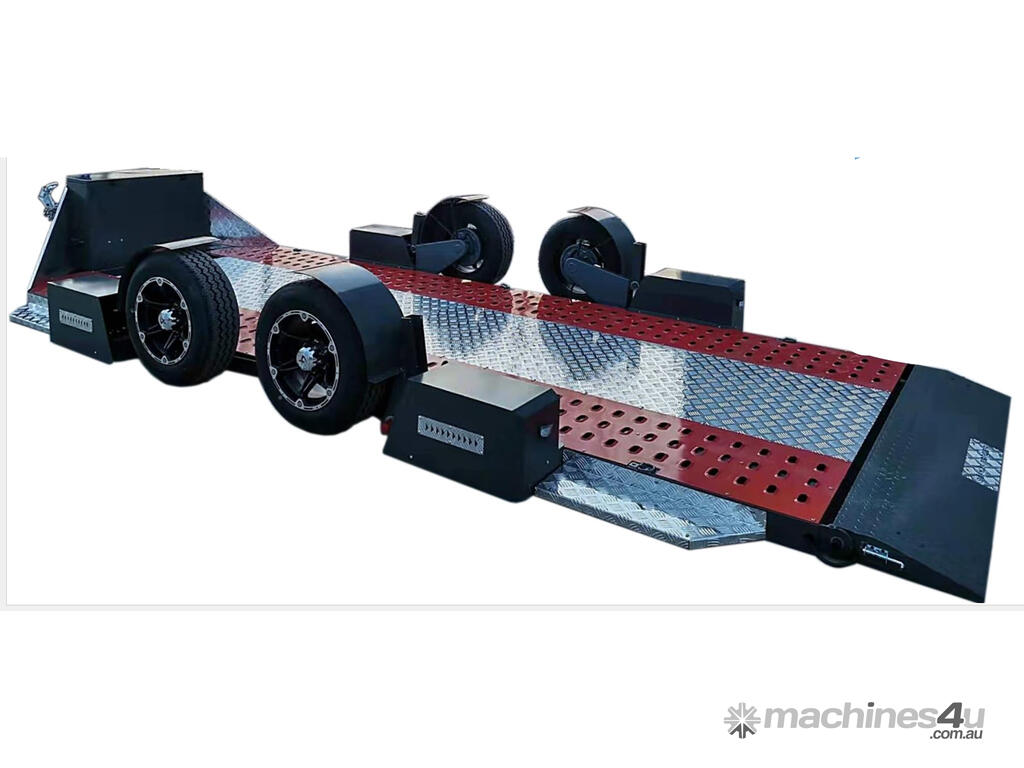

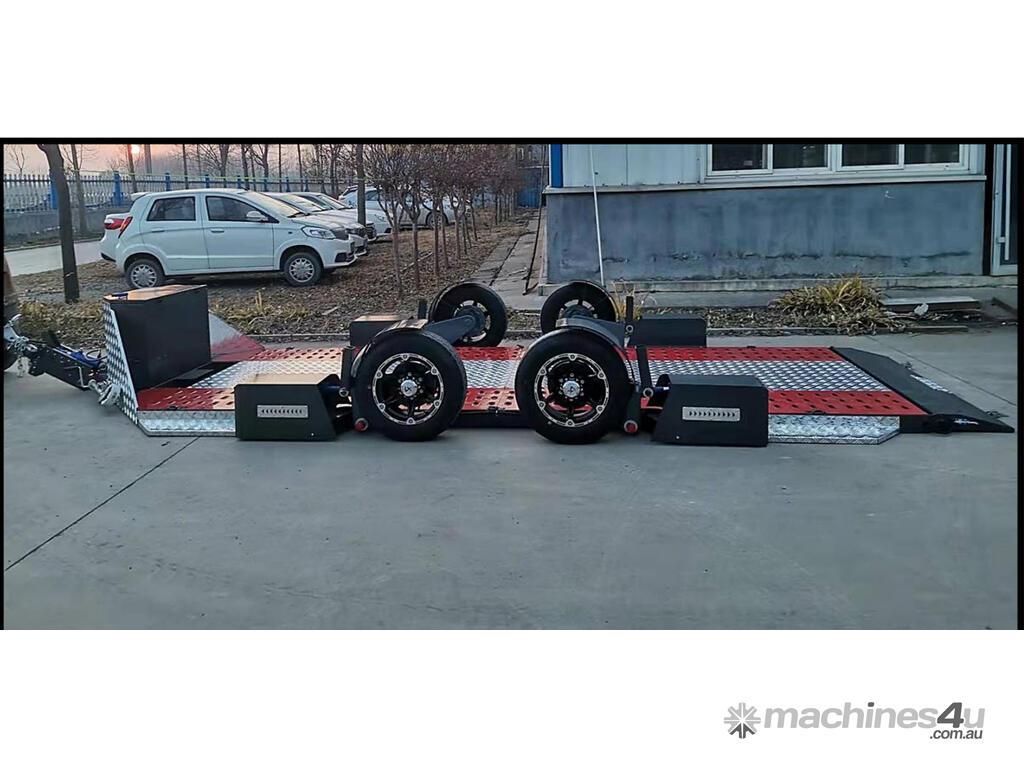

Drop Deck (Load at Ground Level) Car & Machinery Trailer 14ft

Key Features & Benefits
• Ground-Level Loading – Entire deck lowers flat for safer, faster operation
• Large Deck – Up to2005mm wide for increased payload capacity
• Low-Angle Ramp – Ideal for low-clearance equipment
• Unhitched Loading – Load while hitched or freestanding
• Automatic Deck Latch – Deck locks securely when raised
• Fenderless Design – No protruding fenders to damage
• Shielded Tail Lights – Improved visibility and protection
• Lockable Storage Compartments – Protect tools and components

Available Options
• 12-volt winch with 12-foot remote control
• Extended side rails (36" or 48")
• Removable full-width tailgate
• Spare tire and bracket (chassis-mounted)

OVERALL LENGTH.................................6642mm
OVERALL WIDTH................................... 2540mm (INCLUDING TIRE WIDTH)
DECK LENGTH........................................4960mm
DECK WIDTH...........................................2005mm
TRACTION HEIGHT.................................430MM (CAN BE ADJUSTED)
ATM..........................................................3500KG
PAYLOAD..................................................2500KG
TARE LOAD...............................................1000KG
BRAKING FORM.......................................TEN INCH ELECTRIC BRAKEs
RIM ...........................................................STEEL RING (ALUMINIUM ALLOY IS OPTIONAL)
TIRE AMOUNT..........................................4
TIRE SIZE..................................................195/70R15C
ELEVATION TYPE....................................HYDRAULIC ELEVATION
BATTERY...................................................12V
CONTROL .................................................REMOTE CONTROL (MANUAL)
HYDRAULIC PRESSURE...........................120bar
CAPSTAN..................................................12000LB (OPTIONAL AS REQUIRED)

For carrying Cars, Vans, Excavarors, Skid Sreers, Backhoes, Rollers,Loaders
