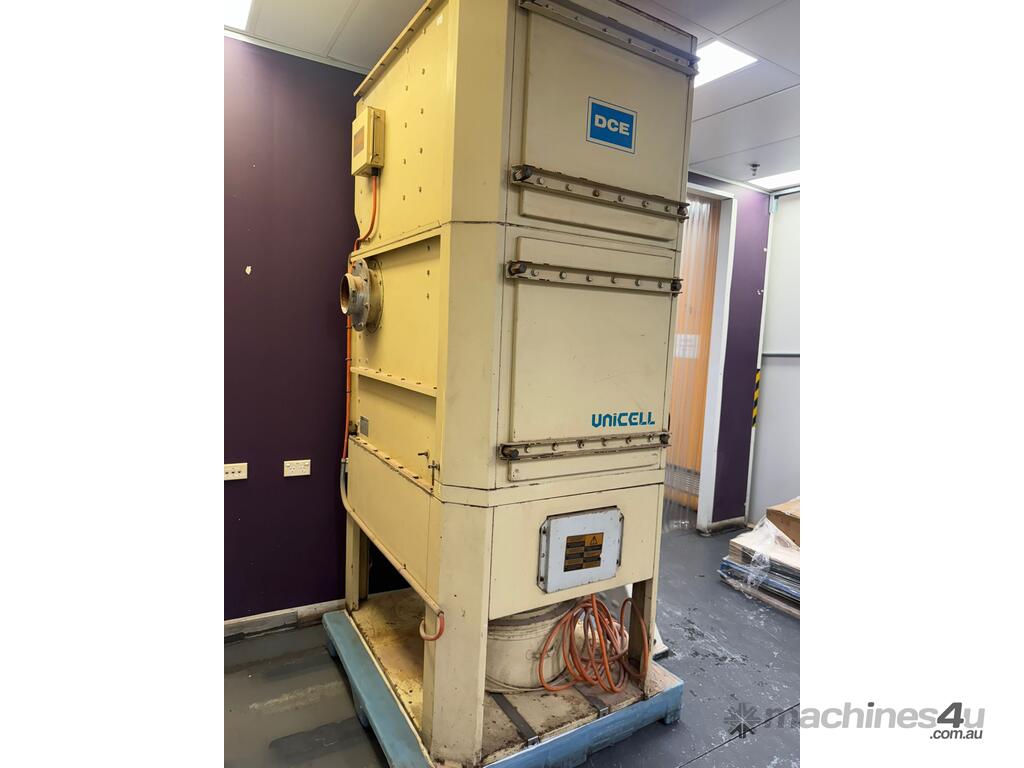

Dust Collector DCE Vokes

Dust Collector – Technical Specification (Second-Hand)

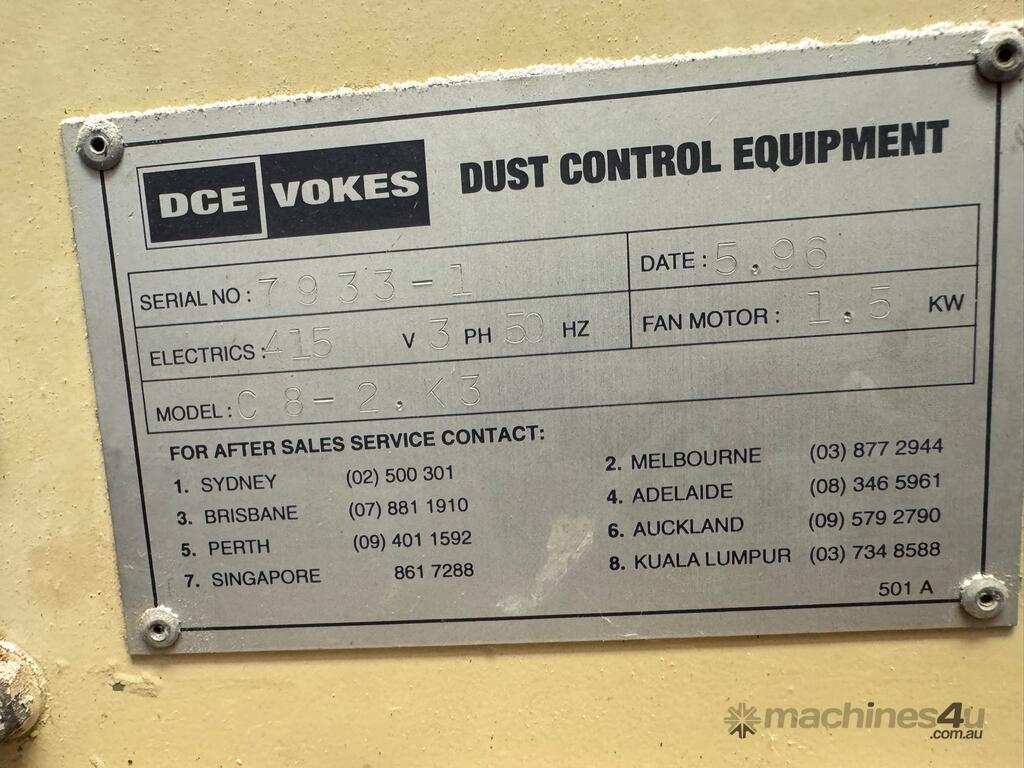

Manufacturer

DCE Vokes (DCE / Donaldson group)

Model

C8-2 K3

Year of Manufacture

1996

Equipment Type

Cartridge dust collector, pulse-cleaned

Electrical & Mechanical

Fan Motor Power: 1.5 kW

Supply: 415 V, 3-phase, 50 Hz

Drive: Direct-driven centrifugal fan (internal)

Cleaning System: Reverse pulse-jet (compressed air)

Filter Type: Unicell cartridge filters

Performance (Typical / Estimated)

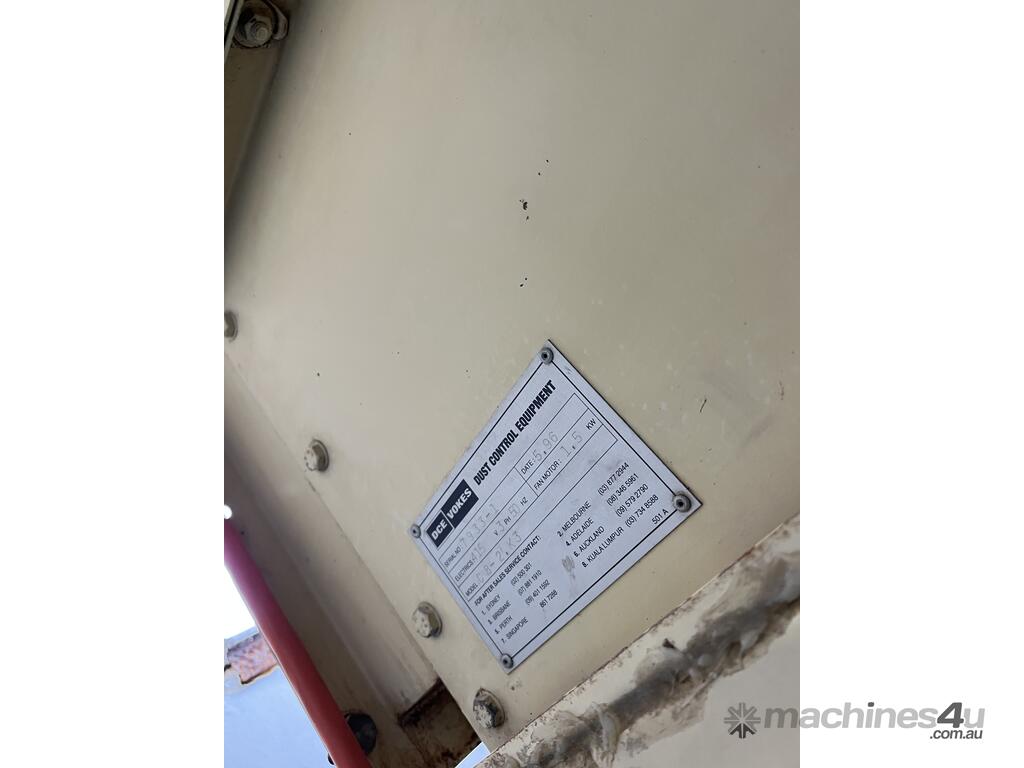

Exact airflow and pressure are not stated on the nameplate and would require testing or OEM data.

Typical Airflow: ~1,000–2,000 m³/hr

Typical Static Pressure: ~1,200–1,800 Pa

Operating Noise: ~70–80 dB(A) 1 m (estimated)

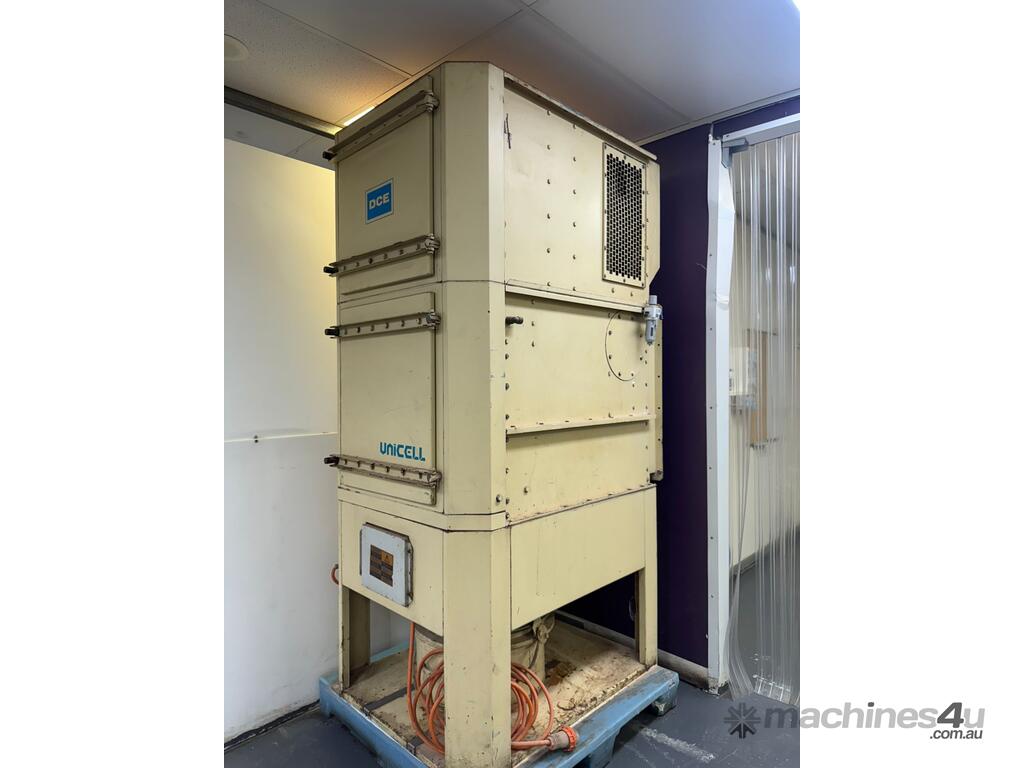

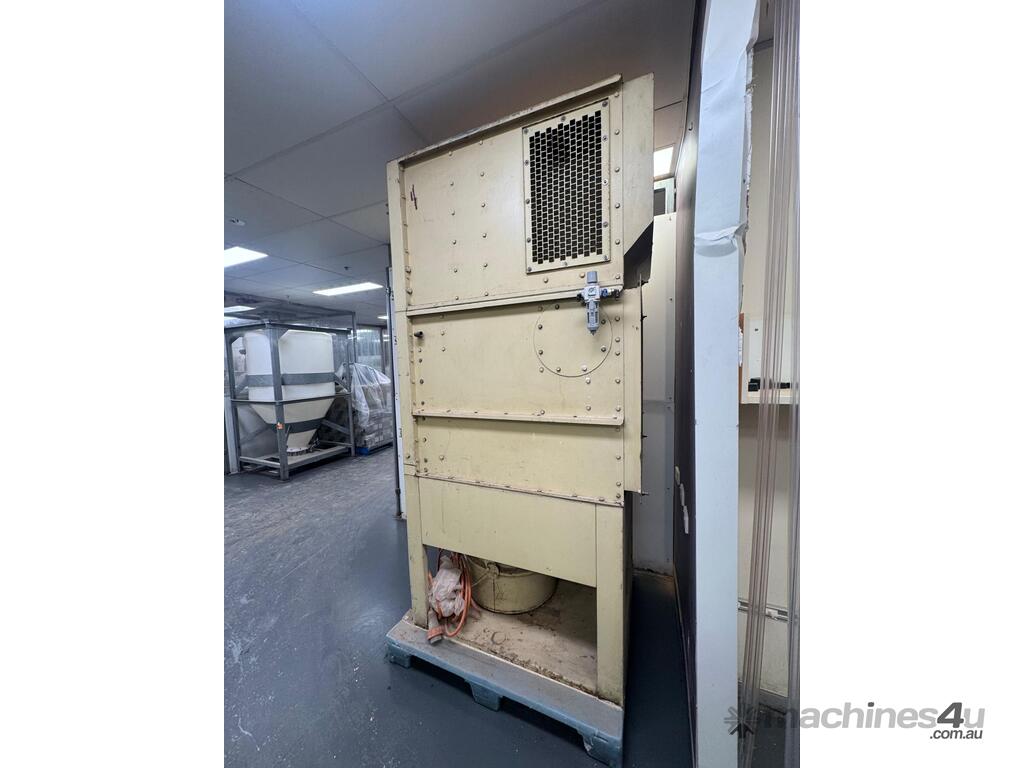

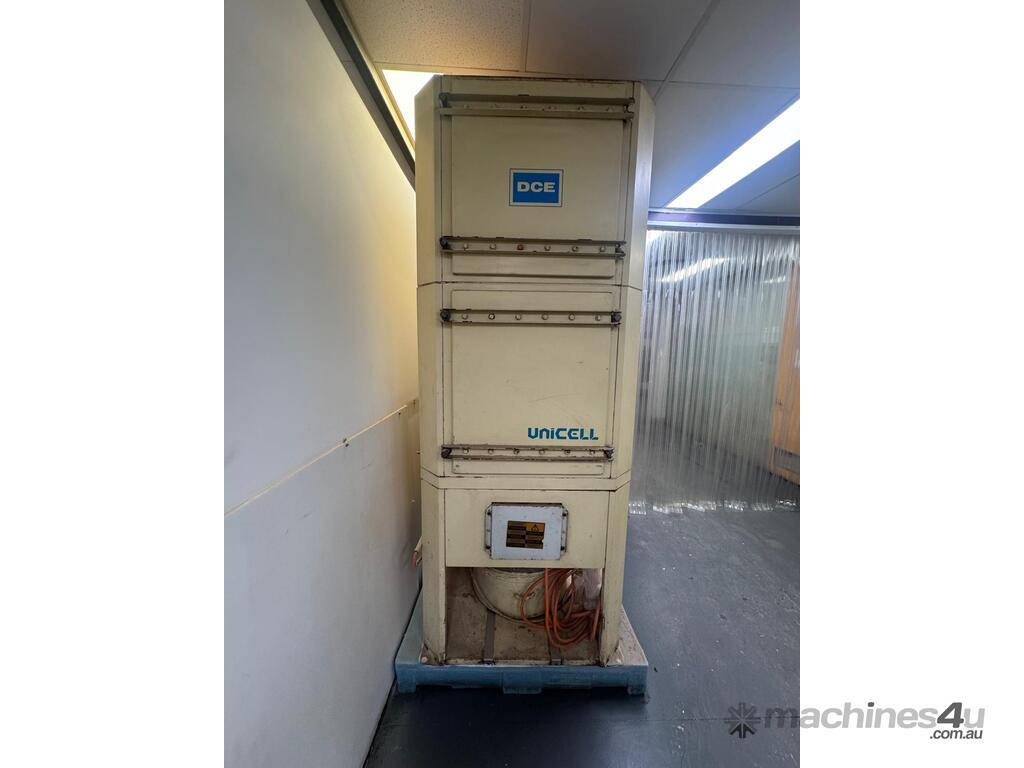

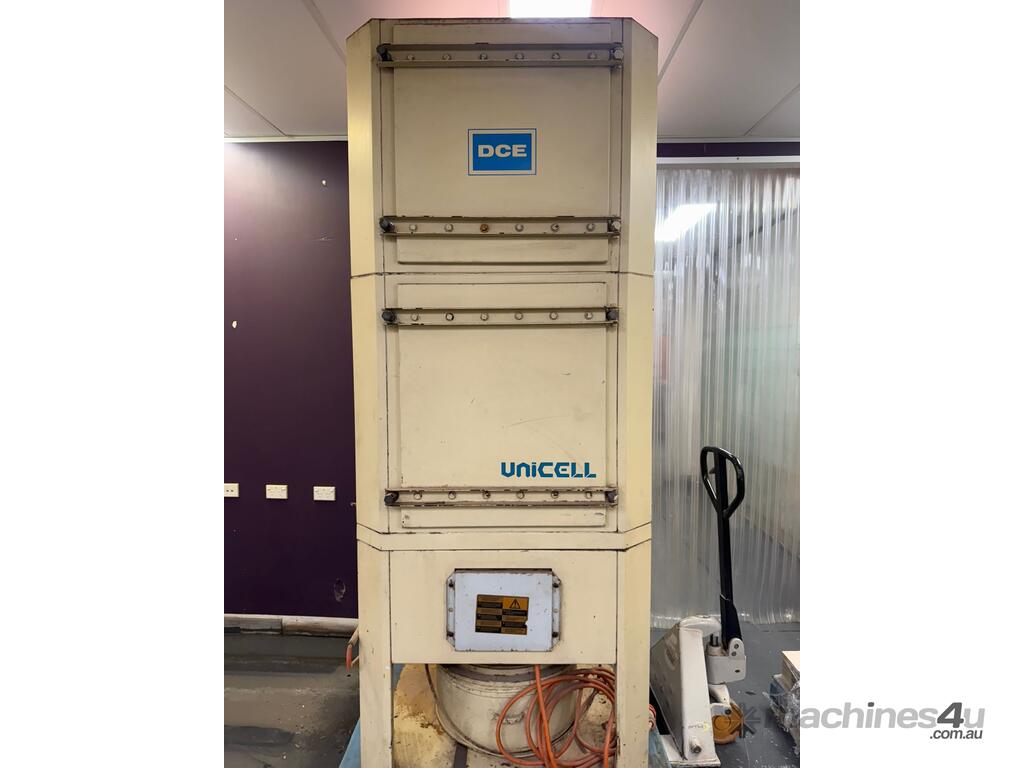

Construction

Housing: Painted mild steel

Configuration: Vertical cartridge collector with bottom dust discharge

Dust Collection: Bag/bin under hopper

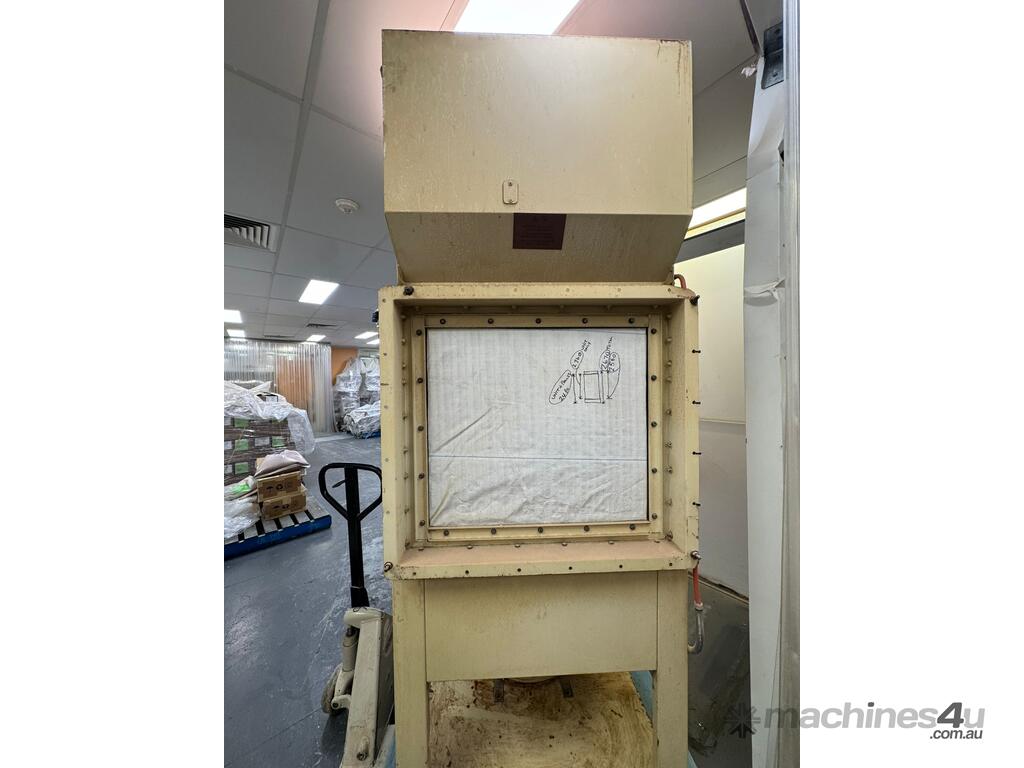

Access: Side access doors for filter change

Installation: Indoor, floor-mounted

Dimensions & Weight (Approximate)

Dimensions inferred from photographs and typical DCE C-series construction.

Overall Height: ~2,400 mm

Width: ~900 mm

Depth: ~1,000 mm

Estimated Weight: ~350–450 kg (empty)

Suitable for local dust extraction in industrial or food powder environments where hygienic-design certification is not required.

Intended for dry, free-flowing powders.

Not explosion-rated and not ATEX certified.

Second-hand unit – supplied as-is
