Dust Extraction System

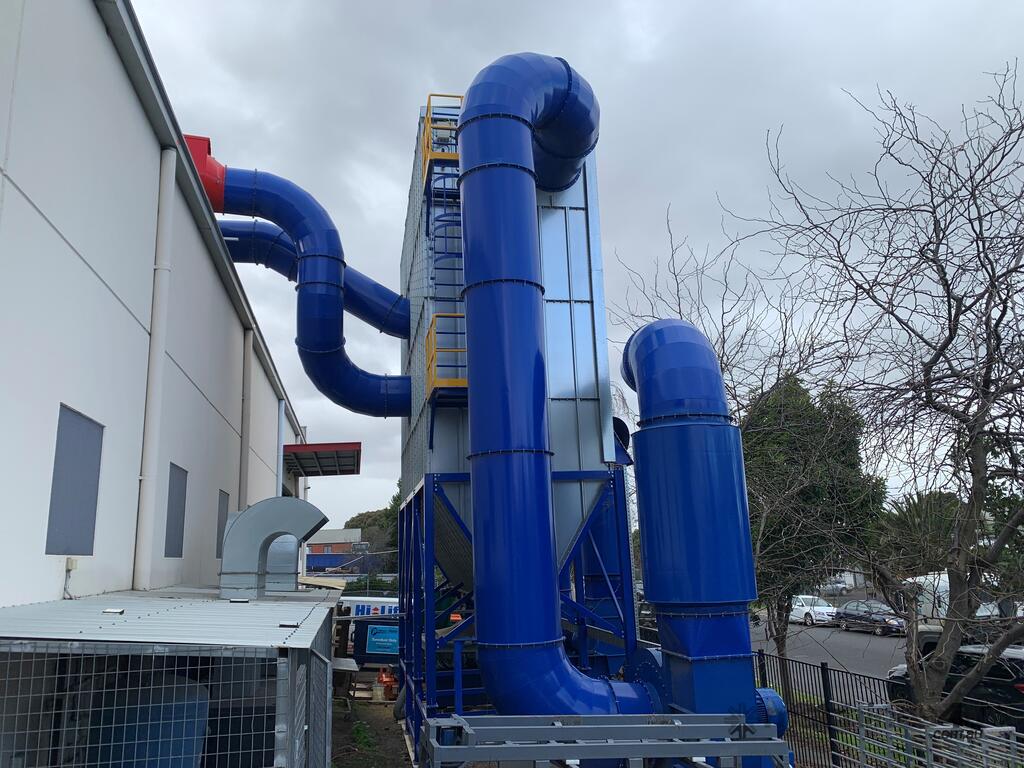

Up for sale is a large Blue Vent Dust Extraction System. This is a MultiJet Filter Bag House (Clean Air System) model A6s.
It was primarily used to extract MDF and Particle Board dust that came off CNC machines and sanding machines. The only reason for selling this extraction system is that the company has decided to go in a different direction and no longer has a need for it. The extraction system was brand new and only installed in 2023, still in perfect working order.

Some specs are as follows:

Model: A6s
Filter Dimension: 2928mmW x 7,450mmL x 7,690mmH
Filter Capacity 97,051 m3/H
Pressure operating area of filter: -4.5kPa to +1.5kPa
Filter bag amount: 312 pc
Filter bag size: BVPSA Ø150mm x 4,100mmL - Antistatic polyester 450g/m2 with singed surface
Total filter area: 527m2

2 Centrifugal Fan - Clean Air
Model: MXE - Direct Driven
Make: REITZ - Motor: HONEYWELL
Motor Size: 75KW-4 Pole - IE3 Motor
Inverter: 75KW DANFOSS frequency inverter; IP54 enclosure c/w EMC filter with Class A2 protection to avoid electrical interference with other equipment
Back pressure gate: Explosion stop valves

Freight will need to be organized by the buyer. Blue Vent can help with obtaining a quote for dismantling and shipping.
