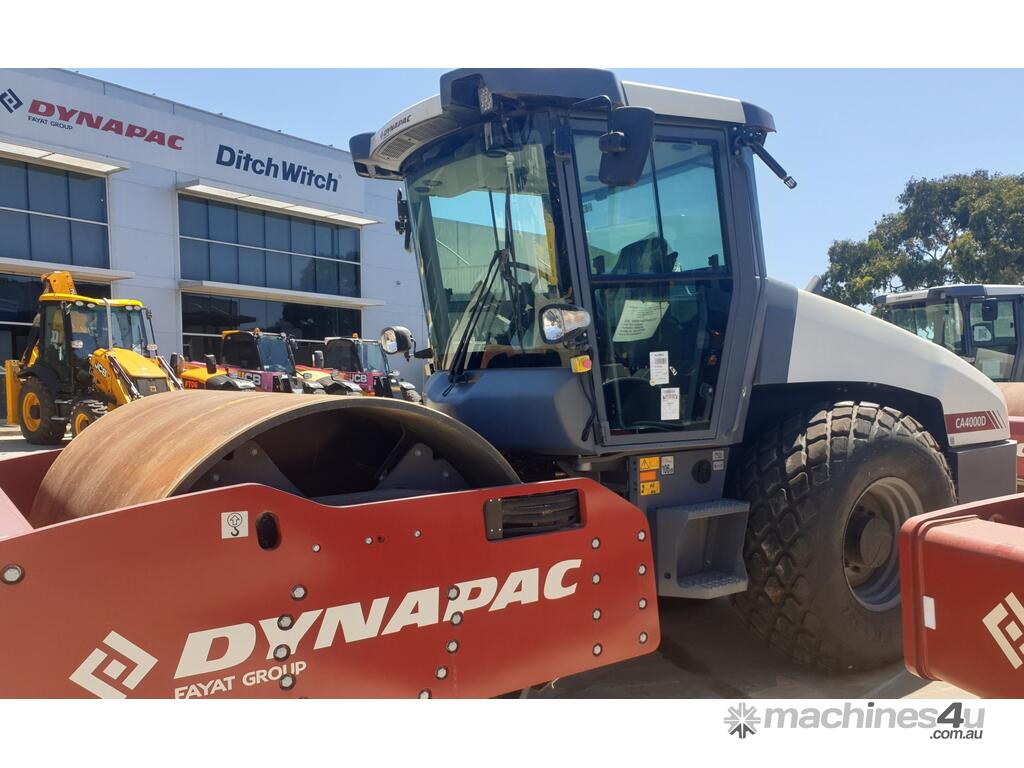

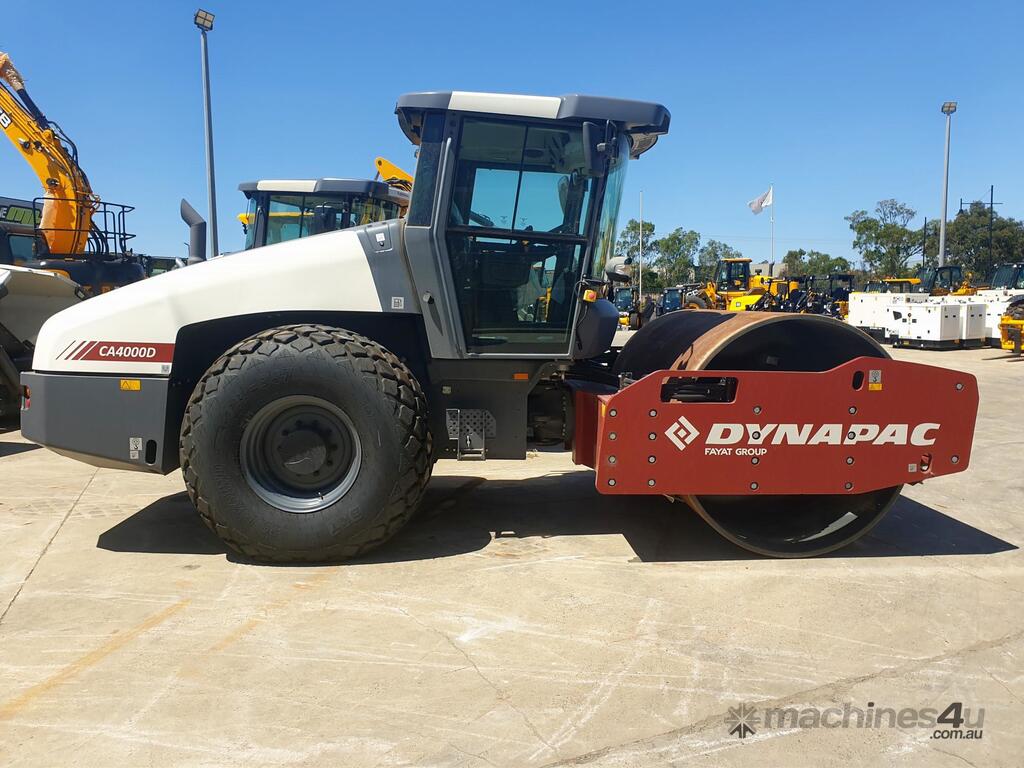

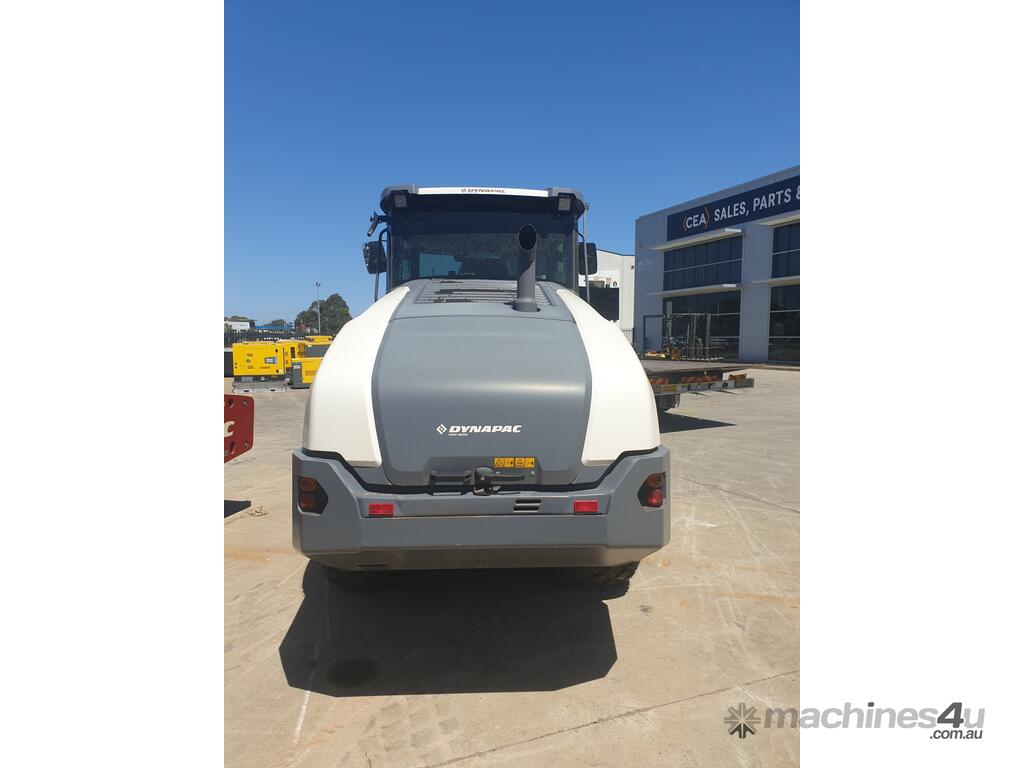

Dynapac CA4000D single-drum vibratory soil compactor

====== DYNAPAC MELBOURNE CLEARANCE NOW ON ============

The Dynapac CA4000D is a medium-heavy single-drum vibratory soil compactor designed for tough, long working days on various base and reinforcement courses, including rockfill.
Key Specifications
According to Dynapac's official specifications and RitchieSpecs, the Dynapac CA4000D features powerful performance and robust construction:
Attribute Specification
Operating Mass (incl. ROPS) 13,100 kg

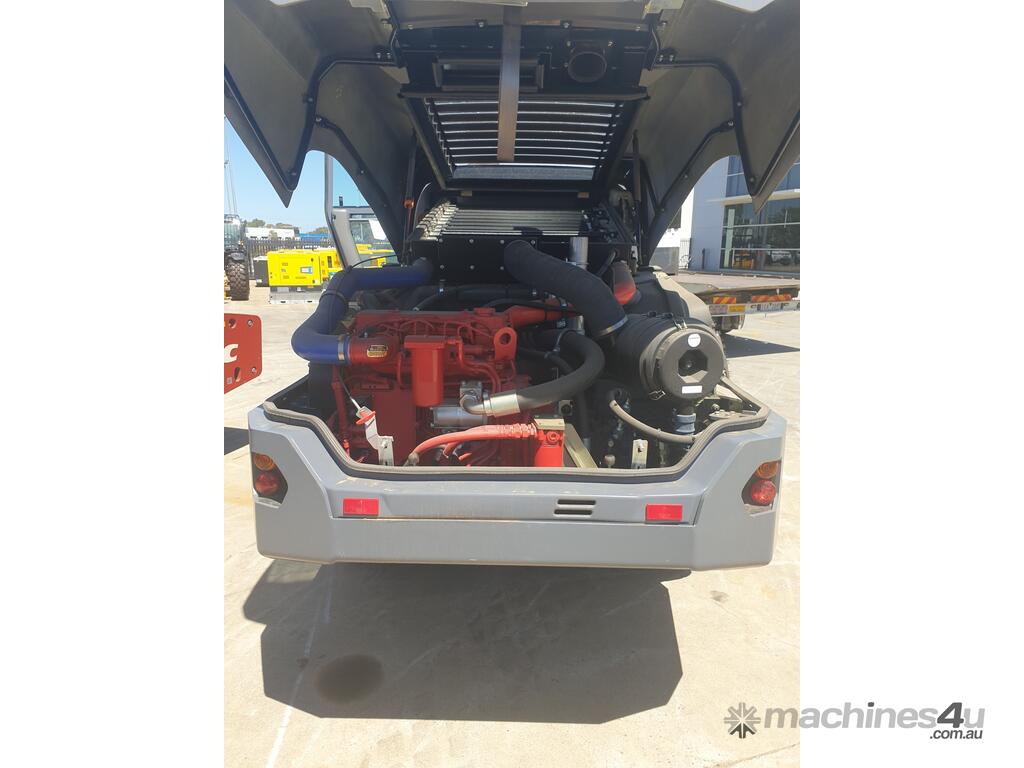

Engine Cummins QSB4.5 water-cooled turbo diesel
Rated Power 119 kW (160 hp) 2,200 rpm
Drum Width 2,130 mm
Drum Diameter 1,520 mm
Drum Shell Thickness 35 mm
Static Linear Load 41 kg/cm
Nominal Amplitude (High/Low) 2.0 mm / 0.8 mm
Centrifugal Force (High/Low) 270 kN / 120 kN
Speed Range 4 / 6 / 7 / 12 km/h
Fuel Tank Capacity 272 l
Features
Durable Construction: The 35 mm drum shell provides excellent resistance to wear, even when compacting rockfill.

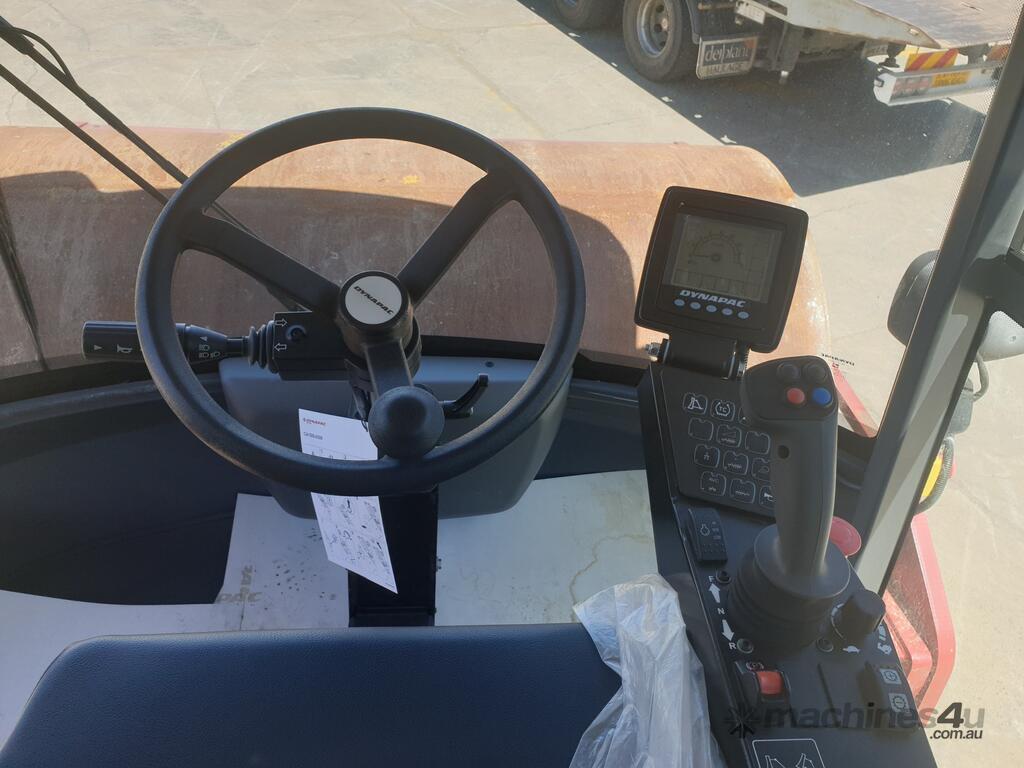

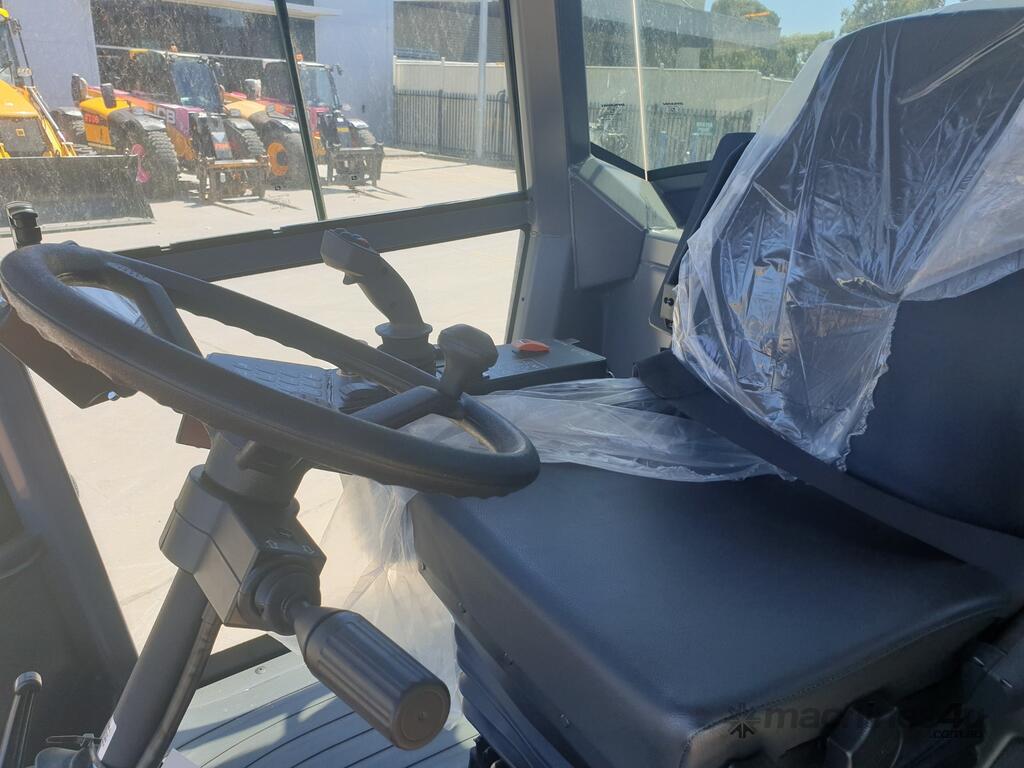

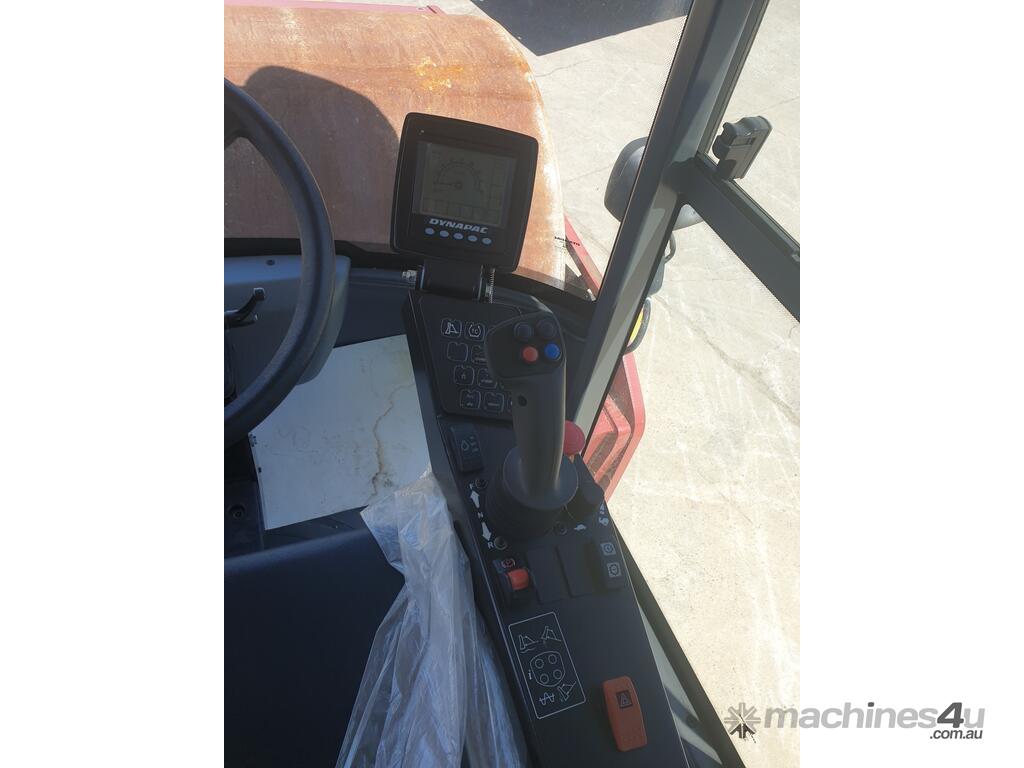

Operator Comfort: The ergonomically designed cab options often include air-conditioning and a unique 180-degree rotating operator station for improved visibility and reduced operator strain.
Fuel Efficiency: The Dynapac EcoMode system minimises fuel consumption by ensuring the machine uses only the necessary power for the job.
Safety: Safety features include Electronic Drive Control with a "quick brake" function and a tilt indicator.
Active Bouncing Control (ABC): This feature prevents damage by eliminating drum double jump or over-compaction.

LOCATED IN MELBOURNE
