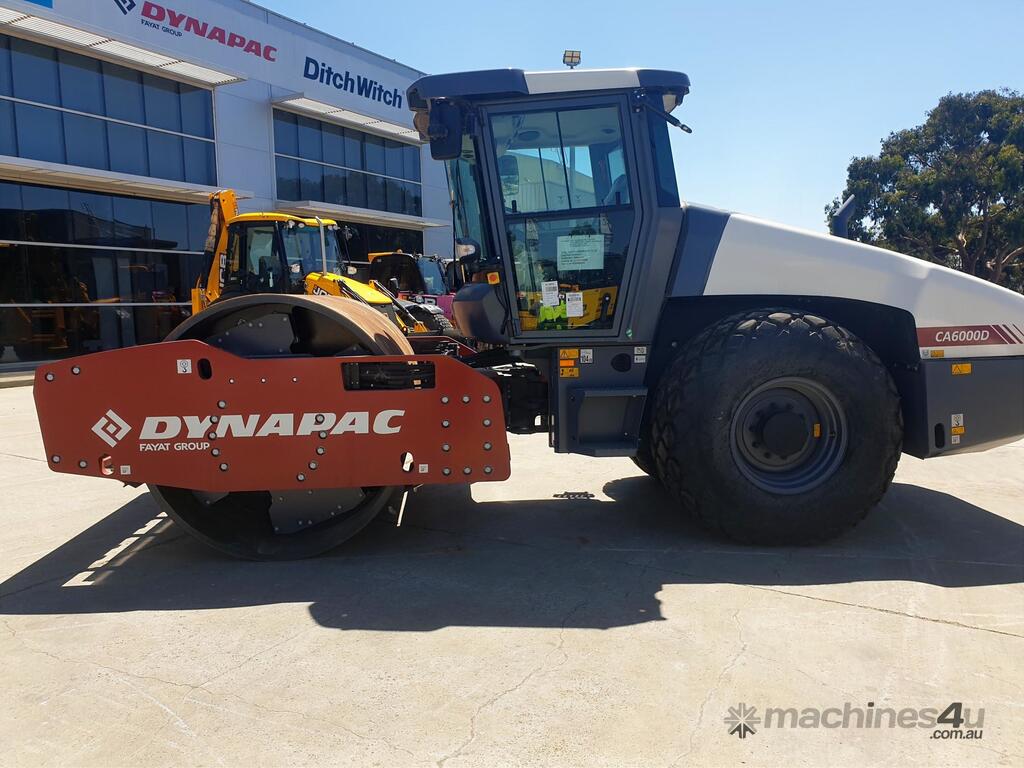

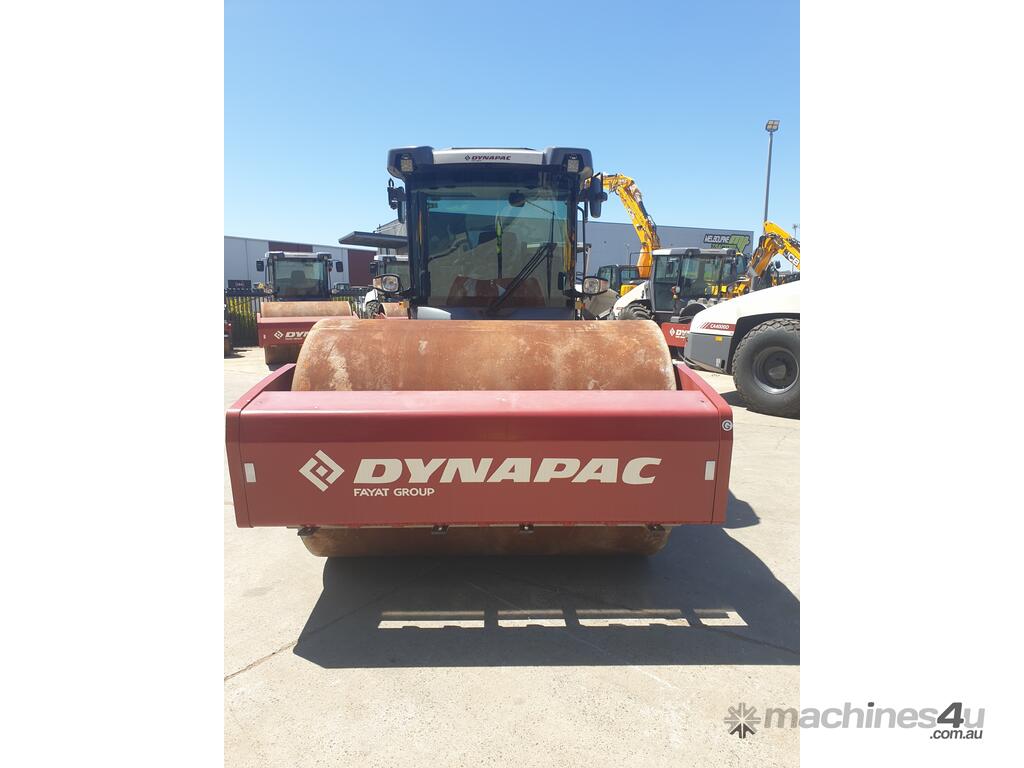

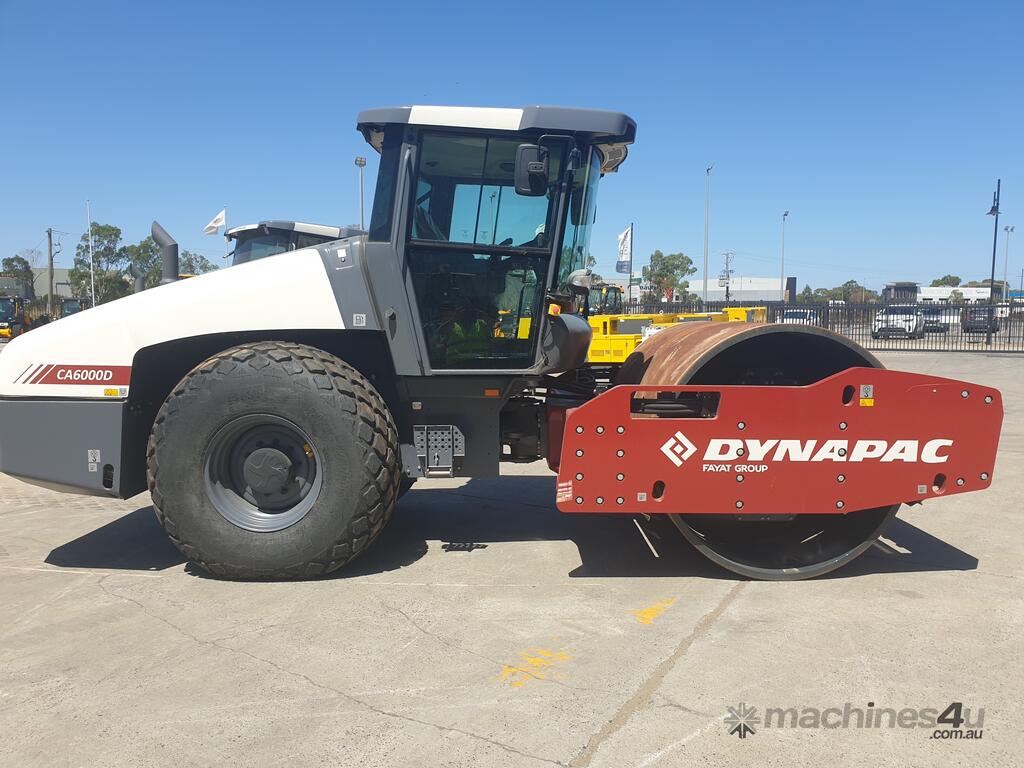

Dynapac CA6000D single-drum vibratory roller

====== DYNAPAC MELBOURNE CLEARANCE NOW ON ============

The Dynapac CA6000D single-drum vibratory roller is a heavy-duty compaction machine designed for tough applications like compacting rockfill, gravel, and sand. It features a robust design and powerful engine options for outstanding performance on large projects.
Key Specifications
Attribute Specification
Operating Mass 19,300 kg (with ROPS) or 19,500 kg (with Cab)
Engine Cummins B4.5 (Stage V/T4final) or Deutz TCD2012L06 (IIIA/T3)
Rated Power 149 kW (200 hp) or 150 kW (204 hp) 2,200 rpm, depending on the engine model
Drum Width 2,130 mm
Drum Diameter 1,546 mm
Drum Shell Thickness 48 mm, suitable for long productive life, even with rockfill
Static Linear Load 60 kg/cm
Vibration Frequency 29 Hz (high amplitude) / 30 Hz (low amplitude)
Amplitude 2.1 mm (high) / 0.8 mm (low)
Max. Theoretical Gradeability 56% with the Cummins B4.5 engine option
Overall Length 6,240 mm
Drive System Hydrostatic for driving, vibration, and steering
