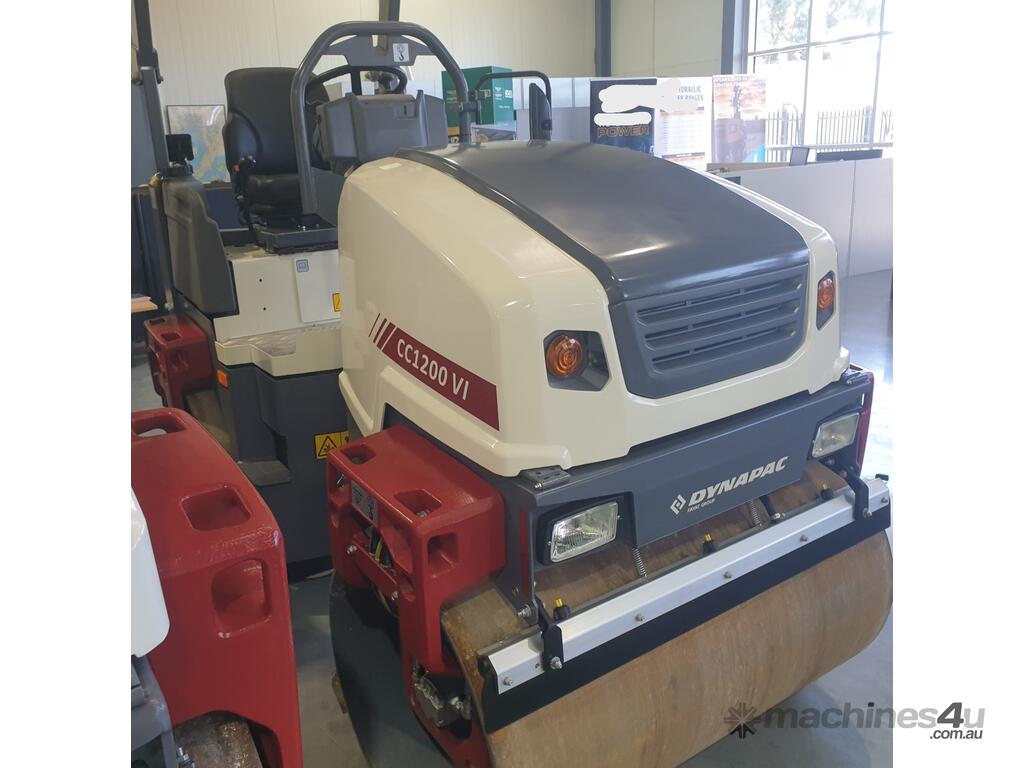

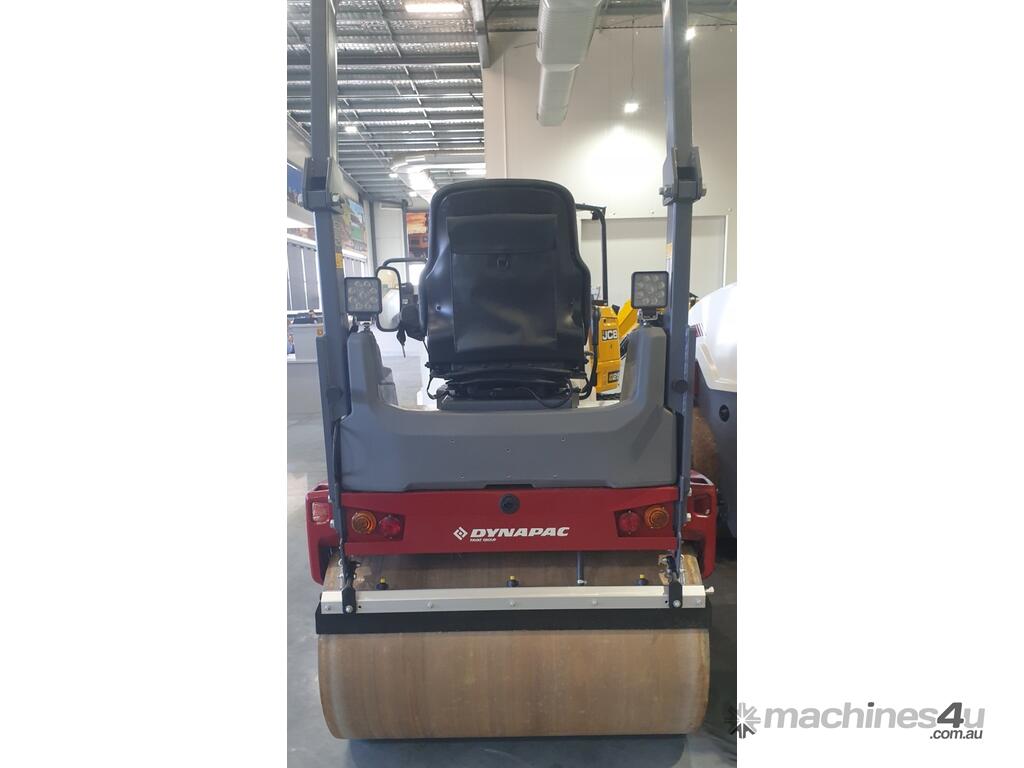

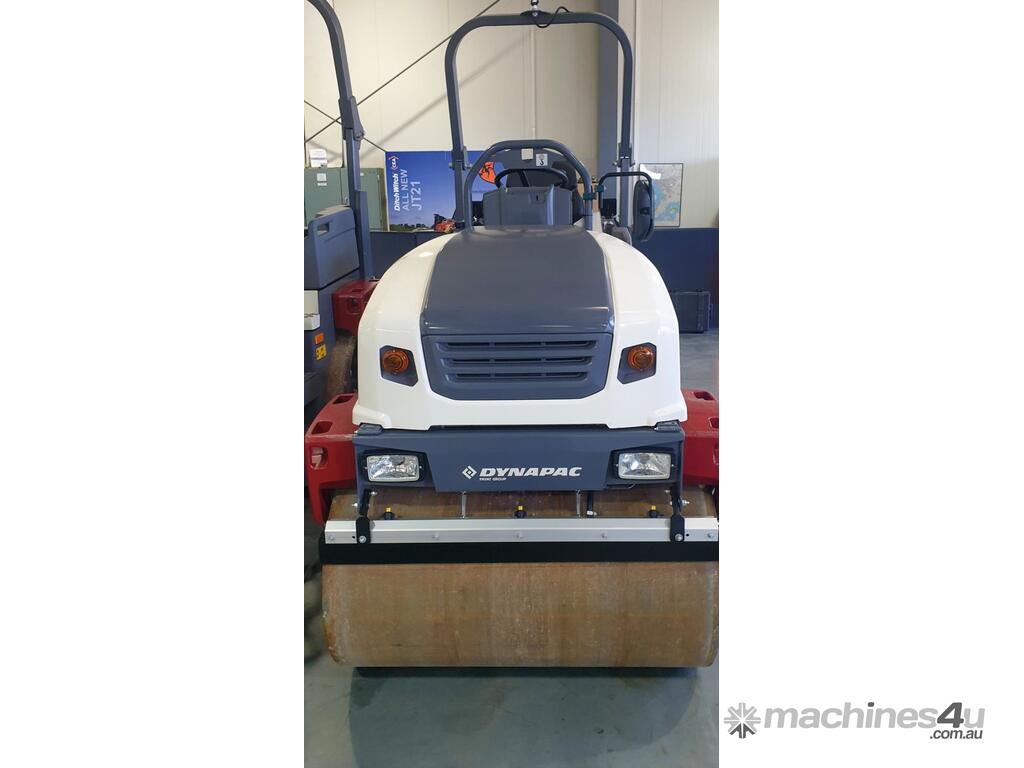

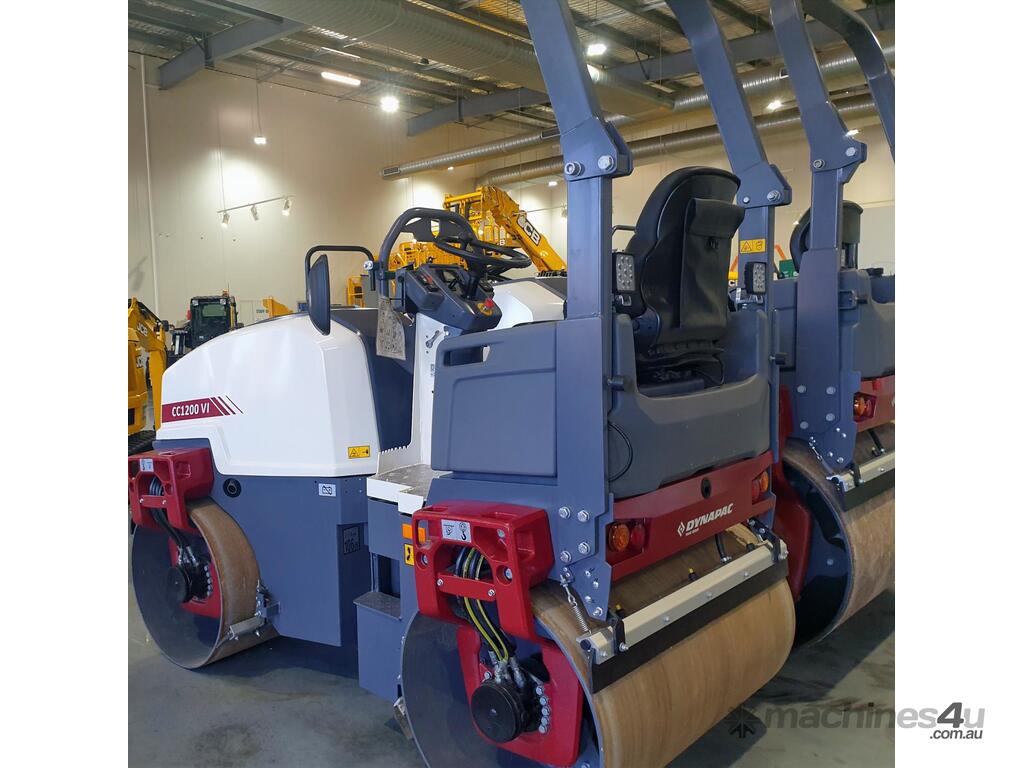

Dynapac CC1200 double drum roller

General / Dimensional Data
• Model: Dynapac CC1200 double drum roller
• Drum width: 1,200 mm
• Drum diameter: ~682 mm
• Wheelbase: ~1,715 mm
• Width: ~1,310 mm
• Length: ~2,395 mm
• Height (with ROPS): ~2,640 mm
• Ground clearance: ~175 mm
• Turning radius (outside): ~3,800 mm
• Steering angle: ±30°
?? Weights
• Operating mass (without ROPS): ~2,600 kg
• Max. operating mass: ~2,710 kg )
• Module mass (front/rear): ~1,260 kg / 1,340 kg
???? Engine / Performance

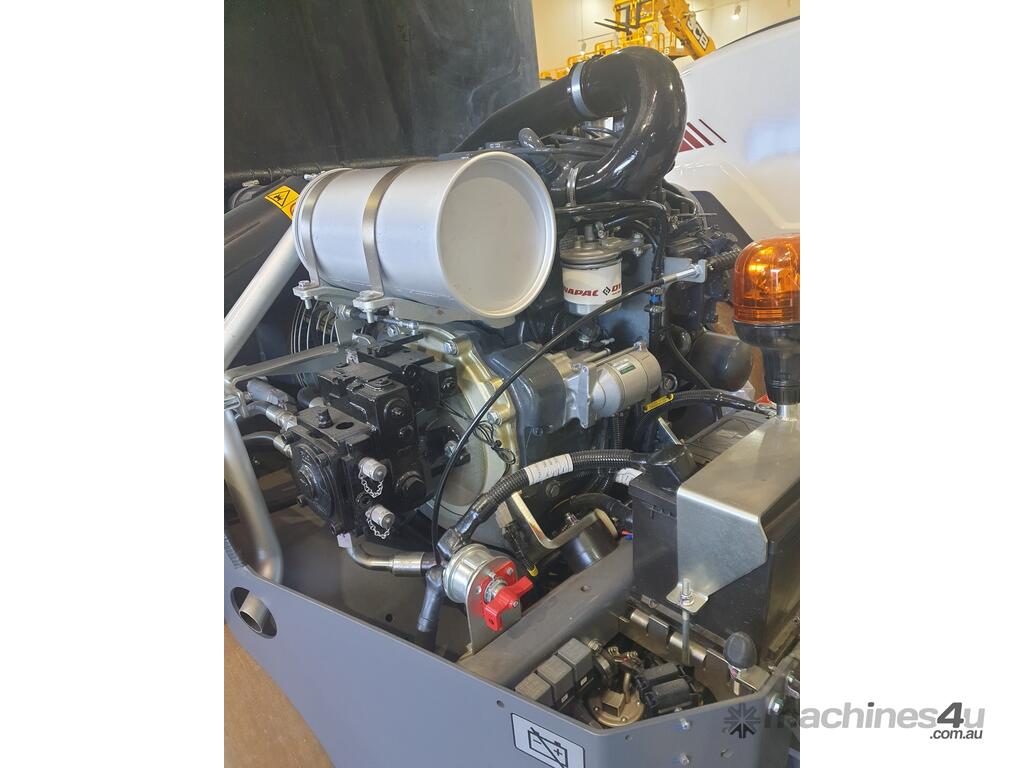

• Engine: Kubota D1703-M water-cooled diesel
• Rated power: 26 kW (35 hp) 2,800 rpm
• Fuel tank capacity: ~50 L
• Speed range: 0-10 km/h
• Max theoretical gradeability: ~43-45 %

Compaction & Vibration
• Static linear load (front/rear): ~10.5 / 11.2 kg/cm
• Centrifugal force: ~27 kN
• Nominal amplitude: ~0.5 mm
• Vibration frequency: ~58 Hz
• Vertical oscillation (articulation): ±10°
• Water spray tank: Often fitted with ~160-205 L tank for dust control
???? Hydraulic & Drive System
• Drive: Hydrostatic, axial piston pump with variable displacement
• Motors: Radial piston motors for each drum
• Steering & vibration pumps: Gear pumps with constant displacement
• Brakes: Hydrostatic service brake; failsafe multidisc parking/emergency brake in drums
???? Features
• Compact size ideal for urban streets, parking areas, pathways, and confined jobsites
If you want the full official spec sheet (PDF) like weight breakdowns, service refill capacities or optional equipment lists, I can help get that too — just let me know! CEA Dynapac Melbourne
