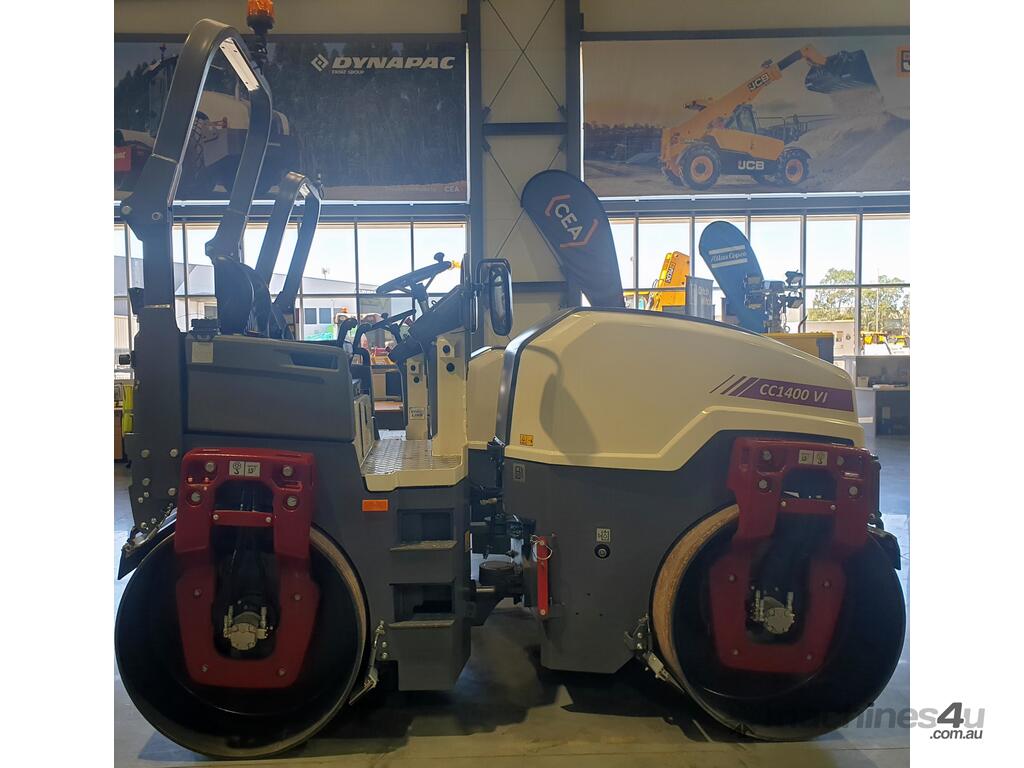

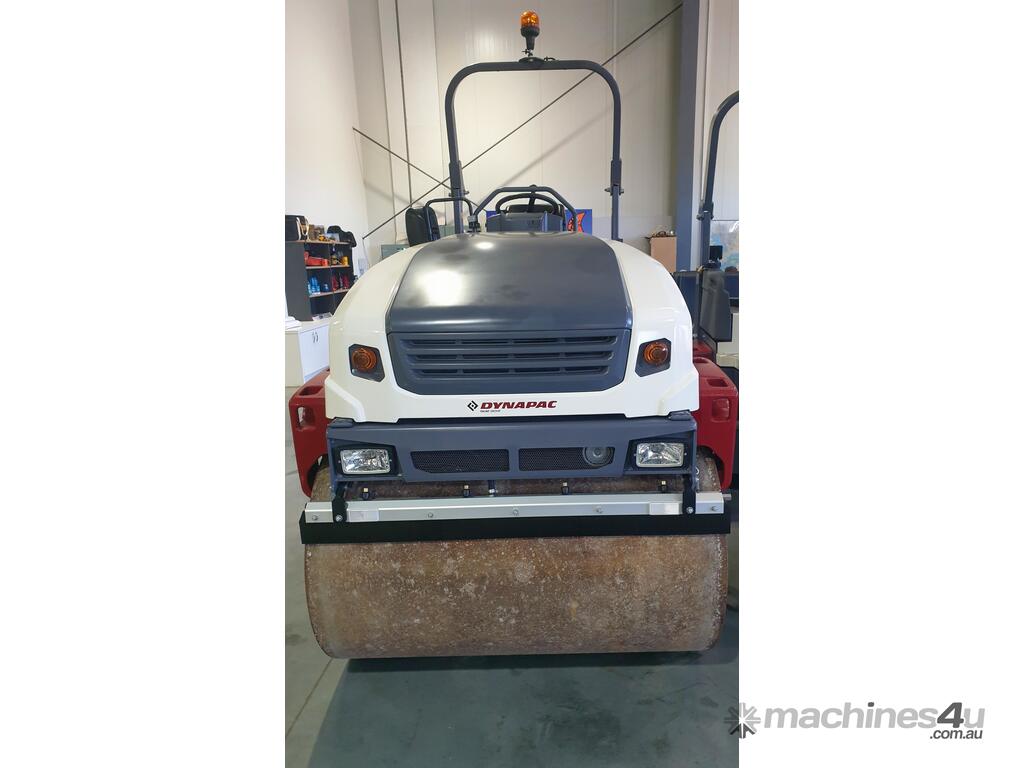

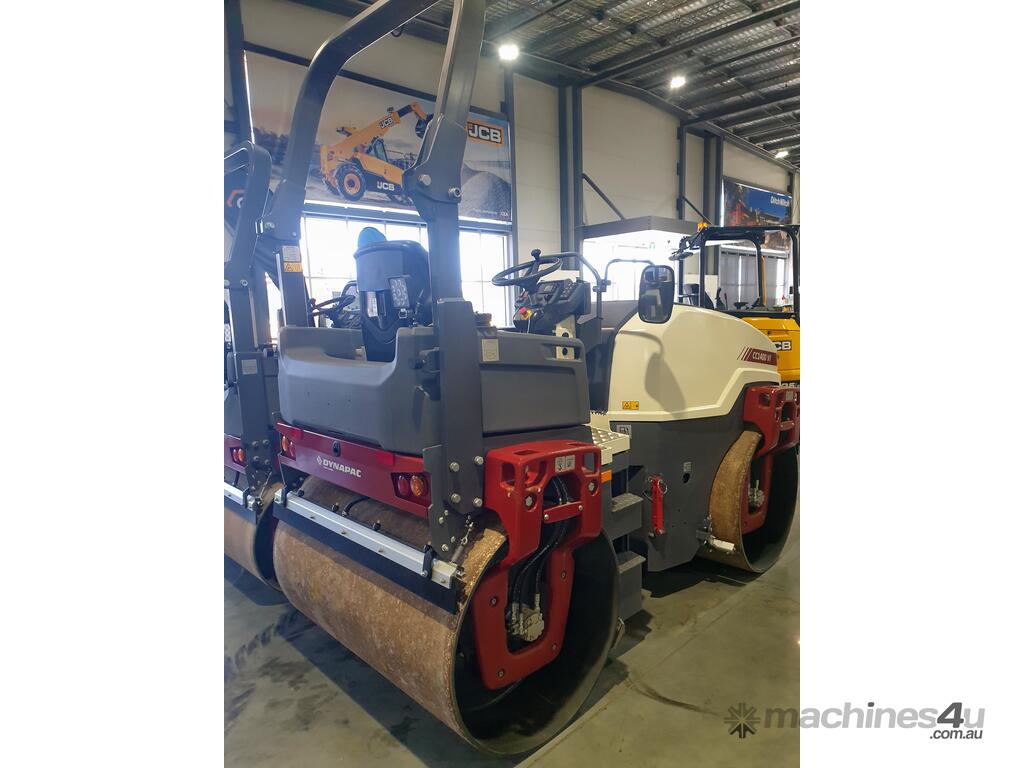

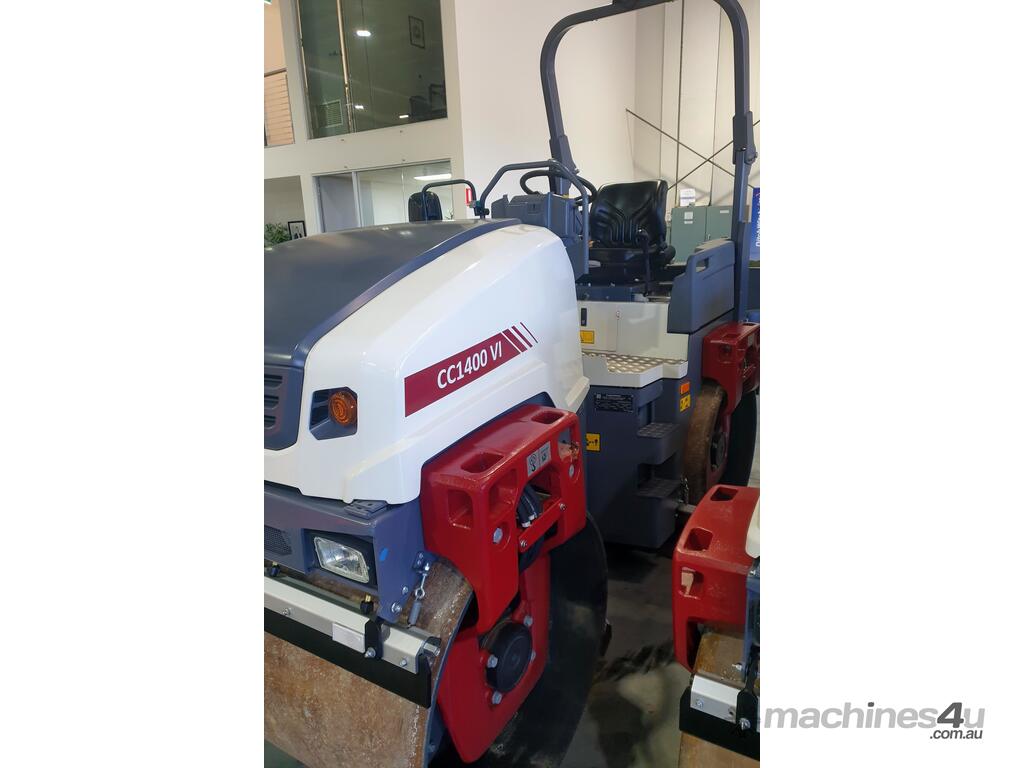

Dynapac CC1400 VI double-drum tandem asphalt roller

====== DYNAPAC MELBOURNE CLEARANCE NOW ON ============

The Dynapac CC1400 VI is a mid-sized double-drum tandem asphalt roller designed for efficient compaction on smaller to medium paving jobs. It weighs around 4.3 t with ROPS fitted, operates up to 9 km/h, and is powered by a 35–50 kW diesel engine, with a compaction width of ~1.38 m and good gradeability for varied surfaces.

Dynapac CC1400 VI – Technical Specifications
General / Dimensions:
• Operating Mass (with ROPS): ~ 4,300 kg
• Max Operating Mass: ~ 5,130 kg
• Wheelbase: 1,970 mm
• Length: ~ 2,850 mm
• Width: ~ 1,505 mm
• Height (without ROPS): ~ 2,025 mm
• Height (with ROPS): ~ 2,855 mm
• Ground Clearance: ~ 190 mm
• Drum Diameter: ~ 882 mm
• Compaction Width: ~ 1,380 mm
Performance:
• Speed Range: 0–9 km/h
• Vertical Oscillation: ±10°
• Max Theoretical Gradeability: ~ 37 %
Engine:
• Standard Engine: Kubota V2203-M (IIIA), ~ 35 kW (48 hp) 2700 rpm
• Optional Engines:
• Kubota V2403-CR E4B (T4) ~ 37 kW (50 hp)
• Kubota V2403-CR E5B (Stage V) ~ 37 kW (50 hp)
• Perkins 403J-E17T (T4/Stage V) ~ 36 kW (48 hp)
• Fuel Tank Capacity: ~ 60 L
Compaction Characteristics
• Nominal Amplitude (single): ~ 0.5 mm
• Centrifugal Force: ~ 43 kN (high) / ~ 22 kN
• Vertical Oscillation: ±10°

LOCATED IN MELBOURNE
