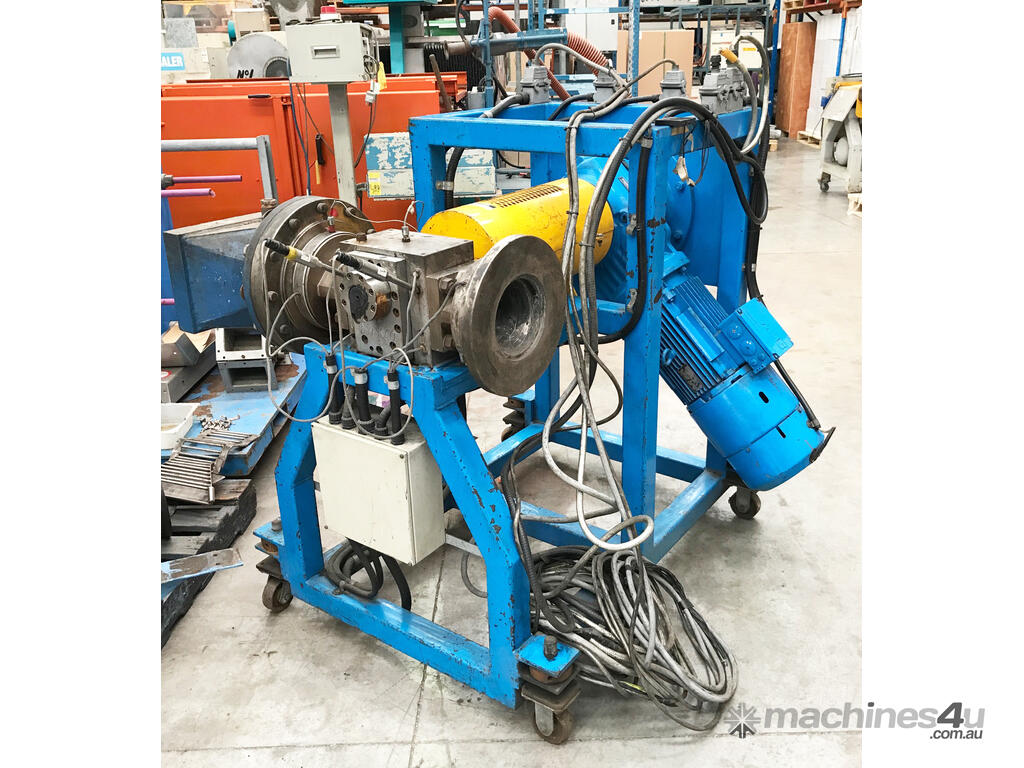

Dynisco MJEP-300/300 Gear Pump 2006

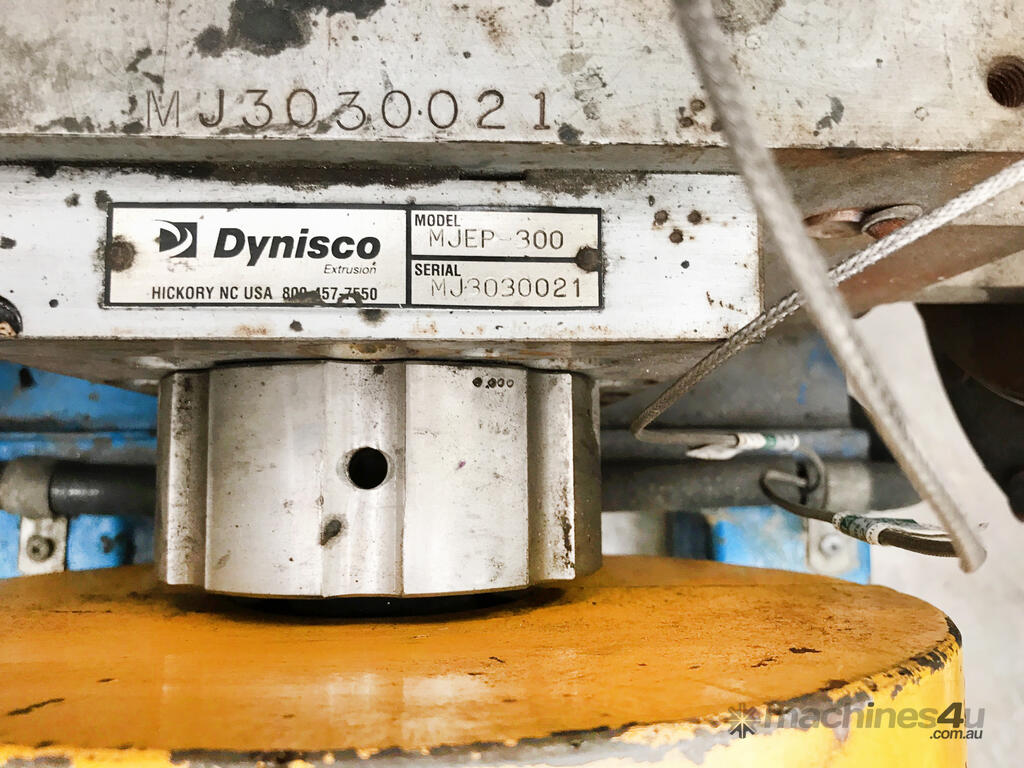

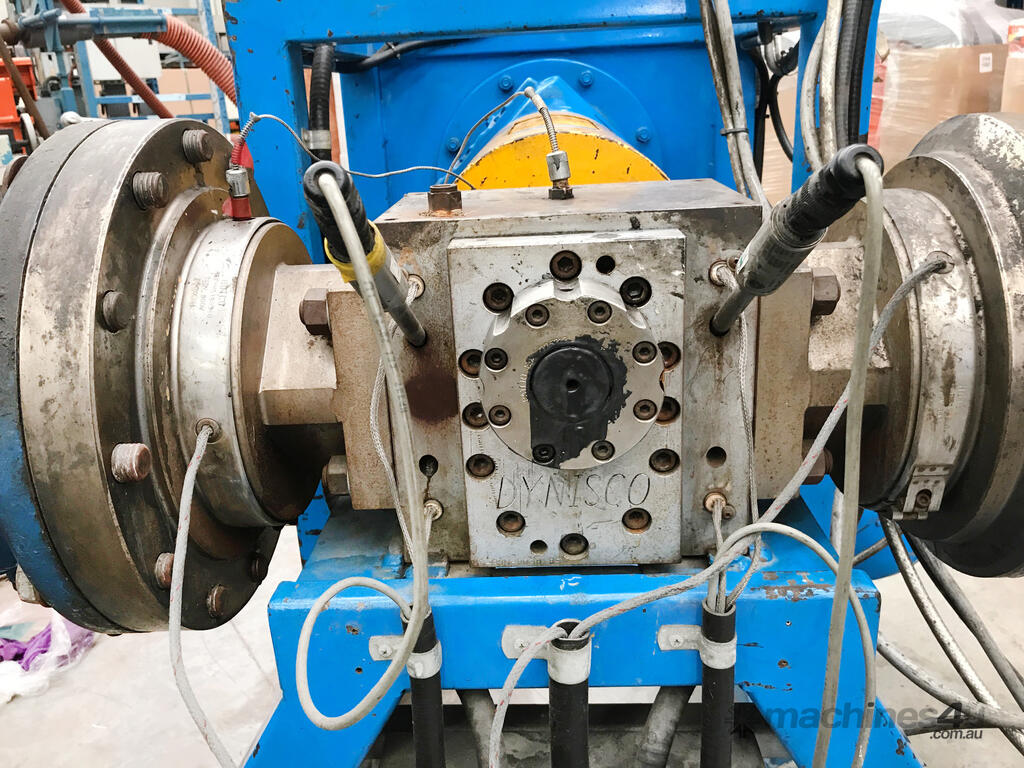

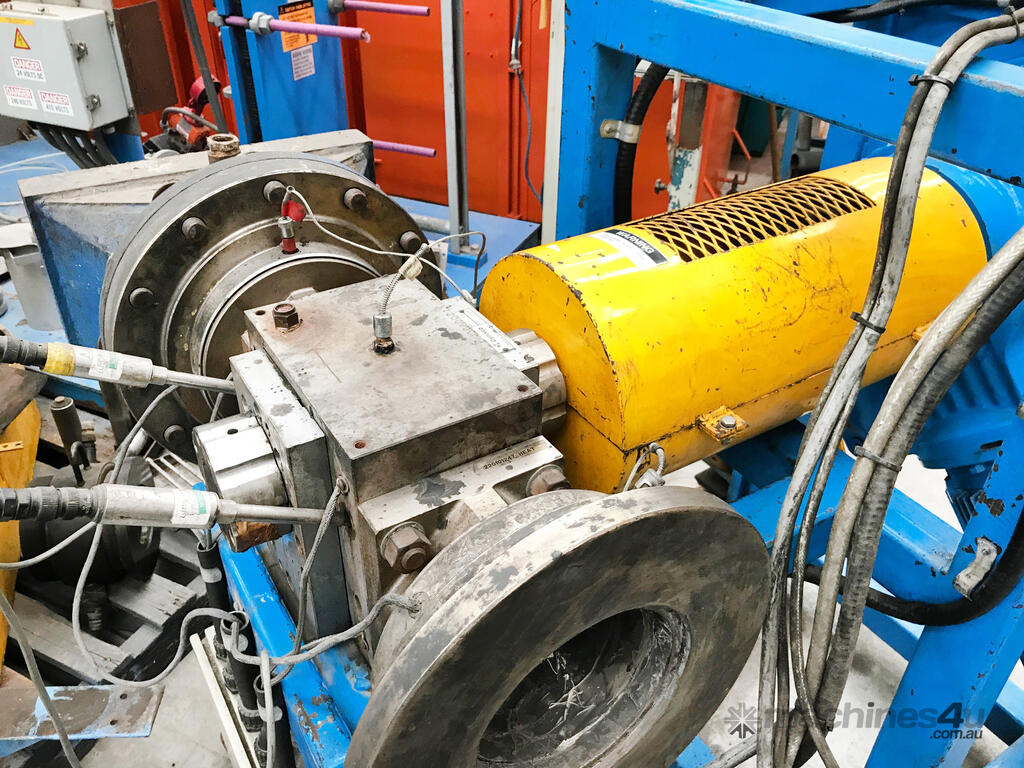

1. Gear Pump – by Dynisco USA
• Model: MJEP-300/300
• Nominal capacity 282.6 cc/rev (16.9 kg/hr/rpm with S.G.=1.0)
• Maximum operating pressure: 5,000 psi
• Maximum operating temperature: 343ºC
• 4 x cartridge heaters, total 4kW, 240V/1ph
• Gear pump body 4140 carbon steel
• Gears – D2 through hardened tool steel
• Special wear resistant bearings
• Seals – 1117 carbon steel
• 4 x pressure transducer ports (2 upstream, 2 downstream)

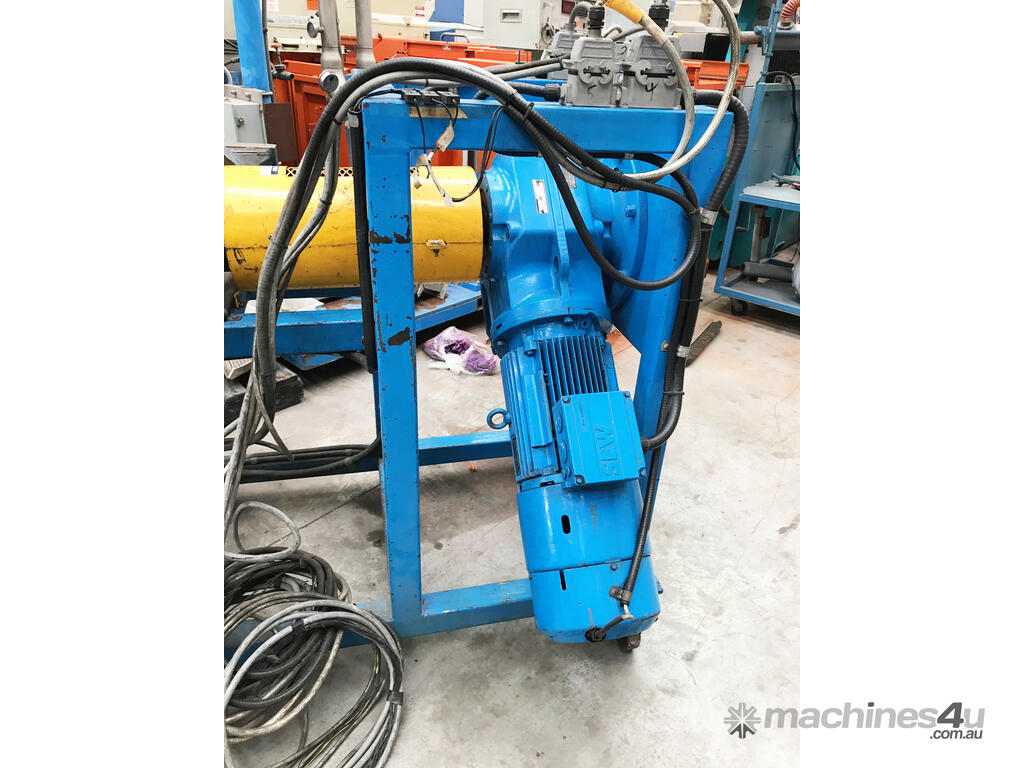

2. 15 HP AC Drive system – by TSE

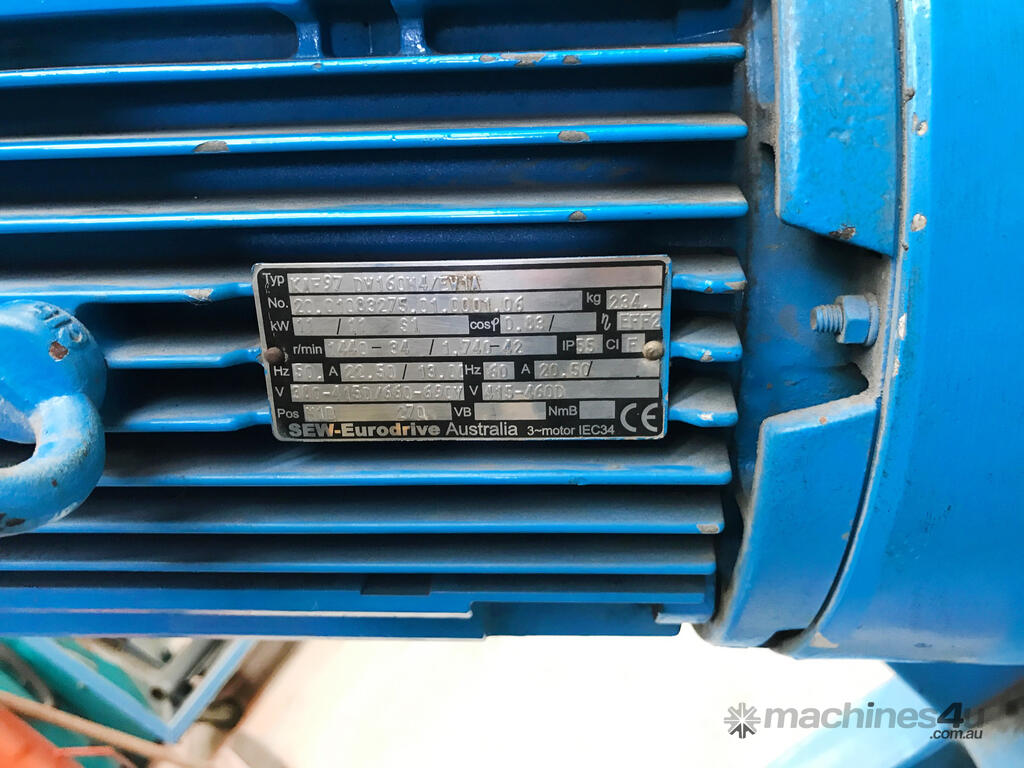

• 15hp AC vector duty motor, encoder feedback

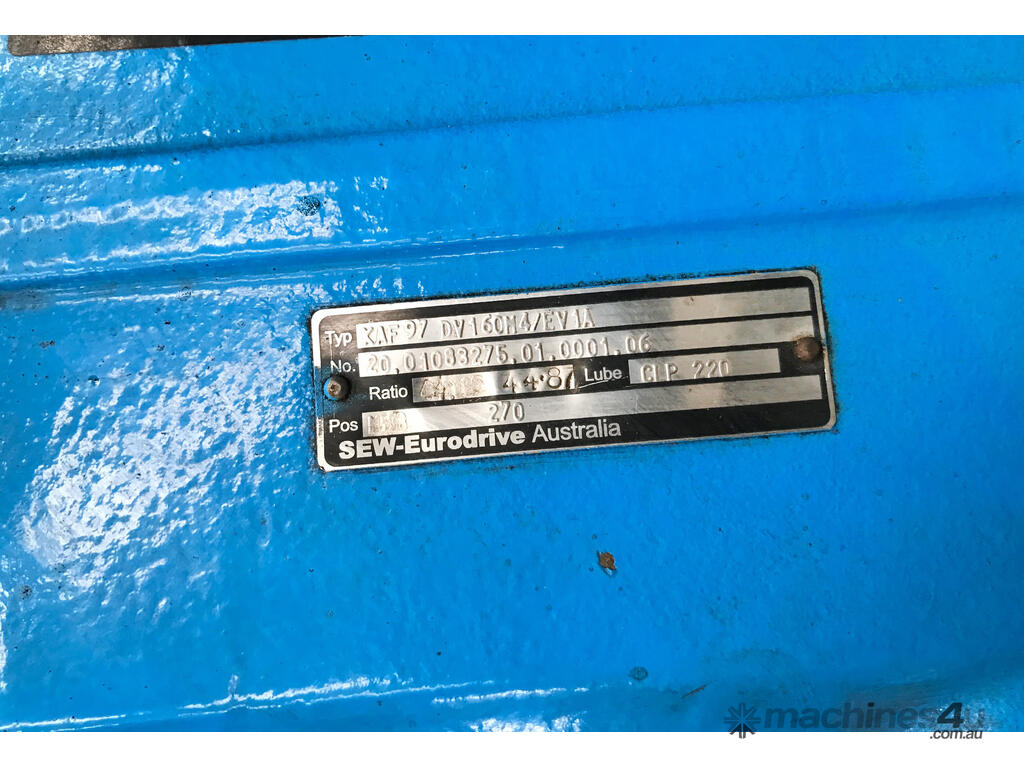

• Right angle gear reducer, 45:1 reduction
• Dual universal drive shaft and guard

3. NEW Gear Pump Control System Analog – by TSE
• Rittal cabinet
• 15hp AC vector inverter
• Upstream and downstream pressure indicators
• 10 turn potentiometer
• auto/manual switch
• All other necessary components
• Inter connecting wiring included, shielded by Adaptaflex

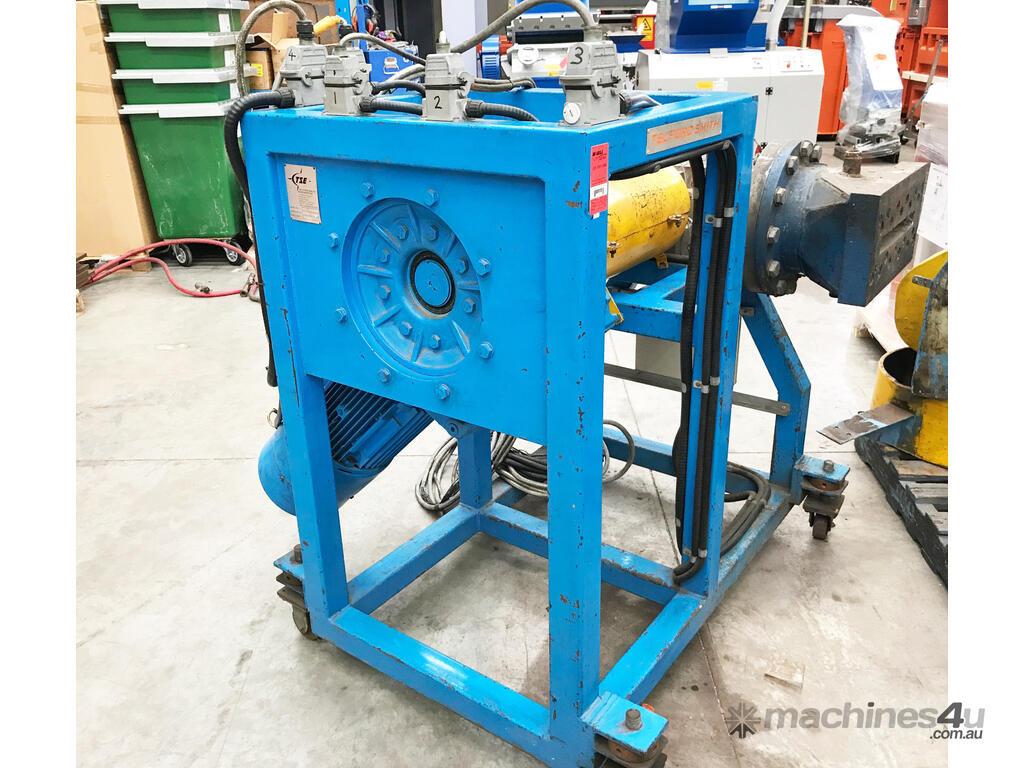

4. Mobile Trolley – by TSE
• Houses all components of system
• 2 x swivel captors and 2 x fixed castors
• Manufactured from heavy gauge steel plate
• Powder coated
