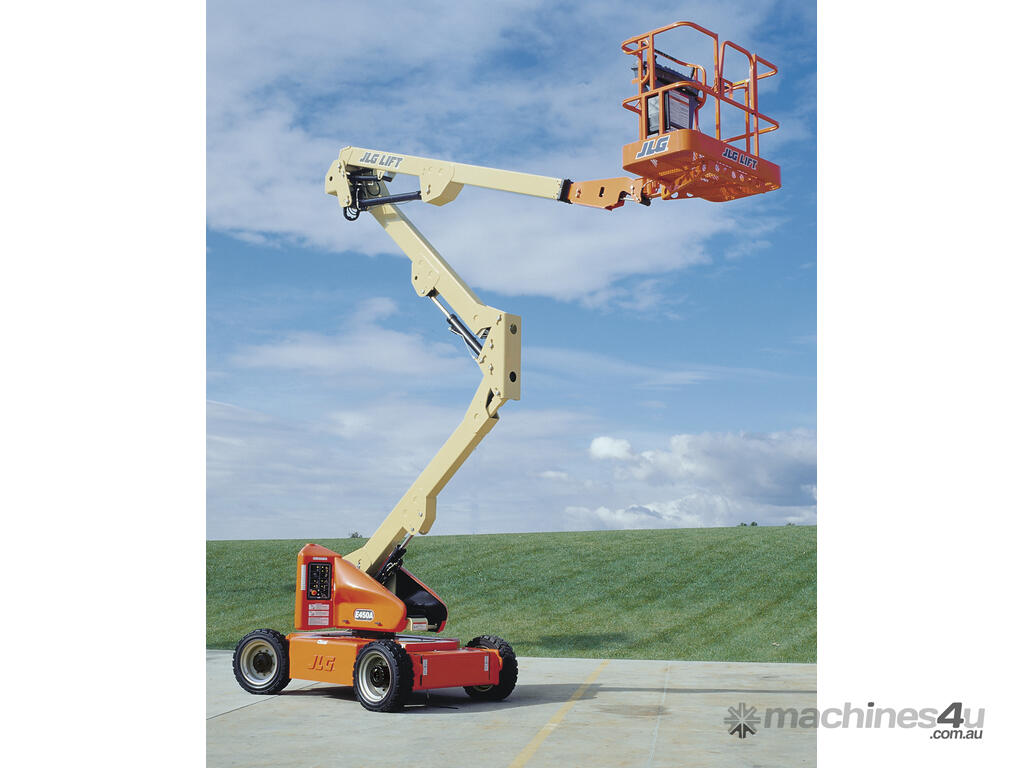

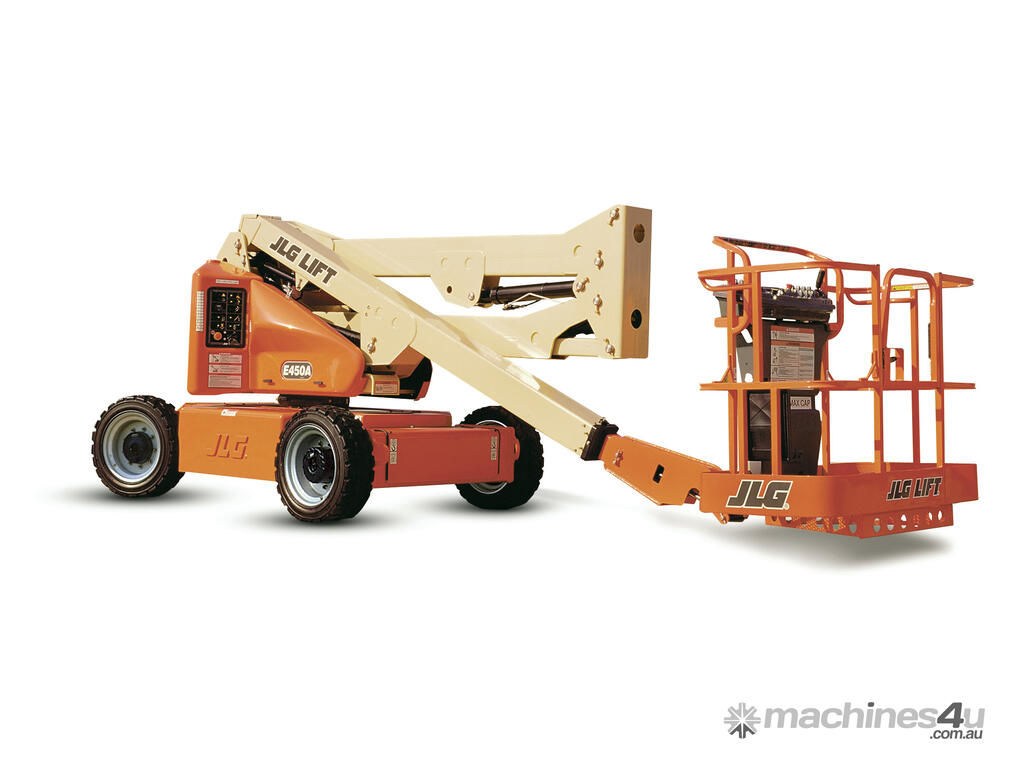

E450AJ Electric Boom Lift - 45 ft Platform Height, 360º Swing, Jib Articulation

JLG - E450AJ Electric Boom Lift
Electric Boom Lifts - E450/M450 Series Electric Boom Lift

Think ORANGE to stay GREEN. Today, more people are demanding environmentally friendly equipment. JLG has a line of electric boom lifts to help your job site stay clean and green. You can go up to 60 feet, and still not have emissions or loud engines.

You can work on slab or off without hesitation with the non-marking all-terrain tires. With the Automatic Traction Control, optional all-wheel drive and oscillating axle, standard on the E600 Series, you won’t need to be shy about travelling over rough terrain.

The optional articulating jib, gives you even greater access to hard-to-reach places. And, the Multi-Power option gives you round-the-clock operation and faster battery charging with the QuikCharge GenSet Automatic Charging System.

Features:
Versatility – Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
Accessibility – up and over access, optional jib
Maneuverability – move over uneven surfaces with the Automatic Traction Control option
Productivity – work longer with longer duty cycles
Environmentally friendly – zero emissions

Quick Specs:
Platform Height Elevated – 45 ft
Overall Width – 5 ft 9 in
Platform Capacity – 500 lb

Chassis:
Drive Speed 3.2 mph / 5.2 kmph
Gradeability 30%
Turning Radius (Inside) 2' / 61 cm
Turning Radius (Outside) 10' 4" / 3.15 m
Tire Size 240/55 x 17.5
Tyre Type Pneumatic

Dimensions:
Platform Size 30 x 60" / 0.76 x 1.52 m
Overall Width 5' 9" / 1.75 m
Tailswing Zero
Stowed Height 6' 7" / 2.01 m
Stowed Length 21' 2" / 6.45 m
Wheelbase 6' 7" / 2.01 m
Ground Clearance 8.5" / 22 cm
Weight* 14,400 lb / 6,532 kg
Ground Bearing Pressure** 75 psi / 5.25 kg/cm²

Reach Specifications:
Platform Height 45' / 13.72 m
Horizontal Outreach 23' 9" / 7.24 m
Up and Over Height 25' 3" / 7.7 m
Swing 360º Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180º Hydraulic
Jib (Range of Articulation) 141º (+86, -55) Vertical

Power Source:
Electrical System 48V DC
Batteries 8 x 6V, 370 amp-hr
Drive Motors Dual Electric Traction
Brakes Spring Applied Multiple Discs
Hydraulic Motor/Pump Perm. Magnet Motor/Gear Pump
Hydraulic Reservoir 4 gal. / 15.14 L
Generator Set (M Models) n/a
Engine Fuel Tank (M Models) n/a
Noise Level 70 dBa 7 meters

Available Options:
-Fall Arrest Platform 36" x 72" (.91 m x 1.83 m)
-Padding for Platform
-Solid Non-Marking Tires
-UL® EE Rating
-1200 W Inverter

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
