EB-320DS Swivel Head-Dual Mitre Metal Cutting Band Saw Dual Mitre Cuts Up To 60º, Quick Action Mate

Name: EB-320DS Swivel Head-Dual Mitre Metal Cutting Band Saw Dual Mitre Cuts Up To 60 Quick Action Mate
Brand: hafco metalmaster
SKU: B067
Price: 5250 AUD
Availability: InStock

QLD, VIC, WA, NSW - Delivers Nationally

VIEW GALLERY

$5,250 AUD($5,775 Inc. GST)
Confirm with seller if additional costs apply

Specifications

Condition:

New

Type of Sale:

In Stock

Year:

Not specified

Make:

Hafco Metalmaster

Model:

EB-320DS

Member Since: Sep 2007

Gold Member

Listings: 4964

Sellers stock ID:

B067

Description

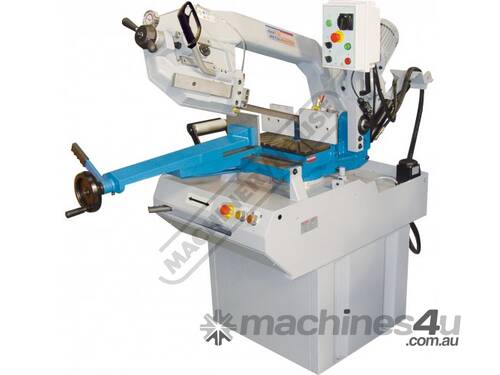

HAFCO METALMASTER EB-320DS Swivel Head-Dual Mitre Metal Cutting Band Saw Dual Mitre Cuts Up To 60º, Quick Action Material Clamp & Includes Hydraulic Downfeed Control 310 x 205mm (W x H) Rectangle Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B067

Manufactured in Taiwan

Features:
310 x 205mm rectangular capacity
Larger cutting capacity than conventional cold saws
Heavy-duty gear drive system
Ball bearing & carbide blade guides ensures minimal blade clearance wear and increases blade life due to less friction
Blade cleaning brush incorporated into blade guide system
Swivel head dual mitre cut to 45º right & left 60º right
Quick action lock/release lever for swivel head
Coolant system for cutting efficiency and blade life
Material support roller for long stock
Adjustable length stop for repetition cutting

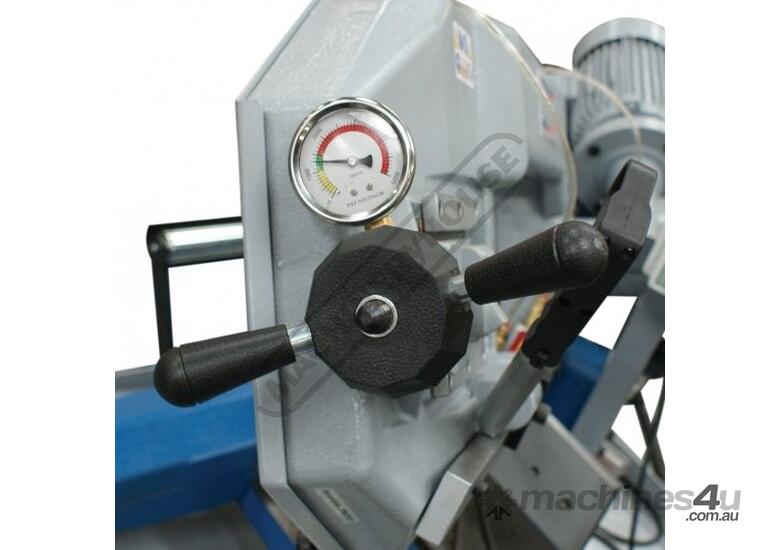

User friendly blade tension system with gauge
Adjustable hydraulic cylinder for auto feed
2-speed motor enabling blade speeds of 35 & 70mpm
Vibration free low noise operation ensures clean & high precision cuts
Machine stand with integrated cooling fitted as standard
Quick-action lock/release vice
Unique sliding vice design for dual mitre operation

Specifications:
ORDER CODE: B067
MODEL: EB-320DS
Operation Type: Swivel Head - Dual Mitre
Operation Type: ~
Round 90º (mm): 255
Round 45º (mm): 220
Round 60º (mm): 125
Square 90º (mm): 205
Square 45º (mm): 200
Square 60º (mm): 125
Rectangle (W x H) 90º (mm): 310 x 205
Rectangle (W x H) 45º (mm): 205 x 200
Rectangle (W x H) 60º (mm): 125 x 125
Coolant System: Yes
Table Working Height (mm): 950
Cutting Head Beam Type: Manual
Cutting Head Beam Return: Manual Return
Cutting Head Down Feed Control: Adjustable Hydraulic
Vice Clamping Fixture: Manual - Quick Action
Bundle Cutting Fixture: ~
Blade Steps / Speeds (m/min): 35-70
Blade Size (L x W x T) (mm): 2750 x 27 x 0.9
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 371
