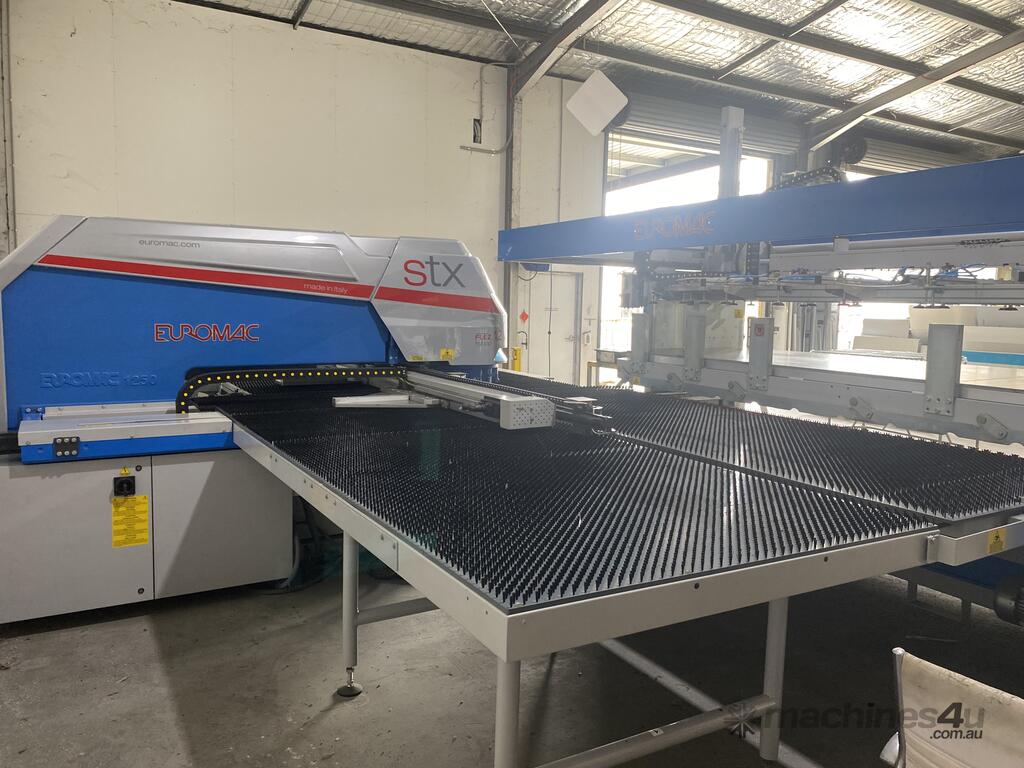

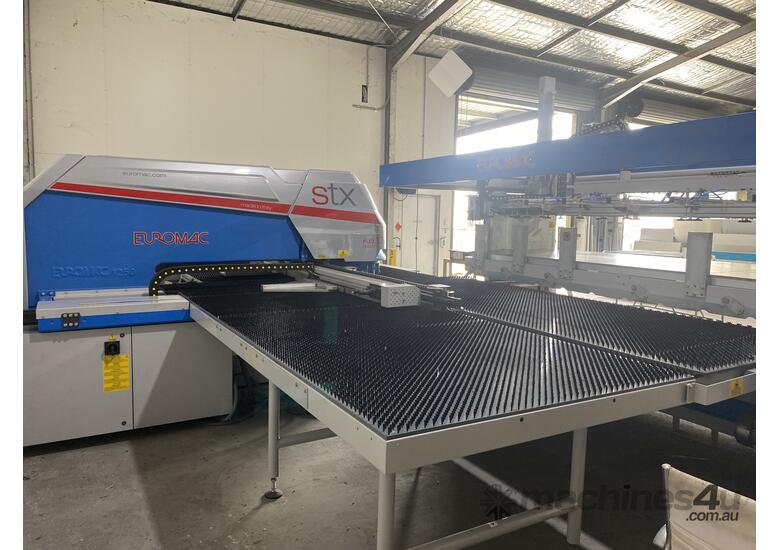

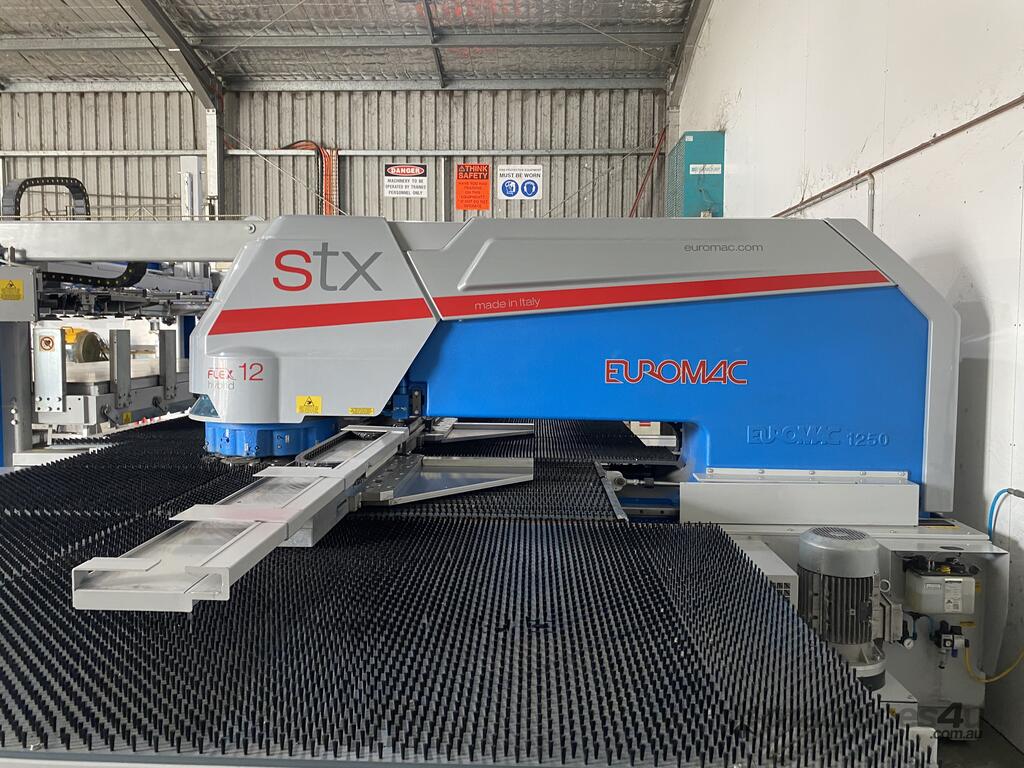

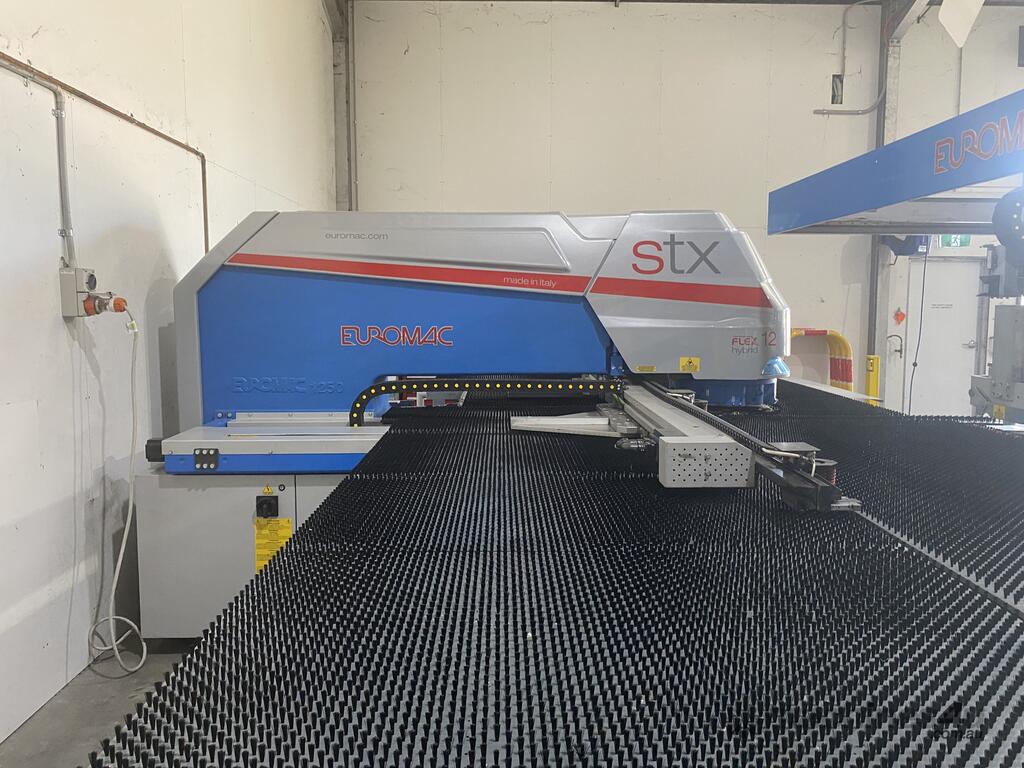

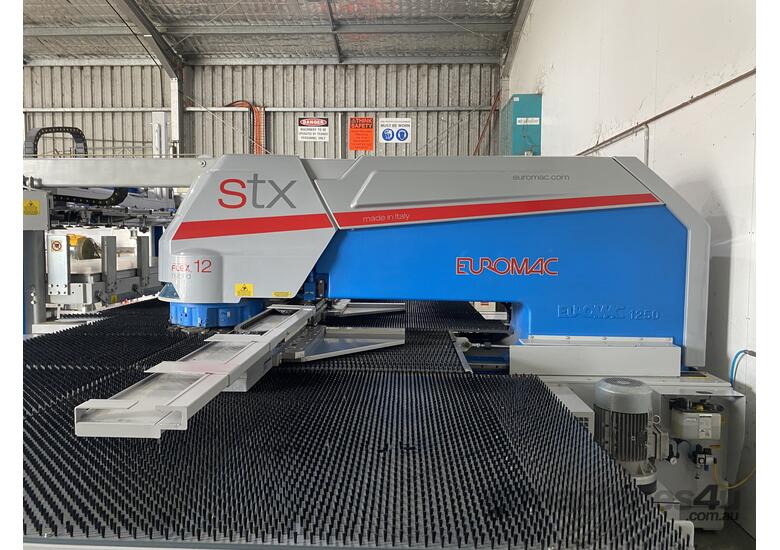

EUROMAC STX FLEX 12 1250/30 x2500

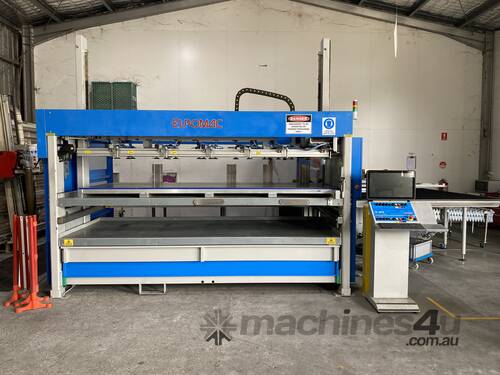

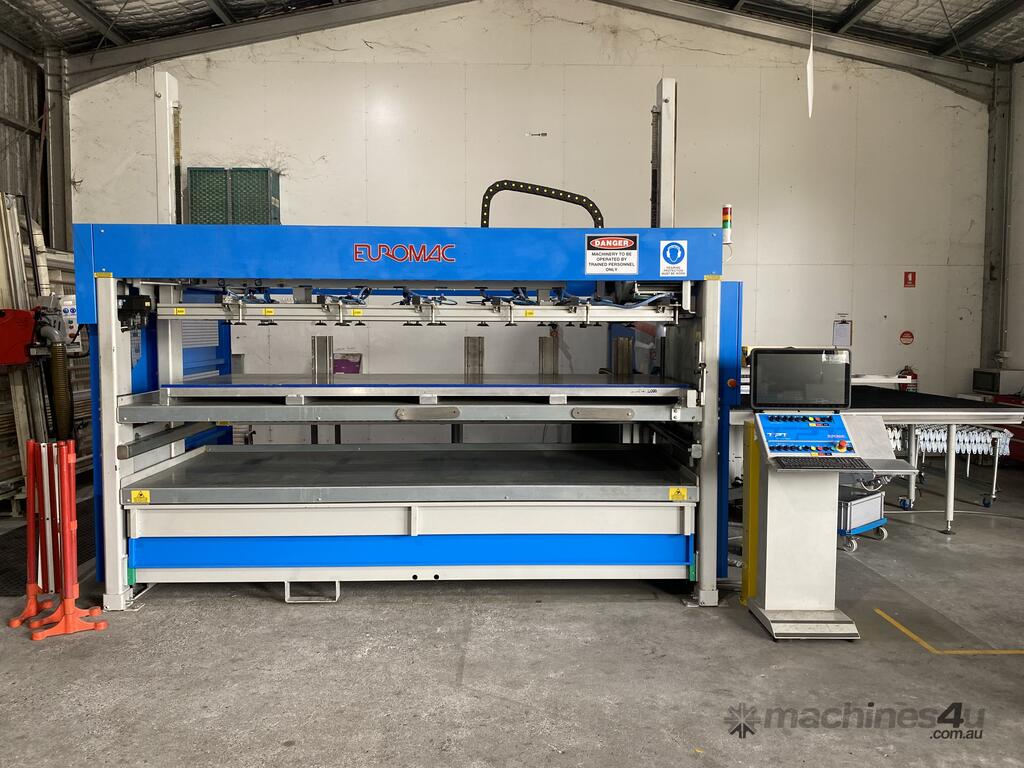

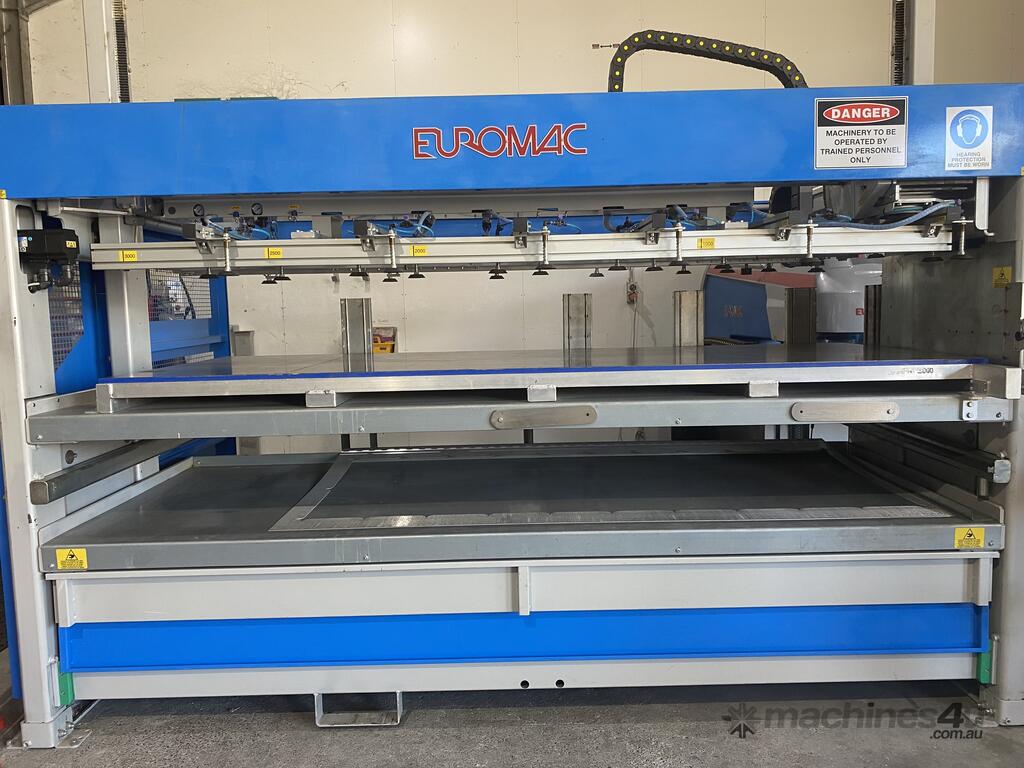

With its unique, compact, rugged
design, the Euromac automatic loading/
unloading system, is available on all
punching machine models (except the
BX) and can be shipped fully assembled:
installation at the customer’s site is
quick and easy and the system is
ready to go into production within just
a few hours.

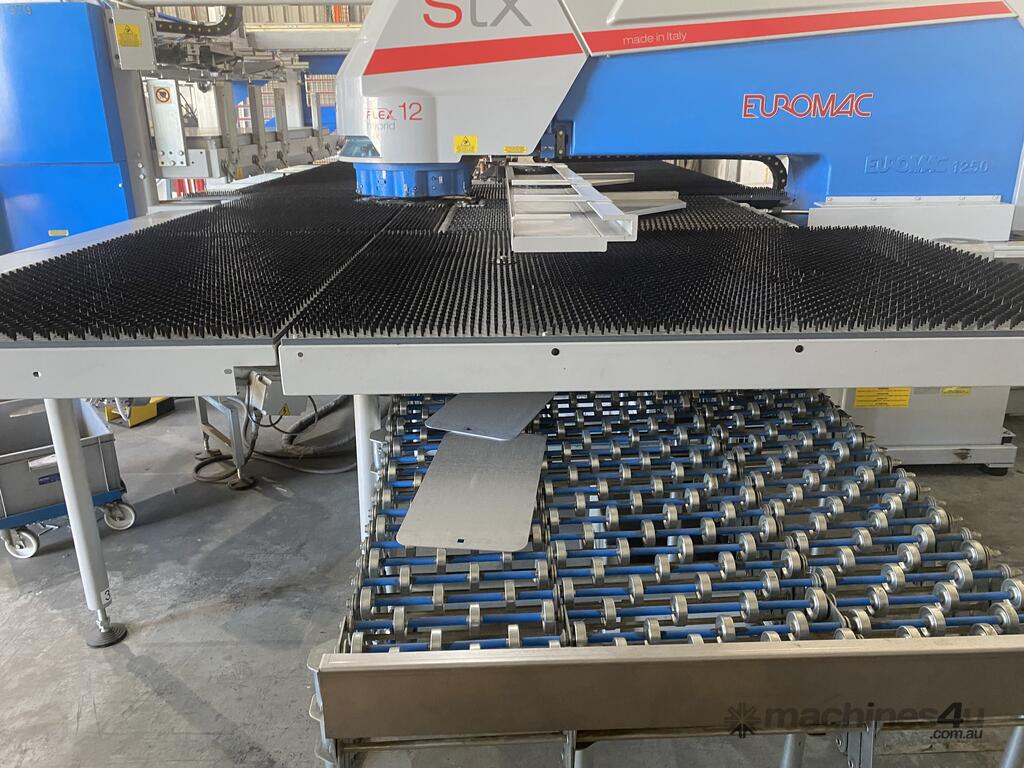

Loading and unloading capacity
Easy loading of material for machining
and unloading of finished parts generates
much higher productivity for you.
Machining capability
As for all Euromac products, flexibility is
key: just one machine can process a vast
assortment of sizes. All sizes between
the stated minimum and maximum
dimensions can be processed.
Max. sheet size (mm) 3000 x 1500
Min. sheet size (mm) 500 x 200
Thickness (mm) 0.5-6
Sheet weight (kg) up to 200
Double sheet loading avoidance
Magnetic blocks Yes
Shaker system Yes
Air blow Yes
Automatic sheet thickness
measuring system Yes
Separator brushes
for non-magnetic materials Yes
Productivity depends not only on the
machine’s throughput capacity but
also on a host of other factors: system
programming and operation can often be
critical, but not with Euromac!

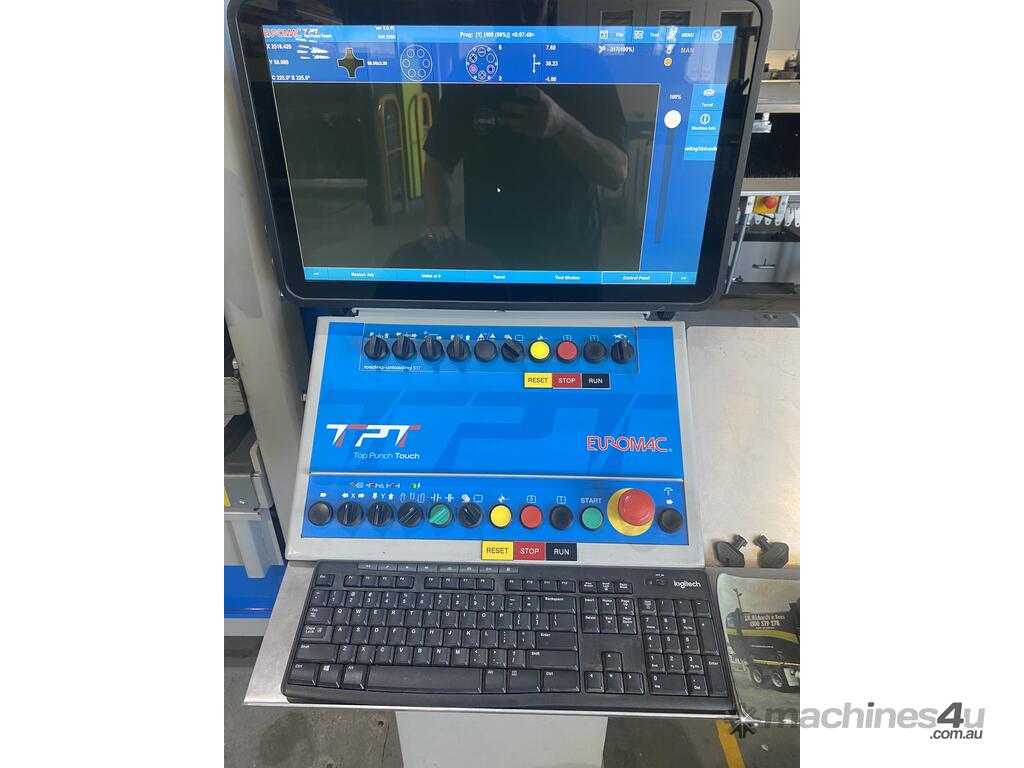

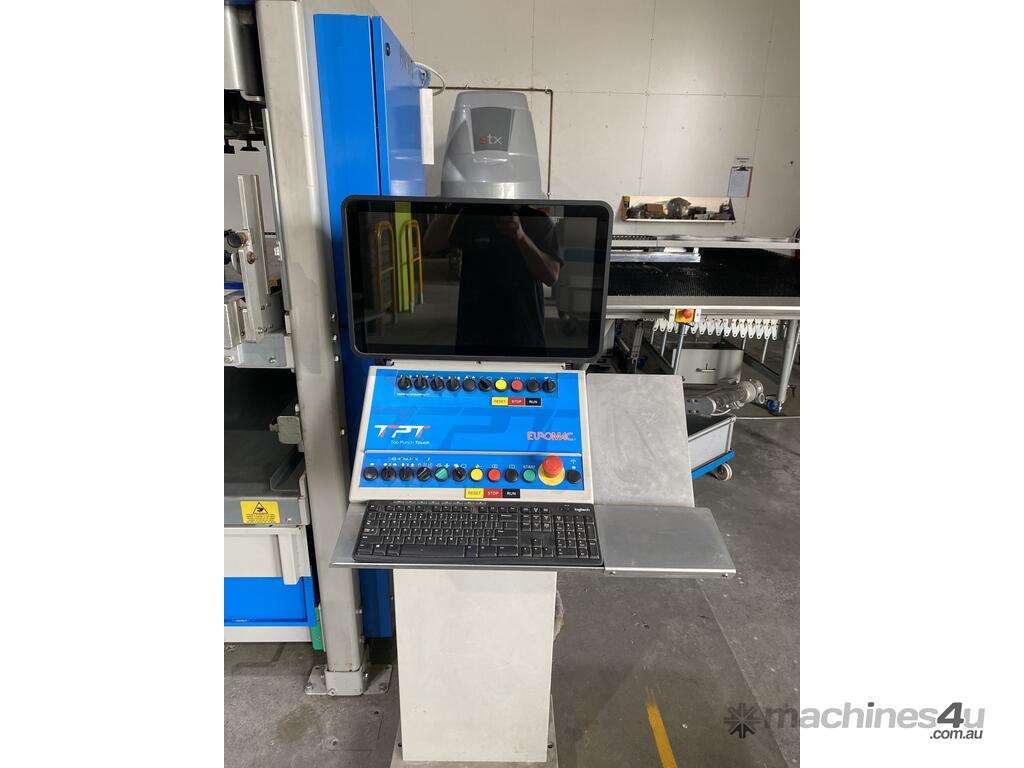

The single console makes programming
and operation of the machine and
automatic loading and unloading system
fast and simple.
Low Space Requirements
Example: an MTX 1250/30-2500 combined
with the automatic loading/unloading
system occupies just L 6270 mm x D 5030mm
