EVERISING Semi-Automatic Band Saw

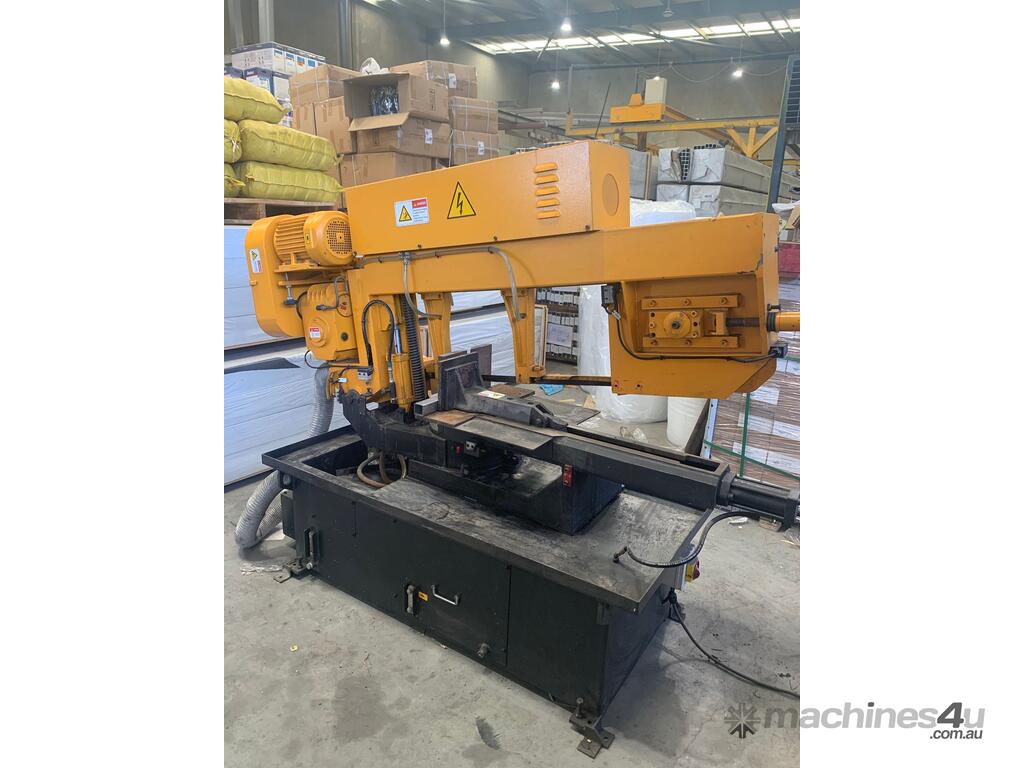

Everising S-4633SA semi auto mitre cutting band saw

This saw is a double mitre cutting metal band saw that's quick to set up, reliable and offers a solid list of included features.

Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.

Specs
- 330 diameter
- 305 x 460 Rectangular
- 305 diameter +/- 45 degrees
- 305 square +/- 45 degrees
- 250 diameter -60 degrees
- 250 square -60 degrees
- Blade speeds: 25, 45, 70, 100 mtr/minute
- Blade Tensioning: manual screw actuated
- Blade Size: 4115mm x 27mm x 0.9mm
- Drive Motor: 3HP
- Hydraulic Pump Motor: 1/2 HP
- Table height: 770mm
- Weight: 800kgs
- Floor Space: 2200mm x 2100mm
- Coolant Pump Motor: 1/8HP

Features
- Saw Frame Angle: -60 deg to 0 to +45 deg
- Double Mitre Cutting
- Angle Swivel Adjustment: manual with graduated scale for setting
- Hydraulic Vice clamping - full stroke
- Manual Nesting Fixture
- Infinitely variable blade speed controlled by an inverter
- Front length stop measurement bar
- Steel scale at base of saw for angle setting
- Hydraulic cutting frame lift up and decent
- Small compact design
- Work light
- Coolant system
- Spray down hose for cleaning the machine
- Pre machined slots in the cutting plate plate for better longevity
- Cutting plate can easily be changed when needed by undoing a few bolts
- Rigid carbide blade guides
- Bearings on the guide arms for better blade tracking
- Adjustable frame up positioning via a limit switch
- Conveniently located control panel with a simple layout
- Blade cleaning brush ensuring better blade tracking on band wheels
- Blade tension pre defined setting
- Interlock Switches on doors
- Centrally located frame down feed adjustment via a steel knob
- Swarf inbuilt collection area
- Blade breakage shut off device
