EWBT-40 English Wheel 1.0mm Mild Steel Capacity 400mm Throat Depth

METALMASTER EWBT-40 English Wheel 1.0mm Mild Steel Capacity 400mm Throat Depth
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S2245

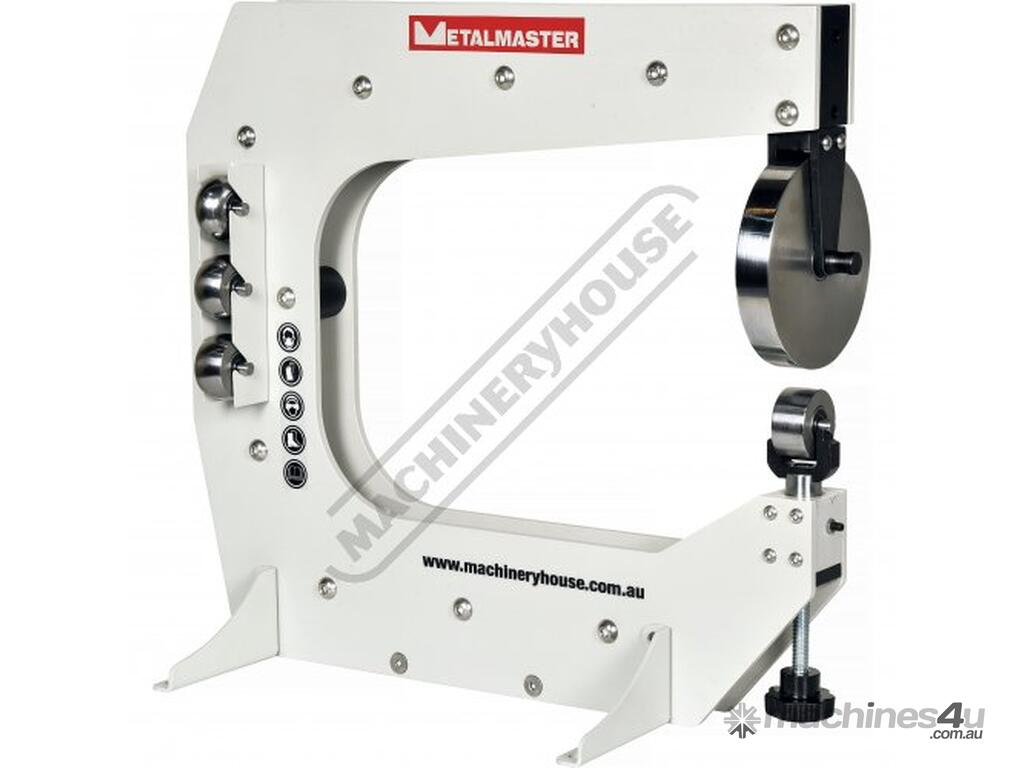

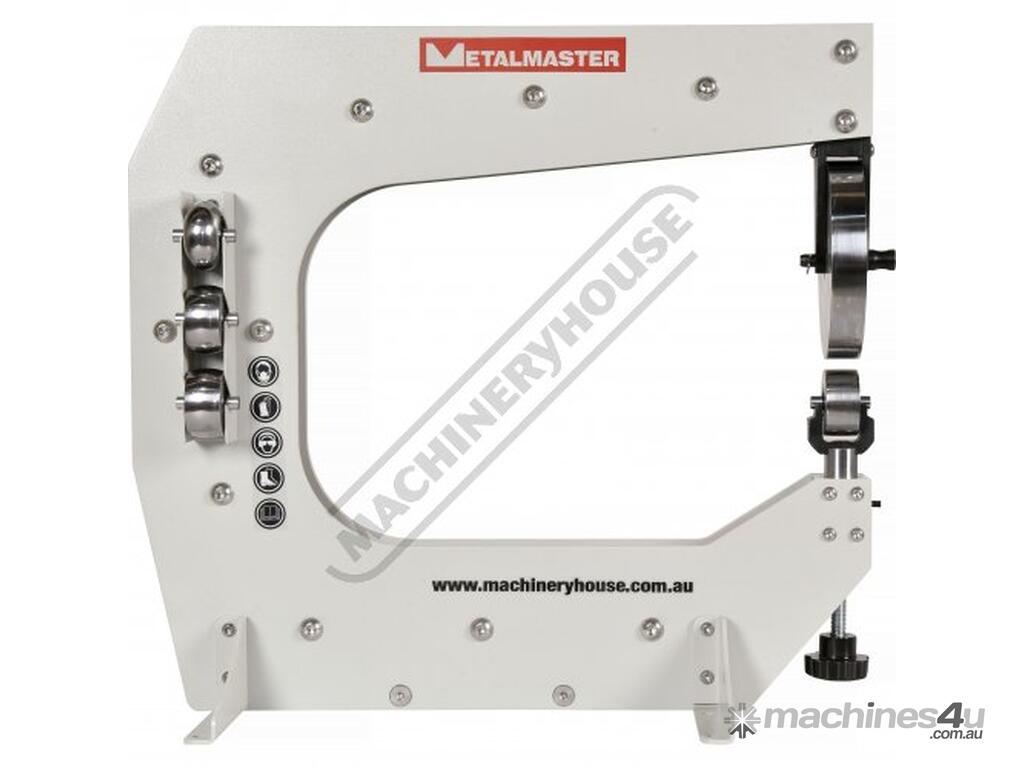

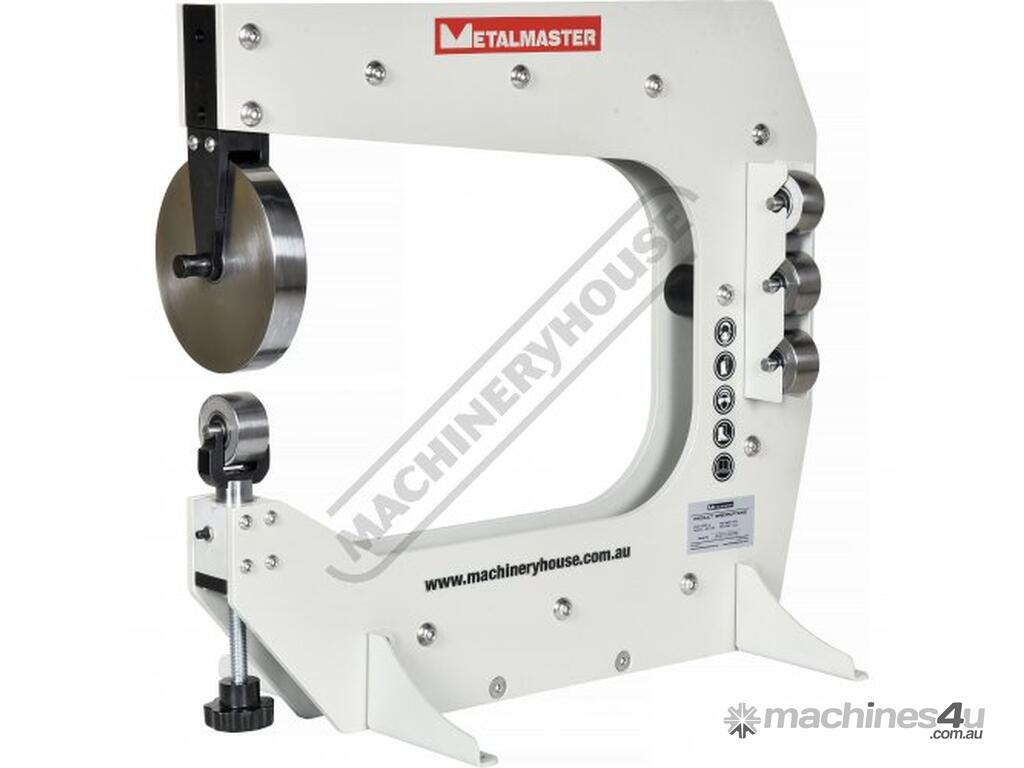

The new Metalmaster EWBT-40 is the perfect addition to any metal shaper’s workshop, ideal for small or narrow jobs where a larger English wheel can’t reach right to the edge. Built with 8 mm thick steel side frames, it’s a solid and reliable performer.

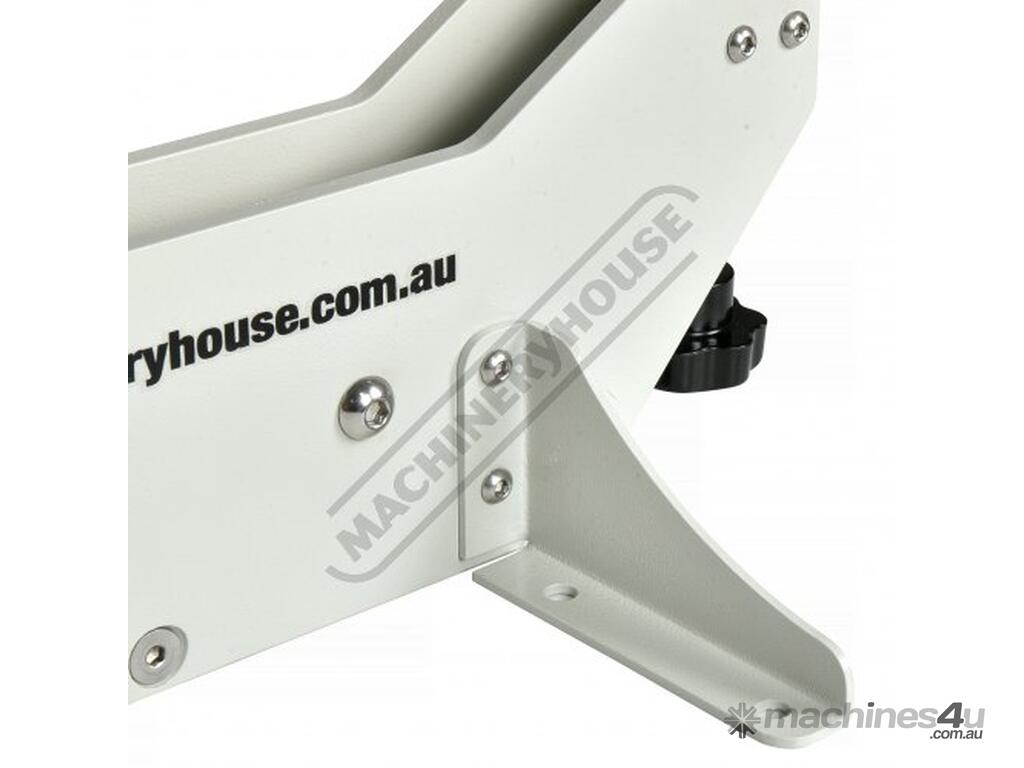

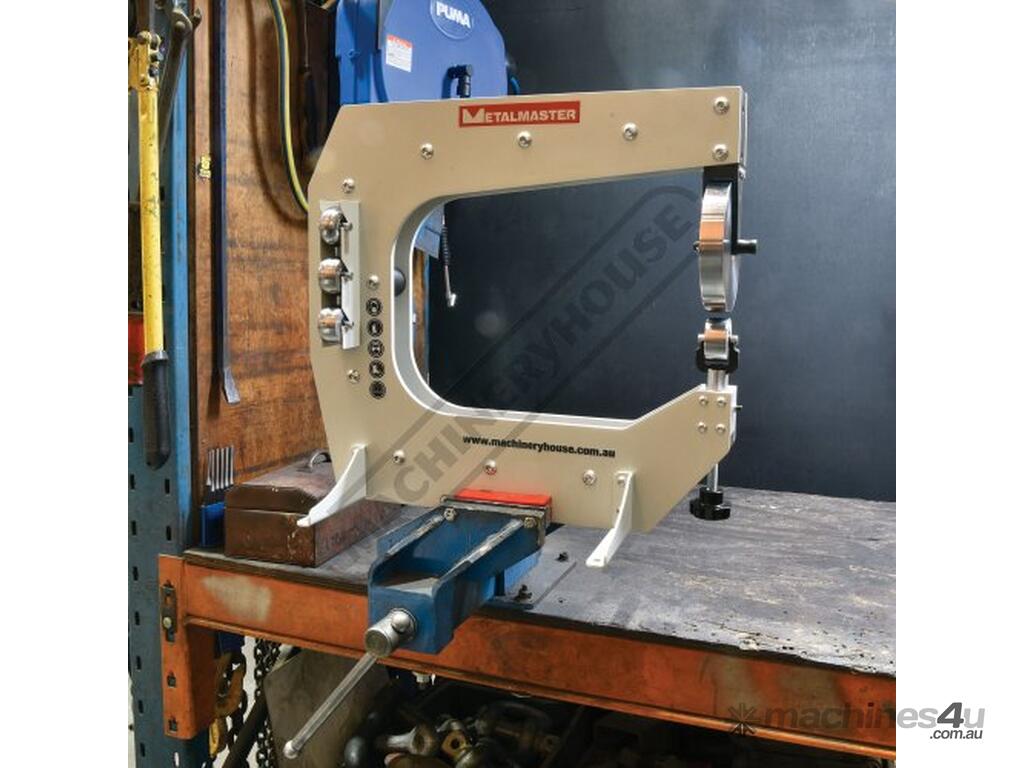

The frame can be bench-mounted using the base feet or clamped in a vice, giving you the flexibility to set it up quickly and store it away when not in use. With a 400 mm throat, it provides ample working room while remaining compact and easy to handle. Capable of shaping mild steel up to 1.0 mm (20 gauge), it’s a versatile machine that punches above its weight.

The upper wheel and seven lower anvils are hardened to 45–50 HRC, ensuring durability and a long service life. A standout feature of this model is the pivoting wheels, which rotate 90° to sit parallel with the frame—making it much easier to handle longer projects.

Features:
400mm throat depth
Heavy duty 8mm thick plate steel side plates
Heavy steel frame spacer at the base for vice mounting
1.0mm mild steel capacity

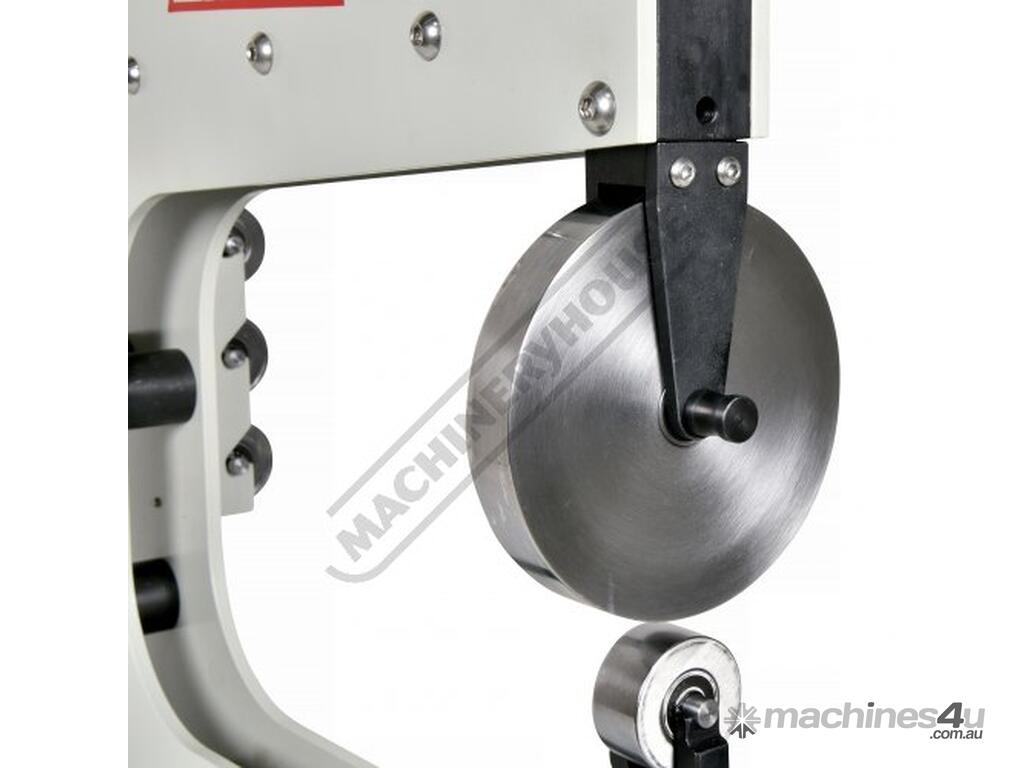

Upper wheel Ø146 x 25.4mm wide

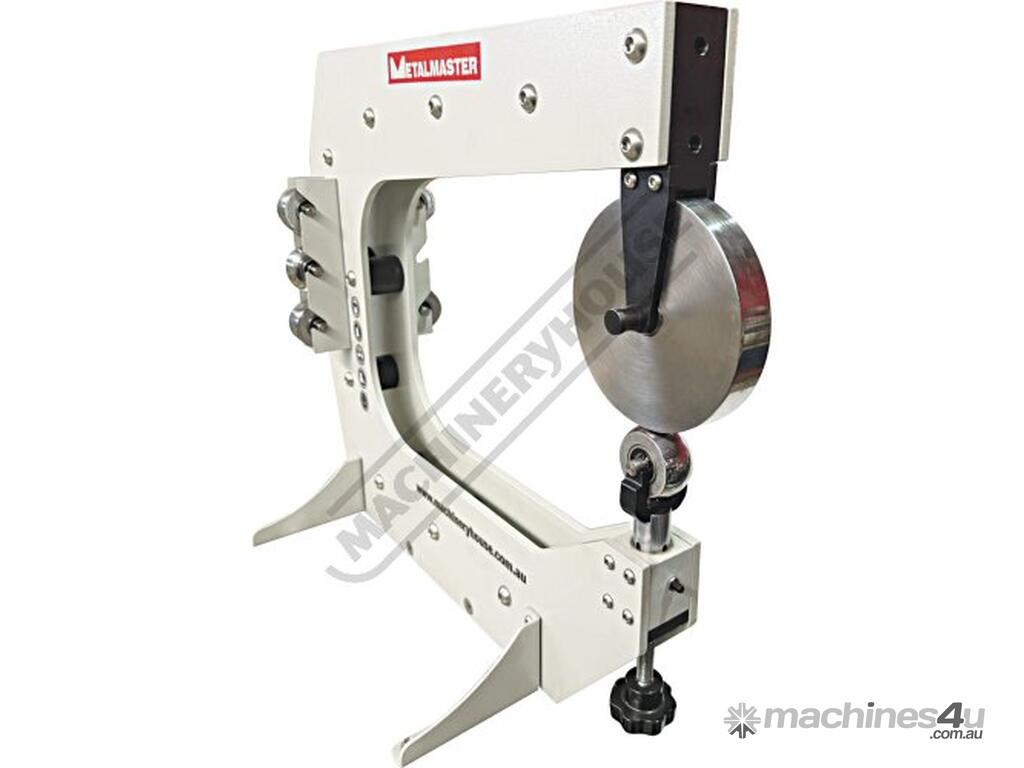

Wheels pivot 90° to align parallel with the frame providing easier handling for extended projects.
Wheel & anvils hardened to 45-50HRC

Includes:

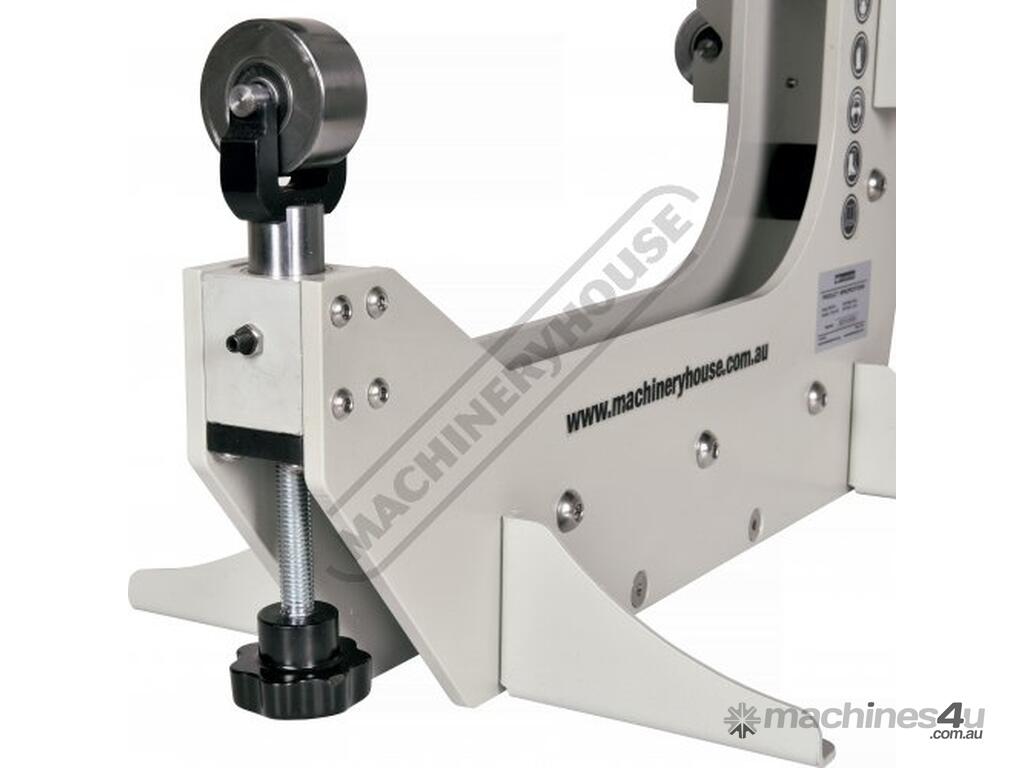

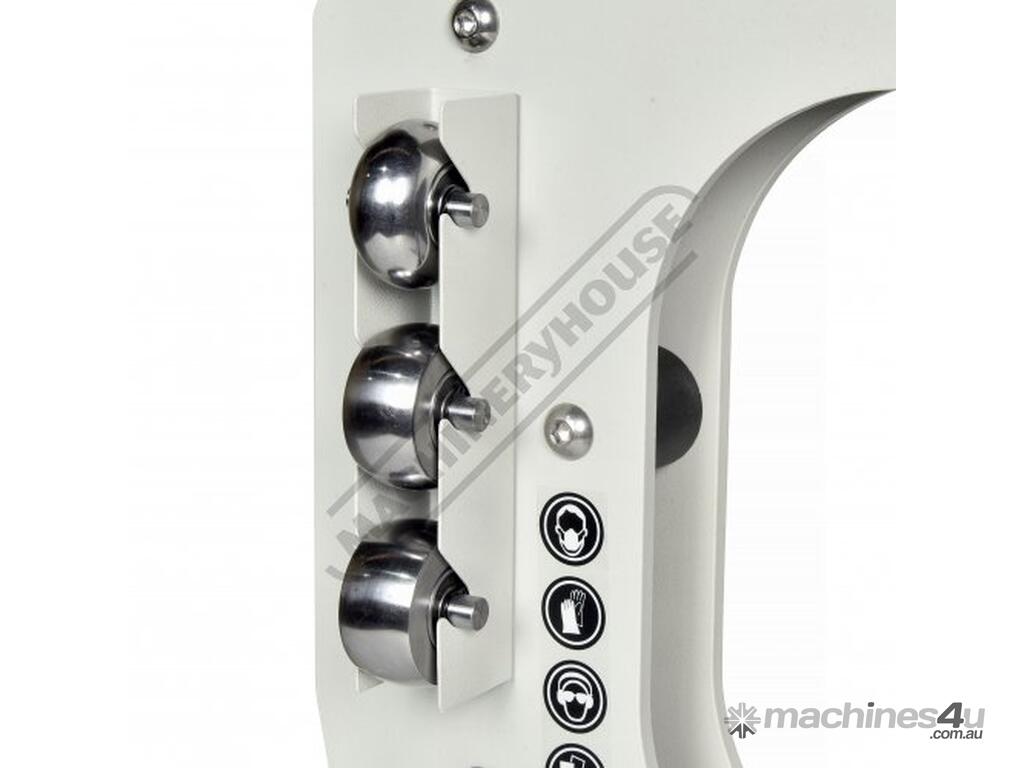

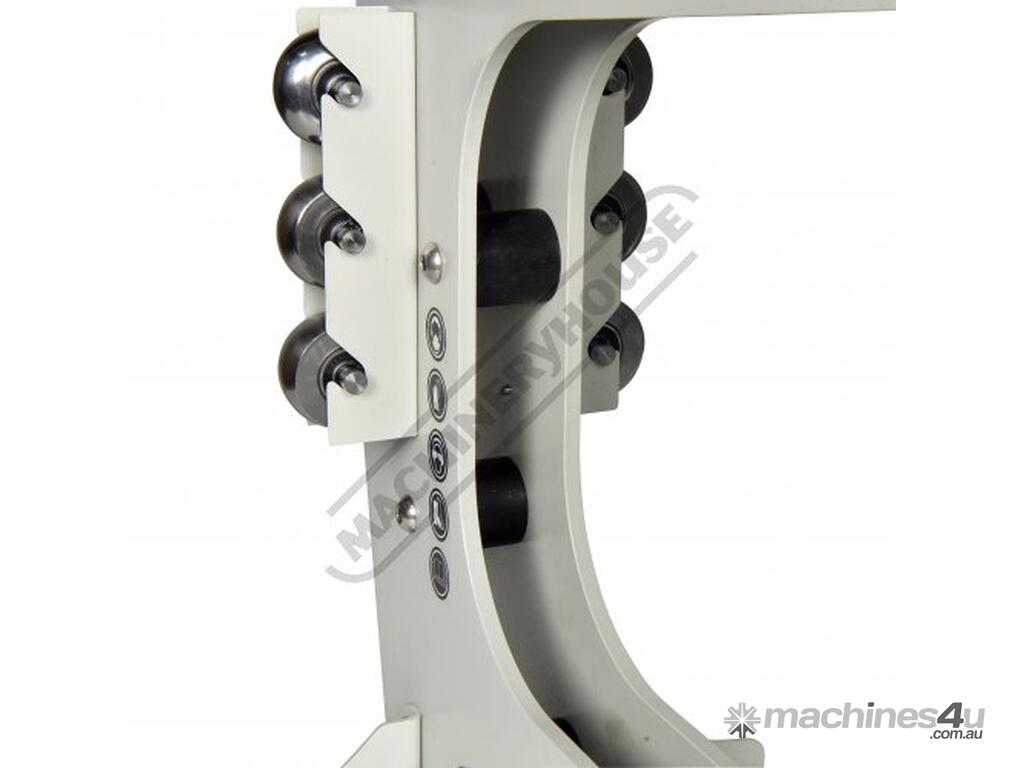

- 7 lower anvils (all 24.5mm wide) in the following radius:
- 12.7mm (1/2")
- 25.4mm (1")
- 38.1mm (1-1/2")
- 63.5mm (2-1/2")
- 127.0mm (5")
- 228.6mm (9")
- 304.8mm (12")


Specifications:
ORDER CODE: S2245
MODEL: EWBT-40
Mild Steel - Capacity (mm / Gauge): 1.0
Aluminium - Capacity (mm / Gauge): ~
Copper - Capacity (mm / Gauge): ~
Throat Capacity (mm): 400
Upper Wheel (Ø x W mm): Ø145 x 25.4
Lower Anvils - Radius (mm): 24.5mm Wide-
Lower Anvils - Radius (mm): 12.7, 25.4, 38.1, 63.5, 127, 228.6, 304.8
Lower Anvils - Radius (mm): ~
Working Height (mm): ~
Nett Weight (kg): 34
