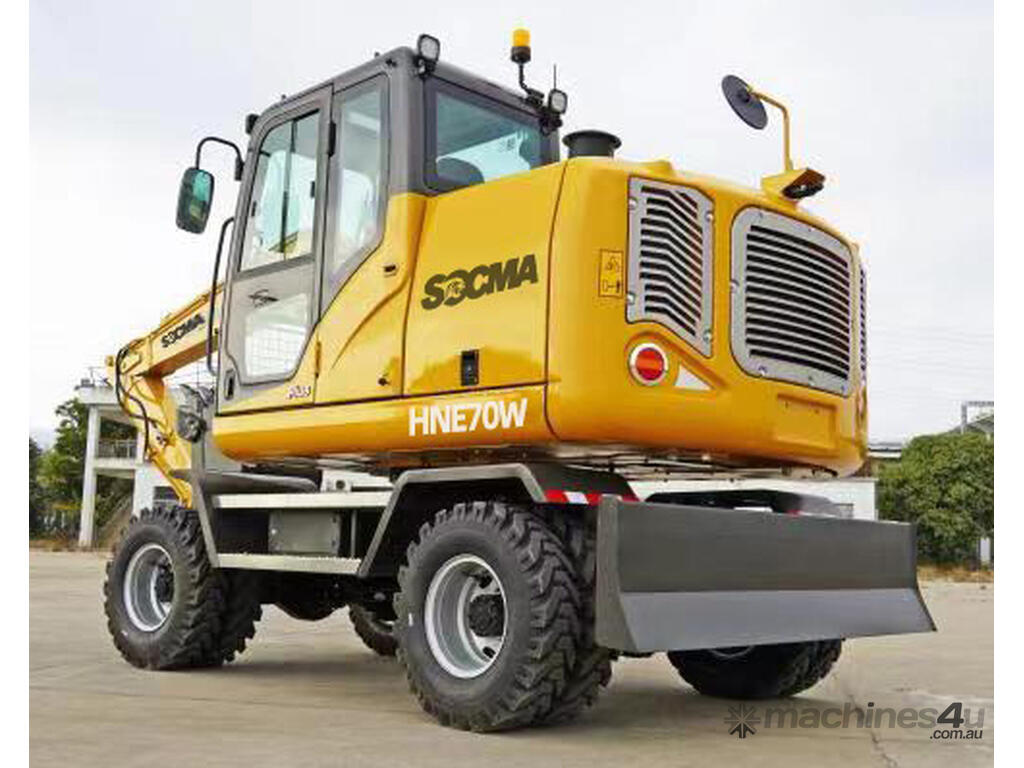

EXCAVATOR 8 TONS, Wheeled, Lift Capacity 1600Kg, Speed 28 K/hr

8 Ton Excavator

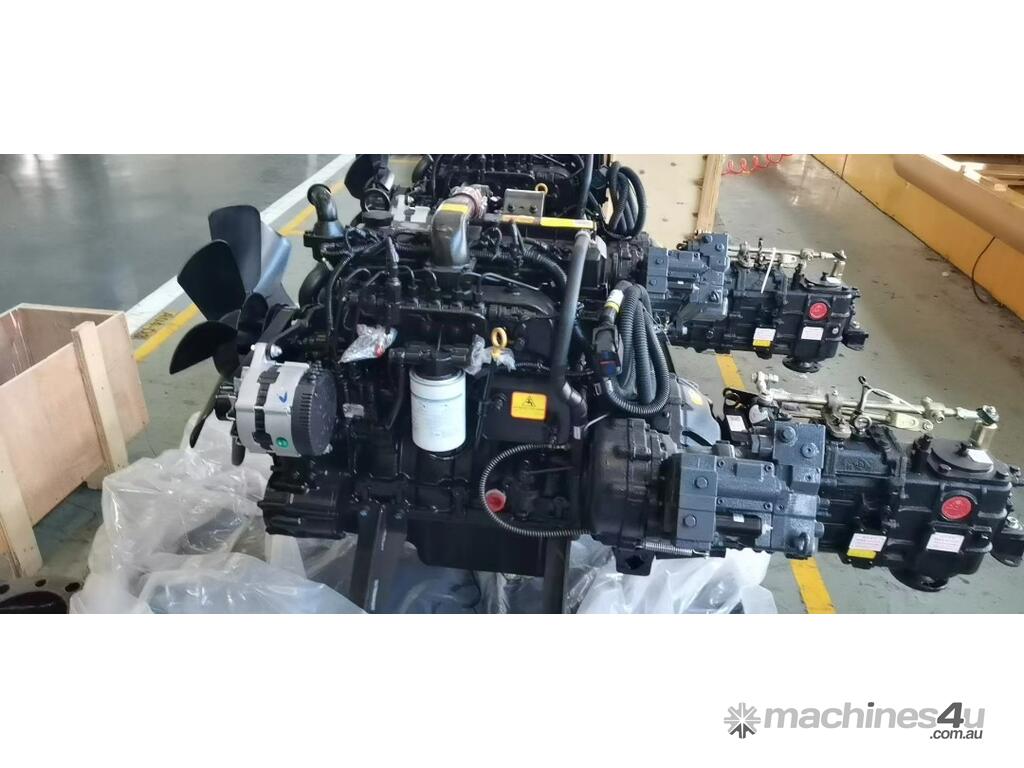

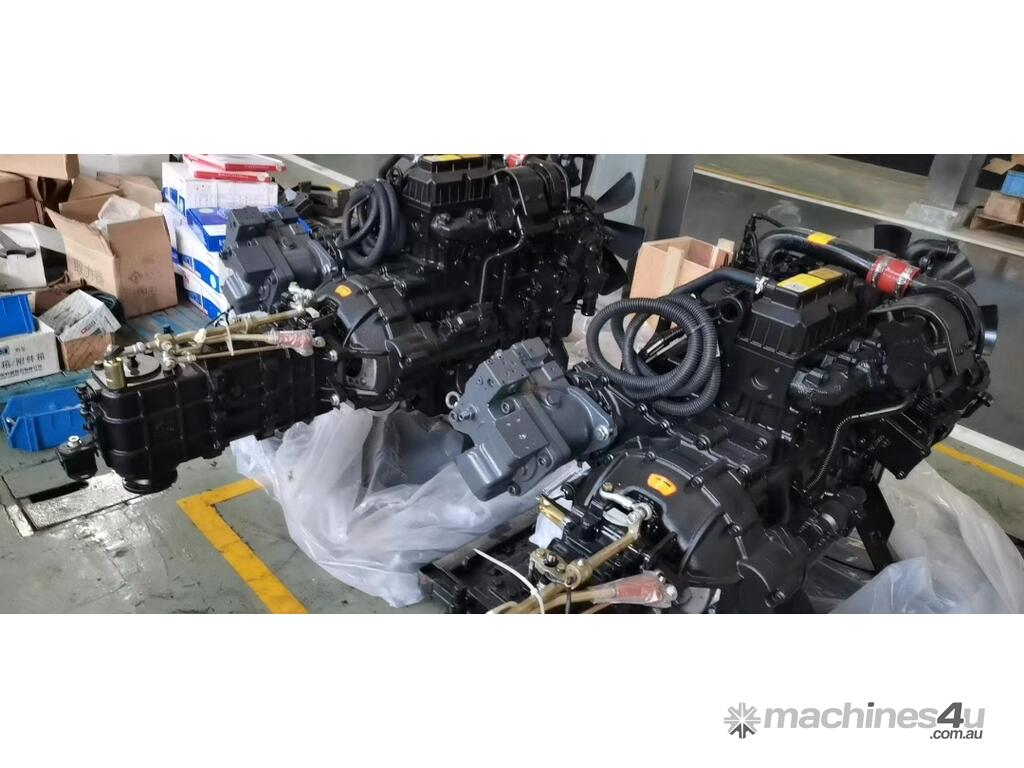

Engine:
Yuchai Power: ......................................................55 kW
Rated Speed: .........................................................2200 r/min
Torque: 315 Nm

Digging Forces:
Bucket Digging Force (ISO): ................................34 kN
Bucket Digging Force (ISO): ................................25 kN

Dimensions:
Full Length: ...........................................................5470 mm
Radius of Rotation: ..............................................1776 mm
Width of Upper Swing Plate:............................... 2100 mm
Total Height of Cab: .............................................2800 mm
Total Tire Width: ...................................................2150 mm
Minimum Ground Clearance:............................... 220 mm
Wheelbase: .............................................................2450 mm
Maximum Bulldozer Drop:.................................... 50 mm
Bulldozer Blade Height: .........................................340 mm
Dozer Blade Departure Angle: ...............................40°

Weight:
Total Weight: ...........................................................6850-7500 kg

Lift Capacity:
Close: .......................................................................1600 kg
Far:............................................................................1000 kg

Hydraulic System:
Main Pump: ..............................................................2 plunger pumps
Maximum Flow of Main Pump:.............................. 2 x 55 L/min
Steering Pump: .........................................................1 gear pump
Pilot Pump Maximum Flow: ....................................34 L/min
Pilot Pump: ................................................................1 gear pump

Drivetrain:
Machine Driving Wheel: ............................................4-wheel drive
Shift Method:............................................................. Mechanical shift

Performance:
Tire Size:..................................................................... 8.25-16
Maximum Speed: .......................................................28 km/h
Gradeability: ................................................................70% (35°)
Swing Speed:............................................................... 9 rpm
Minimum Turning Radius: ..........................................1930 mm
Swing Range of Front Axle: ........................................0 ±7°

Braking:
Braking Method: ..........................................................Wheel hub air brake

Fuel & Hydraulic Systems:
Fuel Tank Volume: .......................................................140 L
Hydraulic Oil Tank Volume: ........................................150 L

Viscon International specialises in the supply of demolition machines to recycling, maintenance of greenery, road maintenance, right up to a complete line of earthmoving machinery. Inquire now to score some great machinery.
