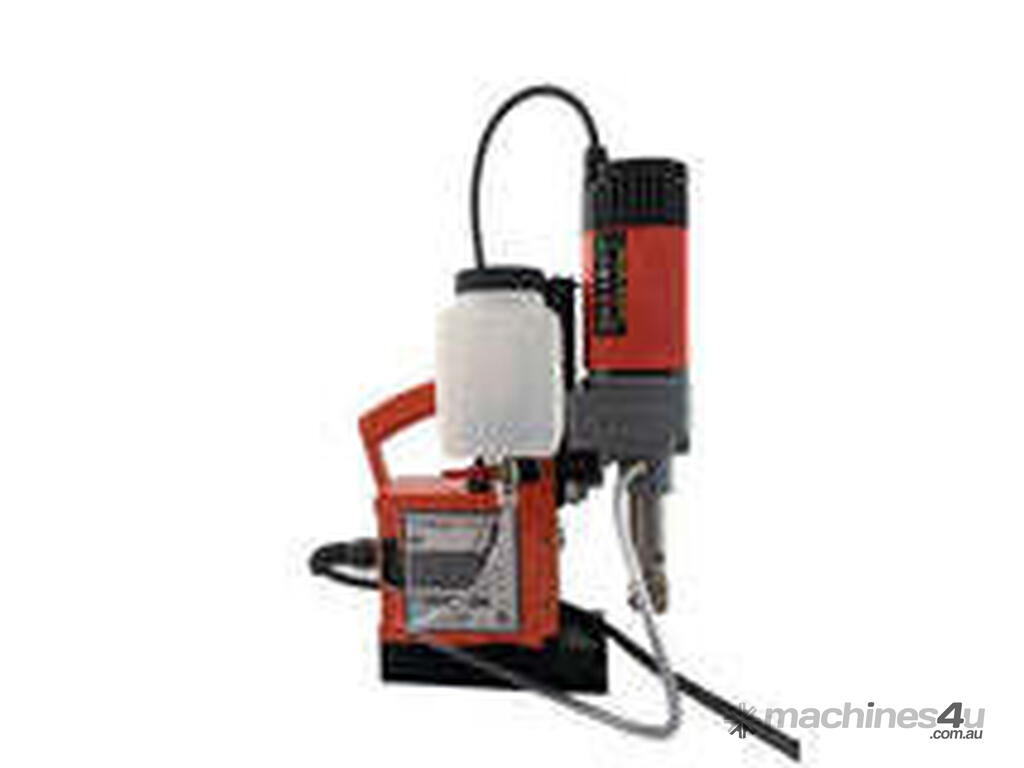

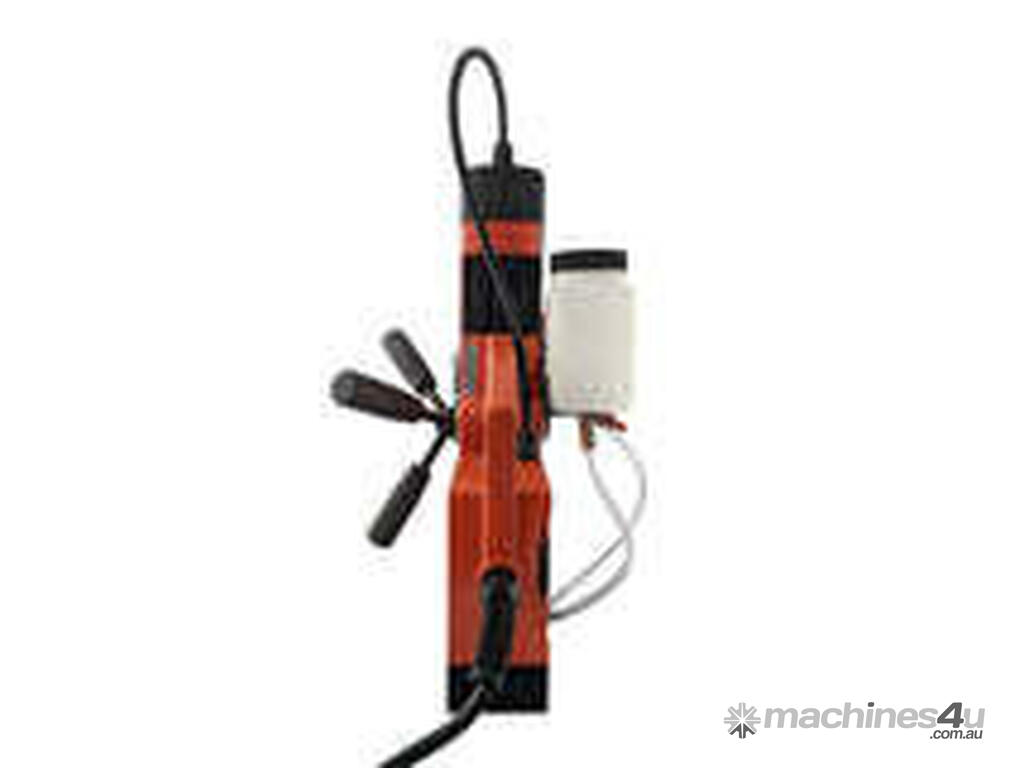

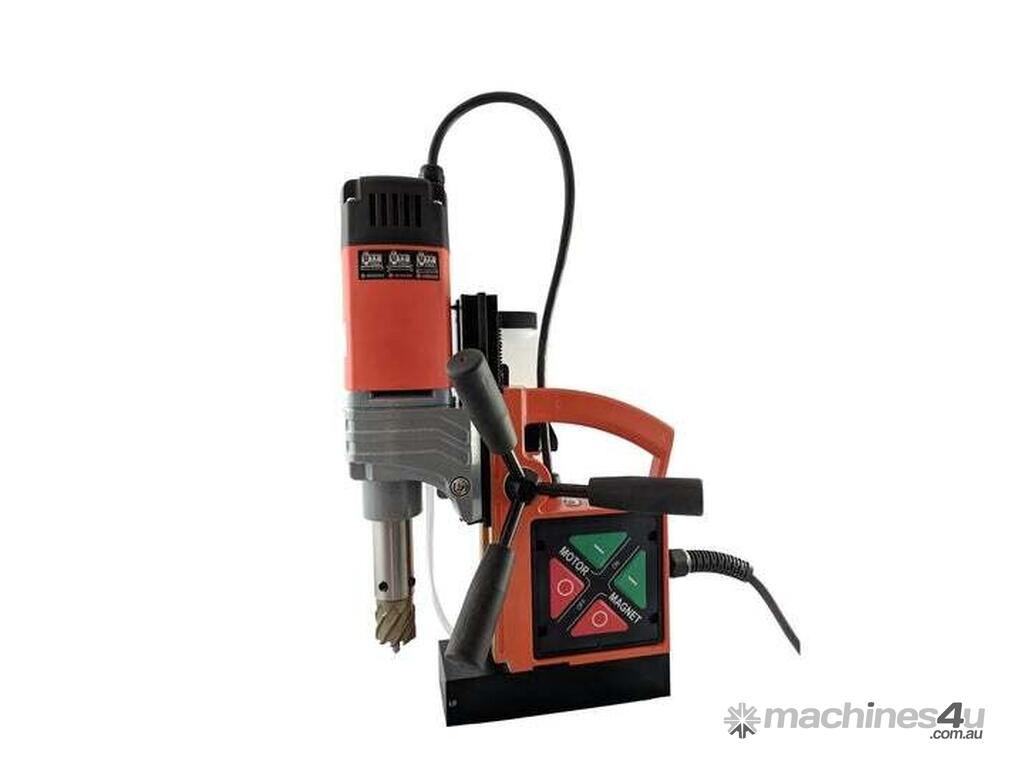

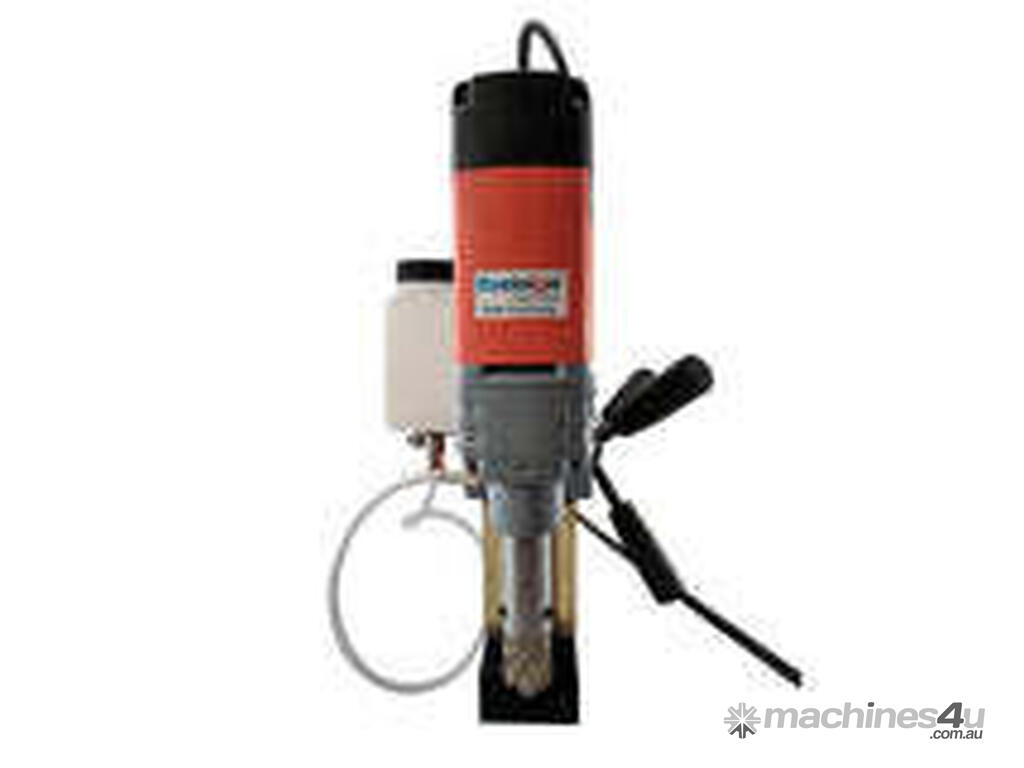

EXCISION MAGNETIS DRILL EM40, 12-40MM 50 DEPTH

The EM 40 is the flagship of Excision's Magnetic based drill range.

With 40mm capacity and advanced safety features, this is the machine for industrial workloads.

Double height adjustment allows a broad range of applications including the use of a standard 13mm chuck and jobber drill.

2 Coil 9,000N Magnetic adhesion for industrial use
Spring loaded guides for rigid gliding and reduced vibration
Height adjustable slide enables an increased range of applications including standard twist drills
Smart start feature protects the motor to increase longevity
Direct Weldon arbor type spindle for use with all 19mm shank core drills

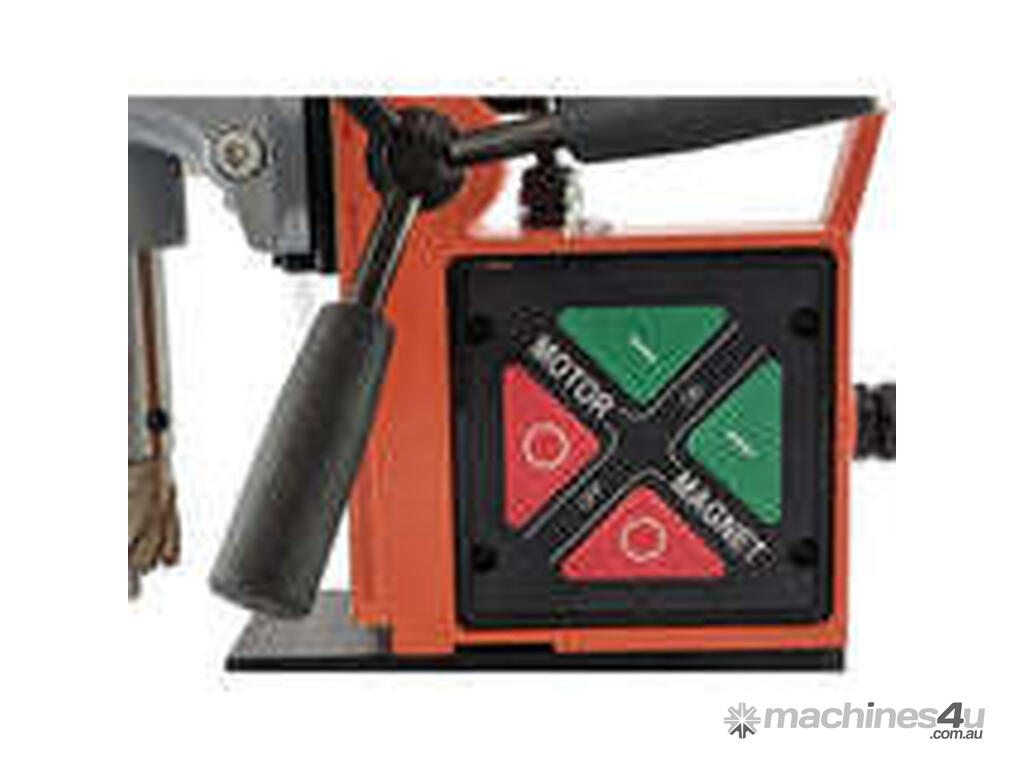

Durable touch pad for ergonomic use
Hybrid relays to protect circuit board from voltage spikes

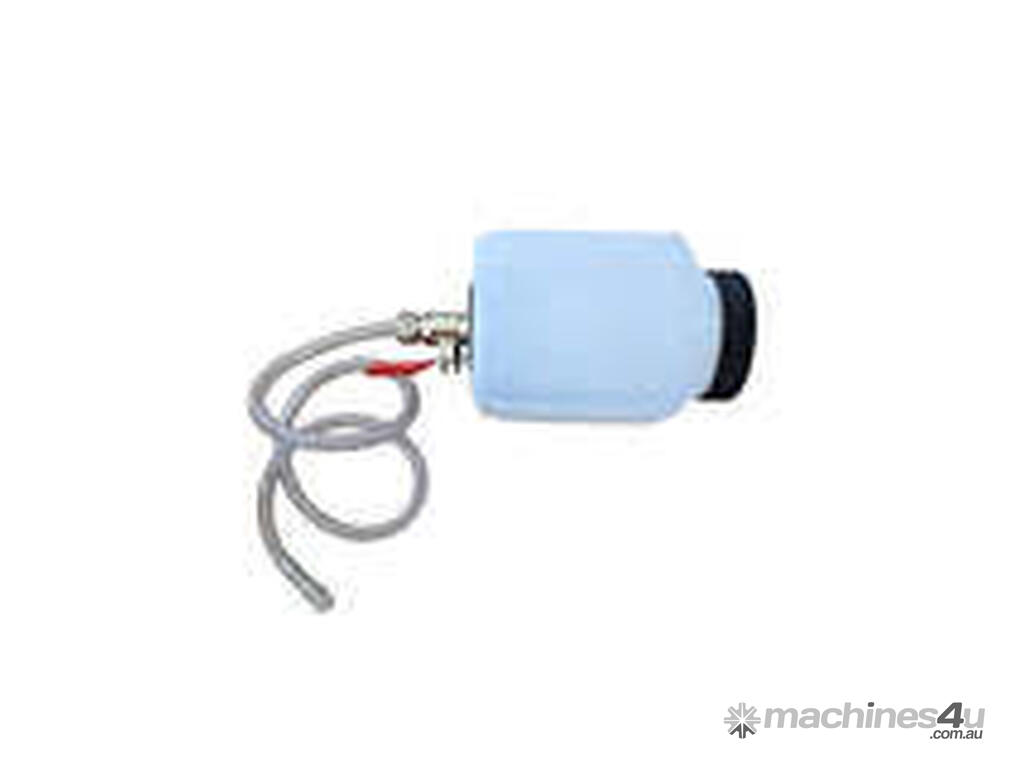

Integrated coolant system to increase the life of your core drills

Drill Features and Specifications
Core Drill Dimensions 12.0-40.0mm
Cutting Depth 50.0mm
Twist Drill
1.0-13.0mm

Counter-Boring
10.0-40.0mm

Arbors
Quick-Release Chuck

Stroke
129mm

Height Adjustment
86mm

Gearbox-On-load Speed
450rpm

Power Consumption
1,100W

Voltage
230V 50/60Hz

Tool Force (10mm)/Magnetic Adhesion Strength
2,100N/9,000N

Magnetic Base
70×185mm

Weight
11.5Kg
