EXIMUS CENTRE LATHE 240V

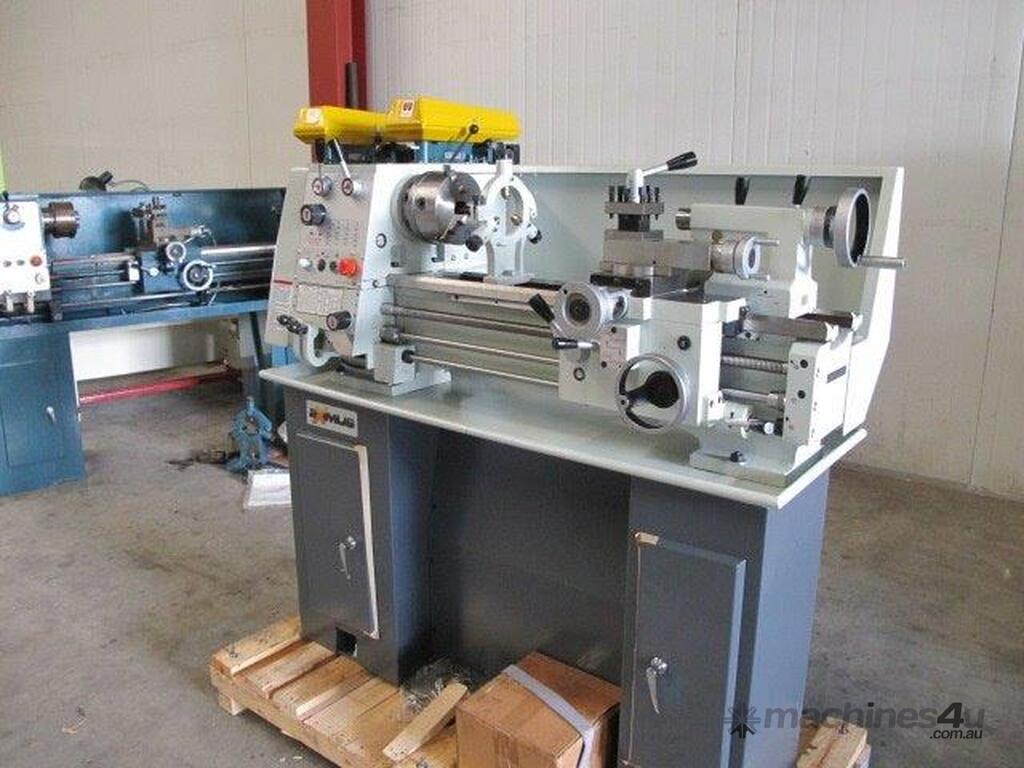

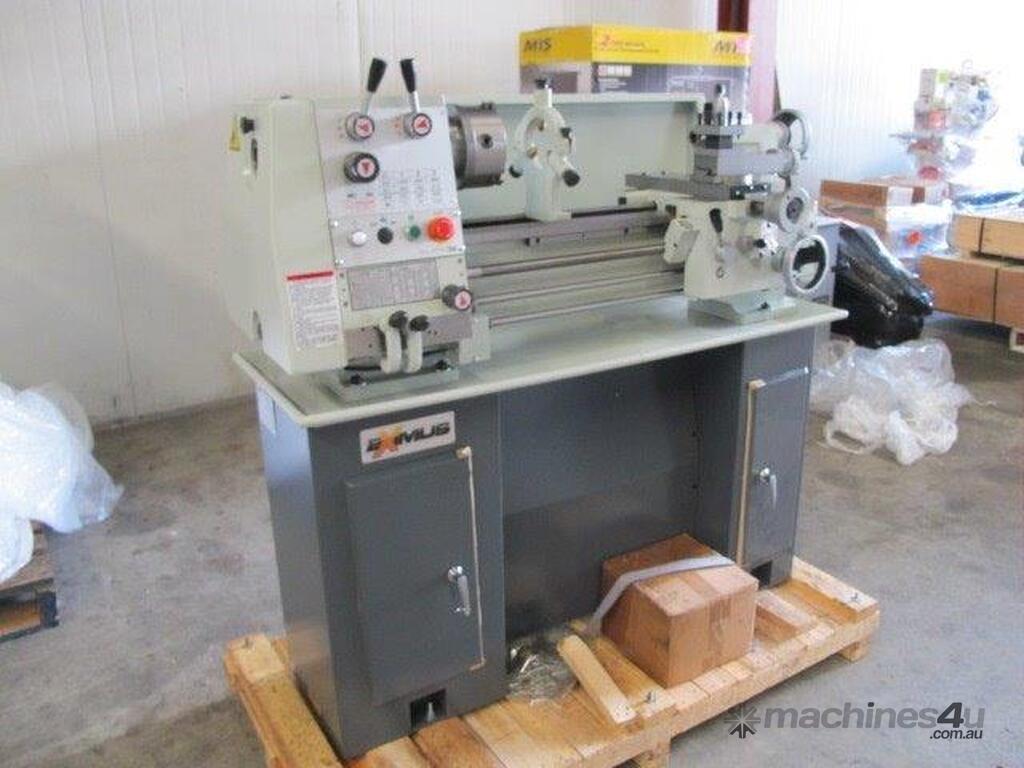

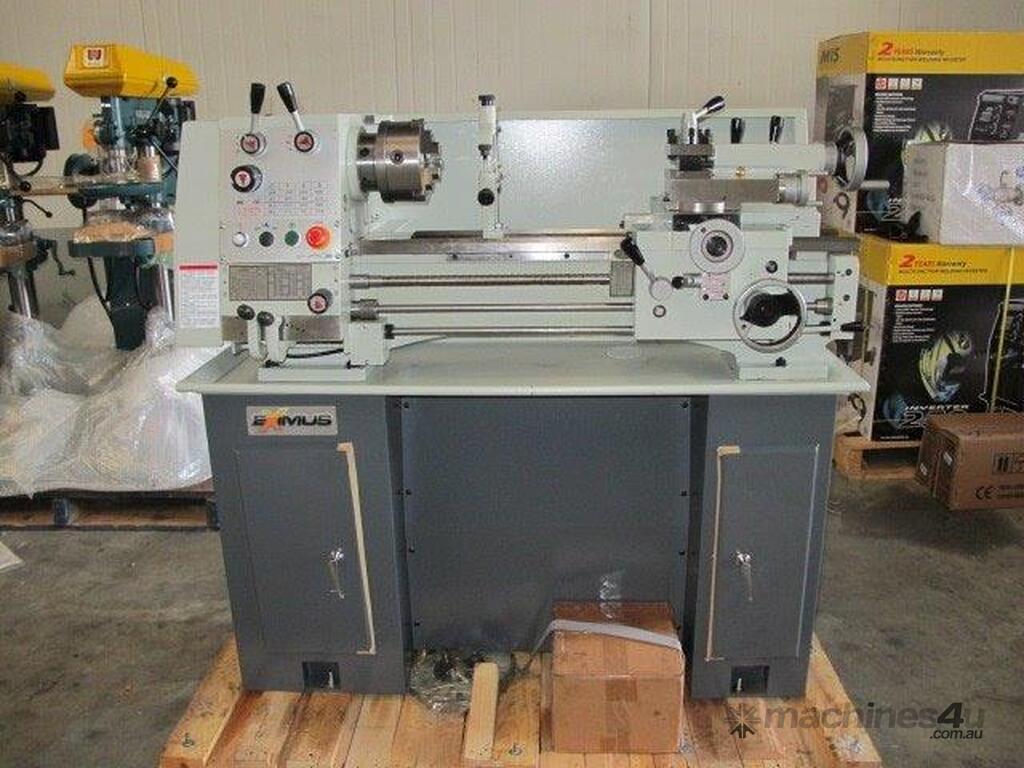

Eximus MODEL LD-1324HE CENTRE LATHE 240V Madel in Taiwan.

The Eximus range of centre lathes feature a large range of feeds and speeds, plus metric and imperial threading, enabling the operator to perform a wide variety of turning applications.

Our lathes are manufactured from high quality Taiwanese cast iron sourced from Taiwan; each machine is built to ISO standards ensuring a high precision finish for each work piece. We only source the very best 3rd party components for our machines such as high-quality Taiwanese motors, premium lathe chucks, Japanese or European Digital readouts and quick-change tool posts.

MACHINE FEATURES:

? Gear drive headstock for quick change of spindle speeds
? Bed-ways manufactured using high tensile cast iron FC30.
? Precision 'V'-beds hardened and ground, incorporating a rigid webbed casting.
? Headstock gears heat treated hardened and ground.
? Change gears for metric and imperial thread cutting.
? Oil sight glass for head stock and gearbox
? Adjustable taper roller bearings support the spindle.
? Overload clutch mechanism on auto power feed
? Overload protection on drive motor and coolant system
? 18 spindle speeds (50-2000rpm)

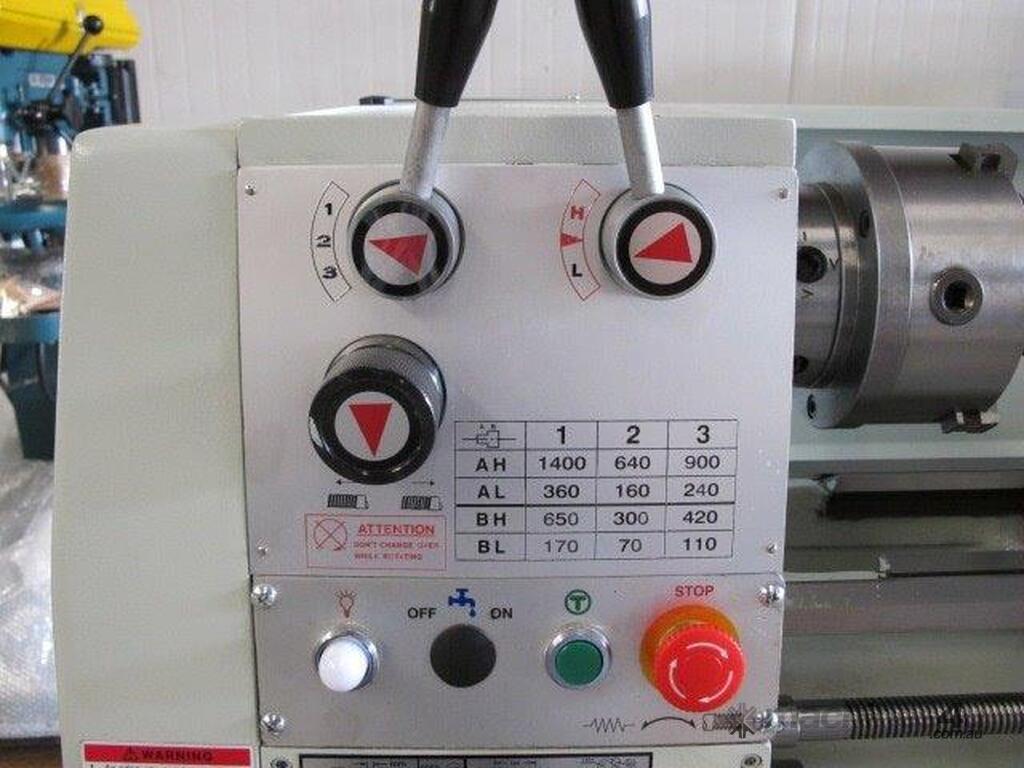

? Inching button & E-Stop have been incorporated on the control panel for convenient spindle speed selection.

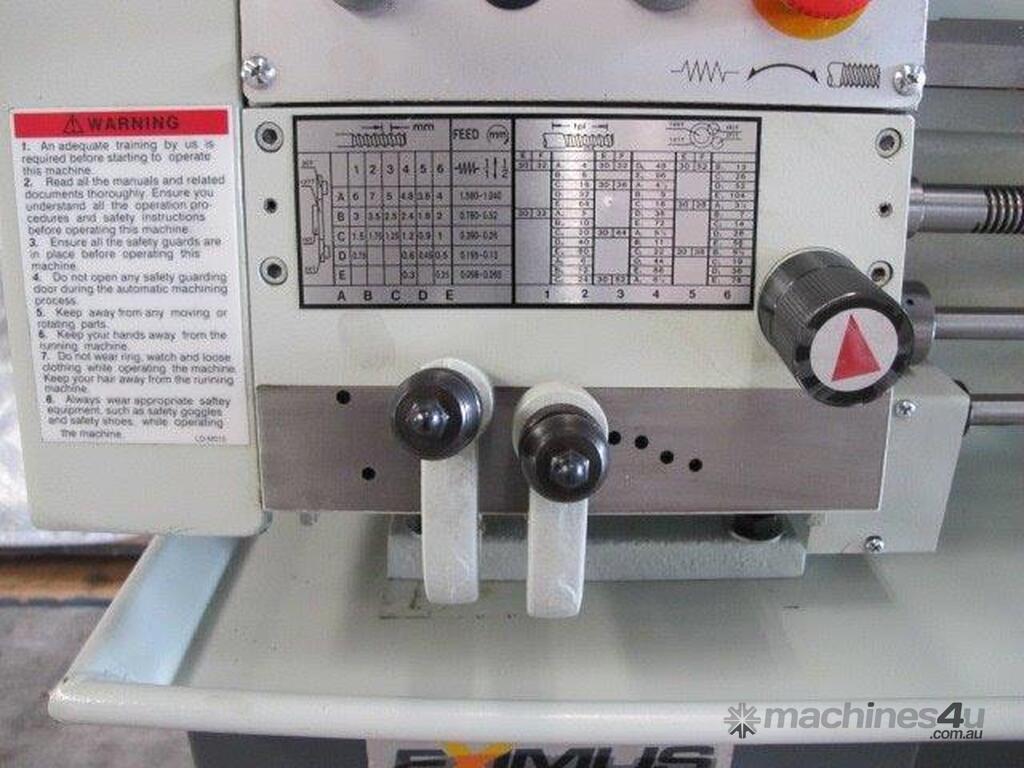

? Enclosed quick action gearbox for thread cutting and auto feeding.
? Powered longitudinal and cross feeds.
? D1-4 cam-lock spindle for quick chuck changes and safe reverse-direction turning. ISO standard

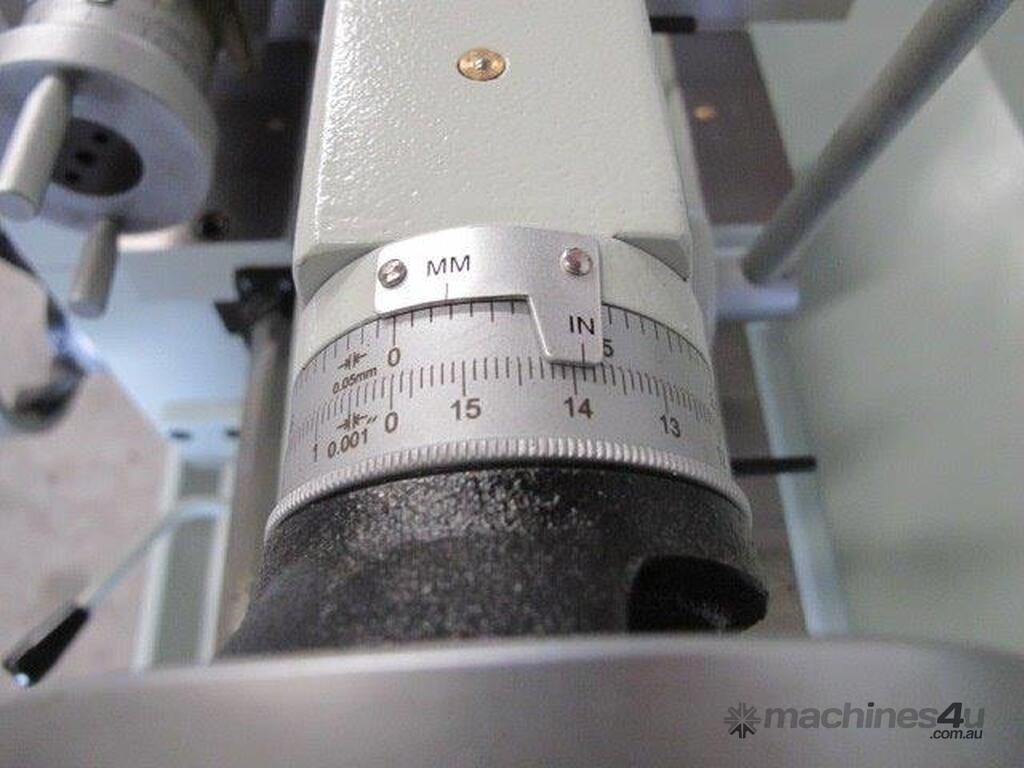

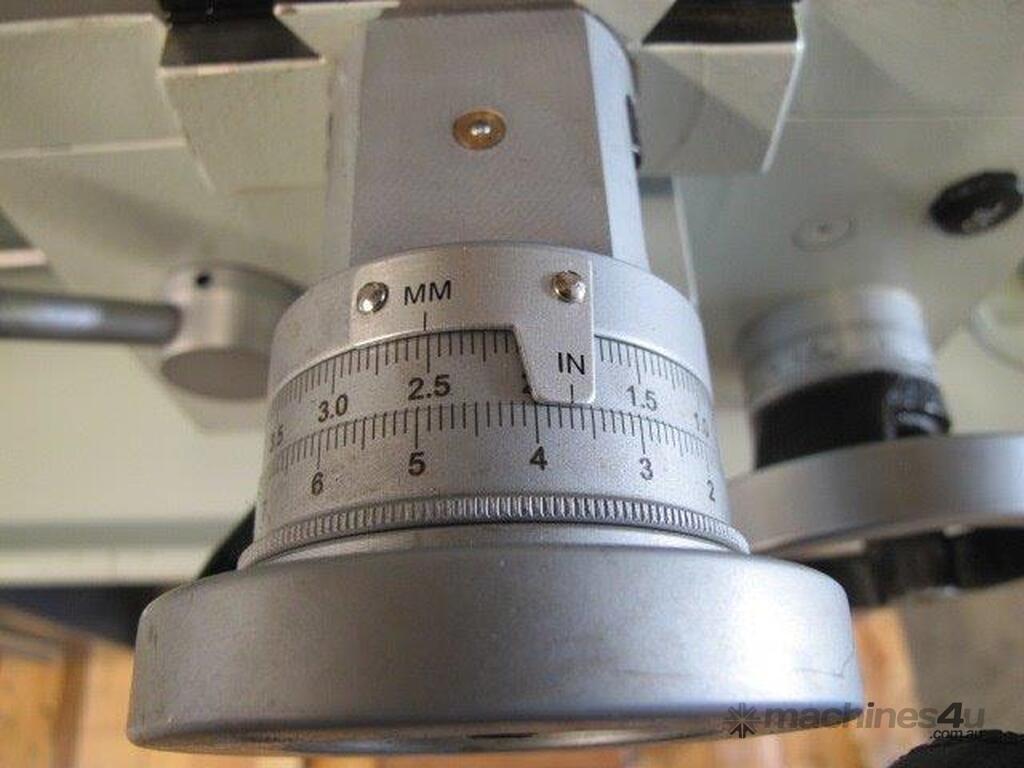

? Dual calibrated dials

STANDARD EQUIPMENT:

? 2 Axis digital readout

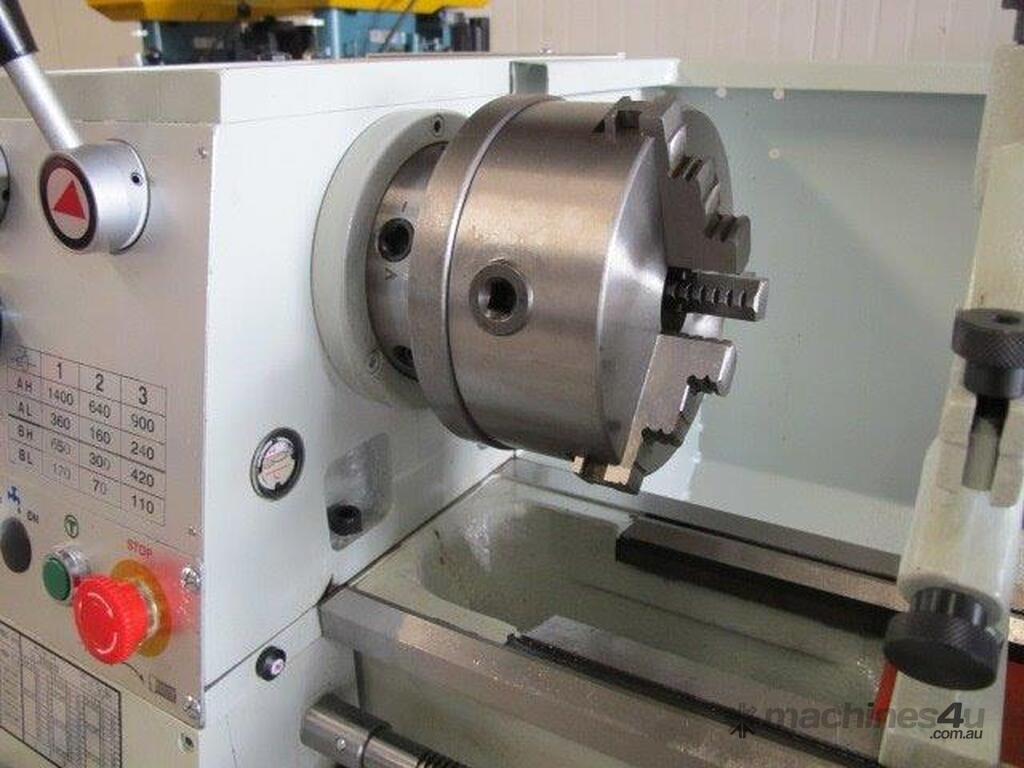

? Ø 150mm 3 jaw self-centring chuck
? Ø 200mm 4 jaw independent chuck
? Ø 250mm face plate
? Change gears
? LED Work Light

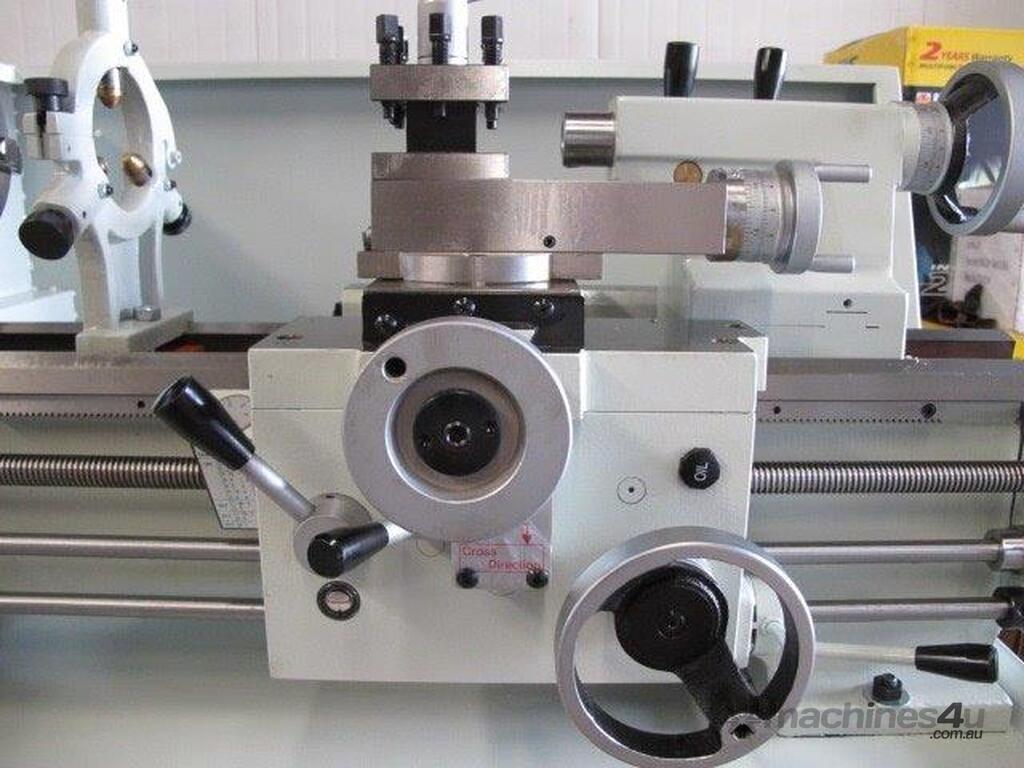

? 4-way tool post
? Fixed steady rest, Follow Rest
? Full length splash guard
? Centre sleeve 5MT-3MT, 2 Dead Centres 3MT
? Thread dial indicator
? Chip tray & floor stand with two cabinets
? Coolant system with hoses
? Levelling pads and bolts, Toolbox, and manuals

SPECIFICATION:

Swing over bed: … Ø 330 mm
Swing over saddle: …Ø 193 mm
Distance between centres: …600 mm
Width of bed: …190 mm
Spindle bore: …Ø 40 mm
Taper of spindle nose: … MT#5
Spindle nose: …D1-4
Tooling: …16x16 mm
Travel of cross slide: …165 mm
Travel of compound slide: …100 mm
Travel of tailstock barrel: … 100 mm
(No) & range of spindle speeds: … ( rpm
(No) & range of metric pitches: … (24) 0.25-7 mm
(No) & range of imperial threads: … ( T.P.I

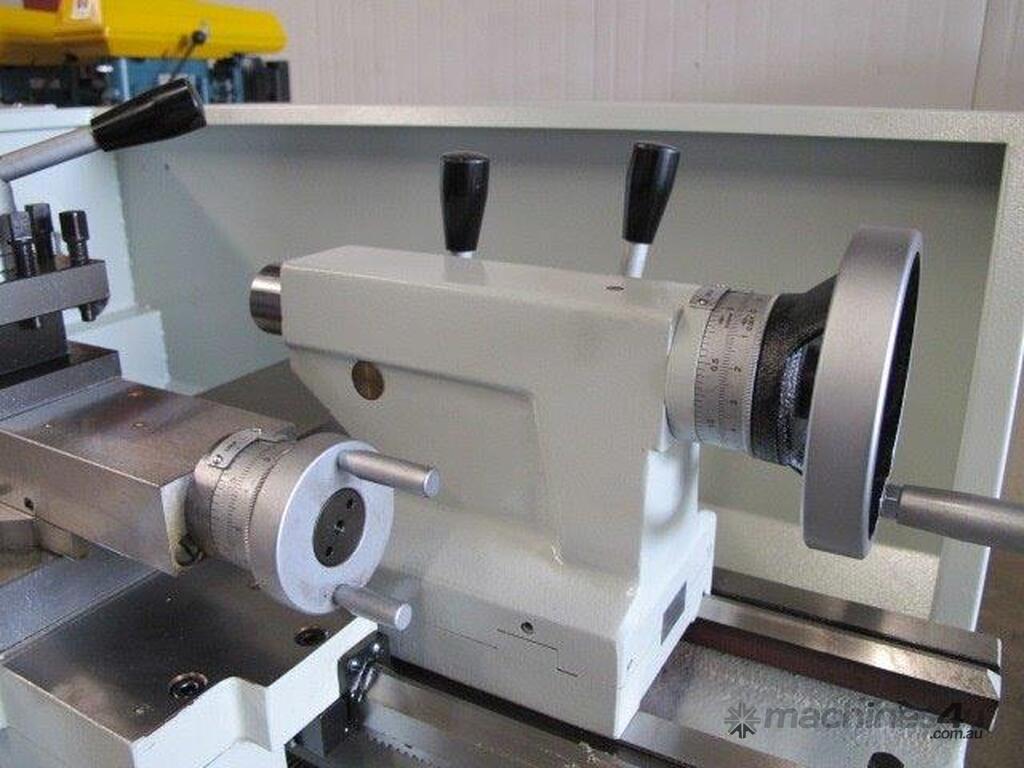

Taper of tailstock: …MT#3
Tailstock quill travel: …100 mm
Motor: …1.5 HP 240v
Machine weight: …350kg
