EZ50 - Zero Tail Excavator

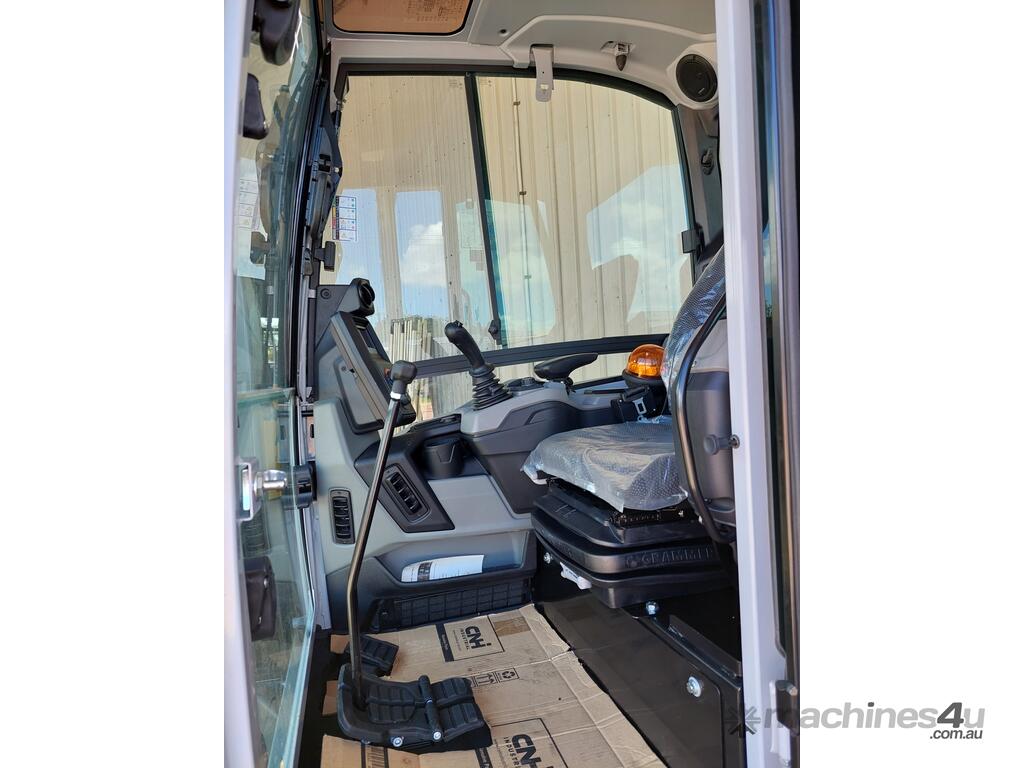

Full steam ahead: The mini-excavator EZ50 has the expected high lifting and excavation power as well as rapid work cycles. Thanks to the newest technologies, the emissions of the mini-excavator were reduced and the efficiency simultaneously increased, among other things. This is how, for example, the powerful engine of the EZ50 fulfills the standards for exhaust emissions stage 5. The excavator is also impressive in terms of operator-friendliness. Work is no trouble at all thanks to the intuitive operating concept and flawless view of the working area. The EZ50 is also a zero tail excavator and thus particularly suited for work in narrow spaces.


3-point kinematics for more breakaway force, insertion depth and dumping height
Four auxiliary control circuits, high lifting and excavation power and thus, rapid work cycles – performance is emphasized here!

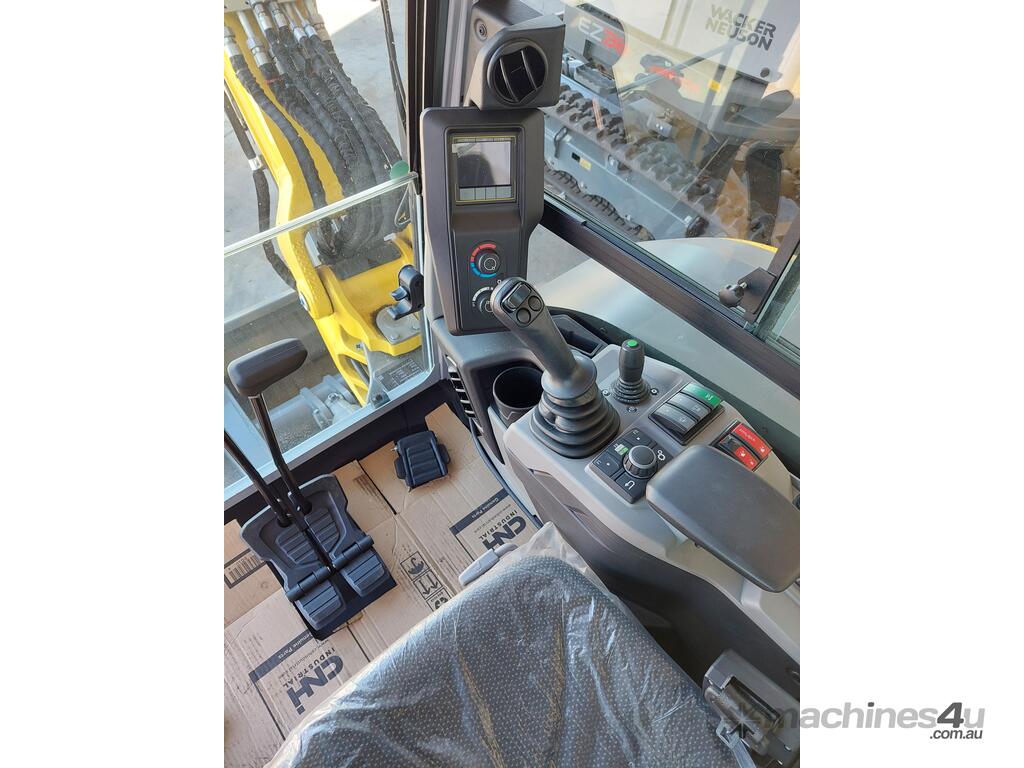

Comfortable and fatigue-free joystick control thanks to Load Sensing Flow Sharing.

Shipping weight: 4,617 - 5,454 kg
Operating weight: 4,847 - 5,685 kg
Biting force max. 24.8 kN
Breakout force max. 36.8 kN
Digging depth max. 3,667 mm
Superstructure slewing speed 9 1/min
L x W x H 5,467 x 1,960 x 2,555 mm
Fuel tank capacity 80 l

Engine / Motor
Engine / Motor manufacturer Perkins diesel engine
Engine / Motor type 403J-E17T
Engine / Motor Water-cooled 3-cylinder turbo engine
Emission standards stage 5
Rated voltage 12 V
Displacement 1,663 cm³
RPM / speed 2,000 rpm
Engine performance 32.5 kW

Battery
Battery 77 Ah
Rated voltage 12 V

Hydraulic system
Duty pump 1 axial piston pump
Flow rate max. 126 l/min
Operating pressure for working and driving hydraulics 245 bar
Operating pressure Slewing gear 209 bar

Undercarriage
Travel speed Max. 4.4 km/h
Chain width 400 mm
Ground clearance 305 mm

Dozer Blade
Width 1,960 mm
Height 370 mm
Stroke Above subgrade 415 mm
Stroke Below subgrade 455 mm

Sound level
Sound level (LwA) 97 dB(A)
Cabin - specified sound pressure level LpA 77 dB(A)
