Edgebander LUMINA 1586: Laser Edging Technology

Our new LUMINA series offers a unique combination for processing panels: Two systems for perfectly invisible joints. The GluJet glue application system for standard use of PUR glue and the LTRONIC, the new laser edging unit from HOLZ-HER, are unbeatable in terms of speed and cost efficiency.

The LUMINA 1586 premium model with two cutter units allows processing of solid wood edging with thickness up to 15 mm (optional 20 mm). The LUMINA 1586 grooving serves for fully automatic grooving in the vertical and horizontal direction. With this machine, the groove position and groove depth can be set fully automatically on two NC servo-axes. The standard equipment on the LUMINA 1586 flex includes a corner buffing unit for perfect edge finishing without any subsequent work.

Here is what the HOLZ-HER LUMINA 1586 offers:
Invisible Joint with Laser Edging
Waterproof Invisible Joint
Adaptive Package for Intelligent Automation
Integrated Multi-function Cutting Technology
Intuitive Operation with Touch Screen
Simple Handling – High Productivity

Technical Details:

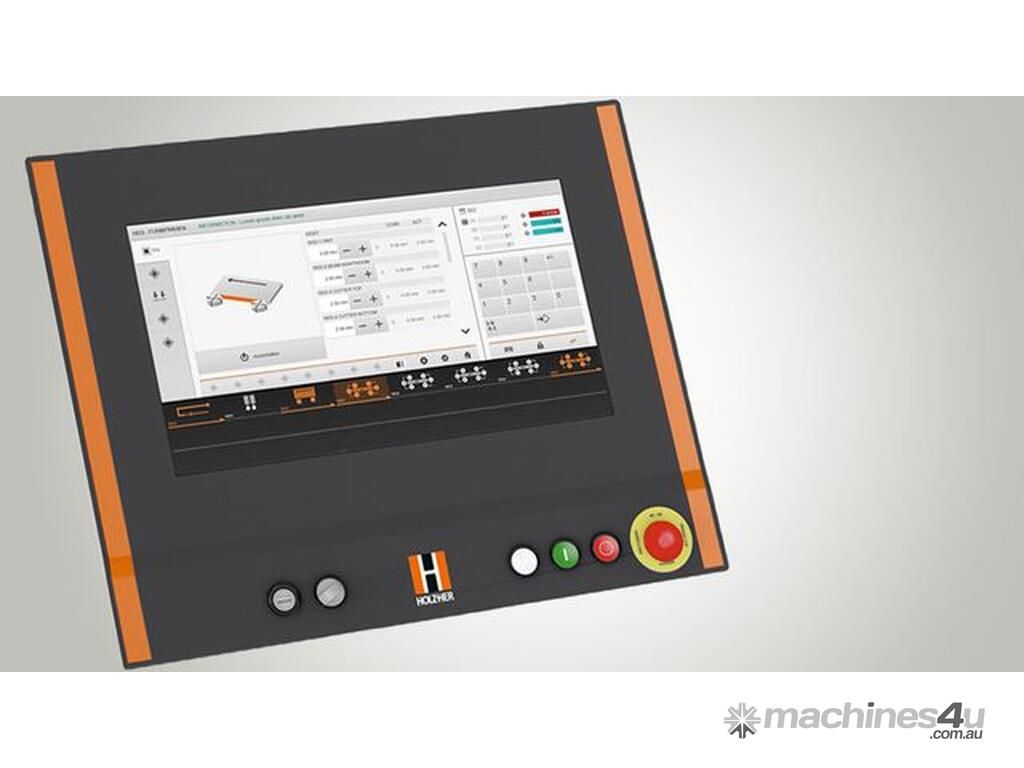

Edge Control -
18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

18.5" touch screen color monitor - standard feature.
Graphic user interface, all information displayed in plain text and/or graphic form.
Simple operation – rotating and swiveling control panel at eye height.
Programs are simple to call with program names and numbers.
Large program memory for all desired applications.
Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
Service reports in clear text.
Individual management for up to ten users with password protection and individual authorization.
Network connectivity.
Online maintenance, rapid exchange of data with HOLZ-HER service department.
Barcode interface.

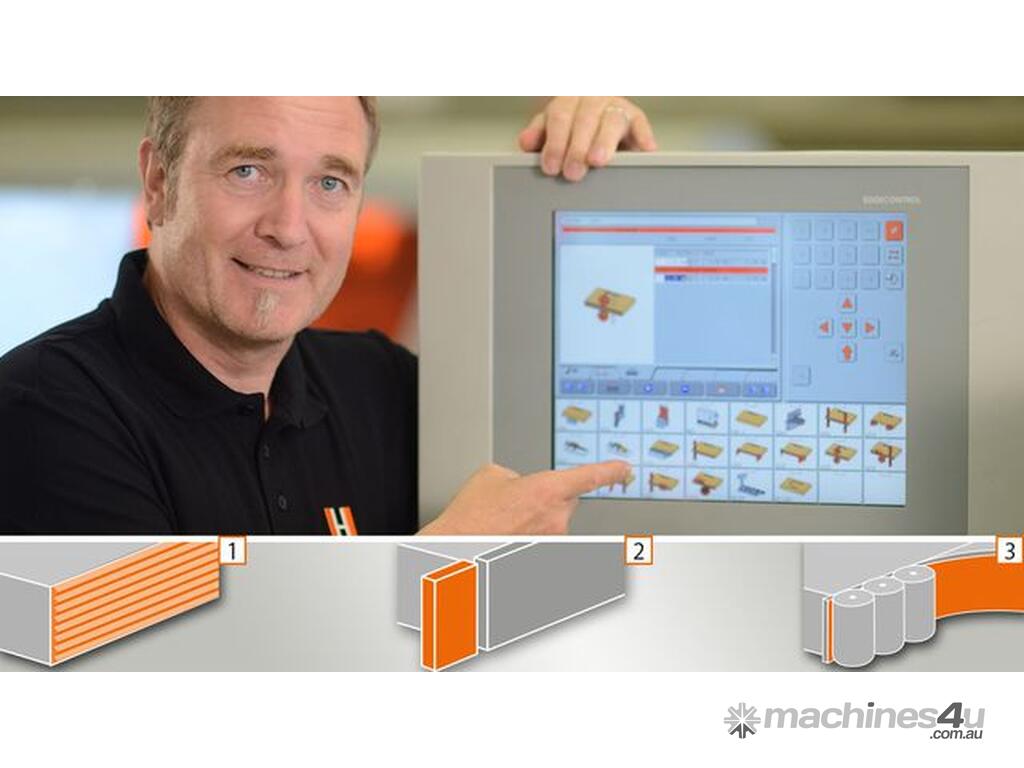

Adaptive package for intelligent automation:
The optimized, automatic control for the extensive pressure adjustments with plausibility checks allows HOLZ-HER to realize automatic glue quantity control matched to the specific requirements. Moreover, an adaptive trimming blade automatically adapts the pressure of the trimming blade to the edge thickness. Finally, an adaptive pressure unit optimally adjusts the pressures of the individual pressure rollers to the specific application for perfect results every time. This reduces adjustment errors and reject quotas to a minimum.

[1] Automatic glue quantity control
[2] Adaptive trimming blade
[3] Adaptive pressure unit

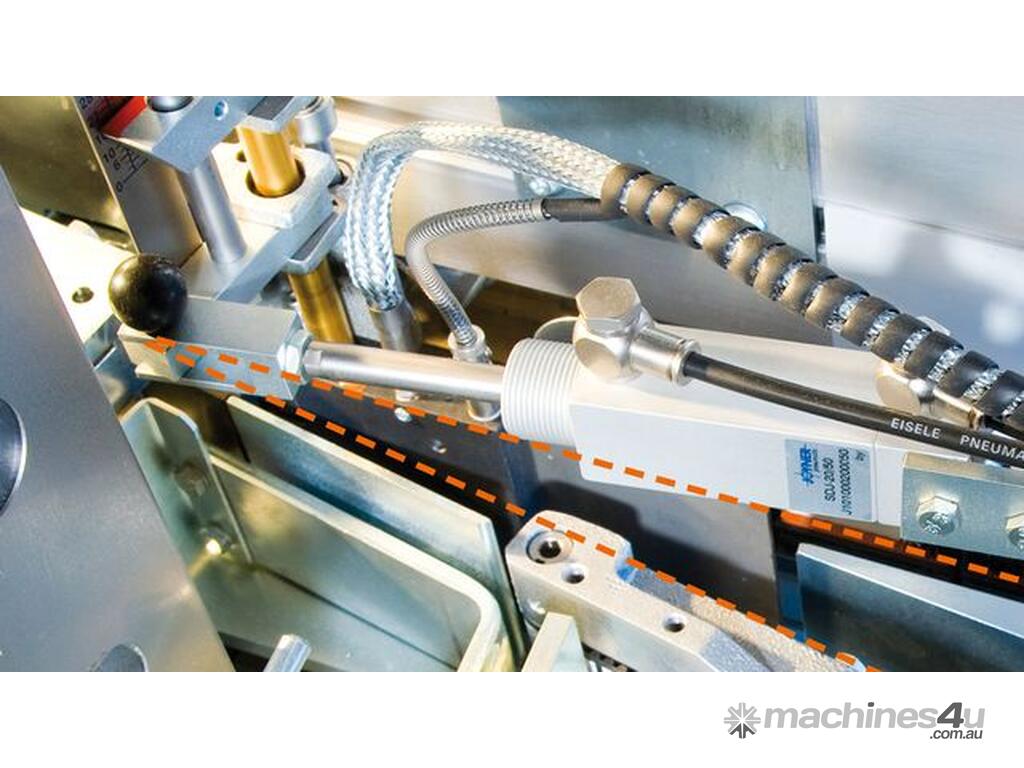

SYNCHRO edging feed:
The edge feeders with SYNCHRO drive.

With its synchronous adaptation to the feed rate, this feeder guarantees short intervals between workpieces and simultaneously optimizes edging protrusions. Small feed angle thanks to nozzle design – easy feeding of solid wood edging up to 15 mm.

The LTronic change-over unit has its own edge feeder with optimum feed angle for activation of the functional layer on laser edging.

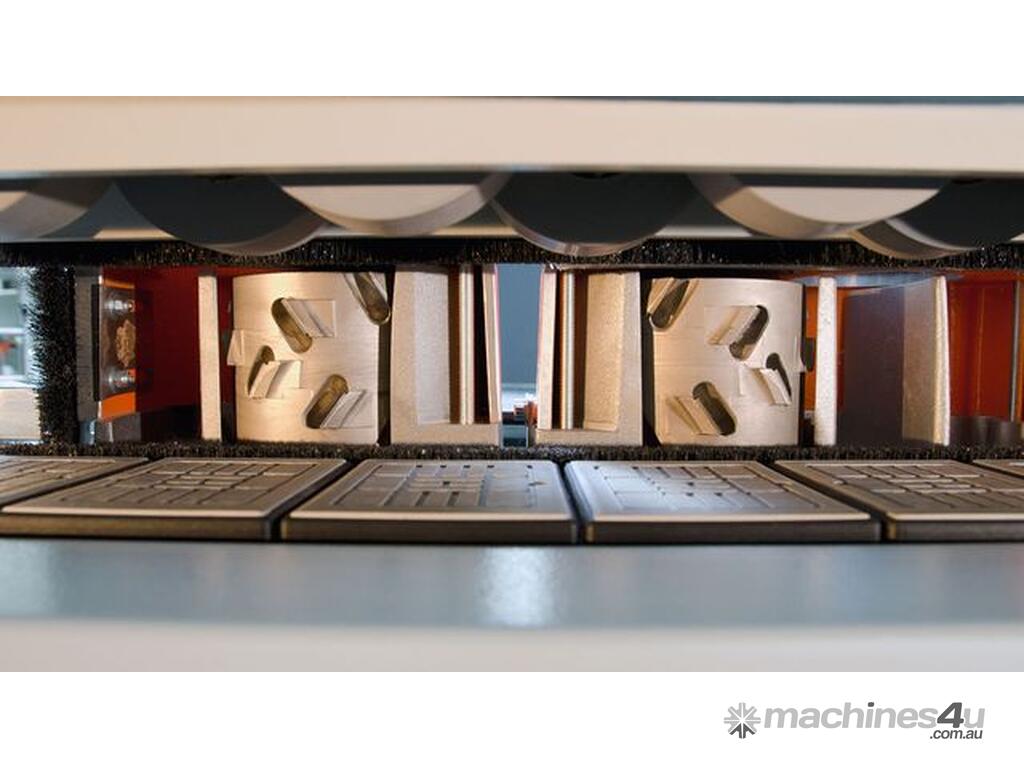

Jointing cutter:
Cut edgings often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange, diamond tipped cutters (dia. 70 mm).

Including height adjustment for optimum utilization of cutters.
With new symmetrical diamond tipped cutters (dia. 100 mm) for maximum joint quality and long service life. Automatic height adjustment with two NC servo-axes (optional).

Standard on LUMINA 1588 performance

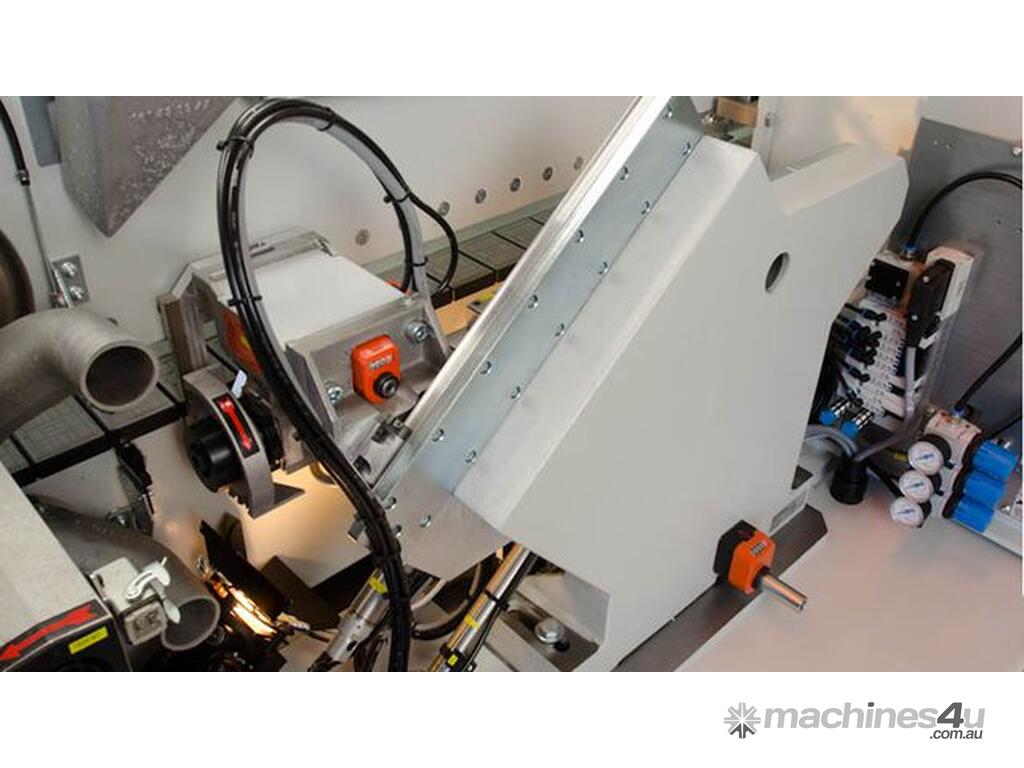

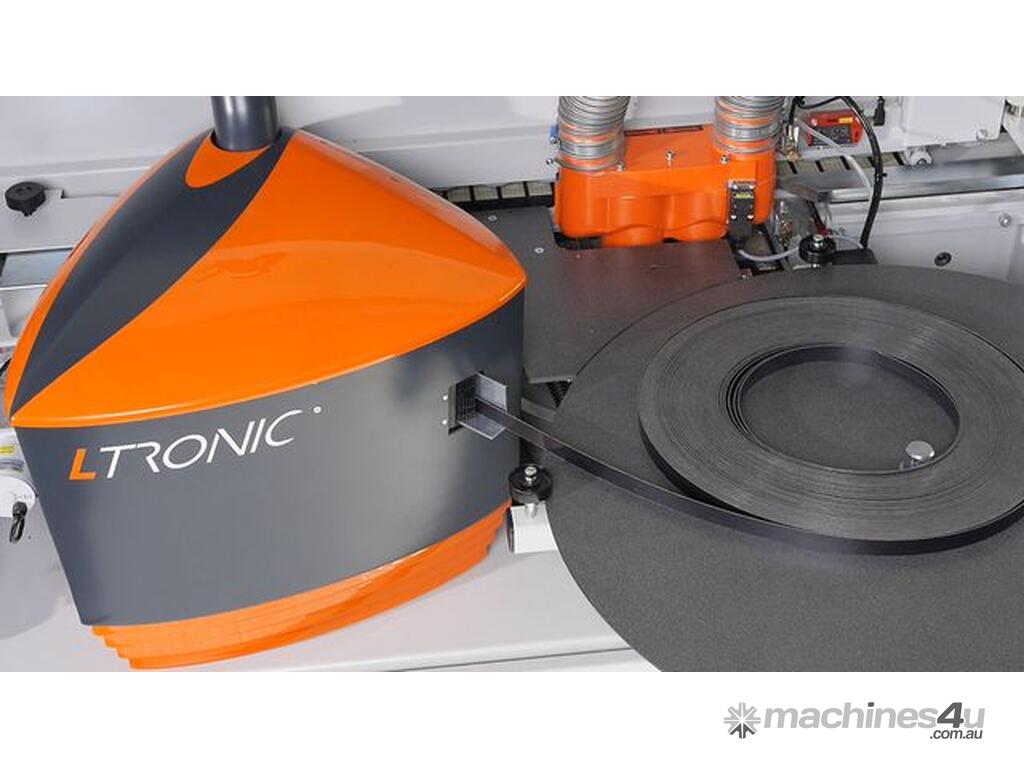

LTronic - laser edging change-over unit:
LTronic laser edgebander

The LTronic laser edgebander was developed especially for the LUMINA series and processes all edging with functional layer on the market. Two different NIR modules are available for processing laser edging:

NIR module for edge heights up to 23 mm (standard)
NIR+ module for edge heights up to 45 mm (optional)
(NIR = Near Infrared Radiation)
Switch it on and it's immediately ready for use – the new Ltronic unit does not require a heat-up time or any heat-up phases during the machining process. In addition, the complete system operates absolutely silently which is a clear advantage for the user compared to other systems. Moreover, cleaning costs are minimal. The integrated protective plate on the NIR module needs to be briefly cleaned just once per week.

A highlight is the edging library completely integrated into the control. All of the very latest co-extruded and subsequently coated edging are already stored here as a factory-provided item and can be simply selected by the user via the standard touchscreen. Each laser edging needs a specific energy entry, which, by way of an example, depends on the edge thickness or the color. After the selection is made, Ltronic automatically adjusts the respective energy requirement. HOLZ-HER takes perfect care of all of that with its edging library.

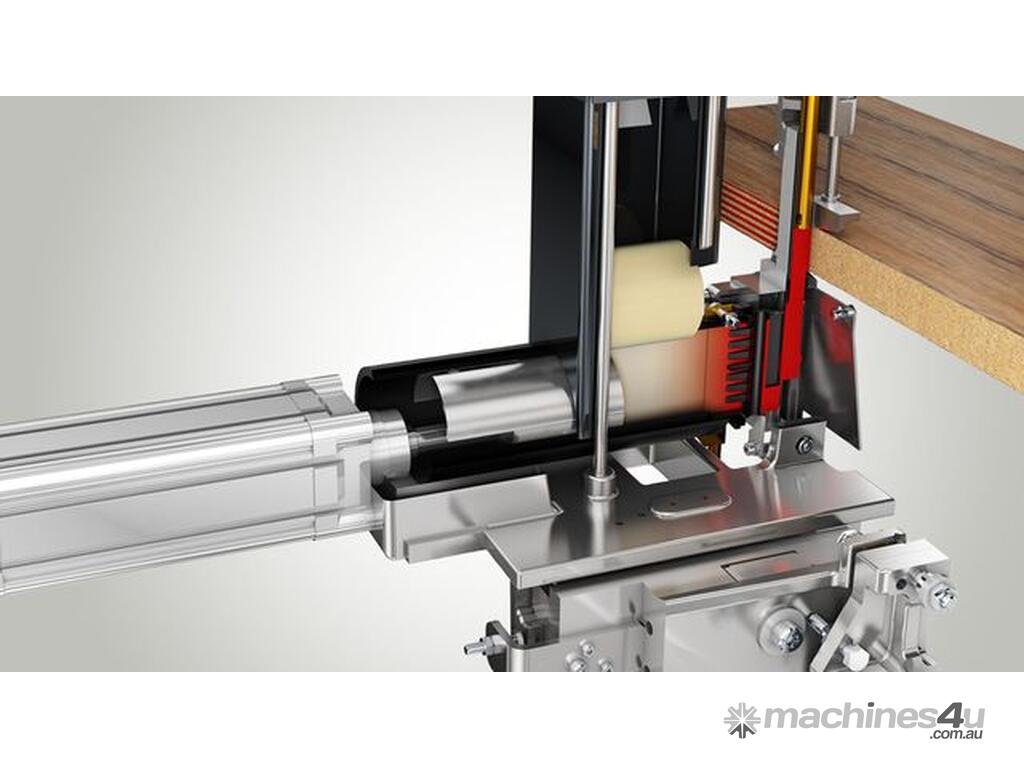

Glu Jet automatic - change-over gluing station:
Automatic replenishment -
The pressure cylinder presses the cartridge or granules against the heater elements. After reaching a certain position, the sensor sends a replenishment signal to the control. As long as glue is being applied to a workpiece, charging is delayed until the work is finished. The pressure cylinder retracts automatically, a new cartridge or fresh granulated material is gravity fed from the cartridge supply shaft into the heating chamber where it is again pressed against the heating elements.
Purging hole for automatic cleaning system – e.g. cleaning out PUR glue.
The Glu Jet automatic is attached to a set-up carriage alternating with the LTronic unit as a glue application system with automatic change-over. Change-over is accomplished within a maximum of two minutes by a high precision interface with HSK chuck and CNC technology.

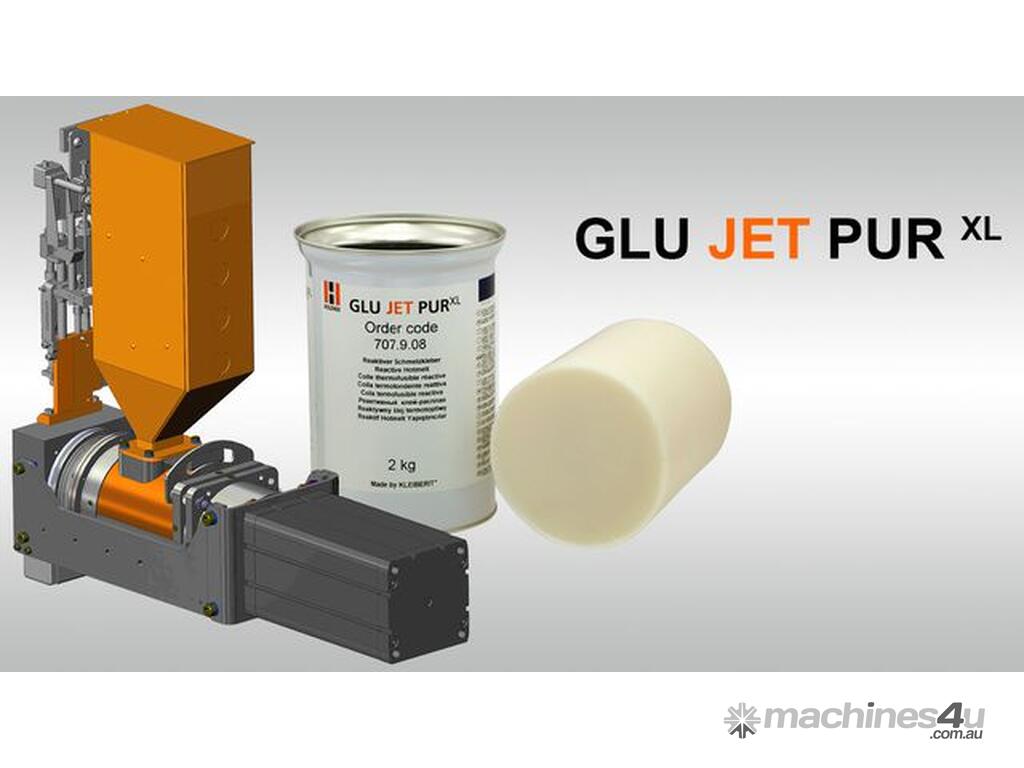

Glu Jet XL - glue application station:

High melting capacity for even higher feed rates and thicker panels.

With the optional Glu Jet XL, you can process 2 kg PUR glue cartridges, which are significantly more economical than conventional PUR granules or the smaller 300 g PUR glue cartridges. This investment amortizes itself quickly for companies using more than approx. 500 kg of PUR glue per year, i.e. customers with an average glue consumption of approx. 2 kg per day. This corresponds to a processing quantity of approximately 400 - 500 running meters per day. The savings for glue costs alone already amortize the machine during the second year.

As accustomed from the Glu Jet, the heat-up time is unbeatably short - now only 3 minutes for the Glu Jet XL. Naturally, the station can also be used for processing glue granules making it extremely flexible for HOLZ-HER customers and offering every user major competitive advantages.

The Glu Jet XL is attached to a set-up carriage alternating with the LTronic unit as a glue application system with automatic change-over. Change-over is accomplished within a maximum of two minutes by a high precision interface with HSK chuck and CNC technology.

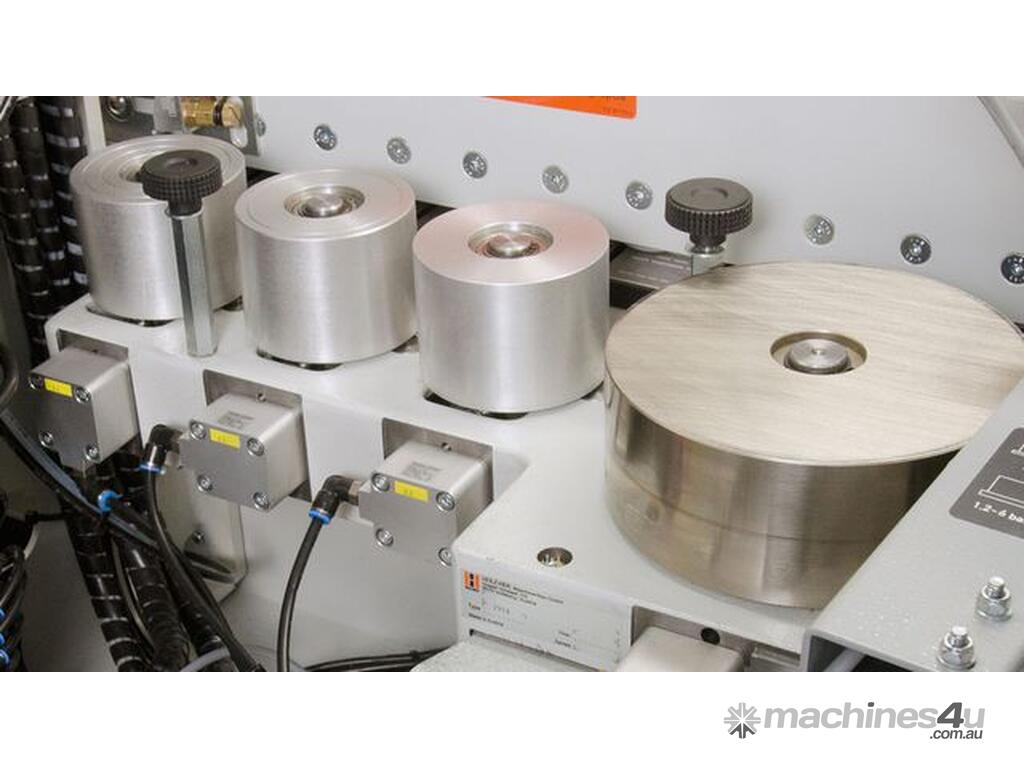

Motor-driven pressure unit:
Synchronously driven pressure unit with automatic adaptation to feed rate and NC servo-axes for motor-driven adjustment to correct edge thickness. Straight and tapered pressure rollers for perfectly glued joints.

Trimming unit:
Most powerful trimming unit in its class – edge cross-section 20 x 65 mm. With hardened linear guides for high precision trimming results up to edge thickness of 20 mm.

Flush cutting unit:
High performance cutter unit for edge thickness up to 15 mm. Two NC servo-axes for cutting with and without edge protrusion. Standard on ACCURA 1556 premium and 1558 performance.

Machining heights for edge thickness up to 20 mm (optional)

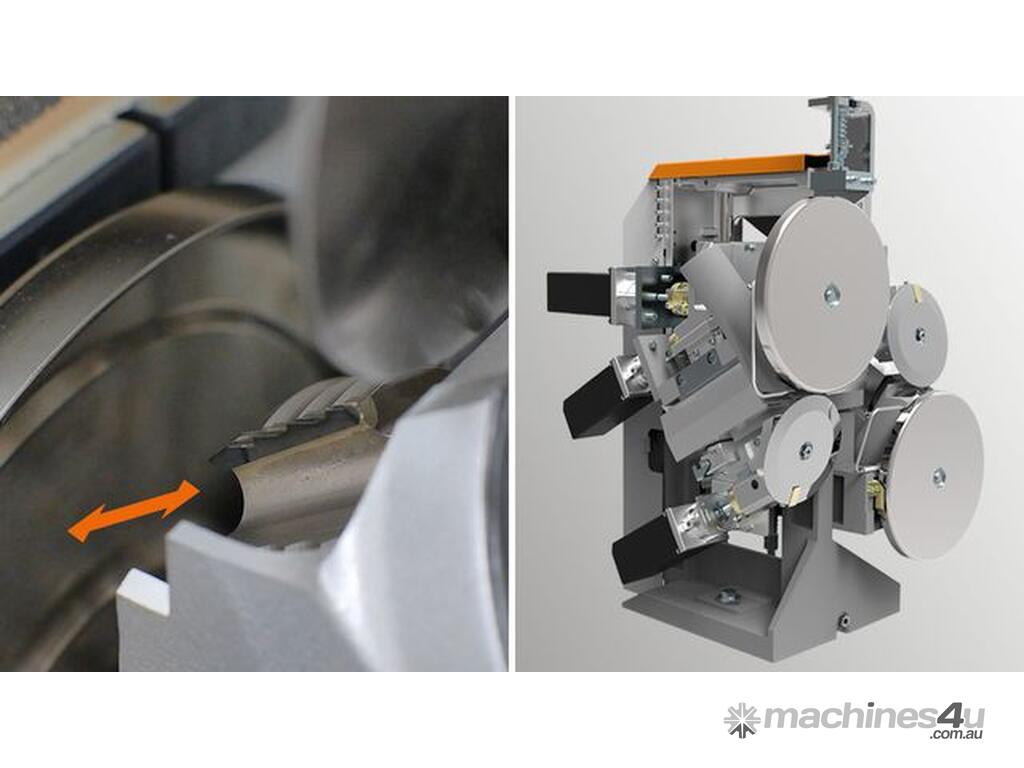

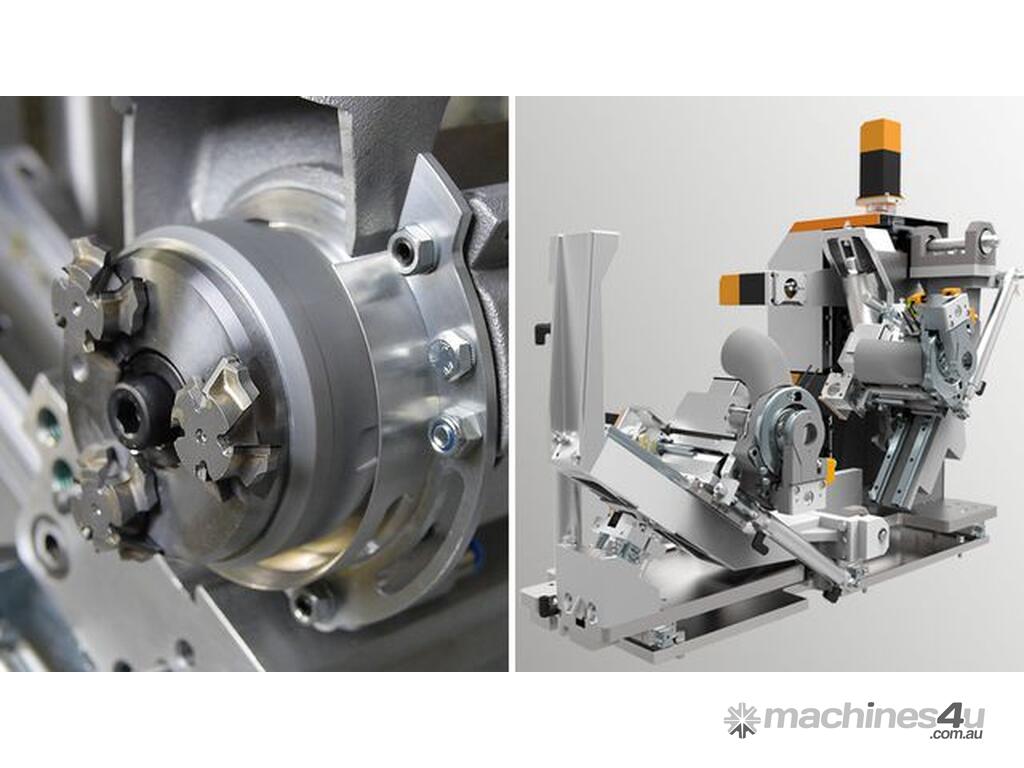

Cutter unit:
Heavy-duty floor-mounted unit with shock-absorbing bearing and large sensing rollers for perfect results even at high feed rates.

100% repetition accuracy at the touch of a button based on zero-clearance mechanisms and six high precision NC servo-axes. Horizontal sensing with angular sensing rollers with chemically applied nickel plating developed especially for processing modern, high gloss edging.

In multifunction package with multiple stage tool (optional on LUMINA 1584 and higher models).

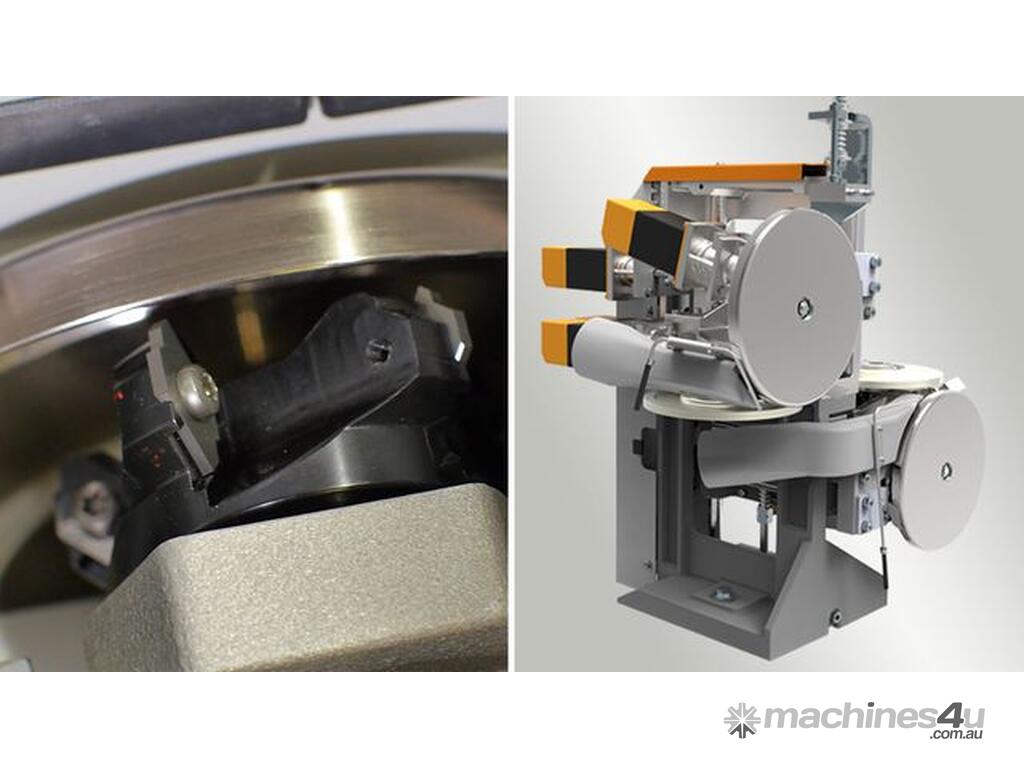

Copy cutter unit:
Copy cutter unit with four NC servo-axes as standard feature

For cutting top and bottom longitudinal edges, copy cutting on vertical edges at front and rear ends, corner rounding and postformed corners. - Work height up to 60 mm workpiece thickness

Unit adjustments on linear guides with central lubrication. With standard blast nozzles in front of sensing rollers to blow away chips in front of sensing areas. Including shelf program for optimum processing of shelves with rounded edges.

Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

In multifunction package with revolving tool magazine (optional on LUMINA 1584 and higher models).

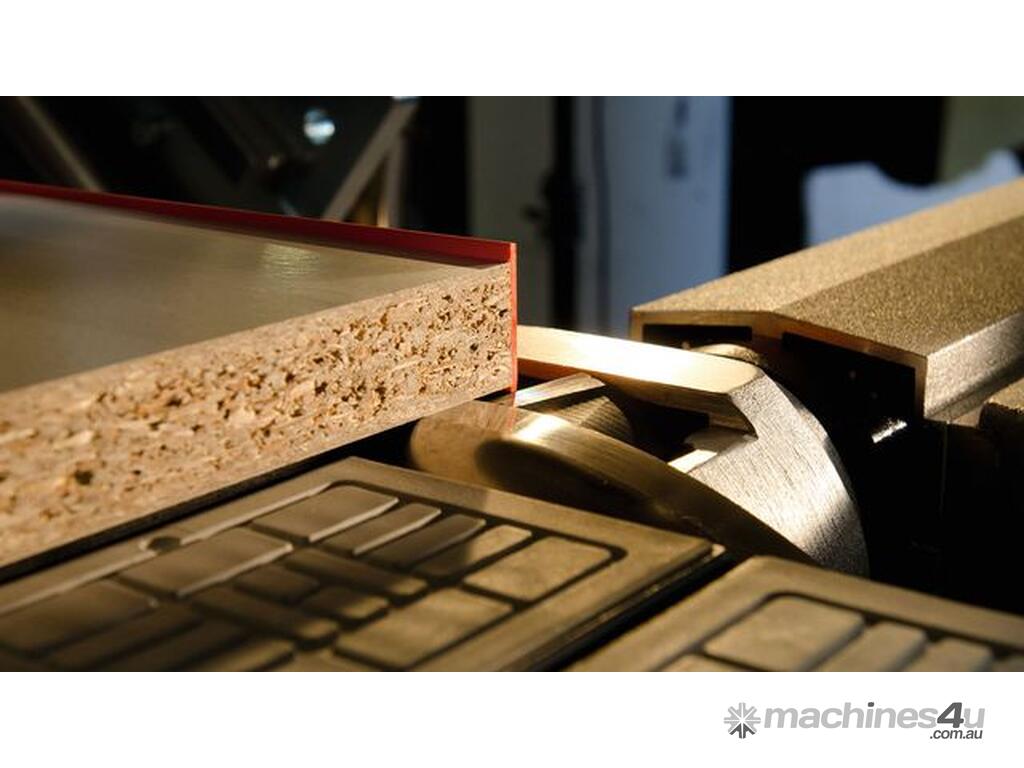

Scraper unit:
100% repetition accuracy at the touch of a button based on zero-clearance mechanisms and 6 high precision NC servo-axes.

Including high gloss package for exact adjustment of tool depth when using high gloss panels with protective foil as well as sensing rollers with chemical nickel plating.

In multifunction package with revolving tool magazine (optional on LUMINA 1584 and higher models).

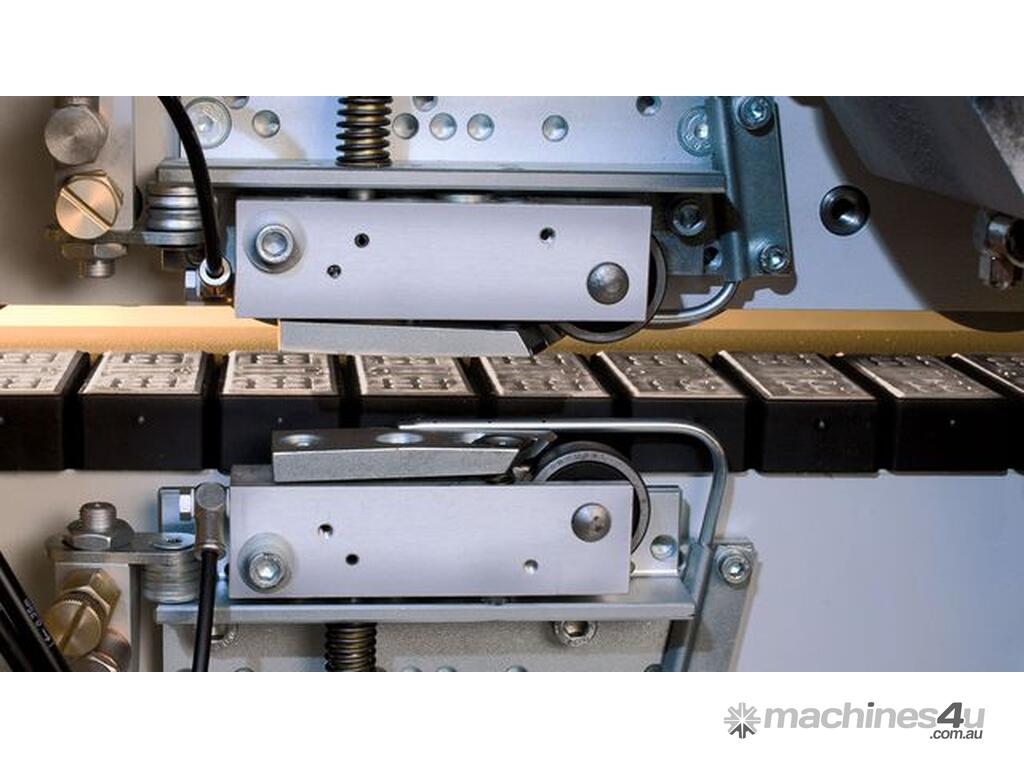

Flat scraper:
Clean post-processing of surfaces. Application-controlled with two reversible blades, manual post-processing not required. Standard setup.

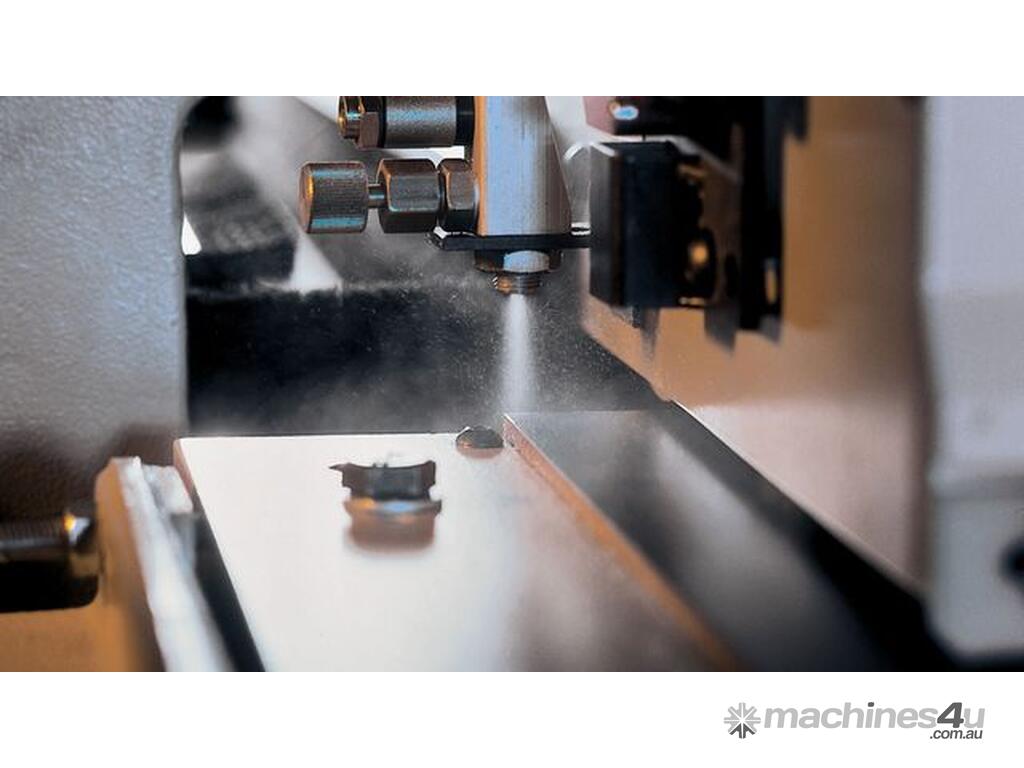

Front / rear spraying units:
Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles – for a perfect edge finishing.

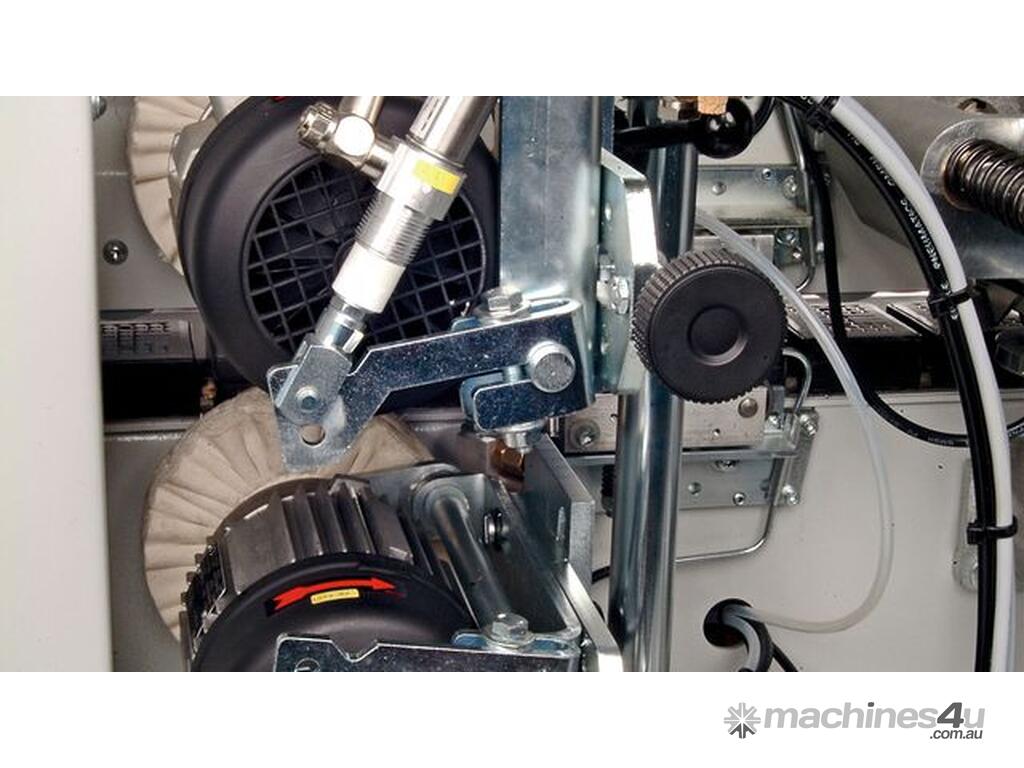

Buffing unit:
Polishing for maximum gloss; for complete finishing. Standard setup.
