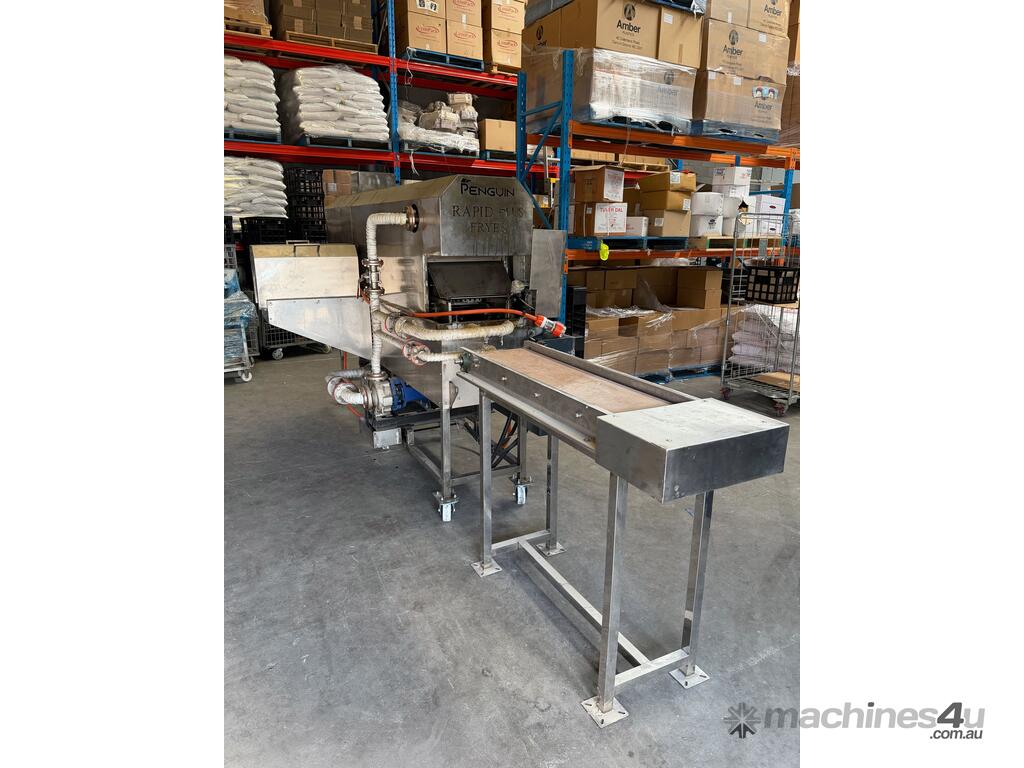

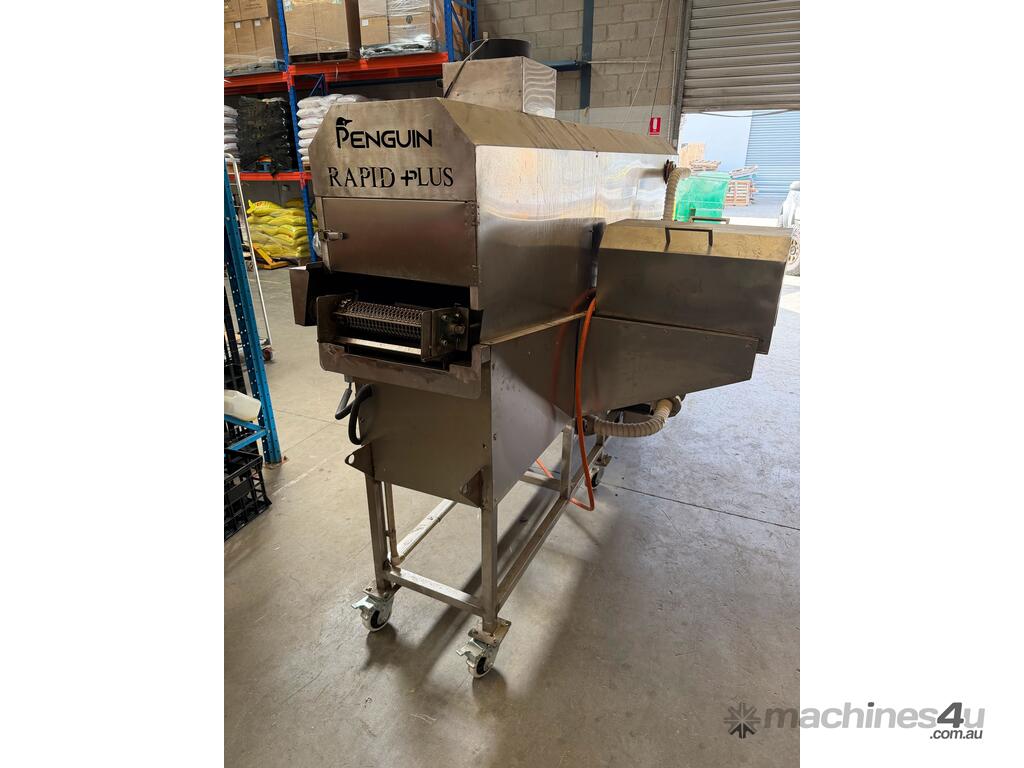

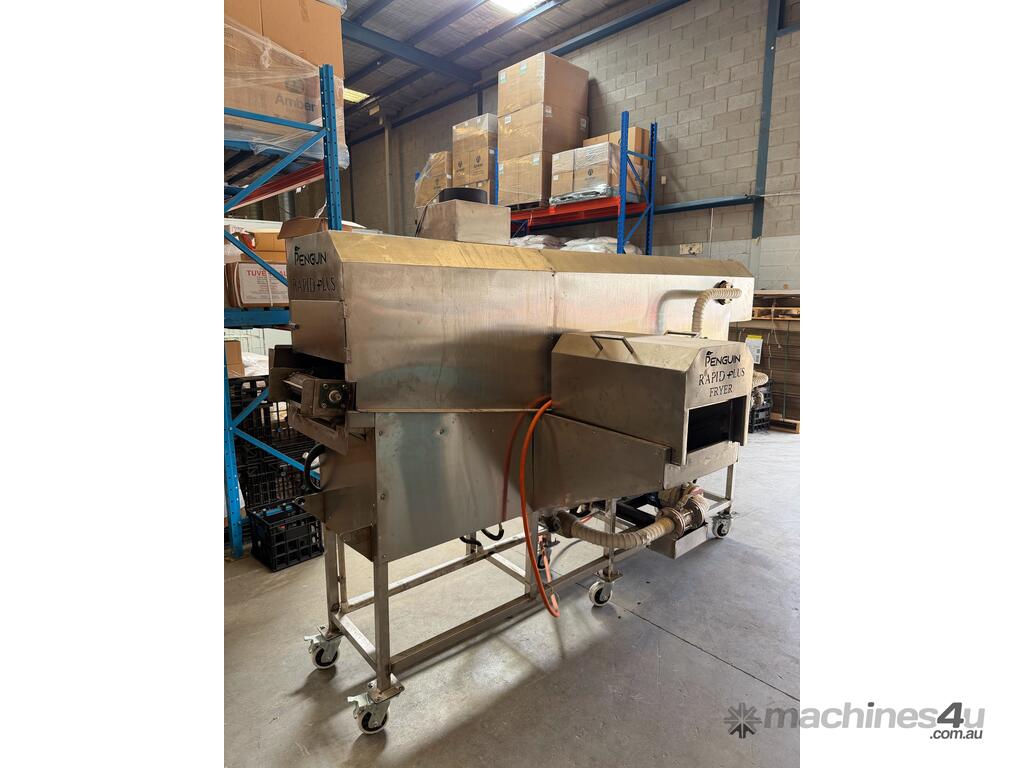

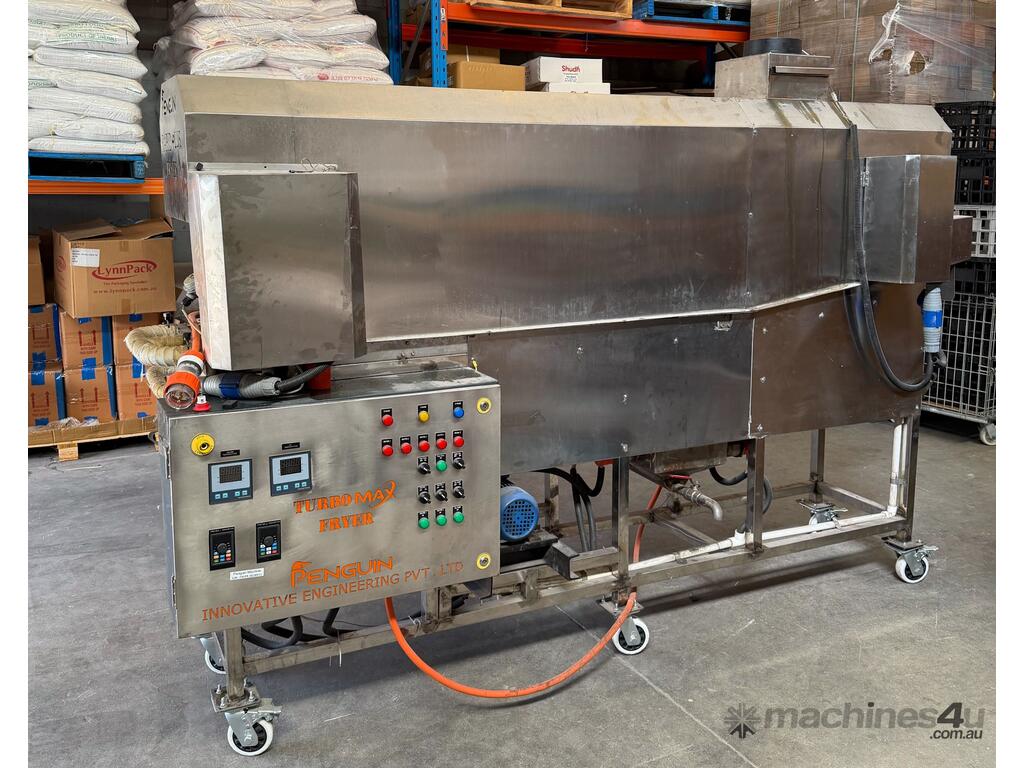

Electric Automatic Continuous Conveyor Fryer - Penguin Turbo Max

Stainless steel continuous fryer for high volume production of fried snack products. Designed for seamless integration into commercial lines, it delivers consistent product quality with minimal intervention, reliable temperature control, and continuous oil filtration so you maintain crispness and throughput without interruption.

Features:
• Oil/water capacity: 80-120L
• Runs on 2 thermostat probes (one near heaters and other at product entry point)

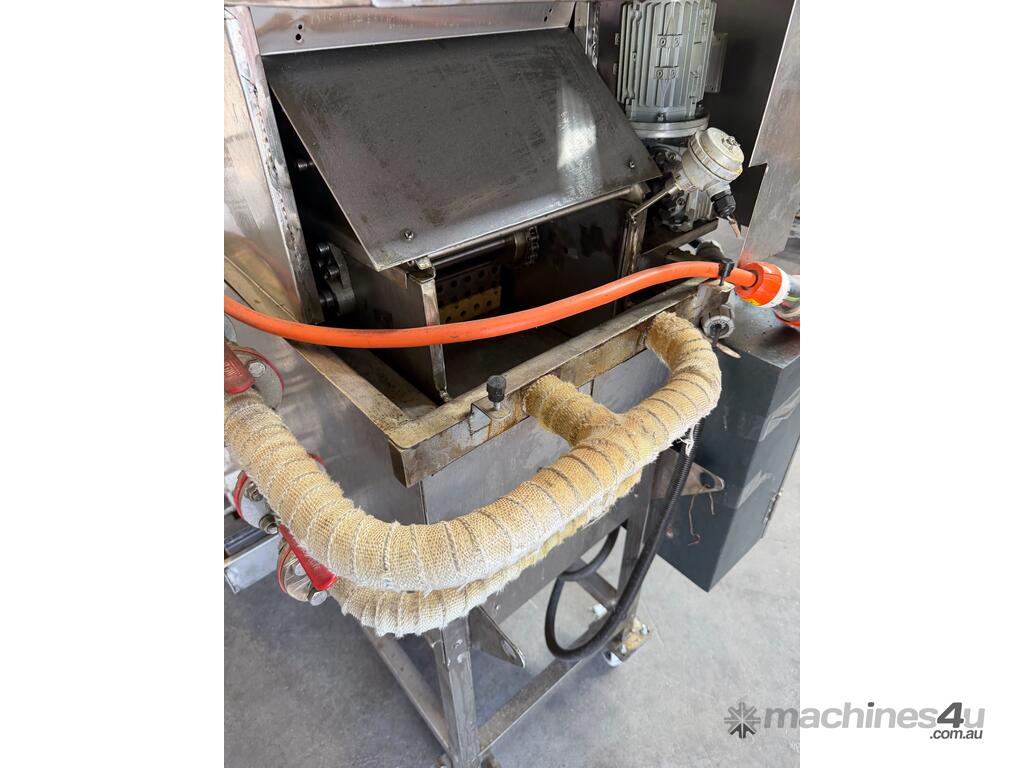

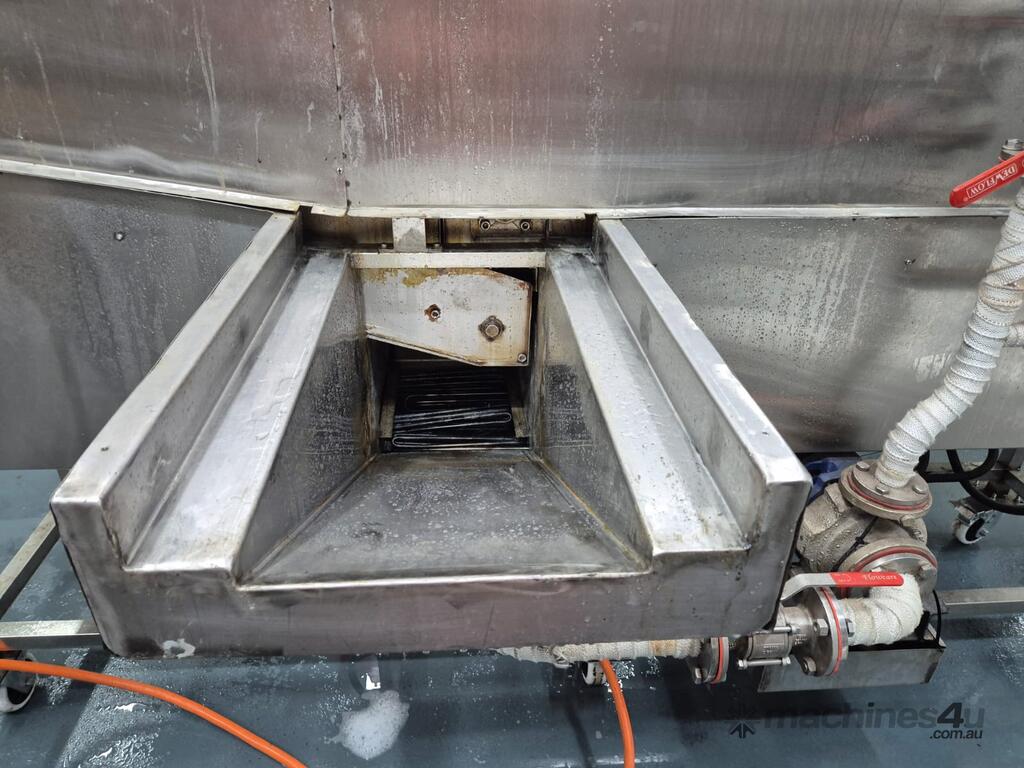

• 3 conveyor belts. 1) to load the product, 2) top conveyor belt with flaps to push the product forward, 3) exit and drain off conveyor belt
• Can run at a temperature up to 230 deg
• 4 Electric heater elements
• Requires 50 Amp power point

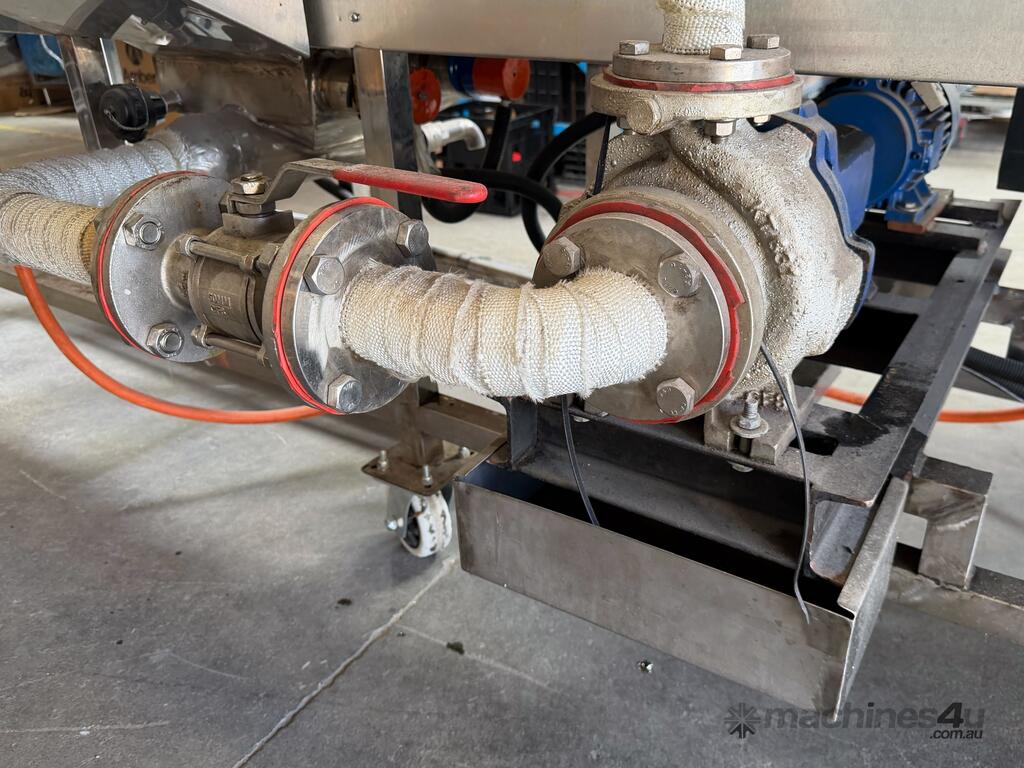

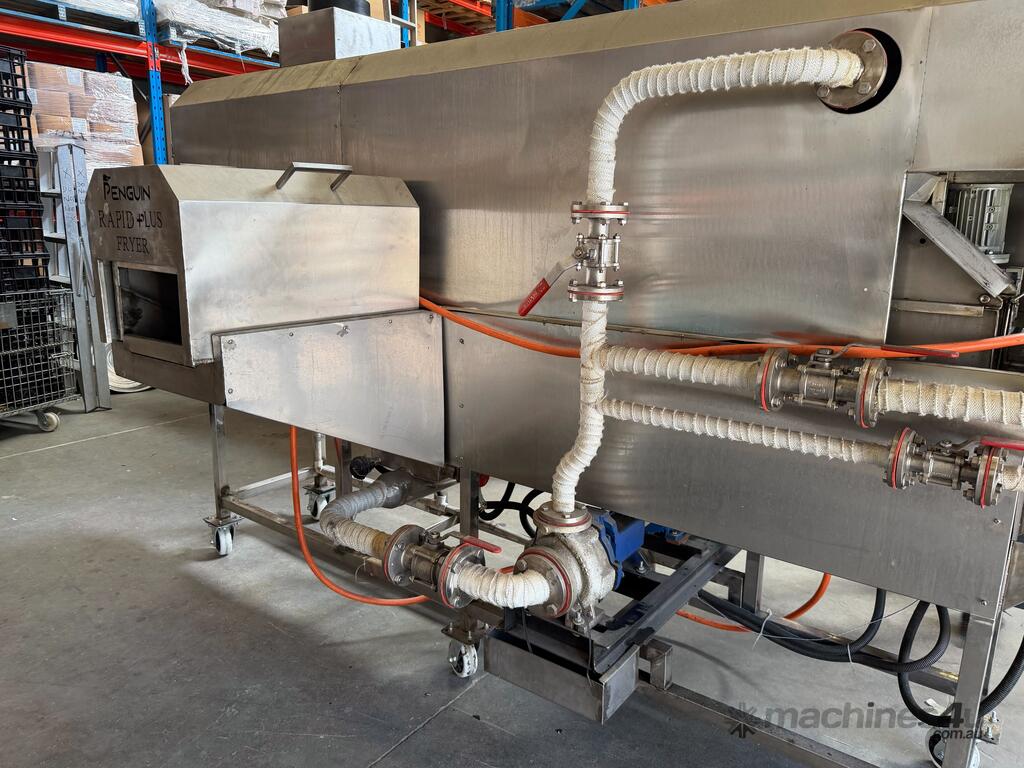

• It has a pump on the product loading side to push the product forward with an adjustment valve
• Rain drop system in the centre to cook product from all sides with adjusting valve
• Drain valve to empty the oil
• Couple of strainers on top of the heater to catch crumbs making the unit easier to clean

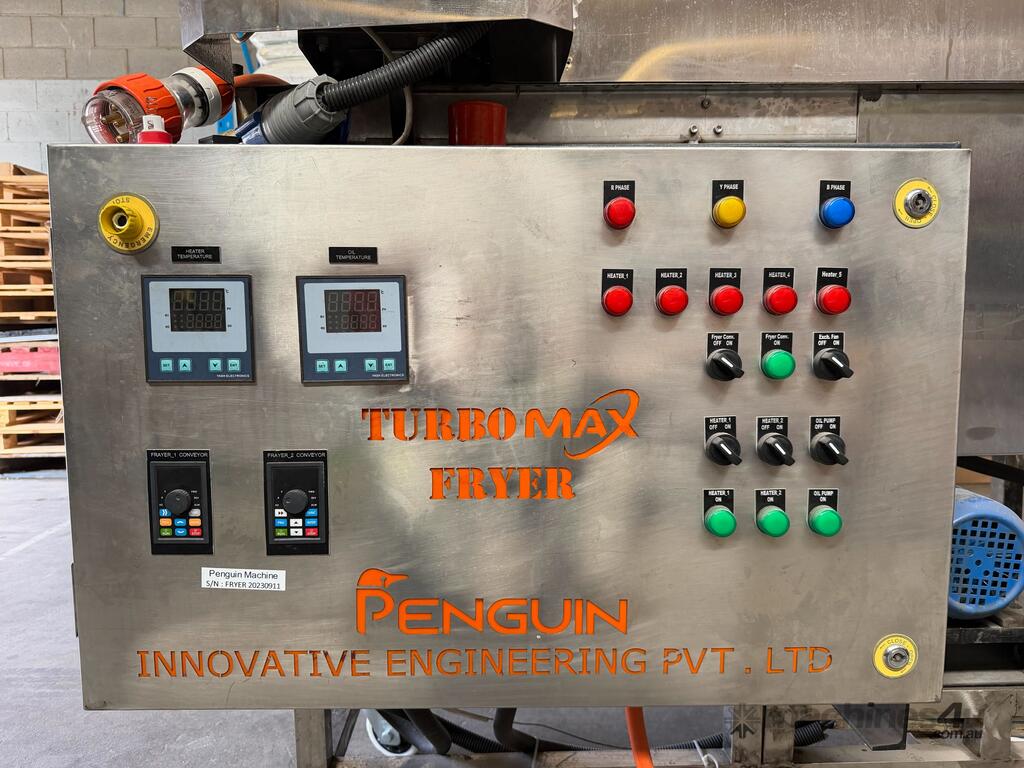

• Product travel time can be adjusted through a VSD from 10 sec to 60 sec (top flap belt)

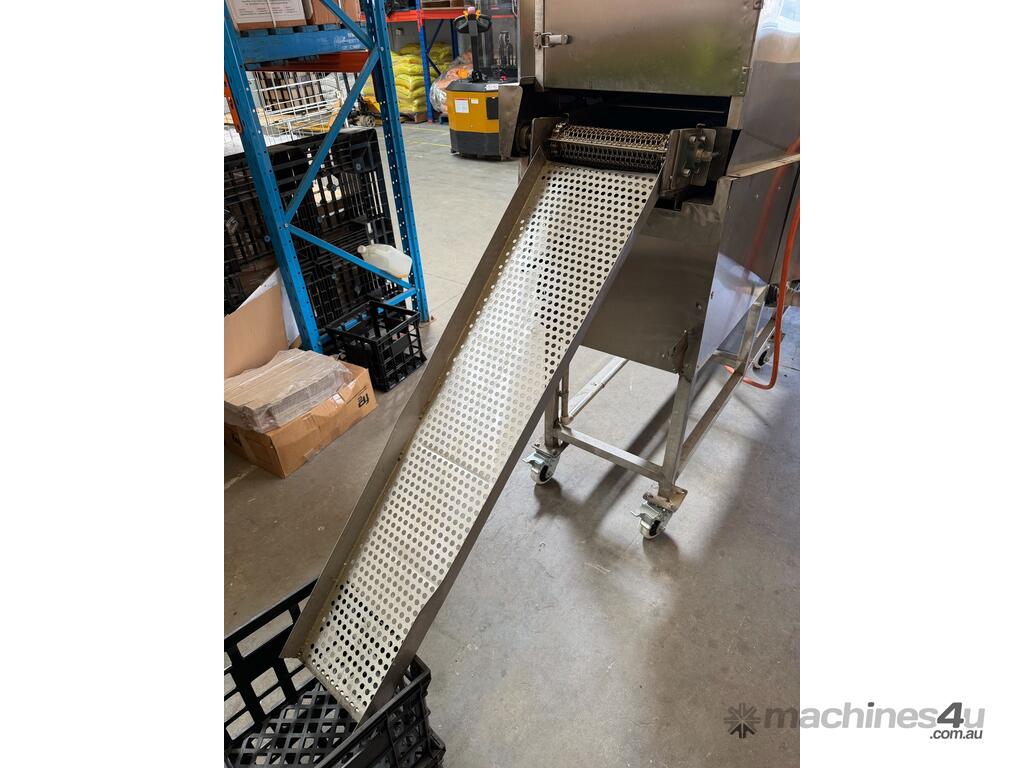

• Exit drain conveyor speed 5 sec to 30 sec (depending on the oil level)
• Exhaust fan on top

Make: Penguin
Model: Turbo Max
Year: 2023

Overall Dimensions - excluding conveyor (mm): 3100 L x 1400 W x 2200 H
